User Manual

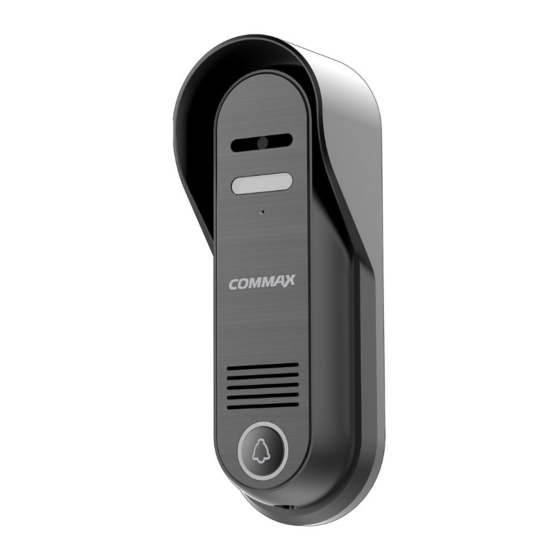

Door Camera DRC-4CPHD2
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DRC-4CPHD2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Commax DRC-4CPHD2

Summary of Contents for Commax DRC-4CPHD2

  • Page 1 User Manual Door Camera DRC-4CPHD2 • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product.

  • Page 2: The Names Of Each Part

    Contens 1. The names of Each Part Front side Back side 1. The names of Each Part 2. Wiring & Installation 3. Package 4. Specification ⑥ Mounting Holes ① Camera ⑦ Monitor cable ② LED Lamp ⑧ Door release cable ③...

  • Page 3: Wiring And Installation

    2. Wiring & Installation 1. Align holes on the wall where the unit is to be installed with mounting brackets hole and secure. FIG-1 : Install the camera at a 30 ˚ angle to the left (install the bracket in reverse to angle 30 ˚to the right) FIG-2 : Install the camera at a perpendicular...
  • Page 4 [FIG-1] [FIG-2]...
  • Page 5 ● Please refer to the below images regarding ● You can adjust speaker volume using driver the installation position of the product. as shown below. [FIG-4] 47˚ [FIG-4] 60cm...
  • Page 6 3. Package...

  • Page 7: Specification

    4. Specification Model No. DRC-4CPHD2 Power Consumption DC 12V (Supplied from monitor) 4 wires to a monitor (polarity) Wiring ( Main Unit / Door Release) 2 wires to the door release (non-polarity) Sensor Type CMOS 2 megapixel(AHD) Video Format NTSC or PAL STANDARD.
  • Page 8 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2018.04.105...
