AUDAC RMA40A Installation Manual

INSTALLATION MANUAL
RMA40A LIGHT TRACK ADAPTER MOUNT FOR ATEO4 WITH INCLINE

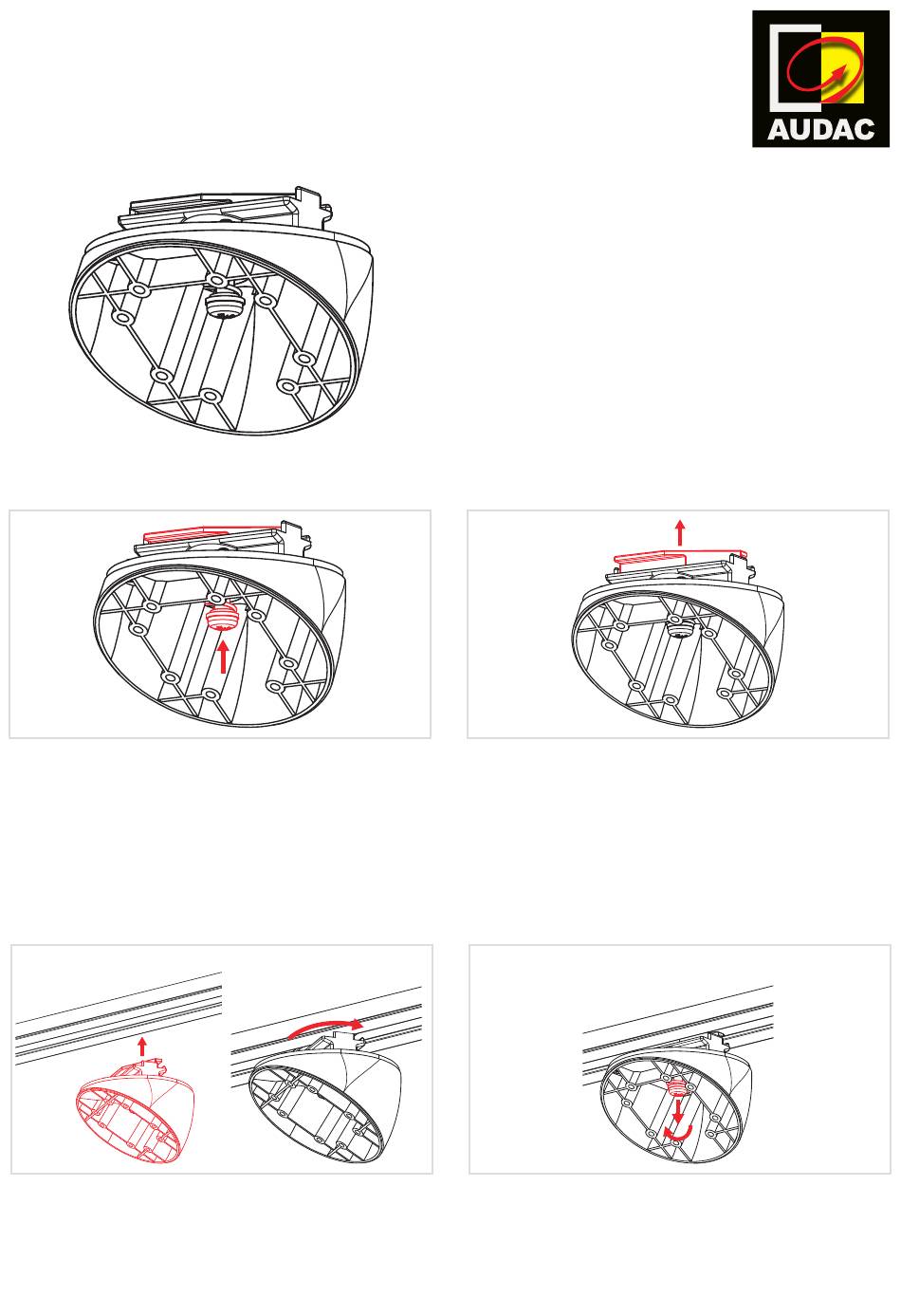

STEP 1

Press the bolt and spring in the center position of the
adapter, making the inner metal part of the adapter
moving out of the surrounding part.
Tip:
If strong forces have to be applied, the tension can
be reduced by releasing the bolt a couple of turns.

STEP 3

When aligned, slide the adapter in the rail and lock it
in place through pushing it inside and giving it a 30°
clockwise rotation.

STEP 2

The inner metal part moves out of the surrounding
part and can be inserted through the light track rail by
aligning it with with the slot opening (rotating about
30° counterclockwise).

STEP 4

When inserted, release the bolt and tighten it for a
more stable fixation. The light track adapter is now
locked in place and ready for getting the ATEO4
speaker assembled. Mount the wall plate of the ATEO4
speaker to the RMA40 through inserting and tightening
the 4 screws to the provided holes.
