INSTALLATION MANUAL
35 MM STAND ADAPTER FOR KYRA SERIES COLUMN SPEAKERS

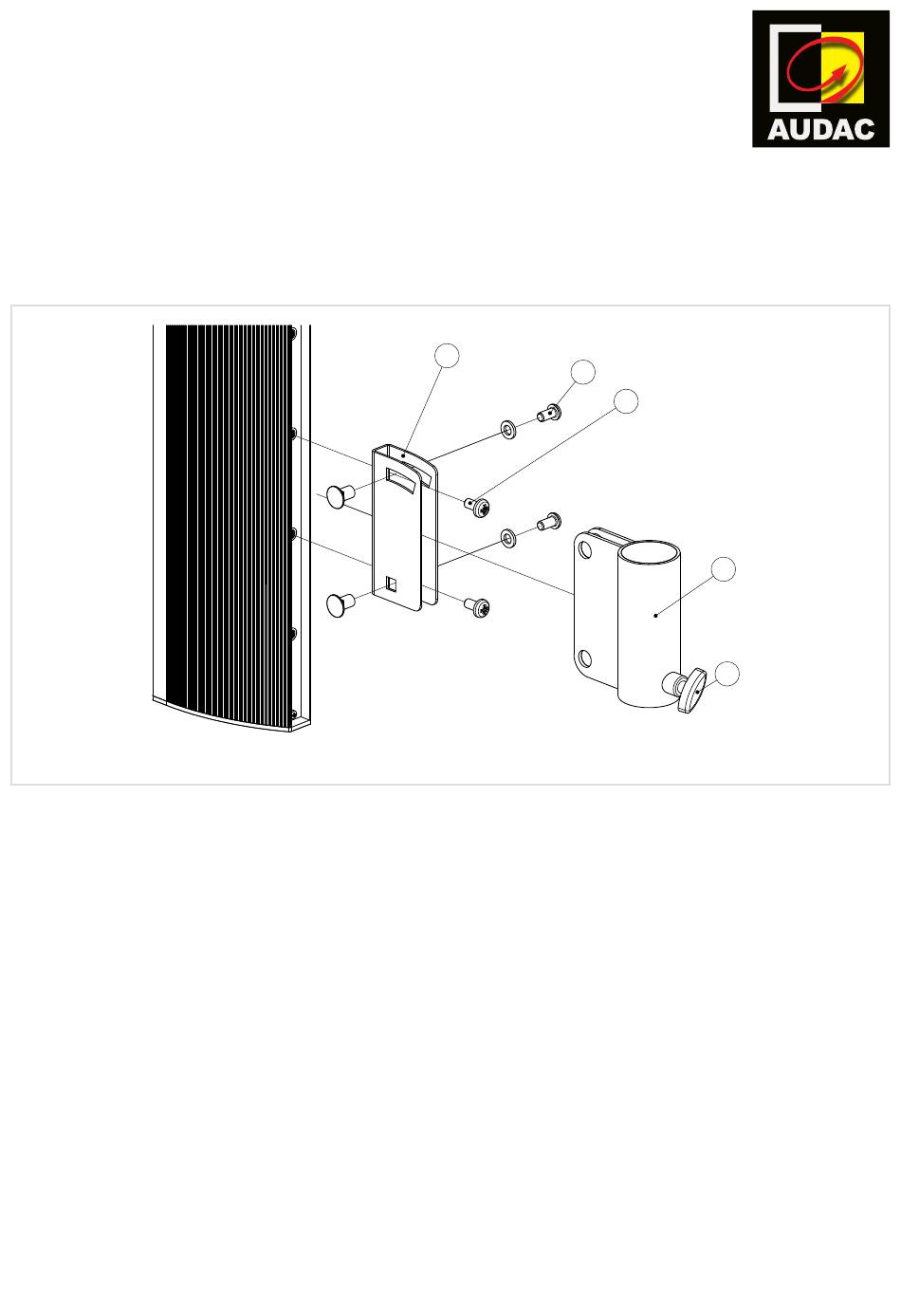

EXPLODE DRAWING
A
D
B
C
E
Install the speaker part ('A' - which is standard included with the KYRA6/12 series loudspeakers) at the provided
location on the rear side of the loudspeaker.
It can be assembled on different heights depending on the mounting possibilities and required installation
height. Fixation is done through inserting both supplied mounting screws ('B') into the pre-drilled and threaded
holes at the back of the speaker. Depending on the inclination direction (upward or downwards) this part can
be assembled in two directions.
The second part ('C') has to be fitted over a 35 mm pole fitting (such as a speaker stand). Assembling is done
through insertion of two bolts and nuts ('D' - included with the speaker). Tighten both bolts once the required
incline angle is set and fix to the pole fitting by tightening the thumb screw ('E').
NOTE: Part 'A' is standard included with KYRA6 and KYRA12 series column speakers. For use with KYRA24 series loudspeakers on a 35 mm
stand, this part has to be ordered individually with part number # AU02001012X
