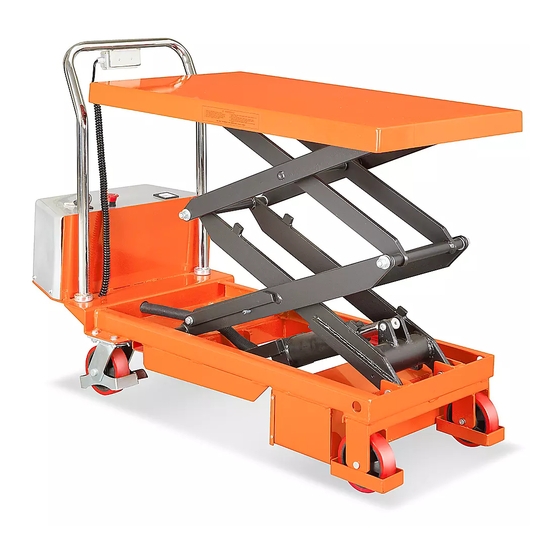

U-Line H-3767 Manual

H-3767
BATTERY OPERATED
DOUBLE SCISSOR
LIFT TABLE
WARNING! Do not operate this lift table unless
you have been trained to use it, authorized
to do so and have checked that it is in good
condition. The operator should read all of the
warning signs and instructions here and on the
lift table before using it.
1. Do not repair the lift table without professional
training and authorization.
2. The lift table should only be moved with the height of
the table in the lowest position.
3. DO NOT overload the lift table and always operate
it within the rated load. Overloading may cause
damage to the lift table and the operator.
PAGE 1 OF 12
1-800-295-5510
uline.com
TECHNICAL INFORMATION
SPECIFICATIONS
Weight Capacity
Max. Table Height
Min. Table Height
Table/Platform Size
Caster Wheel Dimensions
Overall Length
Height Of Handle From The Ground
Lift Range
Lifting Cycle (Fully Charged)
Lifting Motor
Operating Voltage
Battery Capacity
Noise Emission
SAFETY GUIDELINES
Pour le français, consulter les pages 9-12.
H-3767
770 lbs.
51⁄"
14⁄"
35⁄ x 19⁄ x 2"
5 x 1⁄"
48"
37"
36⁄"
100 lifts
1 HP
24V
30Ah
< 70dB
4. DO NOT stand or sit on the lift table to work.
5. DO NOT put hands or feet under the table when
lowering.
6. Apply the brakes while loading to prevent the lift
table from moving.
7. The load must be evenly distributed across the
whole table.
8. DO NOT load with loose or unstable materials.
9. DO NOT leave the lift table loaded for extended
periods of time.
10. The lift table should only be used on flat solid
surfaces.
Para Español, vea páginas 5-8.
0321 IH-3767
