U-Line H-1784 Technical Information

H-1784, H-8152

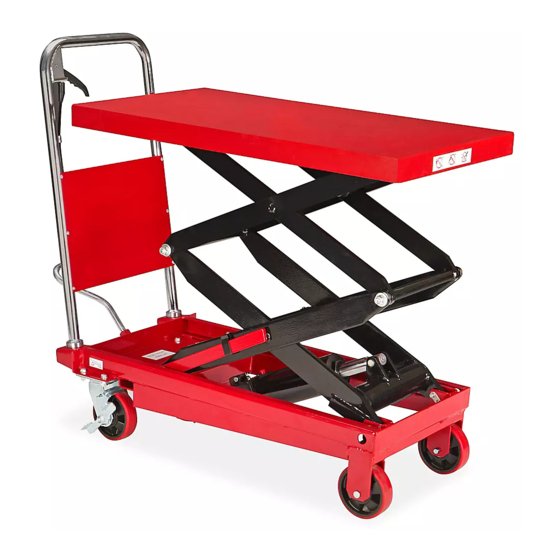

DOUBLE SCISSOR
LIFT TABLES
SPECIFICATIONS
Capacity
Height Raised
Height Lowered
Table Size
Total Height
Overall Length
Foot Pedal Cycles to Max. Height
Wheel Diameter
Weight
Working Volume of Oil Cylinder
Oil Capacity
1. Read all instructions carefully before operating the
lift table.
2. DO NOT overload the lift table and always operate
it within the rated load. Overloading will cause
damage to the lift table and the operator.
3. DO NOT stand or sit on the table to work.
4. DO NOT put hands or feet under the table when
lowering.
5. Apply the brakes while loading to prevent the table
from moving.
6. The load must be distributed uniformly across the
whole table.
7. DO NOT load loose or unstable loads onto the table.
8. DO NOT leave the table loaded for extended
periods of time.
PAGE 1 OF 9
1-800-295-5510
uline.com
TECHNICAL INFORMATION
H-1784
770 lbs.
51"
13.8"
36 x 20 x 2"
30.3"
42"
46
5"
223 lbs.
310 ml
400 ml
GENERAL INFORMATION
9. DO NOT move the truck while lifting.
10. The table should only be used on flat solid surfaces.
11. Make sure not to overload the table when it is in
12. When loading and unloading goods in the raised
13. When maintaining and repairing the table, the
Pour le français, consulter les pages 7-9.
H-8152
1,760 lbs.
59"
18.7"
48 x 24 x 2"
37.9"
54"
70
6"
379 lbs.
180 ml
275 ml
the raised position. The safety valve only works as
the table is lifted. Overloading in the raised position
may damage the table.
position, do not drag loads across the table.
This may cause offset loading and the table may
turn over.
stand bar should be used to support the fork arm in
order to prevent table from falling. There should not
be a load on table while maintaining and repairing
the table.
Para Español, vea páginas 4-6.
0821 IH-1784
