Thank you for purchasing this Panasonic product.
■ This manual is common to all the models regardless of suffixes of the Model No.
z for Taiwan
BT: Black model, the standard zoom lens supplied
z for India
BD: Black model, the standard zoom lens supplied
z for Korea
B: Black model, the standard zoom lens supplied
z for Asia (except for Taiwan, India, Korea) / Oceania / Africa
BA/B: Black model, the standard zoom lens supplied
WA/W: White model, the standard zoom lens supplied
z for other countries or regions
B: Black model, the standard zoom lens supplied
W: White model, the standard zoom lens supplied
■ Before operating this product, please read the instructions carefully and save this manual
for future use.
■ Before using this product, be sure to read "Read this first!" ( x pages 5 to 16).

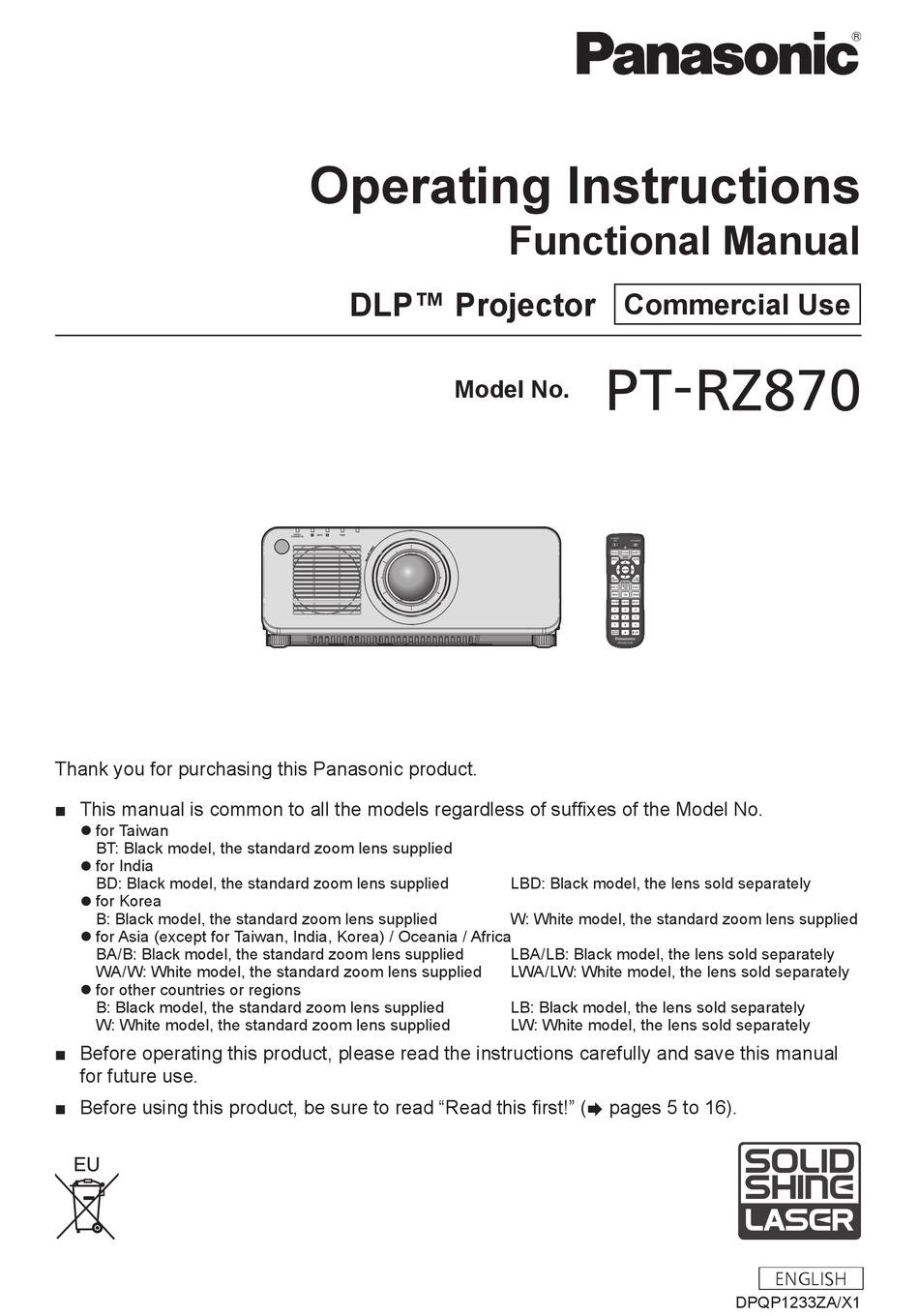

Operating Instructions
DLP™ Projector
Model No.
Functional Manual
Commercial Use
PT-RZ870
LBD: Black model, the lens sold separately
W: White model, the standard zoom lens supplied
LBA/LB: Black model, the lens sold separately
LWA/LW: White model, the lens sold separately
LB: Black model, the lens sold separately
LW: White model, the lens sold separately
ENGLISH
DPQP1233ZA/X1

Advertisement

Table of Contents
loading

Summary of Contents for Panasonic PT-RZ870LBEJ

  • Page 1 DLP™ Projector Commercial Use PT-RZ870 Model No. Thank you for purchasing this Panasonic product. ■ This manual is common to all the models regardless of suffixes of the Model No. z for Taiwan BT: Black model, the standard zoom lens supplied...
  • Page 2: Table Of Contents

    Contents Contents Read this first! Chapter 3 Basic Operations Switching on/off the projector Chapter 1 Preparation Connecting the power cord Power indicator Precautions for use Switching on the projector Intended use of the product When the initial setting screen is displayed Cautions when transporting Making adjustments and selections Cautions when installing...
  • Page 3 Contents [POSITION] menu [PROJECTOR SETUP] menu [SHIFT] [PROJECTOR ID] [ASPECT] [PROJECTION METHOD] [ZOOM] [OPERATION SETTING] [CLOCK PHASE] [LIGHT OUTPUT] [GEOMETRY] [BRIGHTNESS CONTROL] [ADVANCED MENU] menu [STANDBY MODE] [DIGITAL CINEMA REALITY] [QUICK STARTUP] [NO SIGNAL SHUT-OFF] [BLANKING] [NO SIGNAL LIGHTS-OUT] [INPUT RESOLUTION] [INITIAL STARTUP] [CLAMP POSITION] [STARTUP INPUT SELECT]...
  • Page 4 Contents [NETWORK] menu [DIGITAL LINK MODE] [DIGITAL LINK STATUS] [NETWORK SETUP] [NETWORK CONTROL] [NETWORK STATUS] [DIGITAL LINK MENU] [Art-Net SETUP] [Art-Net CHANNEL SETTING] [Art-Net STATUS] Chapter 5 Operations Network connection Connecting to the network Web control function Computer that can be used for setting Accessing from the web browser Chapter 6 Maintenance...
  • Page 5: Read This First

    Read this first! Read this first! WARNING: THIS APPARATUS MUST BE EARTHED. WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture. This device is not intended for use in the direct field of view at visual display workplaces. To avoid incommoding reflexions at visual display workplaces this device must not be placed in the direct field of view.
  • Page 6 Read this first! WARNING: RISK OF ELECTRIC SHOCK. DON’T OPEN Indicated on the projector The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 7 Read this first! (for Taiwan) This projector is the Class 1 laser product that complies with IEC/EN 60825-1:2014. (for India) This projector is the Class 1 laser product that complies with IEC/EN 60825-1:2014. (for other countries or regions) This projector is the Class 1 laser product that complies with IEC/EN 60825-1:2014. CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
  • Page 8 FCC NOTICE (USA) Verification Model Number: PT-RZ870B / PT-RZ870W / PT-RZ870LB / PT-RZ870LW Trade Name: Panasonic Responsible Party: Panasonic Corporation of North America Address: Two Riverfront Plaza, Newark, NJ 07102-5490 General Contact: http://www.panasonic.com/support Projector Contact: https://panasonic.net/cns/projector/ This device complies with Part 15 of the FCC Rules.
  • Page 9 L or colored RED. How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse. Importer’s name and address within the European Union Panasonic Marketing Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany...
  • Page 10 Read this first! r Hazard distance (IEC 62471-5:2015) The distance at which the level of exposure has reached the level of the applicable Exposure Limit Value is known as the hazard distance (HD) or safety distance. Do not look into the projected light from inside the hazard distance (within RG3 range). The eyes may be damaged by the direct irradiation.
  • Page 11 Read this first! r Risk group The combination of the projector and the projection lens is categorized as the risk group 2 when the hazard distance is less than 1 m (39-3/8 ). It is categorized as the risk group 3 when the hazard distance exceeds 1 m "...
  • Page 12 Read this first! WARNING: r POWER The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in fire or electric shock, or will cause visual impairment.
  • Page 13 If liquid enters inside of the projector, consult your dealer. f Particular attention must be paid to children. Use the ceiling mount bracket specified by Panasonic. Using the ceiling mount bracket other than the specified one will result in falling accidents.
  • Page 14 Read this first! CAUTION: r POWER When disconnecting the power cord, be sure to hold the power plug and power connector. If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks will result.
  • Page 15 Read this first! To remove the battery Remote Control Battery 1. Press the guide and lift the cover. 2. Remove the batteries. (ii) ENGLISH - 15...
  • Page 16 Read this first! Brazil Only Brasil Apenas r Manuseio de baterias usadas BRASIL Após o uso, as pilhas e/ou baterias deverão ser entregues ao estabelecimento comercial ou rede de assistência técnica autorizada. Cobrir os terminais positivo (+) e negativo (-) com uma fita isolante adesiva, antes de depositar numa caixa destinada para o recolhimento.
  • Page 17 SOLID SHINE is a trademark of Panasonic Corporation. f Windows, Internet Explorer, and Microsoft Edge are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. f Mac, macOS, and Safari are trademarks of Apple Inc., registered in the United States and other countries.
  • Page 18 Features of the Projector Quick Steps For details, refer to the corresponding pages. 1. Set up the projector. High luminance and high contrast (x page 35) ▶ With a unique optical system which uses a new-generation laser light source, and the laser light source drive system, high 2.
  • Page 19: Chapter 1 Preparation

    Preparation Chapter 1 This chapter describes things you need to know or check before using the projector. ENGLISH - 19...
  • Page 20: Precautions For Use

    Chapter 1 Preparation — Precautions for use Precautions for use Intended use of the product The purpose of the projector is to project a video signal from imaging equipment or a computer on a screen or other surface as a still image or moving image. Cautions when transporting f If you purchased the projector with the standard zoom lens, remove the lens protection material before use, and store it for the future use.
  • Page 21 Chapter 1 Preparation — Precautions for use rAsk a qualified technician or your dealer for the installation work such as installing to a ceiling, etc. To ensure projector performance and safety, ask a qualified technician or your dealer when installing to a ceiling or in a high place.
  • Page 22 Chapter 1 Preparation — Precautions for use rCautions when setting up the projector f The projector can be used by installing its top placed on the floor. To prevent the top surface from getting scratched during use, it is recommended to attach about a 20 mm (25/32") square buffer material (such as rubber cushion) on the four corners of the top surface.
  • Page 23: Security

    Panasonic takes no responsibility for any damage to the product caused by an inappropriate choice of location for installing the projector, even if the warranty period of the product has not expired.
  • Page 24: Art-Net

    Application software supported by the projector The projector supports following application software. For details or downloading each application software, visit the Panasonic website (https://panasonic.net/cns/projector/). f Logo Transfer Software This application software transfers the original image, such as company logo, which is projected at the start, to the projector.
  • Page 25 Chapter 1 Preparation — Precautions for use rLight source The light source of the projector uses lasers, and has the following characteristics. f Depending on the operating environment temperature, the luminance of the light source will decrease. The higher the temperature becomes, the more the luminance of the light source decreases. f The luminance of the light source will decrease by duration of usage.
  • Page 26: Accessories

    Chapter 1 Preparation — Precautions for use Accessories Make sure that the following accessories are provided with your projector. Numbers enclosed in < > show the number of accessories. Wireless/wired remote control unit <1> For Taiwan (N2QAYA000060) (1JP1RZ970) <1> Lens Mount Cover <1> (Black model: 1GE1RZ970BU) (White model: 1GE1RZ970WU) Power cord...
  • Page 27: Optional Accessories

    Chapter 1 Preparation — Precautions for use Optional accessories Optional accessories (product name) Model No. ET-DLE060, ET-DLE085, ET-DLE105, ET-DLE150, ET-DLE170 Zoom Lens ET-DLE250, ET-DLE350, ET-DLE450 Projection lens Fixed-focus Lens ET-DLE030, ET-DLE035 , ET-DLE055 ET-PKD120H (for High Ceilings) ET-PKD120S (for Low Ceilings) Ceiling Mount Bracket ET-PKD130H (for High Ceilings, 6-axis Adjustment) ET-PKD130B (Projector Mount Bracket)
  • Page 28: About Your Projector

    Chapter 1 Preparation — About your projector About your projector Remote control Front Bottom Power standby <v> button Number (<0> - <9>) buttons Sets the projector to the state where the projector is turned Used for entering an ID number or a password in a multiple off (standby mode) when the <MAIN POWER>...
  • Page 29 Chapter 1 Preparation — About your projector g Be sure the batteries are inserted properly. For other instructions, read the instructions related to batteries that are described in “Read this first!”. Caution label at the back of the remote control Note f When operating the remote control by directly pointing at the remote control signal receiver of the projector, operate the remote control within a distance approximately 30 m (98'5") from the remote control signal receiver.
  • Page 30: Projector Body

    Chapter 1 Preparation — About your projector Projector body Front Side Rear Light source indicator <LIGHT1> Bottom Indicates the status of light source 1. Light source indicator <LIGHT2> Indicates the status of light source 2. Temperature indicator <TEMP> Indicates the internal temperature status. (Not used with this projector) Adjustable feet Adjusts the projection angle.
  • Page 31 Chapter 1 Preparation — About your projector r Control panel Power on <b> button <MENU> button Sets the projector to projection mode when the <MAIN Displays or hides the main menu. (x page 76) POWER> switch on the projector is set to <ON> and the power Returns to the previous menu when a sub-menu is displayed.
  • Page 32 Chapter 1 Preparation — About your projector r Connecting terminals <REMOTE 1 IN> terminal/<REMOTE 1 OUT> terminal <SDI IN> terminal These are terminals to connect the remote control for serial This is a terminal to input the SDI signal. control in a multiple projector environment. <RGB 1 IN>...
  • Page 33: Preparing The Remote Control

    Chapter 1 Preparation — Preparing the remote control Preparing the remote control Inserting and removing the batteries (ii) Fig. 1 Fig. 2 Open the cover. (Fig. 1) Insert the batteries and close the cover (insert the m side first). (Fig. 2) f When removing the batteries, perform the steps in reverse order.
  • Page 34: Chapter 2 Getting Started

    Getting Started Chapter 2 This chapter describes things you need to do before using the projector such as the setup and connections. 34 - ENGLISH...
  • Page 35: Setting Up

    Chapter 2 Getting Started — Setting up Setting up Installation mode The installation modes of the projector are as follows. Set [FRONT/REAR]/[FLOOR/CEILING] in the [PROJECTOR SETUP] menu → [PROJECTION METHOD] (x page 119) depending on the installation mode. Setting on a desk/floor and projecting forward Setting on a desk/floor and projecting from rear (Using the translucent screen) Menu item...
  • Page 36: Parts For Installation (Optional)

    Chapter 2 Getting Started — Setting up r Angle sensor The range of the installation attitude that is detected by the angle sensor built-in the projector is as follows. Floor standing installation 30° Ceiling mount installation 30° Floor standing installation Projection direction Parts for installation (optional) The projector can be installed on the ceiling by combining the optional Ceiling Mount Bracket (Model No.: ET-PKD120H (for High Ceilings), ET-PKD120S (for Low Ceilings), ET-PKD130H (for High Ceilings, 6-axis...
  • Page 37 Chapter 2 Getting Started — Setting up Figure of projected image and throw distance Projected image Screen L (LW/LT) L (LW/LT) Screen Note f This illustration is prepared on the assumption that the projected image size and position have been aligned to fit full in the screen. Projected image height Projected image width Projected image size...
  • Page 38 Chapter 2 Getting Started — Setting up r For the Fixed-focus Lens (Model No.: ET-DLE030, ET-DLE035) Projected image Screen Screen Note f This illustration is prepared on the assumption that the projected image size and position have been aligned to fit full in the screen. Projected image height Projected image width Projected image size...
  • Page 39 Chapter 2 Getting Started — Setting up [GEOMETRY] projection range [VERTICAL KEYSTONE] (viewed from the side) [HORIZONTAL KEYSTONE] (viewed from above) Screen Screen Vertical arc correction (viewed from the side) Horizontal arc correction (viewed from above) Projection distance Projection distance Arc radius Arc radius Screen Screen...
  • Page 40 Chapter 2 Getting Started — Setting up Standard status Only [CURVED Only [KEYSTONE] used [KEYSTONE] and [CURVED CORRECTION] used together CORRECTION] used Projection Vertical Horizontal Vertical Horizontal lens Model keystone keystone keystone keystone Min. value of Min. value of Min. value of Min.
  • Page 41 Chapter 2 Getting Started — Setting up Projection distance of each projection lens A ±5 % error in listed projection distances may occur. When [GEOMETRY] is used, distance is corrected to become smaller than the specified image size. r When the screen aspect ratio is 16:10 (Unit: m) Lens type Zoom Lens...
  • Page 42 Chapter 2 Getting Started — Setting up (Unit: m) Lens type Fixed-focus Lens Projection lens Model No. ET-DLE055 ET-DLE030/ET-DLE035 Throw ratio 0.786:1 0.380:1 Distance from the Projection Height Projection Projected image size projector to the distance position distance screen Height Width (L1) Diagonal (SD) (L4)
  • Page 43 Chapter 2 Getting Started — Setting up (Unit: m) Lens type Zoom Lens Height position (H) Projection lens Model No. ET-DLE250 ET-DLE350 ET-DLE450 Standard zoom Throw ratio 2.27-3.62:1 3.58-5.45:1 5.36-8.58:1 lens/ET-DLE170/ Projected image size Projection distance (L) ET-DLE085/ ET-DLE105/ ET-DLE060 ET-DLE150/ Height Width Min.
  • Page 44 Chapter 2 Getting Started — Setting up r When the screen aspect ratio is 4:3 (Unit: m) Lens type Zoom Lens Standard zoom Projection lens Model No. ET-DLE060 ET-DLE085 ET-DLE105 ET-DLE150 lens/ET-DLE170 Throw ratio 2.06-2.90:1 0.724-0.965:1 0.943-1.18:1 1.18-1.59:1 1.56-2.27:1 Projected image size Projection distance (L) Height Width...
  • Page 45 Chapter 2 Getting Started — Setting up (Unit: m) Lens type Fixed-focus Lens Projection lens Model No. ET-DLE055 ET-DLE030/ET-DLE035 Throw ratio 0.946:1 0.456:1 Distance from the Projection Height Projection Projected image size projector to the distance position distance screen Height Width (L1) Diagonal (SD) (L4)
  • Page 46: Adjusting Adjustable Feet

    Chapter 2 Getting Started — Setting up Projection distance (L) formula Projection lens Model No. Throw ratio Aspect ratio Min. (LW) Max. (LT) 5.36 - 8.58:1 16:10 = 4.6931 x SD - 0.3017 = 7.4193 x SD - 0.2991 ET-DLE450 5.36 - 8.58:1 16:9 = 4.8236 x SD - 0.3017 = 7.6256 x SD - 0.2991...
  • Page 47: Removing/Attaching The Projection Lens

    Before attaching the projection lens, remove the lens cover attached to the projection lens. f Panasonic takes no responsibility for any damage or malfunction of the product resulting from the use of projection lenses which are not manufactured by Panasonic. Always use the standard zoom lens supplied with the projector or the specified projection lens.
  • Page 48: Attaching The Projection Lens

    Chapter 2 Getting Started — Removing/attaching the projection lens Attaching the projection lens Attach the projection lens using the following procedure. Guide groove Guide (ii) Projection lens Lens Mount Cover Fig. 1 Fig. 2 Fig. 3 Remove the Lens Mount Cover, and align the projection lens guide to the guide groove of the projector and insert to the end.
  • Page 49: Connecting

    Chapter 2 Getting Started — Connecting Connecting Before connecting f Before connecting, carefully read the operating instructions for the external device to be connected. f Turn off the power of all devices before connecting cables. f Take note of the following points before connecting the cables. Failure to do so may result in malfunctions. g When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static electricity from your body before performing work.
  • Page 50: Connecting Example: Av Equipment

    Chapter 2 Getting Started — Connecting <DVI-D IN> terminal pin assignments and signal names Outside view Pin No. Signal name Pin No. Signal name T.M.D.S data 2- (13) ― T.M.D.S data 2+ (14) +5 V T.M.D.S data 2/4 shield (15) ― (16) Hot plug detection (24)
  • Page 51: Connecting Example: Computers

    Chapter 2 Getting Started — Connecting For <SDI IN> terminal Digital VCR for commercial use SD-SDI signal, HD-SDI signal, or 3G-SDI signal Note f The input format can be switched using the [PICTURE] menu → [SYSTEM SELECTOR]. f Setting of the [DISPLAY OPTION] menu → [SDI IN] may be necessary depending on the connected external device. f Use a connection cable 5C-FB or higher (such as 5C-FB or 7C-FB), or Belden 1694A or higher to properly transmit the image.
  • Page 52: Connecting Example Using Digital Link

    150 m (492'2") if the twisted-pair-cable transmitter supports the long-reach communication method. If this distance is exceeded, image may be disrupted or a malfunction may occur in LAN communication. Please note that Panasonic does not support the use of the projector outside the maximum transmission distance.
  • Page 53: Connecting Example When Using The Contrast Synchronization Function/Shutter Synchronization Function

    (https://panasonic.net/cns/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
  • Page 54 Chapter 2 Getting Started — Connecting r Connecting example Connect all the projectors to be linked in a loop by daisy chain connection when using the contrast synchronization function/shutter synchronization function. The number of linked projectors is limited to the maximum of 64 projectors. Communication cable (straight all connected) Communication cable (straight all connected) Connecting terminals of the first projector...
  • Page 55: Chapter 3 Basic Operations

    Basic Operations Chapter 3 This chapter describes basic operations to start with. ENGLISH - 55...
  • Page 56: Switching On/Off The Projector

    Chapter 3 Basic Operations — Switching on/off the projector Switching on/off the projector Connecting the power cord Make sure that the supplied power cord is securely fixed to the <AC IN> terminal of the projector to prevent it from being removed easily. Confirm that the <MAIN POWER>...
  • Page 57: Power Indicator

    Chapter 3 Basic Operations — Switching on/off the projector For other countries or regions Confirm that the <MAIN POWER> switch on the side of the projector is on the <OFF> side, and remove the power plug from the outlet. Remove the power cord connector from the <AC IN> terminal of the projector while pressing the side tabs.
  • Page 58: Switching On The Projector

    Chapter 3 Basic Operations — Switching on/off the projector f The projector consumes power even in standby mode (power indicator <ON (G)/STANDBY (R)> lights/blinks in red). Refer to “Power consumption” (x page 204) for the power consumption. f When the projector receives the signal from the remote control, the power indicator <ON (G)/STANDBY (R)> will blink in the following color according to the status of the projector.
  • Page 59: When The Initial Setting Screen Is Displayed

    Chapter 3 Basic Operations — Switching on/off the projector When the initial setting screen is displayed When the projector is switched on for the first time after purchase, as well as when the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed, the focus adjustment screen is displayed after projection starts, and then the [INITIAL SETTING] screen is displayed.
  • Page 60 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (operation setting) Set the items regarding the operating method depending on the duration of use and the usage of the projector. After completed the initial setting, you can change the settings of each item from the [PROJECTOR SETUP] menu.
  • Page 61 [PC] & Control Software” *1 “Multi Monitoring & Control Software” can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). f Proceed to Step 15) if the brightness control is not to be performed (when [OFF] is selected). f Proceed to Step 11) when [PC] is selected.
  • Page 62 Chapter 3 Basic Operations — Switching on/off the projector Interrelation of luminance and runtime The projector can be operated at arbitrary brightness and duration of use by combining the settings of [MAX LIGHT OUTPUT LEVEL], [LIGHT OUTPUT], and [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP]. Interrelation of luminance and runtime is as follows.
  • Page 63 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (standby mode) Set the operation mode during standby. The factory default setting is [NORMAL], which allows you to use the network function during standby. To keep power consumption low during standby, set this item to [ECO]. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu →...
  • Page 64 Chapter 3 Basic Operations — Switching on/off the projector Press as to select [SCREEN POSITION]. f [SCREEN POSITION] cannot be selected or adjusted when [SCREEN FORMAT] is set to [16:10]. INITIAL SETTING SCREEN FORMAT 16:9 SCREEN POSITION Set as necessary for the screen in use. CHANGE MENU SELECT ENTER...
  • Page 65: Making Adjustments And Selections

    Chapter 3 Basic Operations — Switching on/off the projector Initial setting (date and time) Set the local date and time. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [DATE AND TIME]. To set the date and time automatically, refer to “Setting the date and time automatically” (x page 131). Press as to select an item.
  • Page 66: Switching Off The Projector

    Chapter 3 Basic Operations — Switching on/off the projector Note f When the projector is switched on for the first time after purchase, as well as when the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed, the focus adjustment screen is displayed after projection starts, and then the [INITIAL SETTING] screen is displayed.
  • Page 67: Projecting

    Chapter 3 Basic Operations — Projecting Projecting Check the external device connection (x page 49) and the power cord connection (x page 56), and turn on the power (x page 58) to start projection. Select the image to project, and adjust appearance of the projected image.
  • Page 68: Adjusting The Focus, Zoom, And Lens Shift

    Chapter 3 Basic Operations — Projecting Adjusting the focus, zoom, and lens shift Adjust the focus, zoom, and lens shift if the image projected to the screen or its position is shifted even if the projector and the screen are set up in the correct positions. When the Fixed-focus Lens (Model No.: ET-DLE030, ET-DLE035) is used, refer to “Adjusting the lens position and focus when the Fixed-focus Lens (Model No.: ET-DLE030, ET-DLE035) is used”...
  • Page 69: Adjusting The Lens Position And Focus When The Fixed-Focus Lens (Model No.: Et-Dle030, Et-Dle035) Is Used

    Chapter 3 Basic Operations — Projecting Turn the periphery focus adjustment ring by hand to adjust the focus in the periphery of the screen. Periphery focus adjustment ring Check the focus at the center of the image again and make fine adjustments. Note f The projected image size and scale shown on the periphery focus adjustment ring are an approximate guide.
  • Page 70: Setting The Lens Position

    Chapter 3 Basic Operations — Projecting Setting the lens position To move the lens position to the home position or the lens standard position, perform the following procedure. Press the <DEFAULT> button on the remote control while the shift adjustment screen is displayed. f The [HOME POSITION] screen is displayed.
  • Page 71: Lens Shift Range

    Chapter 3 Basic Operations — Projecting Lens shift range The projector can adjust the position of the projected image within the lens shift range for each projection lens based on the position of the projected image in the home position (standard projection position). Perform the lens shift adjustment within the range indicated in the following illustration.
  • Page 72: Operating With The Remote Control

    Chapter 3 Basic Operations — Operating with the remote control Operating with the remote control Using the shutter function If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible to turn off the image temporarily. button Press the <SHUTTER>...
  • Page 73: Using The Automatic Setup Function

    Chapter 3 Basic Operations — Operating with the remote control Using the automatic setup function The image position when the DVI-D/HDMI signal is input, or the resolution, clock phase, and image position when the analog RGB signal is input can be adjusted automatically. (Analog RGB signal is a signal structured with dots just like the computer signal.) It is recommended to input an image with bright white borders at the edges and high-contrast black and white characters when the automatic adjustment is being performed.
  • Page 74: Using The Status Function

    Chapter 3 Basic Operations — Operating with the remote control Using the status function Display the status of the projector. button Press the <STATUS> button. f The [STATUS] screen is displayed. STATUS PROJECTOR TYPE RZ870(123456789012) PROJECTOR RUNTIME 100000h LIGHT RUNTIME 100000h / 100000h MAIN/SUB VERSION 1.00 / 1.00 INTAKE AIR TEMP.
  • Page 75: Chapter 4 Settings

    Settings Chapter 4 This chapter describes the settings and adjustments you can make using the on-screen menu. ENGLISH - 75...
  • Page 76: Menu Navigation

    Chapter 4 Settings — Menu navigation Menu navigation The on-screen menu (Menu) is used to perform various settings and adjustments of the projector. Navigating through the menu Operating procedure button Press the <MENU> button on the remote control or control panel. f The [MAIN MENU] screen is displayed.
  • Page 77: Main Menu

    Chapter 4 Settings — Menu navigation Press as to select a sub-menu, and press qw or the <ENTER> button to change or adjust settings. f Some items will switch in order as follows each time you press qw. f For some items, press qw to display an individual adjustment screen with a bar scale as shown below. CONTRAST ADJUST Note...
  • Page 78: Sub-Menu

    Chapter 4 Settings — Menu navigation Main menu item Page [DISPLAY OPTION] [PROJECTOR SETUP] [P IN P] [TEST PATTERN] [SIGNAL LIST] [SECURITY] [NETWORK] Sub-menu The sub-menu of the selected main menu item is displayed, and you can set and adjust items in the sub-menu. [PICTURE] Sub-menu item Factory default...
  • Page 79 Chapter 4 Settings — Menu navigation Sub-menu item Factory default Page [FRAME RESPONSE] [NORMAL] [RASTER POSITION] ― *1 Depends on the signal input. Note f The factory default setting varies depending on the selected input terminal. [DISPLAY LANGUAGE] Details (x page 99) [DISPLAY OPTION] Sub-menu item Factory default...
  • Page 80 Chapter 4 Settings — Menu navigation Sub-menu item Factory default Page [FUNCTION BUTTON] ― [LENS CALIBRATION] [NORMAL] [STATUS] ― [SAVE ALL USER DATA] ― [LOAD ALL USER DATA] ― [INITIALIZE] ― [SERVICE PASSWORD] ― [P IN P] Details (x page 141) [TEST PATTERN] Details (x page 143) [SIGNAL LIST]...
  • Page 81: [Picture] Menu

    Chapter 4 Settings — [PICTURE] menu [PICTURE] menu On the menu screen, select [PICTURE] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. [PICTURE MODE] You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used.
  • Page 82: [Color]

    Chapter 4 Settings — [PICTURE] menu Operation Adjustment Range of adjustment Press w. Increases the brightness of the dark (black) parts of the screen. -31 - +31 Press q. Reduces the brightness of the dark (black) parts of the screen. [COLOR] You can adjust the color saturation of the projected image.
  • Page 83 Chapter 4 Settings — [PICTURE] menu Press qw or the <ENTER> button. f The [COLOR TEMPERATURE] individual adjustment screen is displayed. Press qw to select [USER1] or [USER2]. Press the <ENTER> button. f The [COLOR TEMPERATURE] screen is displayed. Press as to select [WHITE BALANCE]. Press the <ENTER>...
  • Page 84: [White Gain]

    Chapter 4 Settings — [PICTURE] menu Note f Adjust [COLOR TEMPERATURE] correctly. All colors will not be displayed properly unless adequate adjustment is made. If the adjustment does not look suitable, you can press the <DEFAULT> button on the remote control to return the setting for the selected item only to the factory default setting.
  • Page 85: [System Daylight View]

    Chapter 4 Settings — [PICTURE] menu Changing the [USER] name Press as to select [GAMMA]. Press qw or the <ENTER> button. f The [GAMMA] individual adjustment screen is displayed. Press qw to select [USER]. Press the <ENTER> button. f The [GAMMA] screen is displayed. Press the <ENTER>...
  • Page 86: [Noise Reduction]

    Chapter 4 Settings — [PICTURE] menu [NOISE REDUCTION] You can reduce noises when the input image is degraded and noise is occurring in the image signal. Press as to select [NOISE REDUCTION]. Press qw or the <ENTER> button. f The [NOISE REDUCTION] individual adjustment screen is displayed. Press qw to switch the item.
  • Page 87: [System Selector]

    Chapter 4 Settings — [PICTURE] menu Setting item Details Adjusts the light source when the brightness level of the video [BRIGHT SIGNAL LEVEL] signal being input gets lower than the set value. The higher the (Setting of the brightness [6%] - [50%] value, the larger the range to perform the light adjustment of the level of the signal to start the light source.
  • Page 88: Srgb-Compliant Video

    Chapter 4 Settings — [PICTURE] menu Terminal System format 480/60i, 576/50i, or 576/50p Select [RGB] or [YC signal <RGB 1 IN> terminal, <RGB 2 640 x 480/60 or 480/60p Select an item from [640x480/60], [480/60p YC ], or [480/60p IN> terminal signal RGB].
  • Page 89: [Position] Menu

    Chapter 4 Settings — [POSITION] menu [POSITION] menu On the menu screen, select [POSITION] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. Note f When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the <DIGITAL LINK/ LAN>...
  • Page 90: [Zoom]

    Chapter 4 Settings — [POSITION] menu The projector identifies the video ID (VID) embedded in the video signals and displays the image by [AUTO] automatically switching the screen sizes between 4:3 and 16:9. This function is effective for 480/60i and 480/60p signals. [THROUGH] Displays images without changing the resolution of the input signals.
  • Page 91: [Clock Phase]

    Chapter 4 Settings — [POSITION] menu When [ASPECT] is set to [DEFAULT] Press as to select [ZOOM]. Press the <ENTER> button. f The [ZOOM] screen is displayed. Press as to select [MODE]. Press qw to switch the item. [INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMAT]. [FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMAT].
  • Page 92 Chapter 4 Settings — [POSITION] menu [CURVED CORRECTION] Adjusts any curved distortion in the projected image. [PC-1] [PC-2] Performs geometric adjustment using a computer. [PC-3] *1 Advanced skills are necessary to use a computer to control geometric adjustment. Consult your dealer. Up to three geometric adjustments performed using the computer can be saved.
  • Page 93 Chapter 4 Settings — [POSITION] menu [CURVED CORRECTION] [VERTICAL BALANCE] [HORIZONTAL BALANCE] [MAINTAIN ASPECT RATIO] Select [ON] to correct while keeping the aspect ratio. Setting [CORNER CORRECTION] Press as to select [GEOMETRY]. Press qw to select [CORNER CORRECTION]. Press the <ENTER> button. f The [GEOMETRY:CORNER CORRECTION] screen is displayed.
  • Page 94: [Advanced Menu] Menu

    Chapter 4 Settings — [ADVANCED MENU] menu [ADVANCED MENU] menu On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. [DIGITAL CINEMA REALITY] The picture quality is enhanced by raising the vertical resolution higher performing the cinema processing when interlace signal for moving image is input.
  • Page 95: [Input Resolution]

    Chapter 4 Settings — [ADVANCED MENU] menu Blanking correction Item Operation Adjustment Range of adjustment The blanking zone Press w. moves to the right. Left side of the [LEFT] screen The blanking zone Press q. moves to the left. Left and right 0 - 959 The blanking zone Press q.
  • Page 96 Chapter 4 Settings — [ADVANCED MENU] menu Use the user-setting value for the inclination of the edge blending area. (Configuration/registration [USER] requires separate software. Consult your dealer.) f Proceed to Step 3) when anything other than [OFF] is selected. Press the <ENTER> button. f The [EDGE BLENDING] screen is displayed.
  • Page 97: [Frame Response]

    Chapter 4 Settings — [ADVANCED MENU] menu 18) Press qw to adjust the tilt of the border between [NON-OVERLAPPED BLACK LEVEL] and [BLACK BORDER LEVEL]. 19) Press as to select [BLACK BORDER LEVEL]. 20) Press the <ENTER> button. f The [BLACK BORDER LEVEL] screen is displayed. f [RED], [GREEN], and [BLUE] can be adjusted individually if [INTERLOCKED] is set to [OFF].
  • Page 98: [Raster Position]

    Chapter 4 Settings — [ADVANCED MENU] menu Note f When [FAST] is set, the picture quality deteriorates. The [ADVANCED MENU] menu → [DIGITAL CINEMA REALITY] cannot be set. f [FRAME RESPONSE] cannot be set while in the P IN P mode. [RASTER POSITION] This will allow the position of the image to move within the display area arbitrarily when the input image is not using the whole display area.
  • Page 99: [Display Language] Menu

    Chapter 4 Settings — [DISPLAY LANGUAGE] menu [DISPLAY LANGUAGE] menu On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub-menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. Changing the display language You can select the language of the on-screen display.
  • Page 100: [Display Option] Menu

    Chapter 4 Settings — [DISPLAY OPTION] menu [DISPLAY OPTION] menu On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. [COLOR MATCHING] Correct the color difference between projectors when using multiple projectors simultaneously.
  • Page 101: [Color Correction]

    Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [MEASURED MODE] screen is displayed. Press as to select [MEASURED DATA]. Press the <ENTER> button. f The [MEASURED DATA] screen is displayed. Measure the current luminance (Y) and the chromaticity coordinates (x, y) using the colorimeter. Press as to select a color, and press qw to adjust the setting.
  • Page 102: [Auto Signal]

    Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select [SCREEN POSITION]. f [SCREEN POSITION] cannot be selected or adjusted when [SCREEN FORMAT] is set to [16:10]. Press qw to adjust [SCREEN POSITION]. [AUTO SIGNAL] Set whether to execute automatic setup of signals automatically. The screen display position or signal level can be adjusted automatically without pressing the <AUTO SETUP>...
  • Page 103: [Backup Input Setting]

    Chapter 4 Settings — [DISPLAY OPTION] menu Adjusting position automatically Press as to select [AUTO SETUP]. Press the <ENTER> button. f The [AUTO SETUP] screen is displayed. Press as to select [POSITION ADJUST]. Press qw to switch the item. [ON] Adjust the screen position and size when automatic setup is executed. [OFF] Does not perform automatic adjustment.
  • Page 104: [Rgb In]

    Chapter 4 Settings — [DISPLAY OPTION] menu Note f Backup function is enabled only when the [BACKUP INPUT MODE] is set to [ON], and the same signal is input to the <DVI-D IN> and <HDMI IN> terminals. f To switch to the backup input signal using the backup function, make sure that the following three conditions are satisfied to be ready to use the function.
  • Page 105: [Dvi-D In]

    Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [RGB IN] screen is displayed. Press as to select [RGB2 EDID MODE]. Press the <ENTER> button. f The [RGB2 EDID MODE] screen is displayed. Press qw to switch [EDID MODE]. f The items will switch each time you press the button.
  • Page 106 Chapter 4 Settings — [DISPLAY OPTION] menu Note f The optimal setting varies depending on the output setting of the connected external device. Refer to the operating instructions of the external device regarding the output of the external device. Setting [EDID SELECT] in [DVI-D IN] Press as to select [DVI-D IN].
  • Page 107: [Hdmi In]

    Chapter 4 Settings — [DISPLAY OPTION] menu 10) Press the <ENTER> button. f The confirmation screen is displayed. 11) Press qw to select [OK], and press the <ENTER> button. Note f Settings in [RESOLUTION] and [VERTICAL SCAN FREQUENCY] are displayed in the [DVI-D IN] screen. f Setting of the resolution and the vertical scanning frequency may be necessary on the computer or video device in use.
  • Page 108: [Digital Link In]

    Chapter 4 Settings — [DISPLAY OPTION] menu Press asqw to select [RESOLUTION]. f Select [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p], [1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p]. Press the <ENTER> button. f The [VERTICAL SCAN FREQUENCY] screen is displayed. Press qw to select [VERTICAL SCAN FREQUENCY].
  • Page 109: [Sdi In]

    Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to switch the item. f The items will switch each time you press the button. [DEFAULT] Standard setting. [SCREEN FIT] Changes the EDID data according to the [SCREEN FORMAT] setting. [USER] Sets the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items as EDID. f Proceed to Step 10) when [DEFAULT] or [SCREEN FIT] is selected.
  • Page 110: [On-Screen Display]

    Chapter 4 Settings — [DISPLAY OPTION] menu [AUTO] Automatically selects [12-bit] or [10-bit]. [12-bit] Fixes to [12-bit]. [10-bit] Fixes to [10-bit]. Setting [3G-SDI MAPPING] Press as to select [SDI IN]. Press the <ENTER> button. f The [SDI IN] screen is displayed. Press as to select [3G-SDI MAPPING].
  • Page 111 Chapter 4 Settings — [DISPLAY OPTION] menu [OFF] Does not rotate the screen. [CLOCKWISE] Rotates the screen by 90° clockwise. [COUNTERCLOCKWISE] Rotates the screen by 90° counterclockwise. Setting [OSD DESIGN] Set the color of the menu screen (OSD). Press as to select [ON-SCREEN DISPLAY]. Press the <ENTER>...
  • Page 112: B C R Signal Is Input)

    Chapter 4 Settings — [DISPLAY OPTION] menu Setting [WARNING MESSAGE] Set the display/hide of the warning message. Press as to select [ON-SCREEN DISPLAY]. Press the <ENTER> button. f The [ON-SCREEN DISPLAY] screen is displayed. Press as to select [WARNING MESSAGE]. Press qw to switch the item. f The items will switch each time you press the button.
  • Page 113: [Image Rotation]

    Displays the image registered by the user. Note f To create and register the [USER LOGO] image, use “Logo Transfer Software”. The software can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). [STARTUP LOGO] Set the logo display when the power is turned on.
  • Page 114: [Uniformity]

    Chapter 4 Settings — [DISPLAY OPTION] menu [UNIFORMITY] Correct the brightness and color unevenness of the entire screen. Setting each color Press as to select [UNIFORMITY]. Press the <ENTER> button. f The [UNIFORMITY] screen is displayed. Press as to select [WHITE], [RED], [GREEN], or [BLUE]. Press qw to adjust the level.
  • Page 115: [Shutter Setting]

    Chapter 4 Settings — [DISPLAY OPTION] menu [SHUTTER SETTING] Set the operation of the shutter function. Setting [FADE-IN] or [FADE-OUT] Set the image fade-in and fade-out when the shutter function operates. Press as to select [SHUTTER SETTING]. Press the <ENTER> button. f The [SHUTTER SETTING] screen is displayed.
  • Page 116: [Freeze]

    Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to switch the item. f The items will switch each time you press the button. Select this item when the contrast synchronization function and the shutter synchronization function [OFF] are not used. Select this item when the contrast synchronization function or the shutter synchronization function is used.
  • Page 117 Chapter 4 Settings — [DISPLAY OPTION] menu [ON] Displays the waveform monitor. Press the <MENU> button two times to clear. Press as to select any horizontal line. Press the <ENTER> button to switch the Select line to either luminance, red, green, or blue. f Line selection items switch each time the <ENTER>...
  • Page 118: [Cut Off]

    Chapter 4 Settings — [DISPLAY OPTION] menu Note f Confirm that the [SIGNAL LEVEL] setting of the input signal is correct before adjusting the black level. Confirm the [SIGNAL LEVEL] setting in the [DISPLAY OPTION] menu → [DVI-D IN]/[HDMI IN]/[DIGITAL LINK IN]/[SDI IN] → [SIGNAL LEVEL].
  • Page 119: [Projector Setup] Menu

    Chapter 4 Settings — [PROJECTOR SETUP] menu [PROJECTOR SETUP] menu On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. [PROJECTOR ID] The projector has an ID number setting function that can be used when multiple projectors are used side by side to enable simultaneous control or individual control via a single remote control.
  • Page 120: [Operation Setting]

    Chapter 4 Settings — [PROJECTOR SETUP] menu [OPERATION SETTING] Set the operation method of the projector. The settings are reflected when “Initial setting (operation setting)” (x page 60) in the [INITIAL SETTING] screen is already set. If you change the settings while using the projector, the duration until the luminance of light source decreases by half may shorten or the luminance may decrease.
  • Page 121 Chapter 4 Settings — [PROJECTOR SETUP] menu Operation Adjustment Range of adjustment Press w. Increases the maximum level of brightness correction. 8.0 % - 100.0 % Press q. Decreases the maximum level of brightness correction. Press as to select [APPLY]. Press the <ENTER> button. When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER>...
  • Page 122 When the brightness of light source or white balance changes, the brightness of the screen is automatically corrected. Synchronizes nine or more projectors using a computer and the dedicated software “Multi Monitoring [PC] & Control Software” *1 “Multi Monitoring & Control Software” can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). 122 - ENGLISH...
  • Page 123 Chapter 4 Settings — [PROJECTOR SETUP] menu f Proceed to Step 7) when [PC] is selected. Press as to select [LINK]. Press qw to switch the item. f The items will switch each time you press the button. Performs correction by the brightness sensor on one projector without synchronizing with the other projectors.
  • Page 124: [Light Output]

    Chapter 4 Settings — [PROJECTOR SETUP] menu f When the projector operates with [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP] set to [AUTO] or [PC], the items of [OPERATING MODE] and [LIGHT OUTPUT] cannot be changed. f When the projector operates with [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP] set to [AUTO], and [LINK] set to [OFF], the brightness will be corrected until it reaches the value set in [MAX LIGHT OUTPUT LEVEL].
  • Page 125: [Brightness Control]

    Synchronizes nine or more projectors using a computer and the dedicated software “Multi Monitoring [PC] & Control Software” *1 “Multi Monitoring & Control Software” can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). f Proceed to Step 9) when [PC] is selected. Press as to select [LINK].
  • Page 126 Chapter 4 Settings — [PROJECTOR SETUP] menu 12) Press the <ENTER> button. f [CALIBRATION TIME] is set. f Brightness and color are measured at the specified time. The dynamic contrast function does not operate during measurement. 13) Press as to select [CALIBRATION MESSAGE]. 14) Press qw to switch the item.
  • Page 127 Chapter 4 Settings — [PROJECTOR SETUP] menu [BRIGHTNESS CONTROL STATUS] screen display example When [CONSTANT MODE] is set to [OFF] The screen shows the status that the brightness control is disabled. BRIGHTNESS CONTROL STATUS CONSTANT MODE PROJECTOR RETURN MENU When [CONSTANT MODE] is set to [AUTO], and [LINK] is set to [OFF] The screen shows the status of the brightness control in one projector.
  • Page 128 There is a problem with the brightness sensor. If problems persist even after switching on the [Brightness Sensor Error] power, consult your dealer. *1 “Multi Monitoring & Control Software” can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). Note f If the synchronized projectors are not displayed in the list, check the following:...
  • Page 129: [Standby Mode]

    Chapter 4 Settings — [PROJECTOR SETUP] menu 12) Adjust [LIGHT OUTPUT] of each projector. f Adjust [LIGHT OUTPUT] of all the other projectors so that the brightness will be the same as the projector with the least brightness. 13) Set [CONSTANT MODE] of [BRIGHTNESS CONTROL SETUP] to [AUTO], and [LINK] to [GROUP A] in all projectors.
  • Page 130: [No Signal Shut-Off]

    Chapter 4 Settings — [PROJECTOR SETUP] menu f When [QUICK STARTUP] is set to [ON], the [QUICK STARTUP] function is disabled when the time set in [VALID PERIOD] elapses after the projector enters the standby mode. The startup time and power consumption will be the same as when [QUICK STARTUP] is set to [OFF]. f When [QUICK STARTUP] is set to [ON], the power indicator <ON (G)/STANDBY (R)>...
  • Page 131: [Date And Time]

    Sets the input to DIGITAL LINK. [SDI] Sets the input to SDI. Sets the input to DIGITAL LINK, and switches the input of the Panasonic twisted-pair-cable [INPUT1] - [INPUT10] transmitter to the specified input. *1 When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the projector, its input name is automatically reflected from [INPUT1] to [INPUT10].
  • Page 132: [Schedule]

    Chapter 4 Settings — [PROJECTOR SETUP] menu Note f To set the date and time automatically, the projector must be connected to the network. f If synchronization with the NTP server fails just after [NTP SYNCHRONIZATION] is set to [ON], [NTP SYNCHRONIZATION] will return to [OFF].
  • Page 133 Switches the input to SDI. Switches the input to DIGITAL LINK, and switches the input of the [INPUT1] - [INPUT10] Panasonic twisted-pair-cable transmitter to the specified input. [NORMAL] Prioritizes luminance. Controls the power to increase the life of the light source with higher [ECO] luminance.
  • Page 134: [Multi Projector Sync]

    Chapter 4 Settings — [PROJECTOR SETUP] menu f The operating time will be the local time. (x page 131) f If an operation is executed with the remote control or control panel of the projector or with a control command before the command set in [SCHEDULE] is executed, the command set with the schedule function may not be executed.
  • Page 135 Chapter 4 Settings — [PROJECTOR SETUP] menu Note f The contrast synchronization function will operate when all of the following conditions are fulfilled. g All the projectors to be linked are connected in a loop with the daisy chain connection. (Maximum 64 projectors) g [MODE] on only one projector that is linked is set to [MASTER], and [MODE] on all other projectors are set to [SLAVE].
  • Page 136 Chapter 4 Settings — [PROJECTOR SETUP] menu Setting the communication condition of the <SERIAL/MULTI PROJECTOR SYNC IN> terminal Press as to select [RS-232C]. Press the <ENTER> button. f The [RS-232C] screen is displayed. Press as to select [INPUT SELECT]. Press qw to switch the item. Performs the RS-232C communication with the <SERIAL/MULTI PROJECTOR SYNC IN>...
  • Page 137: [Remote2 Mode]

    Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [RS-232C] screen is displayed. Press as to select [RESPONSE(ID ALL)]. Press qw to switch the item. [ON] Returns the response when an ID is designated as ALL. [OFF] Does not return the response when an ID is designated as ALL.
  • Page 138: [Lens Calibration]

    Chapter 4 Settings — [PROJECTOR SETUP] menu [WAVEFORM MONITOR] Displays the waveform of the input signal. (x page 116) [ASPECT] Switches the aspect ratio of the image. (x page 89) [PROJECTION METHOD] Switches the [PROJECTION METHOD] setting. (x page 119) Press the <ENTER> button. [LENS CALIBRATION] Detect the lens shift limit value of the projector and set the home position and the ET-DLE030, ET-DLE035 lens standard position automatically.
  • Page 139: [Save All User Data]

    Chapter 4 Settings — [PROJECTOR SETUP] menu [SIGNAL NAME] Displays the input signal name. [MEMORY NO.] Displays the memory number of the input signal. Displays whether switching to the backup input signal is possible or not when [BACKUP INPUT [BACKUP INPUT STATUS] MODE] is set to [OFF].
  • Page 140: [Initialize]

    Chapter 4 Settings — [PROJECTOR SETUP] menu Enter a security password and press the <ENTER> button. When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER> button. Note f The projector enters the standby mode to reflect the setting values when [LOAD ALL USER DATA] is executed. f Data registered from a computer is not included in [ALL USER DATA].
  • Page 141: [P In P] Menu

    Chapter 4 Settings — [P IN P] menu [P IN P] menu On the menu screen, select [P IN P] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. Using the P IN P function Locate a separate, small sub screen in the main screen to project two images simultaneously.
  • Page 142 Chapter 4 Settings — [P IN P] menu 15) Press as to select [TYPE]. 16) Press qw to switch the item. [MAIN WINDOW] The main window has display priority. [SUB WINDOW] The sub window has display priority. Note f The P IN P function may not be available for some signals being input or terminals being selected. Refer to “Two-window display combination list”...
  • Page 143: [Test Pattern] Menu

    Chapter 4 Settings — [TEST PATTERN] menu [TEST PATTERN] menu On the menu screen, select [TEST PATTERN] from the main menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. [TEST PATTERN] Display the test pattern built-in to the projector. Settings of position, size, and other factors will not be reflected in test patterns.
  • Page 144: [Signal List] Menu

    Chapter 4 Settings — [SIGNAL LIST] menu [SIGNAL LIST] menu On the menu screen, select [SIGNAL LIST] from the main menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. r Registered signal details A1 (1-2) Memory number: Sub memory number...
  • Page 145: Protecting The Registered Signal

    Chapter 4 Settings — [SIGNAL LIST] menu Note f A registered signal can also be deleted from [REGISTERED SIGNAL DELETE] on the [REGISTERED SIGNAL SETUP] screen. Protecting the registered signal Press asqw to select the signal to protect. Press the <ENTER> button. f The [REGISTERED SIGNAL STATUS] screen is displayed.
  • Page 146: Sub Memory

    Chapter 4 Settings — [SIGNAL LIST] menu f In an environment where multiple types of signals are input to the same terminal, signals are sometimes not determined correctly when the setting is set to [WIDE]. Sub memory The projector has a sub memory function that can register the multiple image adjustment data, even if it is recognized as the same signal by the frequency or format of the synchronization signal source.
  • Page 147: [Security] Menu

    Chapter 4 Settings — [SECURITY] menu [SECURITY] menu On the menu screen, select [SECURITY] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. f When the projector is used for the first time Initial password: Press awsqawsq in order, and press the <ENTER>...
  • Page 148: [Text Change]

    Displays the image registered by the user. Note f To create and register the [USER LOGO] image, use “Logo Transfer Software”. The software can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). [TEXT CHANGE] Edit the text to be displayed when [TEXT] is selected in [DISPLAY SETTING].
  • Page 149: [Control Device Password Change]

    Chapter 4 Settings — [SECURITY] menu Press the <ENTER> button. Press as to select [CONTROL PANEL] or [REMOTE CONTROL]. Press qw to switch [USER]. Press as to select the button item to set. f When [INPUT SELECT BUTTON] is selected, press the <ENTER> button, and then press as to select the button to set.
  • Page 150 Chapter 4 Settings — [SECURITY] menu Attention f The initial password is “AAAA” as the factory default or when the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed. f Change the password periodically that is hard to guess. 150 - ENGLISH...
  • Page 151: [Network] Menu

    Chapter 4 Settings — [NETWORK] menu [NETWORK] menu On the menu screen, select [NETWORK] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. [DIGITAL LINK MODE] Switch the communication method of the <DIGITAL LINK/LAN>...
  • Page 152: [Network Setup]

    Chapter 4 Settings — [NETWORK] menu [NETWORK SETUP] Perform the initial setting of the network before using the network function. Press as to select [NETWORK SETUP]. Press the <ENTER> button. f The [NETWORK SETUP] screen is displayed. Press as to select an item, and change the settings according to the operation instructions of the menu.
  • Page 153: [Network Status]

    Chapter 4 Settings — [NETWORK] menu [NETWORK STATUS] Display the status of the projector network. Press as to select [NETWORK STATUS]. Press the <ENTER> button. f The [NETWORK STATUS] screen is displayed. [DHCP] Displays the status of use of the DHCP server. [IP ADDRESS] Displays the [IP ADDRESS].
  • Page 154: [Art-Net Channel Setting]

    Chapter 4 Settings — [NETWORK] menu [Art-Net CHANNEL SETTING] Set the assignment of the channel. For the channel definitions used for controlling the projector with the Art-Net function, refer to “Using Art-Net function” (x page 186). Press as to select [Art-Net CHANNEL SETTING]. Press qw to switch the item.
  • Page 155: Chapter 5 Operations

    Operations Chapter 5 This chapter describes how to use each function. ENGLISH - 155...
  • Page 156: Network Connection

    For details, visit the Panasonic website (https://panasonic.net/cns/projector/). f PJLink Operation or status query of the projector can be performed from a computer using the PJLink protocol.
  • Page 157 (https://panasonic.net/cns/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
  • Page 158 Chapter 5 Operations — Network connection [SUBNET MASK] 255.255.255.0 [DEFAULT GATEWAY] 192.168.0.1 [DNS1]/[DNS2] None Operating the computer Turn on the power of the computer. Perform the network setting following the instruction of your network administrator. f Operation from the computer is possible by configuring the network setting of the computer as follows if the projector is in the factory default setting.
  • Page 159: Web Control Function

    Enter the IP address set on the projector into the URL entry field of the web browser. Enter the user name and the password. f The factory default setting of the user name is user1 (user rights)/admin1 (administrator rights) and the password is panasonic (lower case). ENGLISH - 159...
  • Page 160 Chapter 5 Operations — Web control function Click OK. f The [Projector status] page is displayed. Note f If you use a web browser to control the projector, set the [NETWORK] menu → [NETWORK CONTROL] → [WEB CONTROL] to [ON]. f Do not perform setting or control simultaneously by starting up multiple web browsers. Do not set or control the projector from multiple computers.
  • Page 161 Chapter 5 Operations — Web control function Descriptions of items Page tab [Detailed set up] Switches pages by clicking this item. The [Detailed set up] page is displayed by clicking this item. [Status] [Change password] The status of the projector is displayed by clicking this item. The [Change password] page is displayed by clicking this item.
  • Page 162 Chapter 5 Operations — Web control function Error information page When [Error (Detail)] or [Warning (Detail)] is displayed in the [SELF TEST] display field of the [Projector status] screen, click it to display the content of the error/warning. f The projector may go into the standby status to protect the projector depending on the contents of the error. Self-diagnosis result display Displays the item check results.
  • Page 163 Chapter 5 Operations — Web control function Item Description There is a problem with the phosphor wheel 2 or phosphor wheel 2 drive circuit. Consult [PHOSPHOR WHEEL2] your dealer. r [WARNING] items Item Description The temperature around the optics module inside the projector is low. Image cannot be [LOW-TEMPERATURE] projected until the optics module becomes warm.
  • Page 164 Chapter 5 Operations — Web control function [Access error log] page Click [Status] → [Access error log]. The error log on the web server is displayed such as access to the pages that do not exist or access with unauthorized user names or passwords. [Mail error log] page Click [Status] →...
  • Page 165 Chapter 5 Operations — Web control function [Basic control] page Click [Projector control] → [Basic control]. [POWER] [SYSTEM] Turns off/on the power. Switches the system method. [SHUTTER] On-screen display of the projector Switches whether to use the shutter function (enabled (shutter: Displays the same items as shown on the on-screen display closed)/disabled (shutter: open)).
  • Page 166 Chapter 5 Operations — Web control function [Network config] page Click [Detailed set up] → [Network config]. f Click [Network config] to display the [CAUTION!] screen. f Click the [Next] button to display the current settings. f Click the [Change] button to display the setting change screen. [PROJECTOR NAME] [DNS1] Enter the name of the projector.
  • Page 167 Chapter 5 Operations — Web control function [Adjust clock] page Click [Detailed set up] → [Adjust clock]. [Time Zone] [Date] Select the time zone. Enter the date to be changed. [Set time zone] [Time] Updates the time zone setting. Enter the time to be changed. [NTP SYNCHRONIZATION] [Submit] Set [ON] when adjusting the date and time automatically.
  • Page 168 Chapter 5 Operations — Web control function [E-mail set up] page E-mail can be sent to preset E-mail addresses (up to two addresses) periodically or when an error or problem has occurred. Click [Detailed set up] → [E-mail set up]. [ENABLE] [MINIMUM TIME] Select [ENABLE] to use the E-mail function.
  • Page 169 Chapter 5 Operations — Web control function [Authentication set up] page Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail. Click [Detailed set up] → [Authentication set up]. [Auth] [Password] Select the authentication method specified by your Internet Enter the password for the POP server or the SMTP server.
  • Page 170 Chapter 5 Operations — Web control function Contents of E-mail sent Example of the E-mail sent when E-mail is set The following E-mail is sent when the E-mail settings have been established. === Panasonic projector report(CONFIGURE) === Projector Type : RZ870 Serial No...
  • Page 171 Chapter 5 Operations — Web control function Example of the E-mail sent for an error The following E-mail is sent when an error has occurred. === Panasonic projector report(ERROR) === Projector Type : RZ870 Serial No : 123456789012 ----- check system -----...
  • Page 172 Chapter 5 Operations — Web control function [Change password] page Click [Change password]. [Administrator] [Next] Used to change the setting of the [Administrator]. Used to change the setting of the password. [User] Used to change the setting of the [User]. [Administrator] account [Account] [New] Displays the account to change.
  • Page 173 Chapter 5 Operations — Web control function [User] account [Account] [OK] Displays the account to change. Determines the change of password. [New] [User name]: Enter the desired new user name. (Up to 16 characters in single byte) [Password]: Enter the desired new password. (Up to 16 characters in single byte) [Password(Retype)]: Enter the desired new password again.
  • Page 174 Chapter 5 Operations — Web control function Operation page [Tools], [Info], [Help] [Input Select] Tabs for selecting the setting, information, or help page of the Controls input selection. projector. Not available when the power of the projector is turned off. [POWER] Menu screen control buttons Turns on/off the power.
  • Page 175 Chapter 5 Operations — Web control function [Info] page Click [Info] in the operation page. [Projector Name] [Source] Displays the projector name. Displays the selected input. [Mac Address] [Error Status] Displays the MAC address. Displays the error status. [Lamp1 Hours], [Lamp2 Hours] [Exit] Displays the runtime of the light source 1 and the light source 2.
  • Page 176: Chapter 6 Maintenance

    Maintenance Chapter 6 This chapter describes inspection methods when there are problems, and maintenance methods. 176 - ENGLISH...
  • Page 177: Light Source/Temperature Indicators

    Chapter 6 Maintenance — Light source/temperature indicators Light source/temperature indicators When an indicator lights up If a problem occurs inside the projector, the light source indicators <LIGHT1>/<LIGHT2> or temperature indicator <TEMP> will inform you by lighting or blinking. Check the status of the indicators and take following measures. Attention f When switching off the projector to deal with problems, make sure to follow the procedure in “Switching off the projector”...
  • Page 178 Chapter 6 Maintenance — Light source/temperature indicators Temperature indicator <TEMP> Blinking in red Blinking in red Indicator status Lighting in red (2 times) (3 times) Internal temperature is high Internal temperature is high The cooling fan has Status Warm-up status (warning). (standby status).
  • Page 179: Maintenance

    Chapter 6 Maintenance — Maintenance Maintenance Before maintaining the projector f Make sure to turn off the power before performing the maintenance of the projector. (x pages 56, 66) f When switching off the projector, make sure to follow the procedures in “Switching off the projector” (x page 66).
  • Page 180: Troubleshooting

    Chapter 6 Maintenance — Troubleshooting Troubleshooting Review the following points. For details, see the corresponding pages. Problems Points to be checked Page f Is the power plug firmly inserted into the outlet? ― f Is the <MAIN POWER> switch set to <OFF>? f Is the wall outlet supplying electricity? ―...
  • Page 181 Chapter 6 Maintenance — Troubleshooting Problems Points to be checked Page Video from HDMI f Is the HDMI cable connected securely? compatible device does f Turn the power of the projector and the external device off and on. ― not appear or it appears f Is a signal which is not compatible with the projector being input? jumbled.
  • Page 182: [Self Test] Indications

    Chapter 6 Maintenance — [SELF TEST] indications [SELF TEST] indications [SELF TEST] can be checked in the [PROJECTOR SETUP] menu → [STATUS] → [SELF TEST]. The following list shows the alphanumeric symbol that is displayed when an error or a warning has occurred and its details.
  • Page 183 Chapter 6 Maintenance — [SELF TEST] indications Error/warning display Details Action number Radiator fan 2 error Radiator fan 1 error Phosphor wheel 1 error Phosphor wheel 2 error Liquid cooling pump 1 error Liquid cooling pump 2 error Light source 1 unit error Light source 2 unit error Note f The self-diagnosis display and the details of the malfunction may be different.
  • Page 184: Chapter 7 Appendix

    Appendix Chapter 7 This chapter describes specifications and after-sales service for the projector. 184 - ENGLISH...
  • Page 185: Technical Information

    Input selection list query 11 12 31 32 33 34 ― Returns the name set in [PROJECTOR NAME] of [NETWORK NAME? Projector name query xxxxx SETUP]. Manufacturer name INF1? Panasonic Returns manufacturer name. query INF2? Model name query PT-RZ870 Returns model name. Other information INF0? xxxxx Returns version number.
  • Page 186: Using Art-Net Function

    Chapter 7 Appendix — Technical information PJLink security authentication The password used for PJLink is the same as that of the password set for web control. When using the projector without security authentication, do not set a password for web control. f For specifications related to PJLink, visit the website of Japan Business Machine and Information System Industries Association.
  • Page 187 Chapter 7 Appendix — Technical information r INPUT SELECT (when [Art-Net CHANNEL SETTING] is set to [1]) Performance Parameter Default value No operation RGB1 8-15 RGB2 16-23 No operation 24-31 DVI-D 32-39 HDMI 40-47 DIGITAL LINK 48-55 56-63 No operation 64-127 P IN P execution, USER1 128-135 P IN P execution, USER2...
  • Page 188 Chapter 7 Appendix — Technical information r LENS FUNCTION SELECT (when [Art-Net CHANNEL SETTING] is set to [1]) Operate together with LENS CONTROL. Performance Parameter Default value No operation 0-15 LENS H SHIFT 16-31 LENS V SHIFT 32-47 LENS FOCUS 48-63 LENS ZOOM 64-79 Move to the home position...
  • Page 189 Chapter 7 Appendix — Technical information r GEOMETRY Performance Parameter Default value 0-15 KEYSTONE 16-31 CURVED CORRECTION 32-47 PC-1 48-63 PC-2 64-79 PC-3 80-95 CORNER CORRECTION 96-111 No operation 112-255 r CUSTOM MASKING To use PC-1, PC-2, or PC-3, the optional Upgrade Kit (Model No.: ET-UK20) is required. Performance Parameter Default value...
  • Page 190: Control Commands Via Lan

    “ENABLE/DISABLE” of channel 11 to “Disable” and then back to “Enable”. f To create and register the USER LOGO image, use “Logo Transfer Software”. The software can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). Control commands via LAN...
  • Page 191 Chapter 7 Appendix — Technical information r Received data Termination Header Data section symbol Command ‘0’ ‘0’ Control command (CR) example 0x30 0x30 (ASCII string) 0x0d Data length 1 byte 1 byte Undefined length 1 byte f Example: The projector is powered on “00001”...
  • Page 192 Chapter 7 Appendix — Technical information r Received data Termination Header Data section symbol Command ‘0’ ‘0’ Control command (CR) example 0x30 0x30 (ASCII string) 0x0d Data length 1 byte 1 byte Undefined length 1 byte f Example: The power of the projector is in standby status “00000”...
  • Page 193: Serial/Multi Projector Sync In>/ Terminals

    Chapter 7 Appendix — Technical information <SERIAL/MULTI PROJECTOR SYNC IN>/<SERIAL/MULTI PROJECTOR SYNC OUT> terminals The <SERIAL/MULTI PROJECTOR SYNC IN>/<SERIAL/MULTI PROJECTOR SYNC OUT> terminals of the projector conform with RS-232C so that the projector can be connected to and controlled from a computer. A combined screen with a balanced contrast can be displayed by linking multiple projectors using the <SERIAL/ MULTI PROJECTOR SYNC IN>...
  • Page 194 Chapter 7 Appendix — Technical information Pin assignments and signal names D-Sub 9-pin (female) Pin No. Signal name Details Outside view ― Transmitted data Received data MULTI PROJECTOR For contrast synchronization function/for SYNC shutter synchronization function Earth ― Connected internally ― D-Sub 9-pin (male) Pin No.
  • Page 195 Chapter 7 Appendix — Technical information Basic format (has subcommands) Same as the basic format Sub command (5 bytes) Parameter (6 bytes) Symbol “+” or “–” (1 byte) and setting or adjustment value (5 bytes) Operation (1 byte) “=” (Set the value specified using parameter) *1 When transmitting a command which does not need a parameter, an operation (E) and parameter are not necessary.
  • Page 196 Chapter 7 Appendix — Technical information Cable specification When connected to a computer When multiple projectors are connected NC NC NC NC Projector Computer Projector 1 Projector 2 (<SERIAL/MULTI PROJECTOR (DTE specifications) (<SERIAL/MULTI PROJECTOR (<SERIAL/MULTI PROJECTOR SYNC IN> terminal) SYNC OUT> terminal) SYNC IN>...
  • Page 197: Remote 2 In> Terminal

    Chapter 7 Appendix — Technical information r Lens control command Command Sub command Details Remark LNSI2 Lens H shift +00000 = Fine adjustment 1+, +00001 = Fine adjustment 1-, +00100 LNSI3 Lens V shift = Fine adjustment 2+, +00101 = Fine adjustment 2-, +00200 = Coarse LNSI4 Lens focus adjustment+, +00201 = Coarse adjustment-...
  • Page 198: Two-Window Display Combination List

    Chapter 7 Appendix — Technical information Two-window display combination list l: P IN P (picture in picture) combination is possible a: P IN P (picture in picture) combination is possible through the same frequency signal ―: P IN P (picture in picture) combination is not possible Sub window RGB1 RGB2...
  • Page 199: Upgrade Kit

    Chapter 7 Appendix — Technical information Upgrade Kit If the optional Upgrade Kit (Model No.: ET-UK20) is applied, the following functions are extended. Function Standard status When the Upgrade Kit is applied Adjustment range of Maximum of ±40° Maximum of ±45° [VERTICAL KEYSTONE] Adjustment range of Maximum of ±15°...
  • Page 200: List Of Compatible Signals

    Chapter 7 Appendix — Technical information List of compatible signals The following table specifies the video signals compatible with the projector. For details of SDI signal, refer to “List of SDI compatible signals” (x page 202). f Symbols that indicate formats are as follows. g V: VIDEO, Y/C g R: RGB (analog) g Y: YC...
  • Page 201 Chapter 7 Appendix — Technical information Scanning freq. Plug and play Dot clock Signal name Resolution freq. Format DVI-D Horizontal Vertical HDMI/ (SIGNAL FORMAT) (Dots) RGB2 (MHz) (kHz) (Hz) EDID1 EDID2 EDID3 1024 x 768/120 1 024 x 768 98.7 120.0 139.1 R/D/H ―...
  • Page 202 Chapter 7 Appendix — Technical information Note f A signal with a different resolution is converted to the number of display dots. The number of display dots is 1 920 x 1 200. f The “i” at the end of the resolution indicates an interlaced signal. f When interlaced signals are connected, flickering may occur on the projected image.
  • Page 203 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color space Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) (MHz) (kHz) (Hz) 2 048 x 1 080 33.8 30.0 74.3 3G-SDI Level-A 4:4:4 10bit 2 048 x 1 080 33.8 30.0 74.3...
  • Page 204: Specifications

    Chapter 7 Appendix — Specifications Specifications The specifications of the projector are as follows. PT-RZ870B, PT-RZ870W, PT-RZ870LB, PT-RZ870LW, PT-RZ870BD, PT-RZ870WD, 100 V - 240 V ~ (100 V - 240 V alternating current), PT-RZ870LBD, PT-RZ870LWD, PT-RZ870BA, 50 Hz/60 Hz Power supply PT-RZ870WA, PT-RZ870LBA, PT-RZ870LWA 110 V - 240 V ~ (110 V - 240 V alternating current), PT-RZ870BT...
  • Page 205 Chapter 7 Appendix — Specifications *2 Value is for the supplied standard zoom lens. The value varies depending on the lens. *3 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118:2012 international standards. *4 The value of the light output at the center region of the projected image is extracted based on the light output measurement method defined by the ISO/IEC 21118:2012 international standards.
  • Page 206 RGB input f Resolution: 640 x 400 to 1 920 x 1 200 f Dot clock frequency: 162 MHz or less f PIAS (Panasonic Intelligent Auto Scanning) system input f Resolution: 480i/576i to 1 920 x 1 080 f Dot clock frequency: 148.5 MHz or less f The HD/SYNC and VD terminals do not support 3 value SYNC.
  • Page 207: Dimensions

    Chapter 7 Appendix — Dimensions Dimensions Unit: mm 249 (9-13/16") 221 (8-11/16") 457 (18") 442 (17-13/32") 498 (19-19/32") * The above dimensions are obtained when the standard zoom lens is attached. * Actual dimensions may differ depending on the product. ENGLISH - 207...
  • Page 208: Precautions For Attaching The Ceiling Mount Bracket

    Ask a qualified technician to do the installation work such as mounting the projector on the ceiling. f Panasonic takes no responsibility for any damage to the projector resulting from use of the Ceiling Mount Bracket not manufactured by Panasonic or the inappropriate choice of location for installing the Ceiling Mount Bracket, even if the warranty period of the projector has not expired.
  • Page 209 Chapter 7 Appendix — Precautions for attaching the Ceiling Mount Bracket r Dimensions for the screw holes to fix the projector (projector bottom view) Unit: mm 134 (5-9/32") 6 (1/4") 216 (8-1/2") 280 (11-1/32") ENGLISH - 209...
  • Page 210: Index

    Index Index [GEOMETRY] <REMOTE 2 IN> terminal [REMOTE2 MODE] Accessories Remote control <AC IN> terminal 30, 56 <HDMI> button Remote control operations Adjusting adjustable feet Projector body 31, 67 Removing/attaching the projection lens [ADVANCED MENU] 78, 94 Remote control 28, 67 Renaming the registered signal Application software [HDMI IN]...
  • Page 211 Index <ZOOM> button Remote control 28, 68 ENGLISH - 211...
  • Page 212 Atıkların atılmasıyla ilgili yanlış uygulamalar yasayla belirlenmiş olan cezalara sebebiyet verebilir. Panasonic Corporation Web Site : https://panasonic.net/cns/projector/ © Panasonic Corporation 2018 Panasonic System Solutions Company of North America Two Riverfront Plaza, Newark, NJ 07102 TEL: (877) 803 - 8492 Panasonic Canada Inc.

Table of Contents
