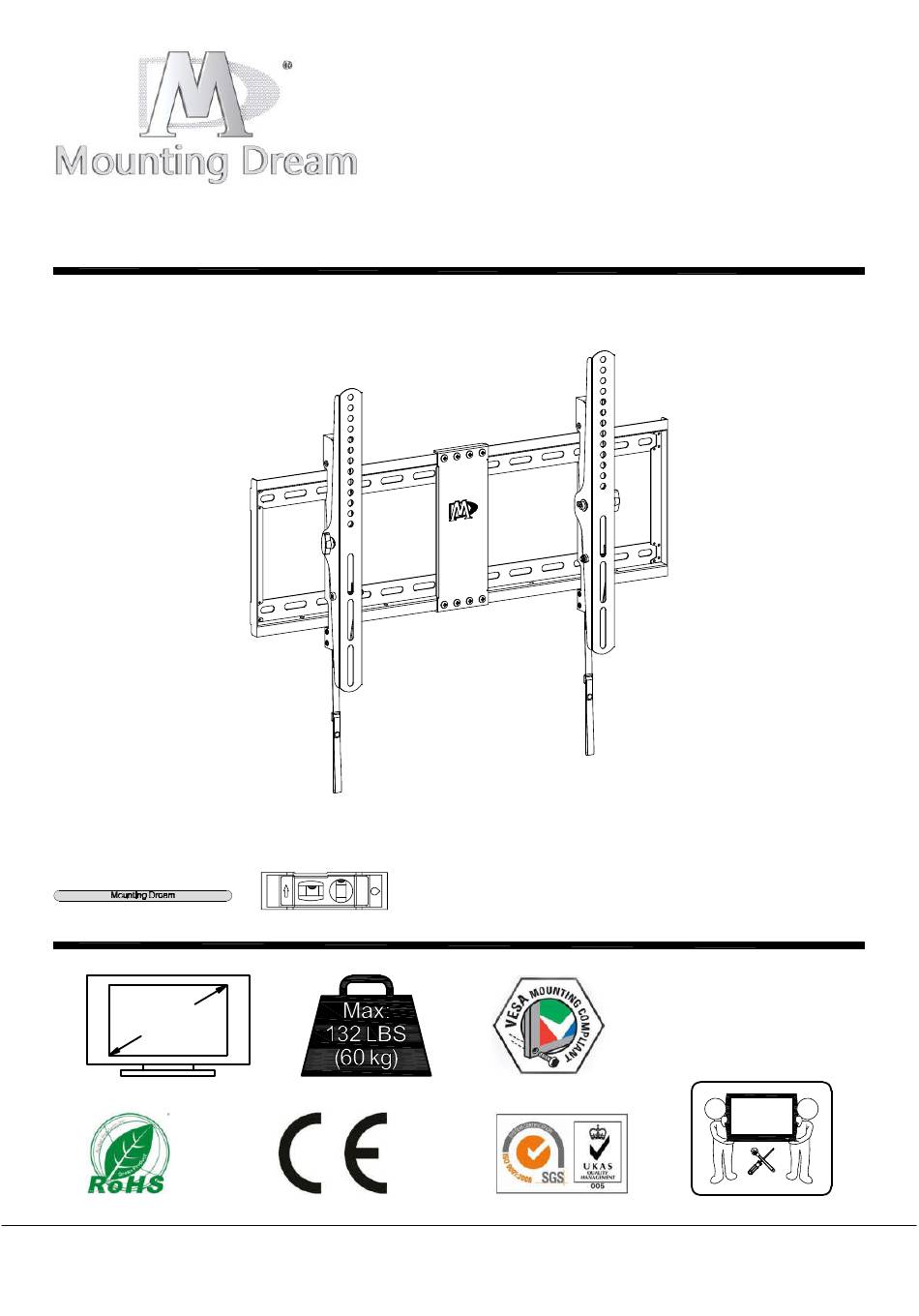

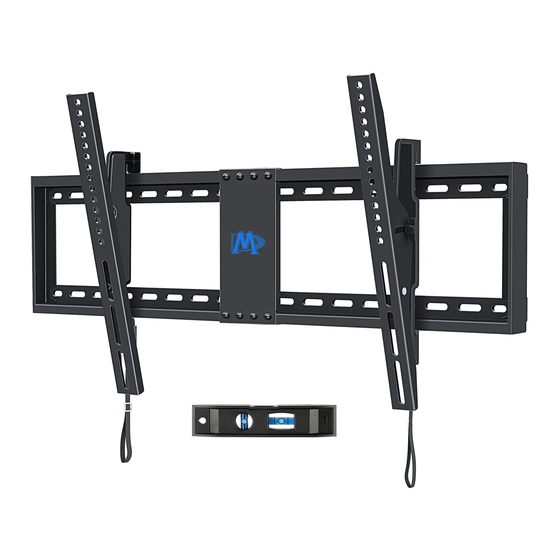

- Page 1 HM2122-L INSTALLATION INSTRUCTION Max:600x400mm/24x16" 37"~70" Min:200x100mm/8x4" (A0) If you have any questions, please contact us via customerservice@hingear.com or call us at telephone (626) 645-7128 (USA) Mon - Fri 10am - 6pm (Pacific time).
- Page 2 ● The wall must be capable of supporting five times the weight of the TV and mount combined. ● Do not apply this product to any purpose not indicated by Mounting Dream. ● Incorrect installation may result in product damage or body injury. Mounting Dream shall bear no responsibility for any damage or injury resulted from incorrect installation, incorrect assembly or misuse.
- Page 3 Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. For parts shortage or damage, please contact us via customerservice@hingear.com. NOTE: Not all hardware included will be used. Spacers TV Brackets TV Screws...
- Page 4 1-3 Attach the TV Brackets Spacer(s), screw and washer Tips: If you need to combine M6(e) or M8(c/f) screw with 2.5mm spacer(j), you have to remove the inner circle. Screw and washer...
-
Page 5: Parts And Hardware
For wood stud installation, follow STEP 2A For concrete installation, follow STEP 2B on PAGE 6 Parts and Hardware Lag Bolt M8x60mm Allen Key Wall plate(Left) M5x8mm Bolt M8 Washer Wall plate(Right) Contact us at telephone (626) 645-7128 (USA) Mon - Fri 10am - 6pm (Pacific time) or email us by customerservice@hingear.com to have Concrete Wall Anchor these additional pieces shipped directly to you. - Page 6 Centre line Level Again, find another wood stud 16"(406mm) Centre line Wall plate unit CAUTION : To avoid potential personal injury or property damage: All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate assembly.
- Page 7 Solid Concrete Wall Installation Min. 8"(203mm) DANGER Level 2.5" (64mm) 3/8" 3/8" (10mm) (10mm) Wall plate unit CAUTION : To avoid potential personal injury or property damage: All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate assembly.
- Page 8 Before hanging TV, please conduct "wall plate installation integrity test" first. 132 LBS (60 kg) Pull down...
- Page 9 4-1 Level adjustment (10mm) ： If your TV is not level, you can adjust it by screw in/out the leveling bolts at the top of bracket. 10mm leveling bolt leveling bolt...
- Page 10 4-2 Tilting angle adjustment (+3°/-15°) ： Pull TV to your desired angle then fasten 2 handles. 3° 15°...
- Page 11 Pull down the straps 651mm 58mm MAX:600mm MIN:200mm 430mm +3° MAX:400mm MIN:100mm 222mm -15°...
