  • Page 1 GA-B85M-D2V Plus User's Manual Rev. 1001 12ME-B85M2VP-1001R...
  • Page 2 Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE's prior written permission.

  • Page 3: Table Of Contents

    Table of Contents GA-B85M-D2V Plus Motherboard Layout ...............4 GA-B85M-D2V Plus Motherboard Block Diagram ............5 Chapter 1 Hardware Installation ..................6 Installation Precautions ..................6 Product Specifications ..................7 Installing the CPU .................... 9 Installing the Memory ..................9 Installing an Expansion Card ................. 10 Back Panel Connectors ..................

  • Page 4: Ga-B85M-D2V Plus Motherboard Layout

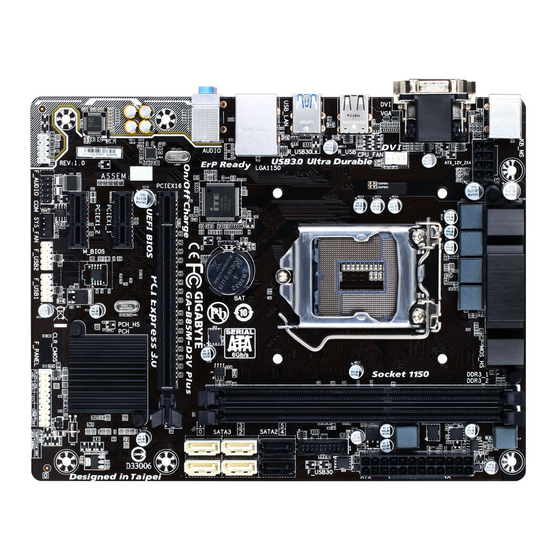

    GA-B85M-D2V Plus Motherboard Layout ATX_12V_2X4 KB_MS LGA1150 CPU_FAN R_USB R_USB30 USB_LAN ® Super I/O AUDIO GA-B85M-D2V Plus PCIEX16 Realtek ® GbE LAN PCIEX1_1 M_BIOS Intel ® PCIEX1_2 CODEC CLR_CMOS SYS_FAN F_USB2 F_USB1 F_PANEL F_AUDIO Box Contents 5 GA-B85M-D2V Plus motherboard...

  • Page 5: Ga-B85M-D2V Plus Motherboard Block Diagram

    GA-B85M-D2V Plus Motherboard Block Diagram 1 PCI Express x16 CPU CLK+/- (100 MHz) LGA1150 DDR3 1600/1333 MHz PCIe CLK Dual Channel Memory (100 MHz) DVI-D PCI Express Bus 2 PCI Express x1 BIOS D-Sub 2 SATA 3Gb/s PCI Express Bus...

  • Page 6: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •...

  • Page 7: 1-2 Product Specifications

    Support for DDR3 1600/1333 MHz memory modules Š Support for non-ECC memory modules Š Support for Extreme Memory Profile (XMP) memory modules Š (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Onboard Integrated Graphics Processor- Intel HD Graphics support: Š...
  • Page 8 Micro ATX Form Factor; 22.6cm x 17.4cm Š * GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. * Please visit the Support & Downloads\Utility page on GIGABYTE's website to check the supported operating system(s) for the software listed in the "Unique Features"...

  • Page 9: Installing The Cpu

    • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.

  • Page 10: Installing An Expansion Card

    Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode. Dual Channel mode cannot be enabled if only one DDR3 memory module is installed. When enabling Dual Channel mode with two memory modules, it is recommended that memory of the same capacity, brand, speed, and chips be used for optimum performance.
  • Page 11 Line In Jack (Blue) The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc. Line Out Jack (Green) The line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be used to connect front speakers in a 4/5.1/7.1-channel audio configuration.

  • Page 12: Internal Connectors

    Internal Connectors ATX_12V_2X4 F_PANEL CLR_CMOS CPU_FAN F_USB30 SYS_FAN F_USB1/F_USB2 SATA3 0/1/2/3 SATA2 4/5 F_AUDIO Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. • Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.
  • Page 13 1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed.
  • Page 14 5) SATA3 0/1/2/3 (SATA 6Gb/s Connectors) The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA 1.5Gb/s standard. Each SATA connector supports a single SATA device. SATA3 Pin No. Definition 6) SATA2 4/5 (SATA 3Gb/s Connectors) The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s standard.
  • Page 15 8) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. • PLED/PWR_LED (Power LED): Power LED Power Switch Speaker...
  • Page 16 10) F_USB30 (USB 3.0/2.0 Header) The header conforms to USB 3.0/2.0 specification and can provide two USB ports. For purchasing the optional 3.5" front panel that provides two USB 3.0/2.0 ports, please contact the local dealer. Pin No. Definition Pin No. Definition VBUS SSRX1- SSRX1+...
  • Page 17 13) BAT (Battery) The battery provides power to keep the values (such as BIOS configurations) in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low level, or the CMOS values may not be accurate or may be lost. You may clear the CMOS values by removing the battery: 1.

  • Page 18: Chapter 2 Bios Setup

    To access the BIOS Setup program, press the <Delete> key during the POST when the power is turned on. To upgrade the BIOS, use either the GIGABYTE Q-Flash or @BIOS utility. Q-Flash allows the user to quickly and easily upgrade or back up BIOS without entering the operating system.
  • Page 19 M.I.T. This section provides information on the BIOS version, CPU base clock, CPU frequency, memory frequency, total memory size, CPU temperature and Vcore. Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall system configurations.
  • Page 20 & Filter PLL Level Allows you to set the Filter PLL. Auto lets the BIOS automatically configure this setting. (Default: Auto) & Uncore Ratio Allows you to set the CPU Uncore ratio. The adjustable range is dependent on the CPU being used. &...
  • Page 21 & CPU EIST Function (Note 1) Enables or disables Enhanced Intel Speed Step Technology (EIST). Depending on CPU loading, Intel ® EIST technology can dynamically and effectively lower the CPU voltage and core frequency to decrease average power consumption and heat production. Auto lets the BIOS automatically configure this setting. (Default: Auto) &...
  • Page 22 & Rank Interleaving Enables or disables memory rank interleaving. Enabled allows the system to simultaneously access different ranks of the memory to increase memory performance and stability. Auto lets the BIOS automatically configure this setting. (Default: Auto) ` Channel A/B Memory Sub Timings This sub-menu provides memory timing settings for each channel of memory.

  • Page 23: System Information

    Allows the fan to run at slow speeds. Silent Allows you to control the fan speed under the Fan Speed Percentage item. Manual Full Speed Allows the fan to run at full speeds. & Fan Speed Percentage Allows you to control the fan speed. This item is configurable only when System Fan Speed Control is set to Manual.

  • Page 24: Bios Features

    System (Default) & Full Screen LOGO Show Allows you to determine whether to display the GIGABYTE Logo at system startup. Disabled skips the GIGABYTE Logo when the system starts up. (Default: Enabled) & Fast Boot Enables or disables Fast Boot to shorten the OS boot process. Ultra Fast provides the fastest bootup speed.
  • Page 25 & VGA Support Allows you to select which type of operating system to boot. Enables legacy option ROM only. Auto EFI Driver Enables EFI option ROM. (Default) This item is configurable only when Fast Boot is set to Enabled or Ultra Fast. &...
  • Page 26 & CSM Support Enables or disables UEFI CSM (Compatibility Support Module) to support a legacy PC boot process. Enables UEFI CSM. (Default) Always Disables UEFI CSM and supports UEFI BIOS boot process only. Never This item is configurable only when Windows 8 Features is set to Windows 8 or Windows 8 WHQL. &...

  • Page 27: Peripherals

    Peripherals & Initial Display Output Specifies the first initiation of the monitor display from the installed PCI Express graphics card or the onboard graphics. Sets the onboard graphics as the first display. IGFX PCIe 1 Slot Sets the graphics card on the PCIEX16 slot as the first display. (Default) &...
  • Page 28 & Audio Controller Enables or disables the onboard audio function. (Default: Auto) If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to Disabled. & Intel Processor Graphics Enables or disables the onboard graphics function. (Default: Enabled) &...
  • Page 29 ` Super IO Configuration This section provides information on the super I/O chip and allows you to configure the serial port. & Serial Port A Enables or disables the onboard serial port. (Default: Enabled) ` Intel(R) Smart Connect Technology & ISCT Support Enables or disables Intel Smart Connect Technology.

  • Page 30: Power Management

    Power Management & Power Loading Enables or disables dummy load. When the power supply is at low load, a self-protection will activate causing it to shutdown or fail. If this occurs, please set to Enabled. Auto lets the BIOS automatically configure this setting.

  • Page 31: Save & Exit

    Keyboard 98 Press POWER button on the Windows 98 keyboard to turn on the system. Set a password with 1~5 characters to turn on the system. Password & Power On Password Set the password when Power On By Keyboard is set to Password. Press <Enter>...

  • Page 32: Chapter 3 Appendix

    You can click the Xpress Install button and "Xpress Install" will install all of the selected drivers. Or click the arrow icon to individually install the drivers you need. For more software information, please visit GIGABYTE's website. - 32 -...

  • Page 33: Regulatory Statements

    Contravention will be prosecuted. We believe that the information contained herein was accurate in all respects at the time of printing. GIGABYTE cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed as a commitment by GIGABYTE.
  • Page 34 FCC Notice (U.S.A. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 35 - 35 -...

  • Page 36: Contact Us

    Tech. and Non-Tech. Support (Sales/Marketing) : http://esupport.gigabyte.com WEB address (English): http://www.gigabyte.com WEB address (Chinese): http://www.gigabyte.tw You may go to the GIGABYTE website, select your language in the language list on the top right corner of the website. GIGABYTE eSupport •...
