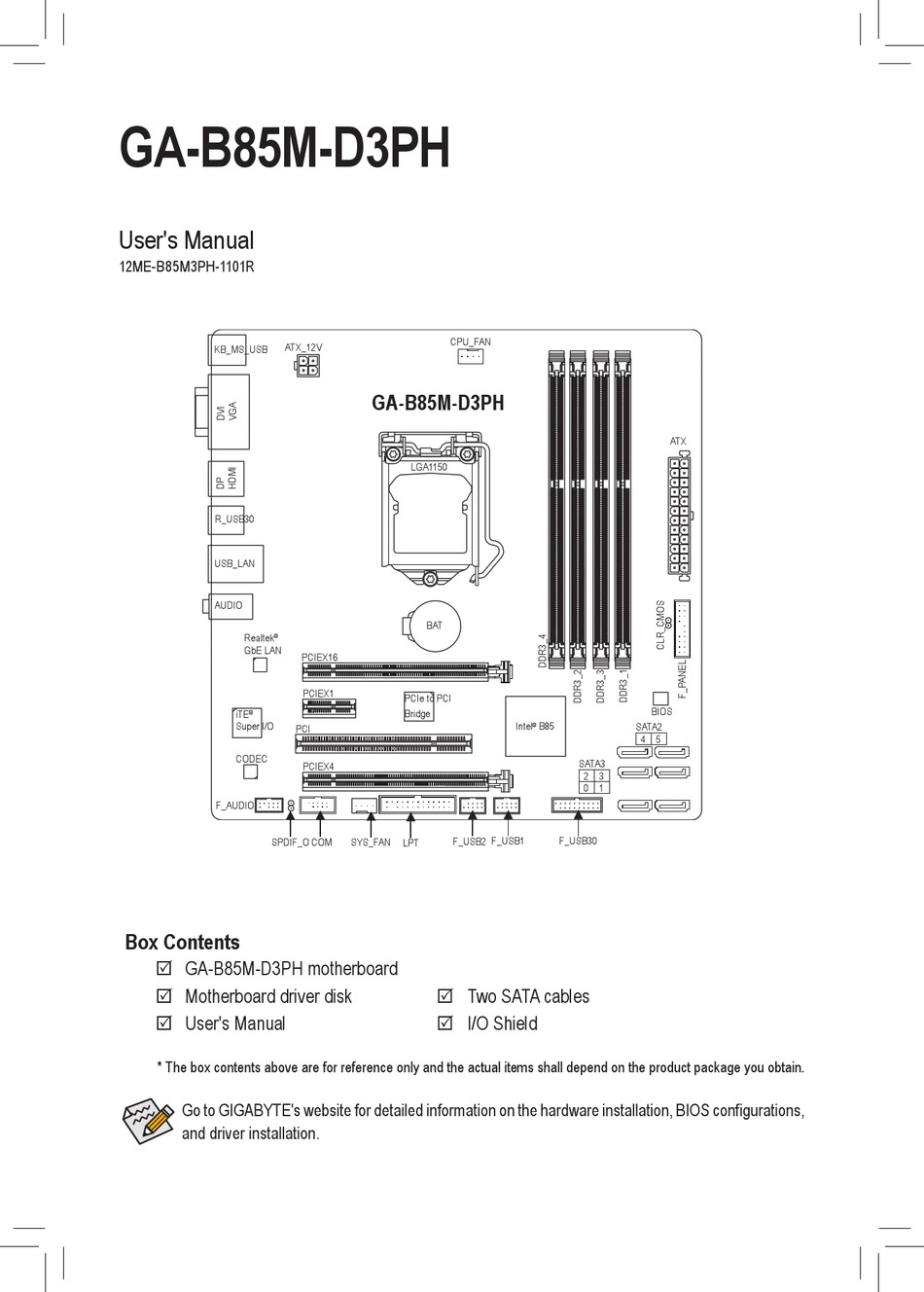

GA-B85M-D3PH
User's Manual
12ME-B85M3PH-1101R
ATX_12V
KB_MS_USB
R_USB30
USB_LAN
AUDIO
Realtek
®
GbE LAN
iTE
®
Super I/O
CODEC
F_AUDIO
SPDIF_O
Box Contents
5 GA-B85M-D3PH motherboard
5 Motherboard driver disk
5 User's Manual
* The box contents above are for reference only and the actual items shall depend on the product package you obtain.
Go to GIGABYTE's website for detailed information on the hardware installation, BIOS configurations,
and driver installation.
CPU_FAN
GA-B85M-D3PH
LGA1150
BAT
PCIEX16
PCIEX1
PCIe to PCI
Bridge
PCI
PCIEX4
F_USB2 F_USB1
COM
SYS_FAN
LPT
5 Two SATA cables
5 I/O Shield
ATX
BIOS
Intel
B85
SATA2
®
4 5
SATA3
2 3
0 1
F_USB30
