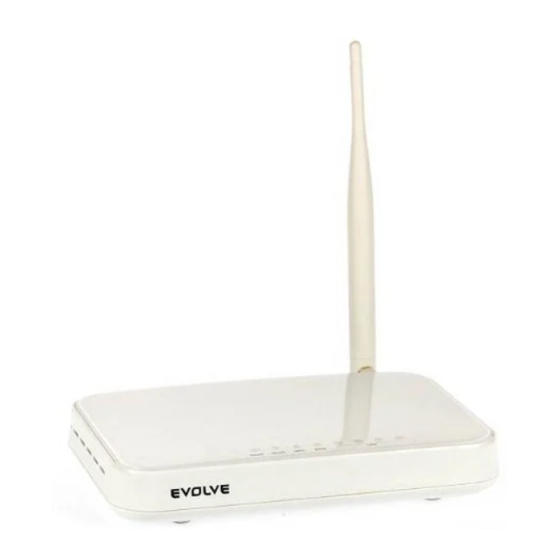

Evolve AP799 Wireless Router
Thank you for purchasing Evolve AP799 wireless router.
This guide will help you set the wireless router for Internet connection and wireless
networking. Before you continue, please ensure that the Internet connection is
working on your ADSL/Cable Modem.
Functional Overview

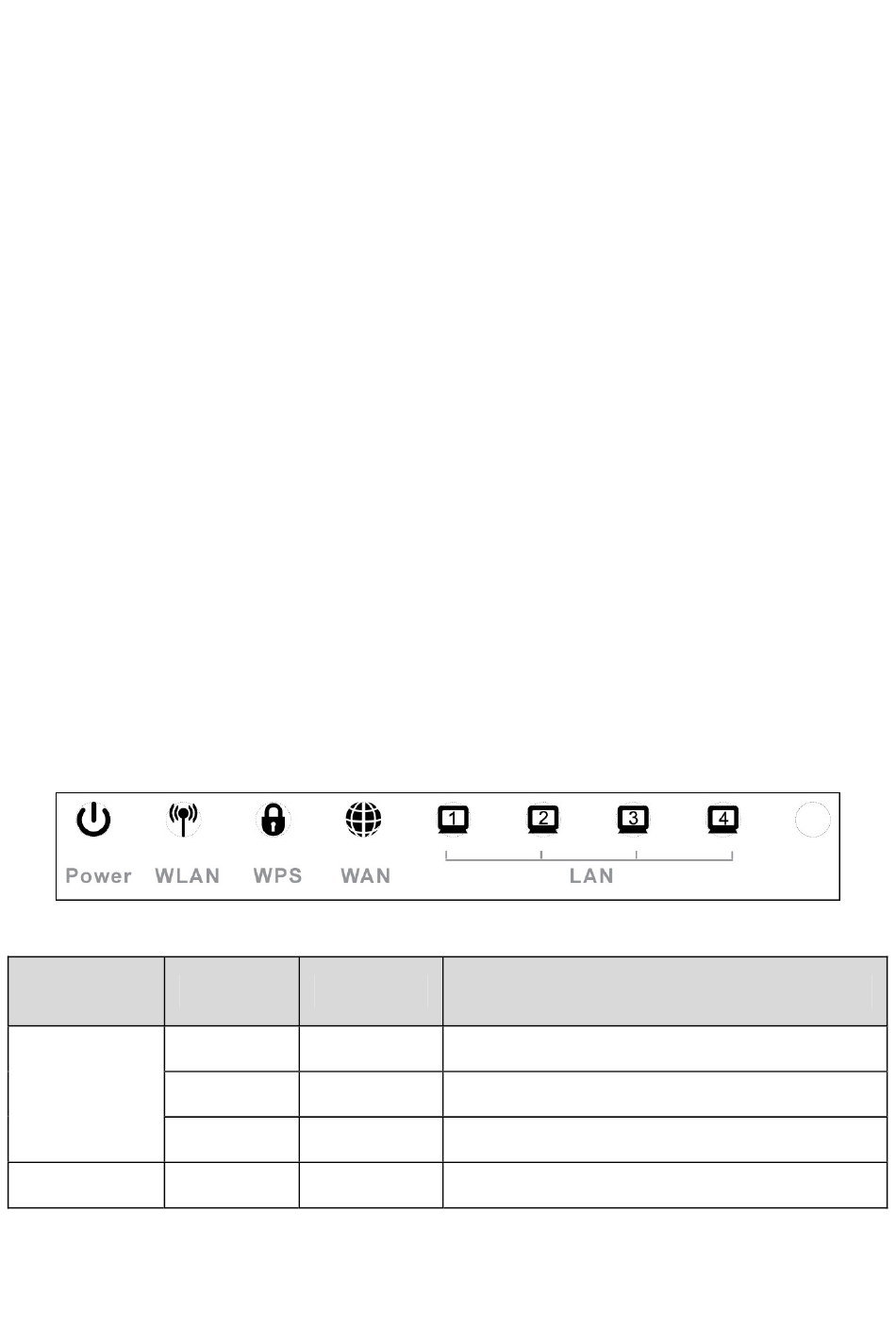

The Indicators on the Front Panel
Note:
The figures in this document are for reference only.
LED
Indicator
Green
Power
Green
-
WLAN
Green
Quick Guide
Color
Status
On
On
Off
On
Power is on.
The device runs normally.
Power is off or the device is down.
Radio switch is turned on.
- 1 -
Description
Advertisement
Table of Contents
Related Manuals for Evolve AP799
Summary of Contents for Evolve AP799
- Page 1 Evolve AP799 Wireless Router Quick Guide Thank you for purchasing Evolve AP799 wireless router. This guide will help you set the wireless router for Internet connection and wireless networking. Before you continue, please ensure that the Internet connection is working on your ADSL/Cable Modem.
- Page 2 Color Status Description Indicator Green Blink Data is being transmitted. Radio switch is shut off. Green Connection succeeds. Green Blink Negotiation is in progress. No connection. Green Connection succeeds. Green Blink Data is being transmitted. No WAN connection. Green LAN connection succeeds. LAN1/LAN2/ Green Blink...
- Page 3 The Interfaces and Buttons on the Rear Panel Interface/Button Description Press the button for 3 seconds and then release it. Reset System restores the factory default settings. Power Power socket, for connecting the power adapter. WAN interface, for connecting WAN or the uplink network devices.
- Page 4 Setup Diagram Using ADSL/Cable Modem Step1 Connect one end of the power adapter to the power interface on the wireless router, and connect the other end to the power socket on the wall. Step2 Connect the ADSL/Cable Modem to the WAN interface on the wireless router.
- Page 5 Connect to the Internet Using ADSL/Cable Modem To connect to the Internet via the Web user interface, do as follows: Open your Internet web browser. Enter http://192.168.254.1 in the IE address bar and press the Enter key. Enter the username and the password in the login page. The default username and password are admin and admin respectively.
- Page 6 Change the IP Address of the Wireless Router The default IP address of the wireless router is 192.168.254.1. If your router’s IP address is in the “192.168.254.x” network segment, please follow the steps below to change the IP address of the wireless router. Log in to the Web user interface, and then choose the Network Settings >...
- Page 7 Connect to Your Router Wirelessly By default, the wireless function of the wireless router is enabled. Please follow the steps below to configure the basic parameters of the wireless settings. Log in to the Web user interface, and then choose the Wireless Settings > Basic Settings.
