Summary of Contents for Citizen Perpetual Calendar BL5250-02L

  • Page 2: Table Of Contents

    • Overcharging Prevention Feature • Power Save Feature 5. General Reference for Charging Times ... 18 6. Notes Regarding Handling of this Watch ... 19 • Charging Precautions 7. Replacing the Secondary Battery... 20 8. Switching the Mode (Display Function) ... 21 9.
  • Page 3: Features

    1. Features This watch is a solar-powered watch that contains a solar cell in its face that dri- ves the watch by converting light energy into electrical energy. It is equipped with numerous functions including a full-auto calendar that changes the date auto-...

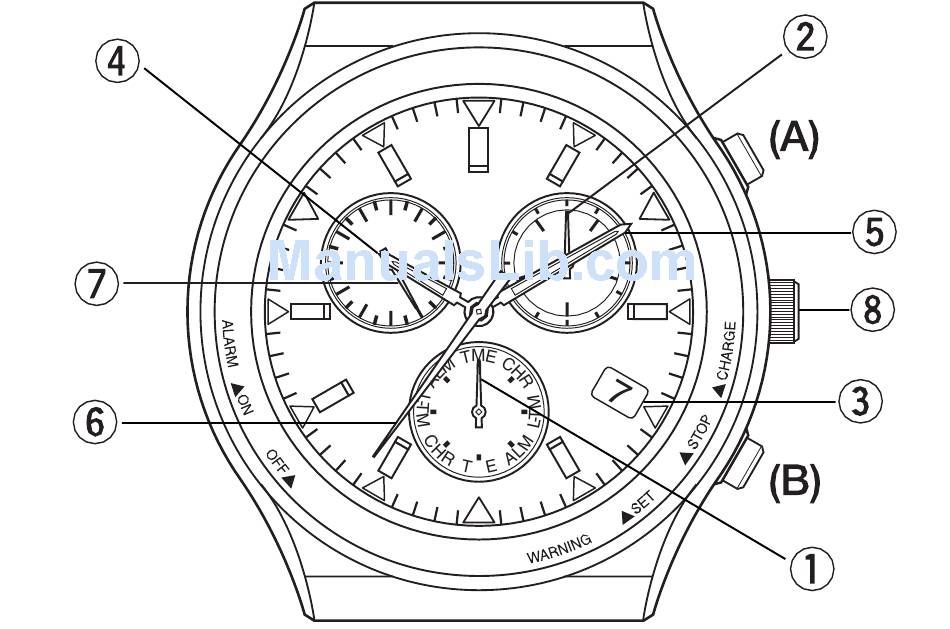

  • Page 4: Names Of Components

    3. Names of Components Name/Mode Time/Calendar A Mode hand Stops at 0-position B Function hand Displays date C Date D Hour hand Displays hours Displays minutes E Minute hand Displays seconds F Second hand 24-hour time display in G 24 hour hand coordination with hour hand Chronograph L-TM...
  • Page 5 Crown Name Time/Calendar position Normal position Mode switching Position 1 Calendar correction H Crown Position 2 Time correction Normal position Not used Button (A) Position 1 Year correction Position 2 Not used Normal position Not used Button (B) Position 1 Month correction Position 2 Not used...
  • Page 6: Functions Unique To Solar-Powered Watches

    When the second hand is pointing to the word "SET", it means that the time should be reset. Always make sure to reset the watch to the current time. Note: The watch will not return to the normal time display unless the time is reset. [Case of Having Become Insufficiently Charged from the Normal...
  • Page 7 Time after Charging due to the Watch Being Insufficiently Charged and then Resetting the Time after Recharging] * If the watch stops as a result of being insufficiently charged, the watch will not return to normal hand movement (normal time dis- play) unless the watch is sufficient- ly recharged and the time is reset.
  • Page 8: Overcharging Prevention Feature

    After the second hand moves to the CHARGE position, the watch changes to the time display in the order of the 24 hour hand, hour hand, minute hand and date wheel (function hand). Although the watch contin-...
  • Page 9: Power Save Feature

    When power is no longer generated as a result of light not shining on the solar cell when the watch is in the time/calendar mode or local time mode, the second hand moves to the 0 seconds position and stops to save power by reducing current con- sumption.
  • Page 10: General Reference For Charging Times

    Full recharging time : Time required for recharging the watch from the stopped state to fully charged. Charging time for 1 day of operation : Time required for recharging the watch to run for 1 day at 1-second interval movement.
  • Page 11: Replacing The Secondary Battery

    7. Replacing the Secondary Battery Unlike ordinary batteries, the secondary battery used in this watch does not have to be periodically replaced since it is able to be charged and discharged repeated- 8. Switching the Mode (Display Function) This watch is equipped with four modes consisting of time/calendar, chronograph, local time and alarm.
  • Page 12: Hand 0-Position Check And Correction

    9. Hand 0-Position Check and Correction Before using this watch, check that the functions of the watch operate properly by performing the following procedure. 0-Position: This refers to the base position of each hand that enables the watch to function properly.
  • Page 13: 0-Position Correction

    [0-Position Correction] 0-Position Correction of Function Hand and Date Wheel: 1. Pull the crown out to Position 1 in the chronograph [CHR] mode to correct the function hand and date wheel. 2. Click (turn) the crown to the left to align the date wheel. (1) Clicking the crown once causes the function hand to make four revolutions and the date to be corrected by one day.
  • Page 14: Setting The Time And Date

    10. Setting the Time and Date [Setting the Time] 1. Turn the crown and align the mode hand at the time/calendar [TME] mode. Hour hand 24 hour hand Second hand Mode hand 2. When the crown is pulled out to Position 2 (time setting position), the second Minute hand 3.
  • Page 15: Setting The Date

    [Setting the Date] The calendar function of this watch is a full-auto calendar that changes the year, month and date automatically, including leap years. Month No. of years since mos t recent (1) Date correction position Normal position Date 1. Turn the crown to switch the watch to the time/calendar [TME] mode.
  • Page 16 3rd year When the crown is returned to the normal position from the date correction mode, the watch switches to the 1st day of the following month. Example: February 29, 30 or 31 in an ordinary year c March 1...
  • Page 17: Date Is Not In Center

    [When the Date is not in the Center of the Calendar Window] If the date has shifted from the calendar window as a result of the watch having been subjected to a strong impact and so forth, realign the function hand and date to their proper reference positions in the chronograph mode.
  • Page 18: Using The Chronograph

    1/20th seconds display during time button (B) is pressed. Note: 24 hour hand, hour hand, minute hand, date wheel: • Continue to display the current time when the watch has been switched from the time/calendar mode.
  • Page 19: Chronograph Measurement

    [Chronograph Measurement] 1. Turn the crown to set the mode hand to the chronograph [CHR] mode. 2. Press button (A) to start and stop the chronograph. A confirmation tone is heard whenever button (A) is pressed. 3. Continuously pressing button (A) when the chronograph is stopped causes the chronograph second hand and chronograph minute hand to be reset to the 0 position.
  • Page 20: Using The Alarm

    Note: The hour hand is not advanced rapidly even if the crown is continuously clicked two or more times. Perform correction accurately 1 hour at a time. Furthermore, the range of time difference correction is ±23 hours based on the current time. 4.
  • Page 21 3. Click (turn) the crown to set the alarm time. (1) Clicking once to the right causes the hour and minute hands to move clock- wise. (2) Clicking once to the left causes the hour and minute hands to move counter- clockwise.
  • Page 22: All-Reset

    14. All-Reset This watch may not function properly as a result of being subjected to the effects of static electricity or strong impact and so forth. When this happens, set the hands of the watch to their respective base positions according to the following procedure after performing the all-reset procedure.
  • Page 23: Precautions

    WATER RESIST 100/200 10 / 20 atmospheres WATER RESIST(ANT) For correct use within the design limits of the watch, confirm the level of water- resistance of your watch, as indicated on the dial and case, and consult the table. Moderate exposure to...
  • Page 24 • If moisture has entered the watch, or if the inside of the crystal is fogged up and does not become clear within a day, immediately take the watch to your dealer or Citizen Service Center for repair. Leaving the watch in such a state will allow corrosion to form inside.
  • Page 25 Timekeeping may become inaccurate if the watch is exposed to strong static electricity, such as is emitted from a TV screen. • Do NOT subject the watch to a strong shock such as dropping it onto a hard floor. • Avoid using the watch in an environment where it may be exposed to chemicals or corrosive gases.
  • Page 26: Specifications

    +5°C to +35°C / 41°F to 95°F) • Operating temperature range: Watch operating temperature range: -10°C to +60°C / 14°F to 140°F Power save feature operating temperature range: -10°C to +35°C / 14°F to 95°F Time correction operating temperature range: -5°C to +60°C / 23°F to 140°F •...
