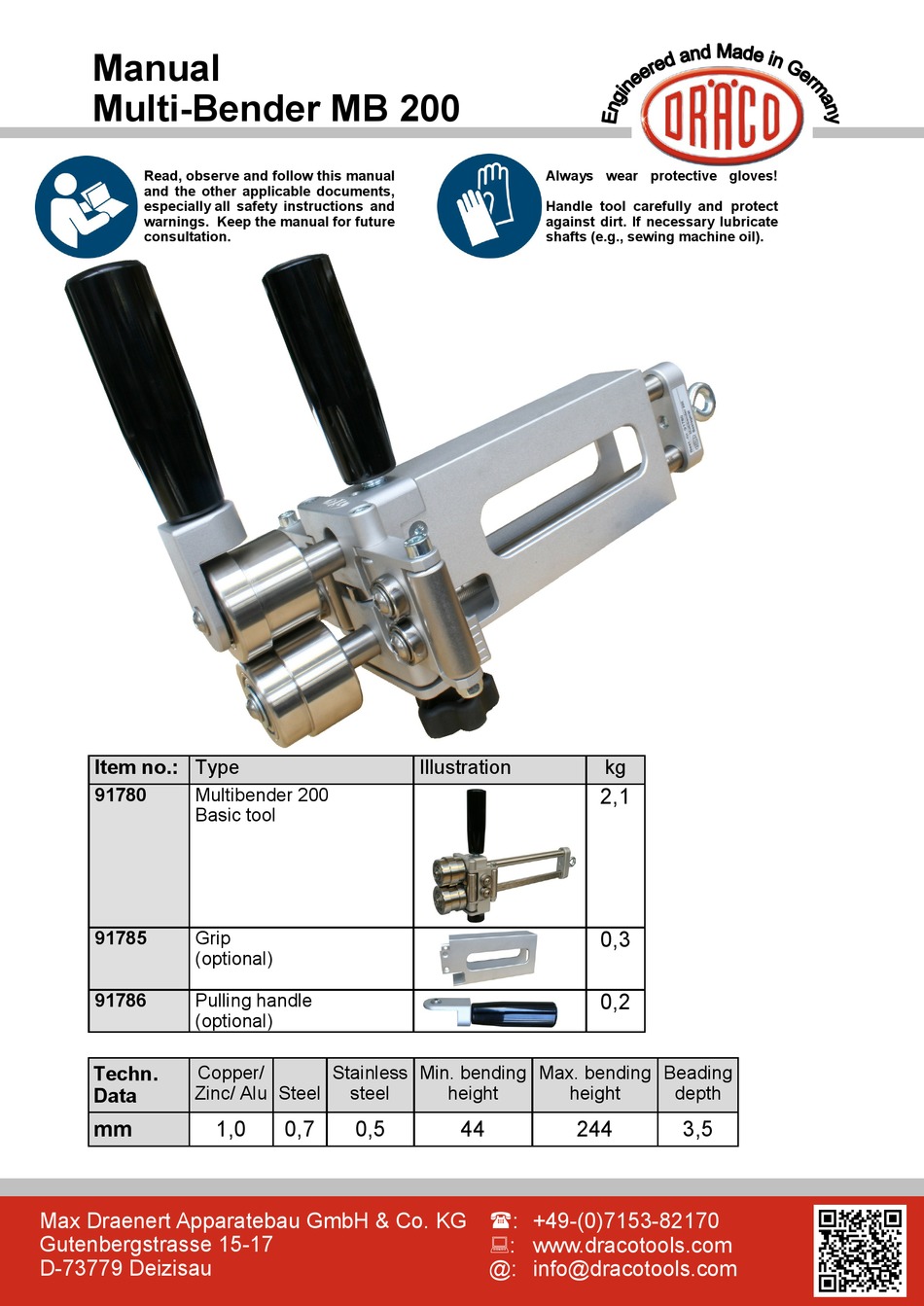

Manual
Multi-Bender MB 200
Read, observe and follow this manual
and the other applicable documents,
especially all safety instructions and
warnings. Keep the manual for future
consultation.
,
Item no.: Type
91780
Multibender 200
Basic tool
91785
Grip
(optional)
91786
Pulling handle
(optional)
Techn.
Copper/
Zinc/ Alu Steel
Data
mm
Max Draenert Apparatebau GmbH & Co. KG
Gutenbergstrasse 15-17
D-73779 Deizisau
Stainless
steel
1,0
0,7
0,5
Always wear protective gloves!
Handle tool carefully and protect
against dirt. If necessary lubricate
shafts (e.g., sewing machine oil).
Illustration
Min. bending
Max. bending
height
height
44
244
: +49-(0)7153-82170
: www.dracotools.com
@: info@dracotools.com
kg
2,1
0,3
0,2
Beading
depth
3,5
Advertisement
Related Manuals for Draco MB 200
Summary of Contents for Draco MB 200
- Page 1 Manual Multi-Bender MB 200 Always wear protective gloves! Read, observe and follow this manual and the other applicable documents, especially all safety instructions and Handle tool carefully and protect against dirt. If necessary lubricate warnings. Keep the manual for future consultation.
- Page 2 Manual Multi-Bender MB 200 Tool elements 1 Pulling Handle 2 Top Roller 3 Lower Roller 4 Set Screw 5 Foldable Wings 6 Measuring scale (mm & inch) 7 Optional Grip 8 Adjustment Screw Intended use This tool is exclusively for beading, trimming and bending sheet metal, folded or pre-profiled material in the material thicknesses on the front page.
- Page 3 Pair of rollers No. 1: AS #9179001 No. 6: SF25 #9179006 Offsetting 1 Flat beading 1“, 25 mm No. 2: SF12 #9179002 No. 7: SRA #9179007 Flat beading 1/2“. 12,5 mm Beading circularly (asymmetric) No. 3: VS #9179003 No. 8: SV90 #9179008 Offsetting Beading V-shape 90°...
