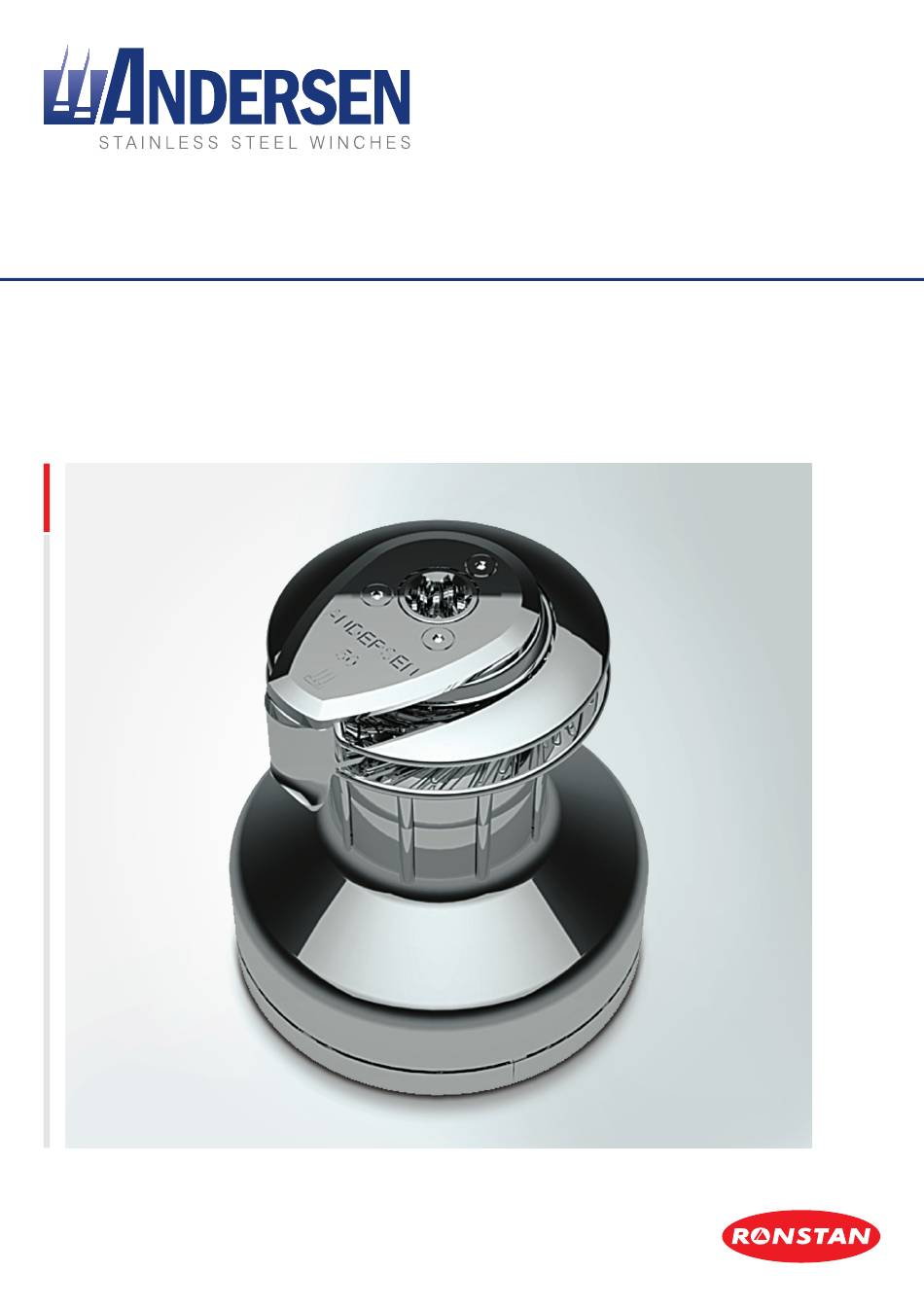

- Page 1 PRODUCT MANUAL 46ST 46ST FS (V.5.0) (V.5.0.F) 50ST 50ST FS (V.2.0) (V.2.0.F) RON-WPM-710246-46ST/46STFS/50ST/50STFS-Rev.6...
-
Page 2: Exploded View
46ST (V.5.0) 46ST FS (V.5.0.F) 50ST (V.2.0) 50ST FS (V.2.0.F) EXPLODED VIEW ITEM. 3 ITEM. 3 MODEL ST - PART No. 544521 MODEL ST FS - PART No. 544530 ITEM. 12 - PART No. 775600/775650 ITEM. 13 - PART No. 775500 ITEM. -
Page 3: Parts List
46ST (V.5.0) 46ST FS (V.5.0.F) 50ST (V.2.0) 50ST FS (V.2.0.F) PARTS LIST ITEM NO. QTY. DESCRIPTION PART NO. Screw 543311 Self-tailing arm - Model 46ST 734316 Self-tailing arm - Model 50ST 734411 Self-tailing top complete - Model ST 544521 Self-tailing top complete - Model ST FS 544530 Circlip 590300U... -
Page 4: Mounting Instructions
46ST (V.5.0) 46ST FS (V.5.0.F) 50ST (V.2.0) 50ST FS (V.2.0.F) MOUNTING INSTRUCTIONS Installing the winch is easy, if you follow these instructions. The numbers in ( ) refer to the position numbers in the parts list. Tools required for the installation: •... - Page 5 46ST (V.5.0) 46ST FS (V.5.0.F) 50ST (V.2.0) 50ST FS (V.2.0.F) SERVICE INSTRUCTIONS Tools required for service: • Allen key (4 mm) • Winch handle • Allen key (5 mm) • ANDERSEN winch grease • Screwdriver (small) 1. Remove screws (1). 2.
-
Page 6: General Information
46ST (V.5.0) 46ST FS (V.5.0.F) 50ST (V.2.0) 50ST FS (V.2.0.F) GENERAL INFORMATION Due to the best choice of materials and high precision in manufacturing, we recommend, for normal use, only to dismantle, clean and lubricate the winch once every second year. Under extensive use, such as racing, charter or blue water sailing, we recommend to lubricate the winch once every year. -
Page 7: Maintenance
46ST (V.5.0) 46ST FS (V.5.0.F) 50ST (V.2.0) 50ST FS (V.2.0.F) SAFETY NOTICES ALL WINCHES Read All Safety Notices and Product Manuals Do not install or operate this winch before reading and fully understanding the contents of this Product Manual. Stay Alert When Operating Andersen winches are very powerful and have the potential to cause significant damage and/or serious injury if used improperly or without due caution and vigilance. -
Page 8: Product Manual
PRODUCT MANUAL 46ST (V.5.0) 46ST FS (V.5.0.F) 50ST (V.2.0) 50ST FS (V.2.0.F) WORLDWIDE DISTRIBUTION & SERVICE Visit www.andersenwinches.com WARRANTY Visit www.ronstan.com/warranty Manufactured by Ronstan Denmark ApS. Jægervænget 36 - 7100 Vejle - Denmark office@ronstan.dk - www.andersenwinches.com...
