- Page 1 MOTORCYCLE CAMERA & COMMUNICATION SYSTEM WITH MESH INTERCOM™ QUICK START GUIDE ENGLISH / 1.1.1...
-
Page 2: Downloadable Sena Software
Downloadable Sena Software Download the SENA MOTORCYCLES App at Google Play Store Store. SENA MOTORCYCLES • Device configuration setting Download the Sena Camera App at Google Play Store Store. Sena Camera • Live preview, video setting Download the following items at sena.com. -
Page 3: Product Details

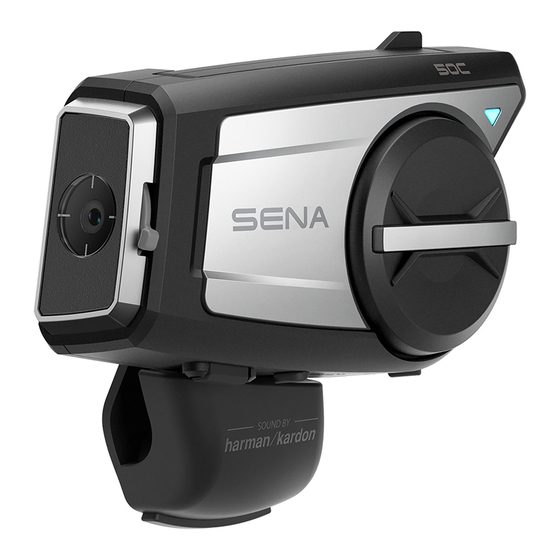

Product Details Mesh Antenna Mesh Intercom Button Status LED Jog Dial Lens Field of view: 120 degrees Aperture: F/2.4 Camera Button MicroSD Card Slot Phone Button Speaker and Microphone Port DC Power Charging & Firmware Upgrade Port... -
Page 4: Installation
Installation • For more information about installation, refer to the User’s Guide. -
Page 5: Icon Legend
Mesh Intercom Antenna Pull the Mesh Intercom Antenna inwards slightly to unfold it. Icon Legend Press and Hold button/Jog button/Jog Dial the HOLD Dial for the specified amount specified number of times of time Rotate Jog Dial clockwise (right) or ROTATE ROTATE ROTATE... -
Page 6: Basic Operations
Basic Operations Powering On Powering Off HOLD Volume Up Volume Down ROTATE ROTATE Checking the Battery Level Powering On... -
Page 7: Phone Pairing
Phone Pairing Blinking HOLD ① “Phone pairing” ② Select 50C in the list of Bluetooth devices detected. Bluetooth Device B • For more information on phone pairing, refer to the User’s Guide. -
Page 8: Using The Phone
Using the Phone Answer a Call End a Call Reject a Call HOLD Siri and Google Assistant Activate the Siri or Google Assistant Installed on Your Phone “ Hey Google” or “Hey Siri”... -
Page 9: Music Control
Music Control Play/Pause HOLD Track Forward Track Backward ROTATE ROTATE Camera Controls Camera On “ Camera on” Camera Off “ Camera off”... - Page 10 Start Recording Blinking twice HOLD “Recording” Stop Recording Blinking twice HOLD “ [Shutter sound]” Take Photos Blinking per shot “ [Shutter sound]”...
- Page 11 Format SD Card HOLD ① “ Format SD card” Blinking ② “ Format SD card completed” Note: • If the video resolution is 2160p/30fps, you cannot take a photo during video recording. • You cannot record videos without a microSD card. •...
- Page 12 Change Wi-Fi Channel (Default: 5 GHz) ① HOLD “ WiFi channel” ② Select 5 GHz or 2.4 GHz. • 5 GHz: Blinking twice • 2.4 GHz: Blinking twice Note: IF YOUR SMARTPHONE OR REGION DOES NOT SUPPORT 5 GHZ, YOU MUST CHANGE THE WI-FI CHANNEL TO 2.4 GHZ.
- Page 13 “ Mesh intercom on, Open Mesh, channel 1” Mesh Intercom Off “ Mesh intercom off” Note: When Mesh Intercom is on, the 50C will automatically connect to nearby 50C users and the headset will be in Open Mesh (default: channel 1) initially.
- Page 14 ① Enter into the Channel Setting. “ Channel setting, 1” ② Navigate between channels. ••• Exit •••) ROTATE “ #” ROTATE ③ Save the channel. “ Channel is set, channel #” Note: You can use the SENA MOTORCYCLES App to change the channel.
- Page 15 Group Mesh Group Mesh is a closed group intercom function that allows users to join, leave, or rejoin a group intercom conversation without pairing each headset. 1) Creating a Group Mesh Creating a Group Mesh requires two or more Open Mesh users.
- Page 16 2) Joining an Existing Group Mesh One of the current users in an Existing Group Mesh can allow users (one or more) in Open Mesh to join the Existing Group Mesh. Existing Group Mesh Open Mesh Existing Group Mesh One (You) of the current users in the Existing Group Mesh and ①...
- Page 17 Enable/Disable Mic (Default: Enable) Users can enable/disable the microphone when communicating in a Mesh Intercom. HOLD “Mic on” or “Mic off” Reset Mesh If a headset in an Open Mesh or Group Mesh resets the Mesh, it will automatically return to Open Mesh (default: channel 1). HOLD “Reset Mesh”...
-
Page 18: Bluetooth Intercom
Using the Smart Intercom Pairing (SIP) SIP allows you to quickly pair with your friends for intercom communication by scanning the QR code on the SENA MOTORCYCLES App without remembering the button operation. ① Pair the mobile phone with the headset. - Page 19 Scan ) and repeat steps 3-4 to pair with Intercom Friends (C) and (D). Note: The Smart Intercom Pairing (SIP) is not compatible with Sena products that use Bluetooth 3.0 or below. Using the Button ① The users (You, B) enter into Intercom Pairing.
- Page 20 Turns blue ② The users’ headsets will be automatically paired. ③ Repeat the steps above to pair with other headsets (C and D). Last-Come, First-Served If a headset has multiple paired headsets for intercom conversations, the last paired headset is set as the first intercom friend. Intercom Pairing Order Last-Come, First-Served Intercom...
-
Page 21: Two-Way Intercom
Two-way Intercom Start/End Conversation with the First Intercom Friend D Start/End Conversation with the Second Intercom Friend C Start/End Conversation with the Third Intercom Friend B... - Page 22 FM Radio FM Radio On/Off Start/Stop Scanning HOLD Seek Forward Seek Backward ROTATE ROTATE Navigating Preset Stations Note: You can save current station from the Sena Device Manager or the SENA MOTORCYCLES App.
- Page 23 Headset Configuration Menu Accessing the Configuration Menu HOLD “ Configuration menu” Navigating Between Menu Options ROTATE ROTATE Execute Menu Options...
-
Page 24: Troubleshooting
Troubleshooting Fault Reset Note: Fault Reset will not restore the headset to the factory default settings. Factory Reset HOLD ① “ Factory reset” “ Headset reset, ② good-bye”... -
Page 25: Quick Reference
Quick Reference TYPE OPERATION BUTTON COMMANDS HOLD Power on / Power off Basic Operations ROTATE ROTATE Volume up / Volume down Camera On Camera Off HOLD Camera Start/Stop recording Taking Photos Answer phone call End phone call Mobile Phone HOLD Reject phone call... - Page 26 TYPE OPERATION BUTTON COMMANDS Activate the Siri or Google Assistant Siri and Google Assistant HOLD Play/Pause music ROTATE Track forward Music ROTATE Track backward HOLD FM radio on/off Select preset Seek forward/ ROTATE ROTATE FM Radio backward Scan up FM band/ stop scanning...
- Page 27 TYPE OPERATION BUTTON COMMANDS Mesh Intercom on/off Channel setting HOLD Mesh Grouping Mesh Intercom™ HOLD Reset Mesh HOLD Enable/Disable Mic HOLD Intercom pairing Intercom Start/End intercom 1.1.1_EN_March2022...
