Summary of Contents for Defy FLAME MASTER DGS670

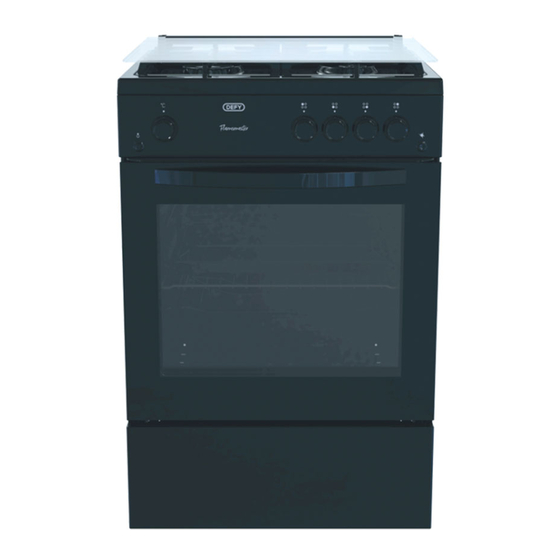

- Page 1 FLAME MASTER DGS670 600 STOVE FULL GAS Page 1 Cooking Instruction manual Part number: 074833...
-
Page 2: Table Of Contents
SOUTH AFRICA Dear Customer, Your new Defy oven was manufactured in a state-of-the-art facility and has passed the strictest quality control procedures. Please read this manual carefully before connecting the gas bottle or using your oven for the first time and then store it within easy reach for future reference. -
Page 3: General Information
Total gas consumption 13 kW be included with your appliance. Grill power consumption 2.5 kW Accessories may be purchased from Defy spares. Oven power consumption 2.5 kW Rear right (RR) Rear left (RL) 2000W 2000W Front right (FR) -
Page 4: Important Safety Instructions
2. Important Safety Instructions This section contains safety instructions that will help you avoid risk of injury and damage. All warranties will become void if you do not follow these instructions. General safety • This appliance is not intended for use by •... -
Page 5: Safety When Working With Gas
• If odour persists contact your nearest • The use of gas cooking appliances results Defy Service Centre for assistance. in the production of heat and moisture in • If you still smell gas leave the property. the room in which it is installed. Ensure •... -
Page 6: Setup
3. Setup Unpacking WARNING! ELECTRICAL CONNECTION MUST ONLY BE DONE BY A QUALIFIED Please ensure that packaging material is disposed of in a responsible manner. ELECTRICIAN Plastic bags should be cut up to prevent children Connection to the power supply playing with them and accidentally suffocating. -
Page 7: Ventilation
Ventilation Important information Upon completion of the installation ensure that you Air for combustion is drawn from the room and the are familiar with the following: exhaust gases are emitted directly into the room, a) The position of the isolation or shut-off valve in therefore good room ventilation is essential for the the gas supply line to the appliance. -
Page 8: Gas Conversion
The flames should be blue and burn 1. Hose tip-LPG smoothly. If the flames appear 2. Hose tip-NG yellowish, check that the burner cap is seated correctly or clean the 3. Safety hose burner. Switch off the gas and let 4. -
Page 9: Routing Of The Gas Hose
Reduced gas flow rate setting for taps Routing of the gas hose 1. Ignite the burner that is to be adjusted and turn the knob to the reduced position. Before connecting the gas hose, make sure that 2. Remove the knob from the gas tap. the gas hose outlet behind the product is in the 3. -
Page 10: Operation Instructions
4. Operation Instructions Oven operation Gas grill operation The gas oven is operated by the gas oven control The gas grill is operated by the gas oven control knob. In off position (top) the gas supply is Off. knob. In off position (top) the gas supply is Off. Switching on the gas oven Switching on the gas grill The gas oven is ignited with the ignition button. -
Page 11: Gas Hobs
Gas hobs Fitting the burner caps The size of the cooking vessel and the flame must be suited to each other. Adjust the gas flames so that they do not extend past the bottom of the cooking vessel Carefully align the hole in the burner body •... -
Page 12: Maintenance And Care
Every twelve months the appliance should be • • Unscrew the light cover. serviced by a Defy Service agent to ensure • Unscrew the faulty bulb and fit a new 25-watt continued efficient and safe operation. bulb rated for 300’C If required, the cleaning of the valves should •... -
Page 13: Removing The Oven Door
6 months. This may be done using a Gas Jet Cleaning • Kit which may be purchased from your nearest Defy Service Centre. The kit comprises of a sliding T-bar (A) a • socket (B) and a ‘Classic pin’ (C). -
Page 14: Important Notes
Follow the correct lighting not a fault. been correctly followed. procedure. OVER THE YEARS, DEFY'S SERVICE CENTRES HAVE IDENTIFIED THIS LIST OF DO'S AND DON'TS AS BEING IMPORTANT FOR CUSTOMER SATISFACTION AND SAFETY. PLEASE READ IT AND FAMILIARISE YOURSELF WITH ITS CONTENTS. Don’t Clean your appliance regularly. -
Page 15: Support
7. Support Do not attempt any repairs yourself. Before calling a service technician, please check: The mains distribution board for tripped circuit breakers. • The wall switch is on. • Gas fittings are connected properly. • Remember that you may be charged for a service call even during the warranty period if the fault is due to or caused by any of the above. -
Page 16: Warranty
8. Warranty This certificate is issued by DEFY APPLIANCES (PTY) LTD manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.
