LG 70UL3E Owner's Manual

Monitor signage
Hide thumbs Also See for 70UL3E:
Table of Contents

Advertisement

Quick Links

Download this manual

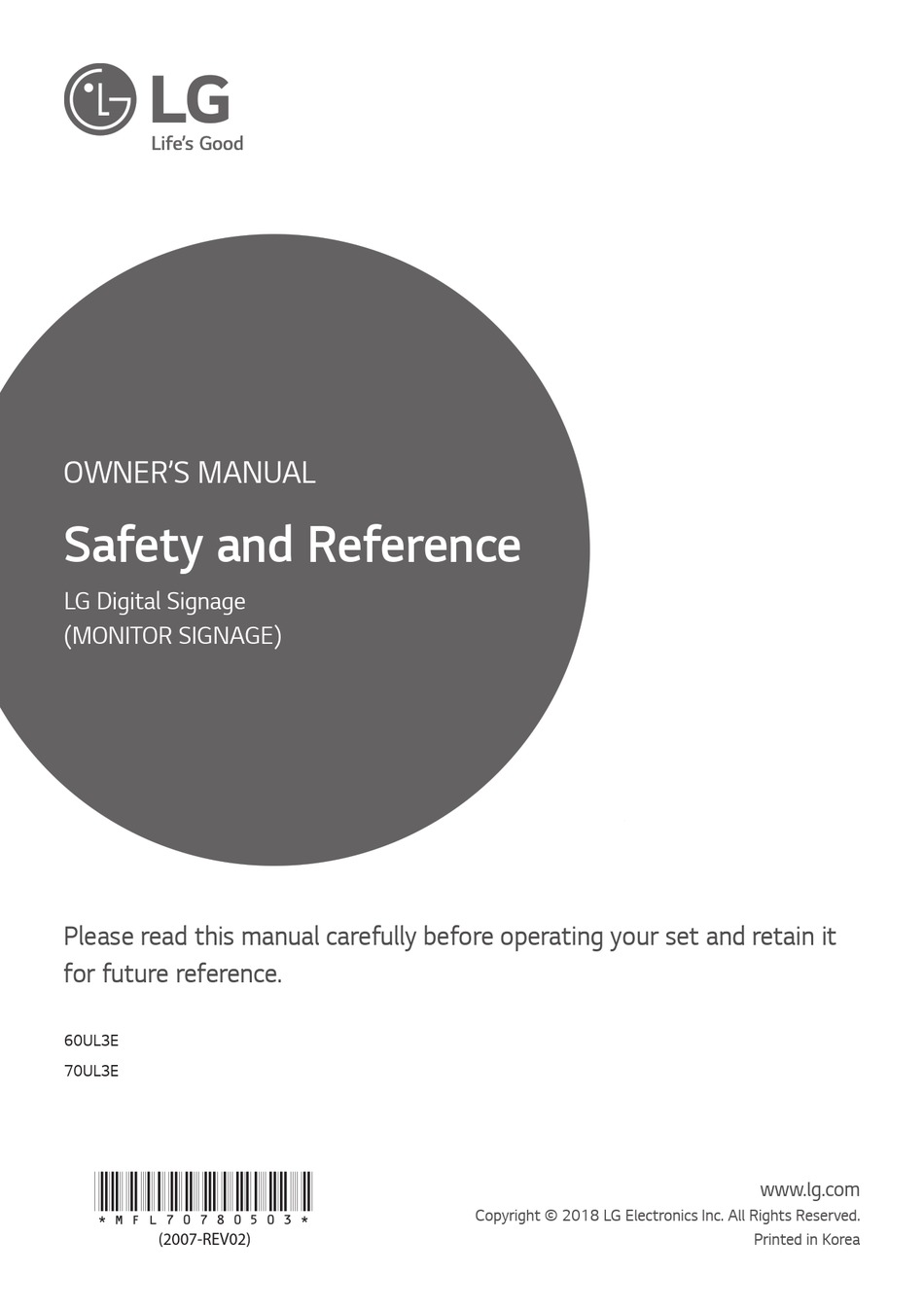

OWNER'S MANUAL
Safety and Reference
LG Digital Signage
(MONITOR SIGNAGE)
Please read this manual carefully before operating your set and retain it
for future reference.
60UL3E
70UL3E
*MFL70780503*
www.lg.com
Copyright © 2018 LG Electronics Inc. All Rights Reserved.
Printed in Korea
(2007-REV02)

Advertisement

Table of Contents
loading

Related Manuals for LG 70UL3E

Summary of Contents for LG 70UL3E

  • Page 1 Safety and Reference LG Digital Signage (MONITOR SIGNAGE) Please read this manual carefully before operating your set and retain it for future reference. 60UL3E 70UL3E *MFL70780503* www.lg.com Copyright © 2018 LG Electronics Inc. All Rights Reserved. Printed in Korea (2007-REV02)
  • Page 2 Important Safety Instruction • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. •...
  • Page 3 Warning! Safety instructions • Ventilation - Install your monitor where there is proper ventilation. Do not install in a confined space such as a bookcase. - Do not install the product on a carpet or cushion. CAUTION - Do not block or cover the product with cloth or other materials while unit is plugged in.
  • Page 4 Otherwise, this may result • Use only an authorized attachments / accessories in electric shock or product damage. approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction, or product damage. • Never disassemble the AC adapter or power cord.
  • Page 5 ST-60UL3RB slightly from that shown in this manual. • The available menus and options may differ from the 70UL3E ST-70UL3DT input source or product model that you are using. • New features may be added to this monitor in the Optional extras can be changed or modified for quality future.
  • Page 6 Lifting and Moving the • When transporting the monitor, do not expose the monitor to jolts or excessive vibration. Monitor • When transporting the monitor, keep the monitor upright; never turn the monitor on its side or tilt towards the left or right. When moving or lifting the monitor, read the following •...
  • Page 7 Detailed instructions will be included with the wall mount. We recommend that you use an LG brand wall mount. The LG wall mount is easy to adjust or to connect the cables. When you do not use LG’s wall mount bracket, use a wall mount bracket...
  • Page 8 Connections • Remove the stand before installing the monitor on a wall mount by performing the stand attachment in reverse. You can connect various external devices to the • For more information of screws and wall monitor. For more information on external device’s mount bracket, refer to the Separate connection, refer to the manual provided with each purchase.
  • Page 9 Network setup • Some USB Hubs may not work. If a USB device (Depending upon model) connected through a USB Hub is not detected, connect it directly to the USB port on the monitor. Wired network connection External Devices This monitor can be connected to a Pro:Centric server via the LAN port.
  • Page 10 Using the Button Using Remote Control You can simply operate the monitor functions, using The descriptions in this manual are based on the the button. buttons on the remote control. Please read this manual carefully and use the monitor correctly. To install batteries, open the battery cover, replace batteries (1.5 V AAA) matching the ends...
  • Page 11 (Power) Turns the monitor on or off. • Do not mix new batteries with old batteries. Turns the monitor on. This may cause the batteries to overheat Turns the monitor off. and leak. Reduces power consumption by • Failure to match the correct polarities of adjusting peak screen brightness.
  • Page 12 Those dots are deactivated pixels and performance. The customer is responsible to ensure do not affect the performance and reliability of the compatibility of their equipment with any LG the monitor. Electronics software. If needed, please consult with...
  • Page 13 Settings To set additional picture options ) [Picture] [Picture Mode Settings] [Picture Options] To select Picture Mode Adjusts detailed setting for images. • [Noise Reduction] Eliminates noise in the picture. ) [Picture] [Picture Mode • [MPEG Noise Reduction] Eliminates noise generated Settings] [Picture Mode] while creating digital picture signals.
  • Page 14 To use energy saving feature ) [Picture] [Energy Saving] Reduces power consumption by adjusting peak screen brightness. • [Auto] The monitor sensor detects the ambient lighting and automatically adjusts the screen brightness. • [Off] Turns off the Energy Saving. • [Minimum] / [Medium] / [Maximum] Applies the pre- set Energy Saving.
  • Page 15 Specifications Product specifications may be changed without prior notice due to upgrade of product functions. Estimated yearly energy consumption indicated on the FTC label is measured in accordance with the Test Procedures for Signage Sets (USA only). The actual energy consumption depends on the usage environment (The content watched, Signage settings, etc.). Environment condition Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
  • Page 16 HDMI (PC) supported mode HDMI (DTV) supported mode Horizontal Vertical Horizontal Vertical Resolution Resolution Frequency (kHz) Frequency (Hz) Frequency (kHz) Frequency (Hz) 640 x 350 31.46 70.09 31.46 59.94 640 x 480p 720 x 400 31.46 70.08 31.50 60.00 640 x 480 31.46 59.94 31.47...
  • Page 17 Supported Photo Formats Supported Video Formats File Format Format Resolution File Codec Format Minimum : 64 (W) x 64 (H) VC-1 Advanced Profile Maximum : .jpeg Video (except for WMVA), VC-1 - Normal Type : 15360 (W) .jpg JPEG .asf Simple and Main Profiles x 8640 (H) .jpe .wmv...
  • Page 18 KEY CODES * This feature is not available for all models. Code Code Function Note Function Note (Hex) (Hex) R/C Button R/C Button (POWER) R/C Button R/C Button R/C Button R/C Button ENERGY SAVING R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button...
  • Page 19 USB Type (TV) (Signage) (PC) • LG signage supports PL2303 chip-based (Vendor ID : 0 x 0557, Product ID : 0 x 2008) USB to serial converter which RS-232C IN (CONTROL & SERVICE) is not made nor provided by LG.
  • Page 20 Connector type : D-Sub 9-pin male RS-232C (Serial port) RS-232C configurations 7-Wire Configurations 3-Wire Configurations (Standard RS-232C cable) (Not standard) Signage Signage D-Sub 9 D-Sub 9 D-Sub 9 D-Sub 9 Set ID For Set ID number, see “Real data mapping (Hexadecimal : Decimal)”. 1 Press ) to access the main menus.
  • Page 21 Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list * (Depending upon model) COMMAND1 COMMAND2...
  • Page 22 TRANSMISSION / RECEIVING PROTOCOL * (Depending upon Model) Transmission (Command1)(Command2)( )([Set ID])( )(Data)(Cr) (Command 1) : First command to control the signage. (j, k, m or x) (Command 2) : Second command to control the signage. (Set ID) : You can adjust the set ID to choose desired monitor ID number in option menu. Adjustment range is 1 to 99.
  • Page 23 1 Power (Command: k a) 3 Screen Mute (Command: k d) ► To control power on or off of the set. ► To select screen mute on/off. Transmission Transmission (k)(a)( )([Set ID])( )(Data)(Cr) (k)(d)( )([Set ID])( )(Data)(Cr) Data 00 : [Off] Data 00 : Screen mute off (Picture on) / Video mute off Data...
  • Page 24 7 [Brightness] (Command: k h) 11 OSD Select (Command: k l) ► To adjust screen brightness. You can also adjust ► To select OSD (On Screen Display) on/off when brightness in the picture settings. controlling remotely. Transmission Transmission (k)(h)( )([Set ID])( )(Data)(Cr) (k)(l)( )([Set...
  • Page 25 15 [Equalizer] (Command : j v) 17 Key (Command: m c) ► Adjust EQ of the set. ► To send IR remote key code. Transmission Transmission (j)(v)( )([Set ID])( )(Data)(Cr) (m)(c)( )([Set ID])( )(Data)(Cr) Data : Key code - page 18 (c)( )([Set ID])( )(OK/NG)(Data)(x)
  • Page 26 If not use the remote-controller with data formats recommended, IR output signals will be suppressed automatically by IR receiver. In this case, LG does not guarantee IR working function. To make sure of this matter, here are two methods as below.
  • Page 27 Dolby Atmos, and the double-D symbol are available for download. trademarks of Dolby Laboratories. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
  • Page 28 Regulatory FCC Radio Frequency Interference Requirements (for UNII devices) High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These FCC NOTICE radar stations can cause interference with and/or damage this device. This device cannot be co-located (For USA) with any other transmitter.
  • Page 29 WARNING! RSS-247 Requirement (For Canada) Never place a monitor set in an unstable location. A [For product having the wireless function using 5 GHz monitor set may fall, causing serious personal injury frequency bands] or death. Many injuries, particularly to children, can be (1) the device for operation in the band 5150–5250 avoided by taking simple precautions such as: MHz is only for indoor use to reduce the potential for...
  • Page 32 LG Customer Information Center Supplier’s Declaration of Conformity For inquires or comments, visit www.lg.com or call; Trade Name Responsible LG Electronics USA, Inc. 1-888-865-3026 USA, Commercial User Party 1-855-286-2456 CANADA Address 111 Sylvan Avenue, North Building, Englewood Cliffs, NJ 07632 E-mail lg.environmental@lge.com...
  • Page 33 USER MANUAL LG Digital Signage (MONITOR SIGNAGE) Please read this manual carefully before operation and retain it for future reference. webOS 4.0 www.lg.com...

  • Page 34: Table Of Contents

    [Player] [Multi Screen] [Scheduler] - General ................13 [Template] [Language] - Group Manager 2.0 ............46 [System Information] - ScreenShare ..............49 [Set ID] - LG Presenter..............50 [Time Setting] Connect [Power] Screen Share [Network] Handover [Safety Mode] [Advanced Setting] - Display .................26 [Picture Mode]...
  • Page 35 In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing...

  • Page 36: Settings

    NOTE • Software-related content may be changed without prior notice due to upgrades of the product functions. • Some features described in the User Manual may not be supported in certain models and countries. • SNMP 2.0 is supported. SETTINGS Home Global Buttons •...

  • Page 37: Ez Setting

    Ez Setting [Video Wall] [Ez Setting] [Video Wall] Set Video Wall options to create a wide visual canvas. • [Tile Mode]: Turn [Tile Mode] on or off. • [Tile Mode Settings]: Display a single integrated screen on multiple Signage monitors. •...

  • Page 38: [Server Setting]

    NOTE • To use these features, an account (ID/PASSWORD) for webOS Signage developer website (http://webossignage. developer.lge.com/) is required. [Server Setting] [Ez Setting] [Server Setting] Set up to connect your signage to a SuperSign server. • CMS Server • Control Server [Fail Over] [Ez Setting] [Fail Over]...

  • Page 39: [Status Mailing]

    [Status Mailing] [Ez Setting] [Status Mailing] This feature configures the system so that the status of the device is assessed and then notified to the administrator by e-mail. • [On/Off]: Turns [Status Mailing] on or off. • [Mailing Option], [Scheduling]: Sets the email sending interval. •...

  • Page 40: [Play Via Url]

    [Play via URL] [Ez Setting] [Play via URL] Play content you want to play automatically through the built-in web browser. • [URL Loader]: Turns [Play via URL] on or off. • [Set URL]: Enter the URL address to display automatically. •...

  • Page 41: [Signage 365 Care]

    [Signage 365 Care] [Ez Setting] [Signage 365 Care] You can install the Signage 365 Care (fault diagnosis) solution for fault diagnosis and prediction service. • [Install]: Installs the Signage 365 Care solution. 1) [ENTER ACCOUNT NUMBER]: Enters the 6-digit account number to install the Signage 365 Care solution. - Account Number: The number assigned when the Signage 365 Care solution is registered.

  • Page 42: [Multi Screen]

    [Multi Screen] [Ez Setting] [Multi Screen] This feature allows you to view multiple external inputs and videos on a single screen. PIP Mode PBP Mode 3-Screen Split Mode 4-Screen Split Mode...
  • Page 43 2-Screen Split Mode (1:1) 3-Screen Split Mode (1:1:1) 3-Screen Split Mode (1:2:1) 4-Screen Split Mode (1:1:1:1) NOTE • In multi-screen mode, the DP daisy chain feature is not supported. • The available number/shape of split screens may vary depending on the model. Selecting Screen Layout When you enter multi-screen mode without having set any screen layout, the screen layout selection menu appears.
  • Page 44 Changing Screen Input Press the button on the top right of each split screen to select the desired input. NOTE • Inputs which have already been selected for other split screens cannot be selected again. To select them, press the RESET button to reset the inputs for all screens first.

  • Page 45: General

    General [Language] [General] [Language] You can select the menu language to be displayed on the screen. • [Menu Language]: Sets the language of your Signage monitor. • [Keyboard Language]: Sets the language of the keyboard displayed on the screen. [System Information] [General] [System Information] This feature displays information such as the device name, software version, and storage space.
  • Page 46 [Power] [General] [Power] Power-related feature settings [No Signal Power Off (15 Min)] Set whether to use the 15 Min Auto Off feature. • You can set this option to [On] or [Off]. • If you set this feature to [On], the product turns off after it’s remained in No Signal status for 15 minutes. •...
  • Page 47 [PM Mode] • [Power Off (Default)]: Set the normal DC off mode. • [Sustain Aspect Ratio]: The PC retains the Extended Display Identification Data (EDID) even when the power is off. • [Screen Off]: Switches to [Screen Off] status when entering DPM, Auto Power Off (15 min, 4 hours), or Abnormal Shut Down mode.
  • Page 48 [Power Indicator] • This function enables you to change the [Power Indicator] settings. • Setting to [On] will turn on [Power Indicator]. • Setting to [Off] will turn off [Power Indicator]. • Regardless of [On] or [Off] settings in [Power Indicator], [Power Indicator] will be turned on for approximately 15 seconds.
  • Page 49 [LAN Daisy Chain] • LAN Daisy Chain forms a daisy chain of LAN ports so that even if you connect only one monitor set to a network, the other sets in the daisy chain are connected to the network. • However, the first monitor set in the daisy chain must be connected to the network through a port that is not used for the daisy chain connection.
  • Page 50 For details, contact your ISP. • LG is not responsible for any malfunction of the display or Internet connection failures due to communication errors/ malfunctions associated with your Internet connection or other connected equipment.
  • Page 51 Tips for When Configuring Wireless Network Settings • The wireless network may be affected by interference from a device that uses 2.4 GHz frequency, such as a wireless telephone, Bluetooth device or microwave. Interference may also be caused by a device that uses 5 GHz frequency such as Wi-Fi devices.

  • Page 52: [Safety Mode]

    [Safety Mode] [General] [Safety Mode] Set to this function for safe performance. [ISM Method] If a still image is displayed on the screen for an extended period of time, image sticking can occur. The ISM method is a feature that prevents image sticking. [Mode] •...
  • Page 53 [Start Time] • Set the Start time. • This option is available only when [Repeat] is set to [Schedule]. • You cannot set the same time for Start time and End time. [End Time] • Set the End time. • This option is available only when [Repeat] is set to [Schedule].

  • Page 54: [Advanced Setting]

    This option enables BLE Beacon, one of Bluetooth 4.0's features. • Beacon Mode (On/Off Toggle): enables the Beacon feature. • The LG Beacon/iBeacon/Eddystone Type Beacon features are supported. • iBeacon - Beacon UUID (hex): Set the UUID. 1. Field1: 4byte hex value (8 digits) 2.
  • Page 55 2.4GHz. • When you set iBeacon, LG Beacon will be set to be the same as the value of iBeacon field. But the LG Beacon setting item won’t be provided separately.
  • Page 56 [SIMPLINK Setup] • When the [SIMPLINK Setup] is set to [On], you can use the SIMPLINK provided by LG Signage. • [Device ID]: Set the ID of the device connected via CEC wiring. You can choose a value between [All] and [E].
  • Page 57 [Crestron] This function enables synchronization with applications provided by Crestron. • Server: This menu sets the server's IP address for the network connection with the server (equipment provided by Crestron). • Port (1024~65535): This menu sets the port for the network connection with the server. The default port number is 41794.

  • Page 58: Display

    Display [Picture Mode] [Display] [Picture Mode] [Mode] This feature enables you to choose the optimal picture mode for your installation environment. • [Mall/QSR], [Transportation], [Education], [Gov./Corp.]: Display the picture optimally for your installation environment. • [Normal]: Display the picture at normal contrast, brightness, and sharpness. •...
  • Page 59 [Customize] • [Backlight]: Adjust the brightness of the screen by adjusting the brightness of the backlight. The closer the value is to 100, the brighter the screen is. • [OLED Light]: Adjusts the brightness of the LED panel to control the brightness of the screen. •...
  • Page 60 • [Picture Option]: Customize the picture options. - [Noise Reduction]: Remove randomly popping dots to make the picture look clearer. - [MPEG Noise Reduction]: Reduce the noise generated in the process of creating a digital video signal. - [Black Level]: Adjust the brightness and contrast of the screen by adjusting the black level of the screen. (Recommended settings based on input signals: Backlight 0 - 255 High, RGB 16 - 235: Low, YCbCr: Low) - [Real Cinema]: Optimize the video image for a cinematic look.

  • Page 61: [Aspect Ratio]

    [Aspect Ratio] [Display] [Aspect Ratio] This feature enables you to change the picture size to view the picture at its optimal resolution. • [Full Wide]: Stretch the picture to fill the screen. • [Original]: Display the picture at its original resolution. [Rotation] [Display] [Rotation]...
  • Page 62 [Advanced Setting] [Display] [Advanced Setting] [UHD Deep Color] If you connect an HDMI, DP, or OPS device to one of the Deep Color adjustable ports, you can select between UHD Deep Color On (6G) or Off (3G) in the UHD Deep Color settings menu. If a compatibility issue occurs with a graphics card when the Deep Color option is set to On at 3840 x 2160 @ 60 Hz, set the Deep Color option back to Off.
  • Page 63 Item Description [Tiling Type] Select and set the mode according to the installation type of your Signage. • Stand-alone: Select and use this mode when you use only one unit. • Video Wall: Select and use this mode when using two or more multi-screen configurations.
  • Page 64 [Energy Saving] • [Smart Energy Saving]: Automatically adjust the brightness of the screen according to the brightness of the picture to save energy. - [On]: Enable the Smart Energy Saving feature. - [Off]: Disable the Smart Energy Saving feature. • [Brightness Control]: Adjust the brightness of the screen to save energy.
  • Page 65 [LED Local Dimming] Make the light areas of the screen lighter and the dark areas darker for maximum contrast. NOTE • To return to the initial settings, execute [Administrator]-> [Factory default]. [Low Latency] Reduces frame delay in the LED Signage. [Factory Calibration] Retrieves factory pixel calibration data of the LED Signage and reflects it on the screen.

  • Page 66: Sound

    Sound [Sound Mode] [Sound] [Sound Mode] [Sound Mode] The best sound quality will be selected automatically depending on the video type currently being watched. • [Standard]: This sound mode works well for content of all types. • [Cinema]: Optimize sound for watching movies. •...

  • Page 67: [Sound Out]

    Some recently connected devices may automatically attempt to reconnect to the Signage monitor when it is turned • It is recommended that you set LG audio devices that support LG Sound Sync to LG TV mode or LG Sound Sync mode before connecting.

  • Page 68: [Audio Out]

    [External Speaker] (0~15): Adjust the sync between video and audio coming from external speakers, such as those connected to the digital audio output port, LG audio equipment, or headphones. The larger the number is, the slower the voice output is than the default value.

  • Page 69: Admin

    Admin [Lock Mode] [Admin] [Lock Mode] [Home Dashboard Lock] When you set the Home Dashboard Lock, you can limit the change in the settings of the Home Dashboard. [USB Lock] This feature enables you to configure the USB lock feature so that settings or content cannot be changed. [OSD Lock] This feature enables you to configure the OSD lock feature so that settings or content cannot be changed.

  • Page 70: [Change Password]

    [Change Password] This feature enables you to set the password you use to enter the Installation menu. (The default password: 000000) Enter your current password. Enter a new 6-digit password. Enter the same password again in the Confirm Password field for confirmation. [Enterprise Settings] •...

  • Page 71: Content Manager

    CONTENT MANAGER Web Login • Different features are supported depending on the product. This Signage product comes with a feature that enables you to access it on your PC or mobile device. - Content Manager, Group Manager 2.0, Control Manager, Log Out, Change Password menus are provided. •...
  • Page 72 [Delete] Select your desired type of content from the tab on the left and click [Delete] in the upper right-hand corner of the screen. Select the content you wish to delete. Click [Delete] in the upper right-hand corner of the screen. You can see that the content has been deleted.
  • Page 73 [Scheduler] (Scheduler) The Content Manager app's scheduler feature enables certain content to be played at a scheduled time through a playlist or external input. [Creating a Schedule] Click [New Schedule] in the upper right-hand corner of the screen. Choose between [Playlist] and [Input Source]. 1) If you have selected [Playlist], select the playlist you wish to schedule the playback of.
  • Page 74 [Delete Schedule] Click [DELETE] in the upper right-hand corner of the screen. Select the schedules you wish to delete. Click [DELETE]. Check that the schedules have been deleted. [Calendar View] When you have registered schedules, click [Calendar View]. You can see that the schedules registered are displayed in the form of a timetable. [Distribute] Click [Distribute] in the upper right-hand corner of the screen.
  • Page 75 Supported Photo & Video Files NOTE • Subtitles are not supported. • The photo feature is not supported in OLED model. Supported video codecs Extension Codec .asf, .wmv Video VC-1 Advanced Profile (except for WMVA), VC-1 Simple and Main Profiles Audio WMA Standard (excluding WMA v1/WMA Speech) .avi...
  • Page 76 Supported Photo File Formats File type Format Resolution .jpeg, .jpg, .jpe JPEG • Minimum: Min: 64 x 64 • Maximum: Normal Type: 15360 (W) x 8640 (H) Progressive Type: 1920 (W) x 1440 (H) .png • Minimum: Min: 64 x 64 •...
  • Page 77 • If your USB storage device has multiple partitions, or if you use a USB multi-card reader, you can use up to four partitions or USB memory devices. • If a USB storage device is connected to a USB multi-card reader, its volume data may not be detected. •...

  • Page 78: Group Manager 2.0

    Group Manager 2.0 This feature enables you to group together multiple monitor sets on a single network into the same group and to distribute content (schedules and playlists) or copy setting data on a group basis. This feature has two modes, Master and Slave, and it can access the browser on your PC or mobile device.
  • Page 79 [GROUP MANAGEMENT] • Creating a New Group 1. Click [Add New Group]. 2. Enter a group name. 3. Click [Add Device], select the devices you wish to add to the group, and add them. 4. Click [Done], and you will see that a new group has been created. •...
  • Page 80 [Setting Data Cloning] Select your desired group and click Clone. Check that the data have been copied on the slave sets. [Content Distribute] Select the type of content you wish to distribute (Schedules or Playlists). Select the content you wish to distribute. Select the group to which you wish to distribute the content and click [Distribute].

  • Page 81: Screenshare

    “Devices” on your laptop. Click “Add Device” in the top center of the screen, and then you will see a list of nearby WiDi-capable LG Signage monitors. From the list of detected Signage monitors, select one you wish to connect to and click Connect.

  • Page 82: Lg Presenter

    This feature is to display the PC (Windows or Mac OS) screen on the Signage monitor with wired/wireless connection to the PC. To use this feature, you need to install LG Presenter PC Client (“Client”) on the PC. You can use LG Presenter in the following ways.

  • Page 83: Connect

    To connect to the Signage device, enter the PIN code shown the Signage device. CAUTION • The Signage device and the PC must be on the same network. • If a specific port (UDP 1900) of your LG Signage is blocked, the LG Presenter feature will not be available.

  • Page 84: Screen Share

    Screen Share Select the screen you want to share and press the Share button. To leave Screen Share, press the Stop button. Item Description Connection status It shows the currently connected user's name and you can also disconnect here. Screen list It shows the list of PC screens available to share.

  • Page 85: Handover

    If you approve the request for hand over, the Signage device will be disconnected, and the Client on PC2 will be connected to the Signage device. If you deny the request for hand over, the Signage device will remain connected, so you can continue to use the features of LG Presenter. Item Description...

  • Page 86: Management Tools

    MANAGEMENT TOOLS Admin Control and check the status of the display through the Web browser. This function is available for PCs and mobile devices. Different features are supported depending on the product. Function • [Dashboard]: Display a summary of the product's status and provides links to each page. •...

  • Page 87: Picture Id

    Picture ID AUDIO (RGB/DVI) RS-232C OUT RS-232C OUT RS-232C OUT [Picture ID] is used to change the settings of a specific set (display) using a single IR receiver for multi-vision. Communication is possible between a monitor with an IR receiver and other monitors using RS-232C cables. Each RS-232C IN RS-232C IN RS-232C IN...

  • Page 88: Touch

    TOUCH Touch Assistive Menu This touch-exclusive feature allows the user to configure settings without a remote control. Touching the screen for a certain period of time or pressing the Touch Assistive Menu local key brings up the Touch Assistive Menu on the screen. Different features are supported depending on the product.

  • Page 89: To Control An External Pc Using Touch Screen

    TO CONTROL AN EXTERNAL PC USING TOUCH SCREEN • This only applies to certain models. Connecting to a PC Connecting this product to a PC with a USB cable (Type A to Type B) allows you to control the connected PC by touching the screen of the product.

  • Page 90: Smart Calibration

    SMART CALIBRATION How to Run [Smart Calibration] Set the Set ID of each set. Select the [Picture Mode] to execute Smart Calibration. After selecting the [Calibration] mode, you can set [Color Temperature]. - [Optimal Target]: Set the optimal color value of the installed set as the target. - Please set the target to 3,000K in the broadcasting station environment.

  • Page 91: [Manual Calibration]

    [Manual Calibration] You can manually adjust the color of the selected location. • [Screen Split]: Set the manual adjustment area. • [Calibration Position]: Select the manual adjustment location. Screen Split: 4, Calibration Position: 3 Screen Split: 9, Calibration Position: 5...

  • Page 92: Ir Code

    IR CODE • All models do not support the HDMI/USB function. • Some key codes may not be supported depending on the model. Code (Hex) Function Remarks Remote control button (Power) MONITOR ON Remote control button MONITOR OFF Remote control button (Energy Saving) Remote control button INPUT (Select input)
  • Page 93 Code (Hex) Function Remarks Tile Remote control button Exit Remote control button Picture ID On (red) Remote control button Picture ID Off (green) Remote control button Yellow Remote control button Blue Remote control button W.Bal Remote control button (S.Menu) Remote control button (Home) Remote control button Swap...

  • Page 94: Controlling Multiple Products

    CONTROLLING MULTIPLE PRODUCTS • This only applies to certain models. Use this method to connect several products to a single PC. You can control several products at a time by connecting them to a single PC. In the Option menu, the Set ID must be between 1 and 1000 without being duplicated. Connecting cables •...

  • Page 95: Communication Parameter

    Communication Parameter NOTE • When using 3-wire connections (non-standard), an IR Baud Rate: 9600 BPS daisy chain cannot be used. Data Length: 8 bits • Be sure to only use the provided gender to connect Parity Bit: None properly. Stop Bit: 1 bit •...

  • Page 96: Command Reference List

    Command Reference List Command Data (Hexadecimal) [Power] 00 to 02 Select Input See Select Input [Aspect Ratio] See [Aspect Ratio] [Brightness Control] 00 to 04 [Picture Mode] See [Picture Mode] [Contrast] 00 to 64 [Brightness] 00 to 64 [Sharpness] 00 to 32 [Color] 00 to 64 [Tint]...
  • Page 97 Command Data (Hexadecimal) [Software Version] [White Balance] Red Gain 00 to FE [White Balance] Green Gain 00 to FE [White Balance] Blue Gain 00 to FE [White Balance] Red Offset 00 to 7F [White Balance] Green Offset 00 to 7F [White Balance] Blue Offset 00 to 7F [Backlight]...
  • Page 98 Command Data (Hexadecimal) [Power On Status] 00 to 02 Wired [Wake On LAN] 00 to 01 [Screen Rotation] 00 to 03 [Time Sync] n, 16 00 to 01 [Contents Sync] 00 to 01 [LAN Daisy Chain] n, 84 00 to 01 [External Input Rotation] n, 85 00 to 03...
  • Page 99 Command Data (Hexadecimal) [Digital Audio Input] n, a2 00 to 01 [Booting Logo Image] n, a3 00 to 01 [SoftAP] n, a4 00 to 01 [Natural Size] n, a5 00 to 64 Play Saved Internal Media n, a8 See Playback of Saved Internal Media [No Signal Image] n, a9 00 to 01...

  • Page 100: Transmission/Reception Protocol

    Transmission/Reception Protocol Transmission (Command1)(Command2)( )(Set ID)( )(Data)(Cr) * (Command1): This command is used to identify between the adjustment setting or the user adjustment modes. * (Command2): This command is used to control the monitor. * (Set ID): Used for selecting a set you want to control. A unique Set ID can be assigned to each set ranging from 1 to 1000 (01H to FFH) under Settings in the OSD menu.
  • Page 101 01. [Power] (Command: k a) Acknowledgment (b)( )(Set ID)( )(OK/NG)(Data)(x) Controls the power on/off status of the monitor. * Some input signals may not be available for all models. Transmission * If it is not distributed from SuperSign W, WebOS Player (k)(a)( )(Set ID)( )(Data)(Cr) returns NG.
  • Page 102 06. [Contrast] (Command: k g) 10. [Tint] (Command: k j) Adjusts the screen contrast. Adjusts the screen tints. Transmission Transmission (k)(g)( )(Set ID)( )(Data)(Cr) (k)(j)( )(Set ID)( )(Data)(Cr) Data 00-64: Contrast 0-100 Data 00-64: Tint Red 50-Green 50 Acknowledgment Acknowledgment (g)( )(Set ID)( )(OK/NG)(Data)(x) (j)( )(Set ID)( )(OK/NG)(Data)(x) 07.
  • Page 103 13. [Sound Mode] (Command: d y) 16. [Current Time] 1 (year/month/day) (Command: f a) Selects a sound mode. Sets the Clock 1 (year/month/day) values and Auto Time. Transmission Transmission (d)(y)( )(Set ID)( )(Data)(Cr) 1. (f)(a)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)(Cr) Data 01: [Standard] 2.
  • Page 104 18. [No Signal Power Off(15Min)] (Command: f g) 21. [Default] Settings (Command: f k) Sets the monitor to enter Automatic Standby mode if there is Executes Reset. no signal for 15 minutes. (Initialize Screen can only be executed in RGB input mode.) Transmission Transmission (f)(g)( )(Set ID)( )(Data)(Cr)
  • Page 105 24. Time Elapsed (Command: d l) 27. [White Balance] Red Gain (Command: j m) Displays the time that has elapsed after your monitor has Adjusts the red gain value for white balance. turned on. Transmission Transmission (j)(m)( )(Set ID)( )(Data)(Cr) (d)(l)( )(Set ID)( )(Data)(Cr) Data 00-FE: Red Gain 0-254...
  • Page 106 30. [White Balance] Red Offset (Command: s x) 33. [Backlight] (Command: m g) Adjusts the red offset value for white balance. Adjusts the backlight brightness. Transmission Transmission (s)(x)( )(Set ID)( )(Data)(Cr) (m)(g)( )(Set ID)( )(Data)(Cr) Data 00-7F: Red Offset 0-127 Data 00-64: Backlight 0-100 FF: Checks red offset value...
  • Page 107 36. [Tile Mode] Check (Command: d z) 39. [DPM] (Command: f j) Checks the tile mode. Sets the DPM(Display Power Management) function. Transmission Transmission (d)(z)( )(Set ID)( )(Data)(Cr) (f)(j)( )(Set ID)( )(Data)(Cr) Data FF: Check Tile Mode Data 00: [Off] 04: 1 minute Acknowledgment 05: 3 minutes...
  • Page 108 42. [Fail Over] Mode (Command: m i) 44. Remote Control Key Lock (Command: t p) Selects a sound mode. Configures the settings of the product's remote control key. Transmission Transmission (m)(i)( )(Set ID)( )(Data)(Cr) (t)(p)( )(Set ID)( )(Data)(Cr) Data 00: [Off] Data 00: Unlocks all keys 01: [Auto]...
  • Page 109 46. Status Check (Command: s v) Data 09 (when checking the fan speed) Checks the current signal of the product. Acknowledgement Transmission (v)( )(Set ID)( )(OK/NG)(Data)(Data1_1)(Data1_2) (s)(v)( )(Set ID)( )(Data)( )(FF)(Cr) …(DataN_1)(DataN_2)(x) Data 02: Check whether there is a signal Data1_1:00~ff: First fan speed top 1 Byte 03: The monitor is currently in PM Mode Data1_2: 00~ff: First fan speed bottom 1 Byte...
  • Page 110 48. [PM Mode] (Command: s n, 0c) 50. [Network Setting] (Command: s n, 80 or 81 or Sets the PM mode. Configures network and DNS settings. Transmission Transmission (s)(n)( )(Set ID)( )(0c)( )(Data)(Cr) (s)(n)( )(Set ID)( )(Data1)( )(Data2)( ) Data 00: [Power Off] (Basic) (Data3)( )(Data4)( )(Data5)(Cr) 01: [Sustain Aspect Ratio]...
  • Page 111 51. [Power On Status] (Command: t r) 54. [Time Sync] (Command: s n, 16) Sets the Power On status of the monitor. Sets Time Sync. Transmission Transmission (t)(r)( )(Set ID)( )(Data)(Cr) (s)(n)( )(Set ID)( )(1)(6)( )(Data)(Cr) Data 00: [LST(Last Status)] Data 00: [Off] 01: [STD(Standby)]...
  • Page 112 57. [External Input Rotation] (Command: s n, 85) 60. [Brightness Scheduling] (Command: s s) Sets the External Input Rotation feature. Sets Brightness Scheduling. Transmission Transmission (s)(n)( )(Set ID)( )(8)(5)( )(Data)(Cr) (s)(s)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)(Cr) Data 00: [Off] Data 1 01: 90 degrees 1.
  • Page 113 61. [Multi Screen] Mode & Input (Command: x c) 62. [Aspect Ratio] (Multi screen) (Command: x d) Saves and controls Multi Screen modes and inputs. Controls the aspect ratio of Multi Screen. Transmission Transmission (x)(c)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)( )(Data4) (x)(d)( )(Set ID)( )(Data1)( )(Data2)(Cr) ( )(Data5)( )(Cr) Data1 01: Controls the Main input...
  • Page 114 65. Stop Video (Command: k x) 69. [Holiday Setting] (Command: s n, 9b) Controls Stop Video. Sets holidays. Transmission Transmission (k)(x)( )(Set ID)( )(Data)(Cr) 1. (s)(n)( )(Set ID)( )(9)(b)( ) (Data1)( )(Data2)( )(Data3)( ) Data 00: The Stop Video feature is on. (Data4)( )(Data5)( )(Data6)(Cr) 01: The Stop Video feature is off.
  • Page 115 70. [ISM Method] (Command: s n, 9c) 3. Deleting a Schedule E0: Deletes all holiday schedules Sets UPnP.mode. E1: Deletes the 1st holiday schedule Transmission E2: Deletes the 2nd holiday schedule (s)(n)( )(Set ID)( )(9)(c)( )(Data)(Cr) E3: Deletes the 3rd holiday schedule Data 00: [Off] E4: Deletes the 4th holiday schedule...
  • Page 116 73. [Wi-Fi Lock] (Command: s n, 9f) 75. See [Backup via Storage] (Command: s n, a1) Sets Wi-Fi Lock. Sets Backup via Storage. Transmission Transmission (s)(n)( )(Set ID)( )(9)(f)( )(Data)(Cr) 1. (s)(n)( )(Set ID)( )(a)(1)( )(Data1)(Cr) 2. (s)(n)( )(Set ID)( )(a)(1)( )(Data1)(Data2)(Cr) Data 00: Wi-Fi Unlock 01: Wi-Fi Lock...
  • Page 117 76. [Digital Audio Input] (Command: s n, a2) 79. [Natural Size] (Command: s n, a5) Sets Digital Audio Input. Sets the Natural Size feature. Transmission Transmission (s)(n)( )(Set ID)( )(a)(2)( )(Data)(Cr) (s)(n)( )(Set ID)( )(a)(5)( )(Data)(Cr) Data 00: Digital Data 00-64: Natural Size 0 - 100 01: Analog Acknowledgment...
  • Page 118 82. [Audio Out] (Command: s n, aa) 85. [Apply to all inputs] (Command: n, 52) Sets Audio Out to Off/Variable/Fixed. Apply the video mode and low value of the current input to the same video value of all inputs. Transmission Transmission (s)(n)( )(Set ID)( )(a)(a)( )(Data)(Cr) (s)(n)( )(Set ID)( )(5)(2)( )(Data)(Cr)
  • Page 119 87. [Time to OFF] Scheduling (Command: f e) 3. 01h to 0ch (Timer Power On days setting) 02: Repeat Daily Sets Off Timer settings. 03: Repeat from Monday to Friday Transmission 04: Repeat from Monday to Saturday (f)(e)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)(Cr) 05: Repeat from Saturday to Sunday Data1 06: Repeat on Sunday...
  • Page 120 88. LCIN008 Control (Command: s n, b8) 91. Change Setid (Command: j x) It controls the LCIN008 device. Changes and checks Setid. 1. When it is a general LED model Transmission (s)(n)( )(Set ID)( )(b)(8)( )(Data1)(Data2)(Cr) Transmission (j)(x)( )(Set ID)( )(Data1)( )(Data2)(Cr) Data 1 00: LCIN008 Power 01: LCIN008 Brightness Data1 Data2 : 00 01 ~ 03 e8 (1~1000)
  • Page 121 94. [UHD Deep Color] (Command: s n, af) 96. [Input Manager] (Command: s n, b1) It sets the UHD Deep Color mode for each input. It sets labels by input. Transmission Transmission (s)(n)( )(Set ID)( )(a)(f)( )(Data1)( )(Data2)(Cr) (s)(n)( )(Set ID)( )(b)(1)( )(Data1)( )(Data2)(Cr) Data1 70: DVI-D Data1 90: HDMI1 90: HDMI1...
  • Page 122 99. [Scan Inversion] (Command: s n, 87) 102. Read Brightness Value (Command: m u) Checks the brightness value. It controls the on/off status of Scan Inversion. Transmission Transmission (m)(u)( )(Set ID)( )(FF)(Cr) (s)(n)( )(Set ID)( )(8)(7)( )(Data)(Cr) Data 00: Off 01: On Acknowledgment (u)()(SetID)()(OK/NG)(Data1)(Data2)(Data3)(Data4)
  • Page 123 105. [HDR Picture Mode] (Command: s n, c4) 108. [USB2 to HDBaseT] (Command: s n, c3) Selects a HDR Picture Mode. Sets USB2 to HDBaseT. Transmission Transmission (s)(n)( )(Set ID)( )(c)(4)( )(Data)(Cr) (s)(n)( )(Set ID)( )(c)(3)( )(Data)(Cr) Data 00: Mall/QSR Data 00: [Off] 01: General...
  • Page 124 111. [Color Calibration] (Command: s n, d6) Selects Color Calibration. Transmission (s)(n)( )(Set ID)( )(d)(6)( )(Data)(Cr) Data 00: Off 01: On Acknowledgement (n)( )(Set ID)( )(OK/NG)(d)(6)(Data)(x) * It may not be supported depending on the model.
