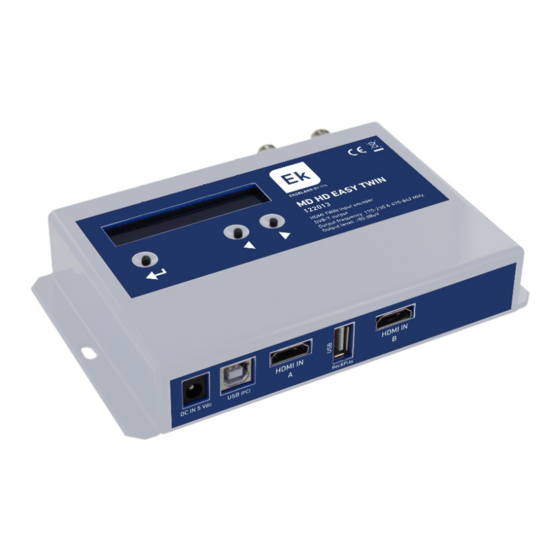

- Page 1 USER MANUAL MD HD EASY TWIN 122013 DIGITAL MODULATOR WITH 2 INPUTS ITS Partner O.B.S S.L · Of. Cerdanyola 79-81 Local C 08172 Sant Cugat of the Vallès · Barcelona (Spain) Telephone: +34935839543 · info@ek.plus · www.ek.plus...
-
Page 2: Table Of Contents
USER MANUAL MD HD EASY TWIN INDEX INTRODUCTION............................................3 Description............................................. 3 Main features............................................3 Contents of the packaging....................................... 3 INTERFACES, DISPLAY INFORMATION AND CONNECTION......................4 Interfaces..............................................4 Display information ......................................... 4 Installation diagram: ........................................5 Basic programming using buttons. -
Page 3: Introduction
47-862 MHz Output level >82 dBμV. RF mixing input. • The MD HD EASY TWIN is a digital modulator with two independent and simultaneous HDMI inputs, A and B that are modulated in a single COFDM or QAM channel (DVB-T or DVB-C). -
Page 4: Interfaces, Display Information And Connection
USER MANUAL MD HD EASY TWIN INTERFACES, DISPLAY INFORMATION AND CONNECTION. Interfaces. Buttons for programming. Display. RF output. RF input. Power supply of 5V DC. 6. Type B USB for configuration. HDMI input "A". 8. USB (REC & PLAY). HDMI input "B". -
Page 5: Installation Diagram
8. USB input for record and play. HDMI input B Example: In installations with more than one MD HD EASY TWIN it is important to put different values of "TS Id" in each modulator. ITS Partner O.B.S S.L · Of. Cerdanyola 79-81 Local C 08172 Sant Cugat of the Vallès ·... -
Page 6: Basic Programming Using Buttons
USER MANUAL MD HD EASY TWIN Basic programming using buttons. There are two menus to make adjustments on the modulator. • Quick menu: Access the basic options. Press in the following order , , . Quick menu It allows us to select the type of output modulation. DVB-T (DTT1) or DVBC (Cable TV). - Page 7 USER MANUAL MD HD EASY TWIN “ONLY AVAILABLE IN COMPATIBLE MODELS” YES (we access the following submenus) NO (we do not access the menus). Set output frequency in KHz. Allows you to modify the frequency of the selected channel. Modifies the channel bandwidth to 6, 7 or 8MHz.
- Page 8 USER MANUAL MD HD EASY TWIN YES (we access the following submenus) NO (we do not access the menus). Set program ID for input A. Keep in mind that the PROGRAM IDs within the same modulator must be different. Program name of input A.
- Page 9 USER MANUAL MD HD EASY TWIN YES (we access the following submenus) NO (we do not access the menus). Set program ID for input B. Keep in mind that the PROGRAM IDs within the same modulator must be different. Program name of input B.
-
Page 10: Advanced Programming Using Md Hd Soft
USER MANUAL MD HD EASY TWIN Advanced programming using MD HD Soft. Configurable parameters and options. • For advanced programming, download the Software "MD HD Soft" from the website https://ek.plus/en/sw/modulators • Connect modulator and computer using a USB cable (Type A / Type B). -
Page 11: Create A Playlist Or Recordlist
USER MANUAL MD HD EASY TWIN Create a PlayList or RecordList By having a USB memory and clock it is possible to schedule playback and recording events. Select start and end date and time. Select weekdays. Select the file to play or write the name of the file to save. -
Page 12: Recording And Playback Of Files With Display
"MD HD Soft" software. USB files playback has priority over input A HDMI. When the USB port is connected, the MD HD EASY TWIN will be detected and the following screen will appear, leaving the display with the indication <USB> and the buttons disabled: Recording and playback using buttons. -
Page 13: Use Of The Usb Stick
USER MANUAL MD HD EASY TWIN USE OF THE USB STICK. • The modulator allows you to store and play back .TS files. • The .TS files must be stored on a USB 3.0 memory stick with FAT32 file system. -
Page 14: Table Of Channels And Frequencies (Standard B/G)
USER MANUAL MD HD EASY TWIN Table of channels and frequencies (Standard B/G). • Band III. ➔ 7 MHz Bandwidth. • Band IV - V. ➔ 8 MHz Bandwidth. Initial Final Central BAND Channel frequency frequency frequency 174 MHz 181 MHz... -
Page 15: Technical Specifications
USER MANUAL MD HD EASY TWIN Initial Final Central BAND Channel frequency frequency frequency 606 MHz 614 MHz 610 MHz 614 MHz 622 MHz 618 MHz 622 MHz 630 MHz 626 MHz 630 MHz 638 MHz 634 MHz 638 MHz...
