- Page 1 USER MANUAL MD HD L 4K 122015 DIGITAL MODULATOR WITH BUILT-IN HDMI 4K LOOP ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 · info@ek.plus · www.ek.plus...
-
Page 2: Table Of Contents
USER MANUAL MD HD L 4K TABLE OF CONTENTS Introduction: ..............................................3 Introduction: ............................................3 Key features: ............................................3 Packaging content: .......................................... 3 Interfaces and connection: ......................................4 Interfaces: ..............................................4 Diagrama de instalación: ......................................4 Basic programming using buttons: ..................................6 Advanced programming using MD HD Soft: .............................. -
Page 3: Introduction
USER MANUAL MD HD L 4K Introduction: Introduction: You can transfer a FHD signal over a coaxial cable network to your TV receivers with excellent quality. Key features: • Resolution up to 1080p. • Active HDMI source indication. • LOOP HDMI IN / OUT. -
Page 4: Interfaces And Connection

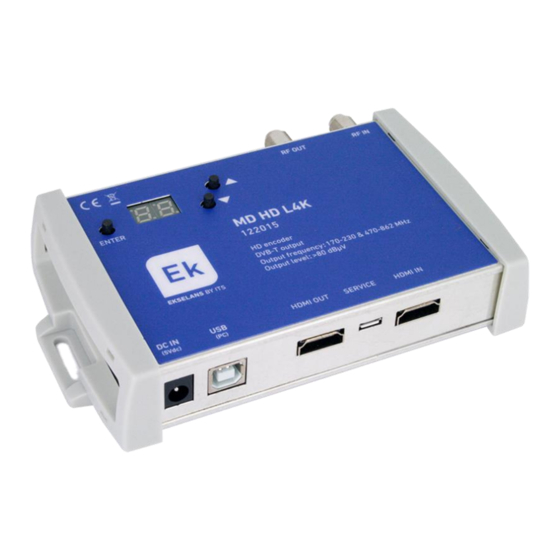

USER MANUAL MD HD L 4K Interfaces and connection: Interfaces: 1, 3- Buttons for programming. 2.- Display 4.- RF output. 5.- RF input. 6.- 5V DC power supply. 7.- USB Type B for setup. 8.- HDMI input. 9.- Micro-USB for FW uploading. - Page 5 USER MANUAL MD HD L 4K For your convenience, in case you have the modulator near the TV, you could use the RF IN input as an output for the TV. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés ·...
-
Page 6: Basic Programming Using Buttons
USER MANUAL MD HD L 4K Basic programming using buttons: Connected power supply HDMI source • Press to change the menu option. • Sets the output channel [5... 12+ 21... 69]. • Set to "n" if the device connected to HDMI out does not support 4K. -
Page 7: Advanced Programming Using Md Hd Soft
USER MANUAL MD HD L 4K Advanced programming using MD HD Soft: • For advanced programming, download the "MD HD Soft" Software from the website www.ek.plus. • Connect modulator and computer via USB cable (Type A/Type B). Settings RF. Video and TS settings. -
Page 8: Technical Specifications
USER MANUAL MD HD L 4K Technical specifications: Reference MD HD L 4K Code 122015 HDMI 2.0, fully compliant HDCP 2.2 backwards compliant HDMI 1.4 loop HDMI VÍDEO Video resolution 480i@60Hz, 480p@60Hz, 576i@50Hz, 720p@50/60Hz, 1080p@50/60Hz, 1080i@50/60Hz, 4Kx2K@24/30/50Hz Data rate 6Gbps por canal Video compression H.264... -
Page 9: Channel And Frequency Table (Standard B/G)
USER MANUAL MD HD L 4K Channel and Frequency Table (Standard B/G): • Band III. 7MHz Bandwidth. • Band IV - V. 8MHz Bandwidth. Band Channel Start frequency End frequency Central frequency 174 MHz 181 MHz 177,5 MHz 181 MHz... - Page 10 USER MANUAL MD HD L 4K Band Channel Start Central frequency frequency frequency 606 MHz 614 MHz 610 MHz 614 MHz 622 MHz 618 MHz 622 MHz 630 MHz 626 MHz 630 MHz 638 MHz 634 MHz 638 MHz 646 MHz...
