Webb 193866001 Operator's Manual & Parts List

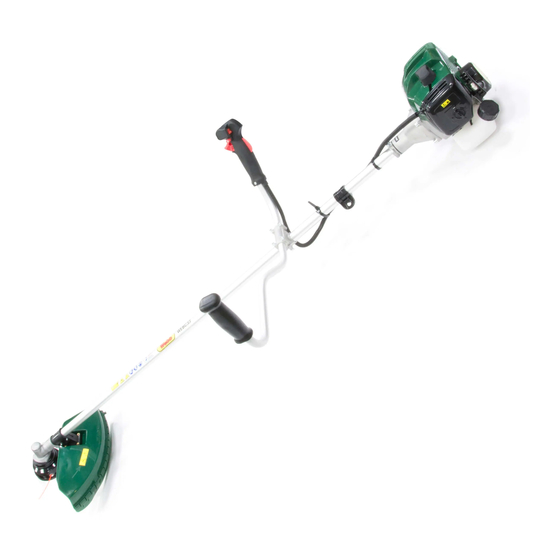

26cc loop handle petrol brush cutter, 33cc cow horn handle petrol brush cutter, 43cc cow horn handle petrol brush cutter
Hide thumbs

Advertisement

Quick Links

Operator's Manual & Parts List
Please read & understand this manual, paying particular attention to the safety instructions, before use.
WEBC26 WEBC33 WEBC43 IM.indd 1
26cc Loop Handle
Petrol Brush Cutter
33cc Cow Horn Handle
Petrol Brush Cutter
43cc Cow Horn Handle
Petrol Brush Cutter
WEBC26
193866001
WEBC33
193871001
WEBC43
193872001
20 Nov 2015
27/06/2016 13:42

Advertisement

loading
Need help?

Need help?

Do you have a question about the 193866001 and is the answer not in the manual?

Questions and answers

Related Manuals for Webb 193866001

Summary of Contents for Webb 193866001

  • Page 1 26cc Loop Handle Petrol Brush Cutter WEBC26 193866001 33cc Cow Horn Handle Petrol Brush Cutter WEBC33 193871001 43cc Cow Horn Handle Petrol Brush Cutter WEBC43 193872001 Operator’s Manual & Parts List Please read & understand this manual, paying particular attention to the safety instructions, before use.
  • Page 2 WEBC26 WEBC33 WEBC43 IM.indd 2 27/06/2016 13:42...

  • Page 3: Table Of Contents

    MAINTENANCE, CLEANING & STORAGE TROUBLE SHOOTING PARTS DIAGRAM & LIST WARRANTY DECLARATION OF CONFORMITY For Spares or Support of your Webb product, please contact us: Tel: 01793 333212 (Mon – Fri 8.30am to 5.00pm) Email: customerservice@webblawnmowers.co.uk www.webblawnmowers.co.uk WEBC26 WEBC33 WEBC43 IM.indd 3...

  • Page 4: Safety Instructions

    INSTRUCTION MANUAL SAFETY INSTRUCTIONS Read and understand the owner’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product. Read &...
  • Page 5 STAY ALERT Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly. Do not use this machine when you are tired or distracted from the job at hand. Be aware of what you are doing at all times.

  • Page 6: Specifications

    INSTRUCTION MANUAL SPECIFICATIONS Model WEBC26 WEBC33 WEBC43 Product Number 193866001 193871001 193872001 Engine (cc) 25.4 32.6 42.7 Idle Speed (r/min) 2800 2800 2800 Carburetor Diaphragm Diaphragm Diaphragm Fuel Tank Capacity (Litre) 0.45 0.70 0.80 Fuel Ratio (Petrol:2 Stroke Mineral Oil)

  • Page 7: Components

    COMPONENTS 1. Blade 11. Primer Bulb 2. Driveshaft 12. Choke Lever 3. Throttle Trigger 13. Guard/Shield 4. Ignition Switch 14. Knife 5. Safety Lever 15. Easy Load Head 6. Cow Horn Handle 16. D-Handle 7. Harness Eyelet 17. Harness Assembly 8.

  • Page 8: Assembly

    INSTRUCTION MANUAL ASSEMBLY Remove the machine and contents from the carton. Be sure the carton is empty before discarding. If you require any assistance with regards to the contents of the lawnmower contact us: Tel: 01793 333212 - Mon – Fri 8.30am – 5.00pm (excl. Bank Holidays) Email: customerservice@webblawnmowers.co.uk FITTING GUARD/SHIELD 1.
  • Page 9 FITTING COW HORN HANDLES (WEBC33 & WEBC43) 1. Install handle on lower bracket. 2. Position handle in a comfortable operating position 3. Fit upper bracket. 4. Tighten the four fixing screws. FITTING D-HANDLE (WEBC26 Only) 1. Place top handle onto driveshaft. 2.

  • Page 10: Operation

    INSTRUCTION MANUAL OPERATION DANGER All model line trimmers & brushcutters can throw small stones, metal or small objects as well as material being cut. Do not allow anyone to enter the operating DANGER ZONE with you. The danger zone is an area 15 metres in radius Insist that persons in the RISK ZONE beyond the danger zone wear eye protection from thrown objects.
  • Page 11 CUTTING WITH A NYLON HEAD Always keep a firm grip with both hands during operation The machine should be held at a comfortable position, with the trigger handle at hip height. Adjust the harness to suit. Maintain a firm footing in case the machine hits a solid object & kicks back Cut tall grass from the top down to prevent grass wrapping around the shaft housing &...
  • Page 12 INSTRUCTION MANUAL CUTTING WITH THE METAL BLADE Always keep a firm grip with both hands during operation The machine should be held at a comfortable position, with the trigger handle at hip height. Adjust the harness to suit. Maintain a firm footing in case the machine hits a solid object & kicks back. Do not use the metal blade near fencing, posts, buildings or other immoveable objects –...
  • Page 13 FUEL & OIL MIXTURE Fuel & its vapors are very flammable. Do not use or fuel the machine near a flame, sparks or while smoking. Allow the engine to cool for more than 2 minutes, before re-fueling. Never fuel the machine with the engine running.
  • Page 14 INSTRUCTION MANUAL ENGINE STARTING & STOPPING PROCEDURE STARTING A COLD ENGINE 1. Place the machine onto a flat, firm surface. 2. Keep the cutting head off of the ground and clear of any surrounding objects 3. Move the stop switch to "START" position 4.

  • Page 15: Maintenance, Cleaning & Storage

    MAINTENANCE, CLEANING & STORAGE WARNING Improper maintenance & storage of the machine may void your warranty. Keep the machine clean for better and safer performance. MAINTENANCE Before each use, check all nuts & bolts to be sure they are sufficiently tightened. We recommend only manufacturer original parts are used when maintaining this machine.

  • Page 16: Trouble Shooting

    INSTRUCTION MANUAL STORAGE For years of trouble free service, make sure the machine is clean and dry before storing. Before storing, clean the machine thoroughly as indicated above. Store indoors or in a safe, locked protected area during severe weather and winter months. DO NOT STORE in an enclosed area, where fuel vapors can reach an open hot flame.
  • Page 17 WEBC26 WEBC33 WEBC43 IM.indd 17 27/06/2016 13:42...
  • Page 18 PARTS DIAGRAM - WEBC26 Engine WEBC26 WEBC33 WEBC43 IM.indd 18 27/06/2016 13:42...
  • Page 19 WEBC26 WEBC33 WEBC43 IM.indd 19 27/06/2016 13:42...
  • Page 20 PARTS DIAGRAM - WEBC26 Machine WEBC26 WEBC33 WEBC43 IM.indd 20 27/06/2016 13:42...
  • Page 21 PARTS LIST - WEBC26 Machine Item Item Part No. Descrip on Part No. Descrip on WE61270030148 Gear Head Assembly WE02080020006 Rubber Cover WE03120020002 Retaining Ring 26 WE61270090005 Handle Assembly WE03120010001 Retaining Ring 10 40-41 WE03010010049 Screw M5X35 WE03090010074 Bearing 6000-2RS/P5 40-42 WE70030160079 Handle...
  • Page 22 PARTS DIAGRAM - WEBC33 Engine WEBC26 WEBC33 WEBC43 IM.indd 22 27/06/2016 13:42...
  • Page 23 WEBC26 WEBC33 WEBC43 IM.indd 23 27/06/2016 13:42...
  • Page 24 PARTS DIAGRAM - WEBC33 & WEBC43 Machine WEBC26 WEBC33 WEBC43 IM.indd 24 27/06/2016 13:42...
  • Page 25 PARTS LIST - WEBC33 &WEBC43 Machine Item Webb Item Item Webb Webb Part No Webb Part No Webb Descrip on Webb Part No Descrip on Descrip on Gear Head WE61270030148 WE70030160007 Clamp WE02020160712 Bracket Assembly Retaining Screw WE03120020002 WE03020020012 Screw M5x20...
  • Page 26 PARTS DIAGRAM - WEBC43 Engine WEBC26 WEBC33 WEBC43 IM.indd 26 27/06/2016 13:42...
  • Page 27 WEBC26 WEBC33 WEBC43 IM.indd 27 27/06/2016 13:42...
  • Page 28 INSTRUCTION MANUAL EC DECLARATION OF CONFORMITY We Handy Distribu on Ltd - SN3 5HY (Importer) declare that the product: Designa on: Petrol Brushcu er & Line Trimmer Model(s): WEBC26 - WEBC33 - WEBC43 Type/Serial No. As per ra ng label on machine Complies with the following direc ves: Machinery Direc as last amended by EC Direc ve 2006/42/EC Annex -VII...
  • Page 29 WEBC26 WEBC33 WEBC43 IM.indd 29 27/06/2016 13:42...
  • Page 30 INSTRUCTION MANUAL This Service Book is provided with your Webb, to help you look after your purchase to our recommendations and enable you to take advantage of the 2 year conditional manufacturer domestic warranty*. * Commercial/Professional & Hire users receive a 90 day warranty Present this service book to your authorised Webb repair dealer, whenever a service or a warranty appraisal is required.
  • Page 31 SERVICE BOOK 1. Users Statement of Warranty Each new machine is warranted against defective material or assembly of material under normal usage. The warranty applies to the original purchaser, is not transferable and covers faulty parts and the labour involved in replacing and repairing those parts, which are of original manufacture.
  • Page 32 It is the owner’s responsibility to ensure that their Webb machine is maintained at specific intervals. Any approved Webb service dealer can undertake a service, which are specialised in our products and will be aware of your particular machine and any technical updates which will save valuable time &...
  • Page 33 SERVICE BOOK Your servicing Webb approved dealer will stamp & date the below relevant sections, when the correct service actions have been completed. PLEASE ENSURE THE SERVICE BOOK IS AVAILABLE FOR THE DEALER, DURING SERVICE WORK. 1st Service This must be stamped by an approved service dealer to qualify for a free second year warranty.
  • Page 34 INSTRUCTION MANUAL 48 Months 60 Months Date Date 72 Months 84 Months Date Date 96 Months 108 Months Date Date 120 Months 132 Months Date Date WEBC26 WEBC33 WEBC43 IM.indd 34 27/06/2016 13:42...
  • Page 35 & services we provide, including information that we believe is relevant to your and/or your machine. We value your trust by giving us this information about yourself and we are committed to protecting your privacy. From time to time Webb, its associated companies, authorised dealers or third parties working on our behalf may wish to contact you regarding our products, services, offers, technical improvements or just opinions, which may be used for marketing, research or analysis purposes.
  • Page 36 Webb Lawnmowers Murdock Road Dorcan Swindon Wiltshire SN3 5HY WEBC26 WEBC33 WEBC43 IM.indd 36 27/06/2016 13:42...
