FCC Information and Copyright
This equipment has been tested and found to comply with the limits of a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are
designed
to
provide
reasonable
protection
against
harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. There is no guarantee that interference will not occur in
a particular installation.
The vendor makes no representations or warranties with respect to the
contents here of and specially disclaims any implied
of
warranties
merchantability or fitness for any purpose. Further the vendor reserves
the right to revise this publication and to make changes to the contents
here of without obligation to notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without
first obtaining the vendor's approval in writing.
The content of this user's manual is subject to be changed without notice
and we will not be responsible for any mistakes found in this user's
manual. All the brand and product names are trademarks of their
respective companies.
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P4TSP-D2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Biostar P4TSP-D2

  • Page 1 FCC Information and Copyright This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits designed provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 2: Table Of Contents

    CPU Installation ... 5 DDR DIMM Modules: DDRA1/ DDRA2 ... 6 Installing DDR Module... 6 Jumpers, Headers, Connectors & Slots... 7 DEUTSCH ...14 Die Spezifikationen von P4TSP-D2 ... 14 Verpackungsinhalt... 16 Einstellung der Jumper... 16 Installation der CPU... 16 DDR-DIMM-Modules: DDRA1/ DDRA2... 17 Installation von DDR-Modul ...

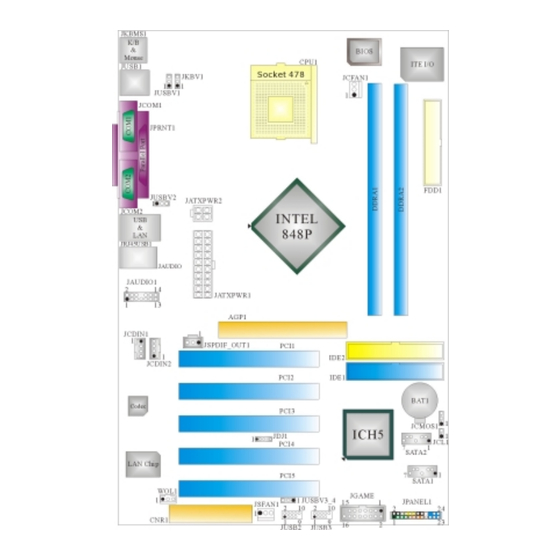

  • Page 3: Layout Of P4Tsp-D2

    Layout of P4TSP-D2 NOTE: ●represents the first pin.
  • Page 4: Component Index

    Component Index A. Power Source Selection for Keyboard and N. Communication Network Riser Slot (CNR1) Mouse (JKBV1) B. Power Source Selection for USB (JUSBV1) C. Back Panel Connector D. Power Source Selection for USB (JUSBV2) E. ATX Power Connector (JATXPWR2) F.
  • Page 5: English

    English P4TSP-D2 Features A. Hardware Provides Socket 478. Supports the Intel Pentium 4 processor to 3.2GHz. Front Side Bus at 400/533/800MHz. Supports Hyper-Threading Technology. Supports Northwood CPU. (Willamette not supported) Chipset North Bridge: Intel 848P. South Bridge: Intel ICH5. Main Memory Supports 64-bit wide DDR data channels with 1 DIMMs per-channel.
  • Page 6: Package Contents

    Supports ACPI, PCI power management. On Board AC’97 Sound Codec Chip: CMI9739A. Compliant with AC’97 specification. AC97 2.2 interface. Supports 6 channels. On Board Peripherals a. Rear side 2 serial ports. 1 parallel port. (SPP/EPP/ECP mode) Audio ports in vertical position. 1 RJ-45 LAN jack.
  • Page 7: How To Set Up Jumper

    StudioFun! Application CD X 1 (optional) USB 2.0 Cable X1 (optional) S/PDIF Cable X 1 (optional) Rear I/O Panel for ATX Case X 1 Serial ATA Cable X 1 (optional) Serial ATA Power Switch Cable X 1 (optional) How to set up Jumper The illustration shows to how set up jumper.
  • Page 8: Ddr Dimm Modules: Ddra1/ Ddra2

    CPU Fan Header: JCFAN1 JCFAN1 System Fan Header: JSFAN1 JSFAN1 DDR DIMM Modules: DDRA1/ DDRA2 DRAM Access Time: 2.5V Unbuffered/ no registered (without ECC) DDR SDRAM PC2100/ PC2700/ PC3200 Type required. DRAM Type: 128MB/ 256MB/ 512MB/ 1GB DIMM Module. (184 pin) DIMM Socket Location DDRA1...
  • Page 9: Jumpers, Headers, Connectors & Slots

    The CNR specification is an open Industry Standard Architecture, and it defines a hardware scalable riser card interface, which supports modem only. Serial ATA Connector: JSATA1/ JSATA2 The motherboard has a PCI to SATA Controller with 2 channels SATA interface, it satisfies the SATA 1.0 spec and with transfer rate of 1.5Gb/s.
  • Page 10: Front Panel Connector: Jpanel1

    Front Panel Connector: JPANEL1 PWR_LED JPANEL1 Assignment Function Speaker Connector Speaker HDD LED (+) Hard Drive HDD LED (-) Ground Reset Button Reset Control IrDA Connector IRTX Power Connectors: JATXPWR1/ JATXPWR2 JATXPWR1 Standby Voltage ON/OFF (+) (-) HLED Assignment Sleep Control Ground Power LED (+) Power LED (+)
  • Page 11 JATXPWR2 Power Source Selection for Keyboard/ Mouse: JKBV1 JKBV1 Assignment Pin 1-2 close +5V Standby Voltage Pin 2-3 close Note: In order to support this function “Power-on system via keyboard and mouse”, “JKBV1” jumper cap should be placed on pin 2-3. Power Source Selection for USB: JUSBV1/ JUSBV2/ JUSBV3_4 JUSBV1/JUSBV2/ Assignment...
  • Page 12 Note: In order to support this function “Power-on system via USB device”, “JUSBV1/JUSBV2/ JUSBV3_4” jumper cap should be placed on pin 2-3 individually. Clear CMOS Jumper: JCMOS1 JCMOS1 Pin 1-2 Close Pin 2-3 Close ※ Clear CMOS Procedures: 1. Remove AC power line. 2.
  • Page 13 AUDIO DJ Connector: JDJ1 JDJ1 ATX_PWROK Game Header: JGAME1 Assignment Joystick B Button 1 Joystick B Coordinate X MIDI Output Joystick B Coordinate Y Joystick B Button 2 MIDI Input CD-ROM Audio-In Header: JCDIN1/ JCDIN2 JCDIN1/ JCDIN2 Front Panel Audio Header: JAUDIO1 JAUDIO1 Assignment Mic In/ Center...
  • Page 14 Mic Power/ Bass Right Line Out/ Speaker Out Right Reserved Left Line Out/ Speaker Out Left Right Line In/ Rear Speaker Right Left Line In/ Rear Speaker Left Digital Audio Connector: JSPDIF_OUT1 JSPDIF_OUT1 Wake On LAN Header: WOL1 WOL1 Front USB Header: JUSB2, JUSB3 Assignment +5V(fused) JUSB2/3...
  • Page 15 Back Panel Connectors JKBMS1 JPRNT1 PS/2 Mouse JUSB1 Parallel Port PS/2 COM1 Keyboard JCOM1 6 Channel Speakers Speaker Out JRJ45USB1 (optional) Line In Speaker Out MIC In COM2 JCOM2 JAUDIO Line In/ Rear Speaker Mic In/ Center & Bass...
  • Page 16: Deutsch

    Deutsch Die Spezifikationen von P4TSP-D2 A. Hardware Uterstützung für Sockel 478. Unterstützung für den Intel Pentium FSB mit 400/533/800MHz. Uterstützung für die Hyper-Threading Technologie. Unterstützung für Intel CPU Northwood. (Willamette wird nicht untergestützt) Chipsatz Die Northbridge: Intel 848P. Die Southbridge: Intel ICH5.
  • Page 17 Unterstützung für 10 Mb/s, 100 Mb/s und 1000Mb/s Auto-Negotiation. Halb/Voll-Duplex Fähigkeit. Unterstützung für ACPI, PCI Power Management. Onboard AC’97 Sound Codec Chip: CMI9739A. Entspricht der Spezifikation von AC’97. AC97 2.2 Interface. Unterstützung für 6-Kanal. Onboard-Peripheriegeräte a. Rückwand 2 serielle Schnittstellen. 1 parallele Schnittstelle.
  • Page 18: Verpackungsinhalt

    Verpackungsinhalt HDD Kable X 1 FDD Kable X 1 Benutzer Handbuch X1 Treiber CD für Installation X1 StudioFun! Anwendung CD X 1 (optional) USB 2.0 Kable X1 (optional) S/PDIF Kable X 1 (optional) I/O-Rückwand für ATX Gehäuse X 1 Serial ATA Kable X 1 (optional) Serial ATA Netzschalter Kable X 1 (optional) Einstellung der Jumper Die Abbildung verdeutlicht, wie Jumper eingestellt werden.
  • Page 19: Ddr-Dimm-Modules: Ddra1/ Ddra2

    Sie die Installation. Schritt 1 Schritt 2 CPU-Lüfter Header: JCFAN1 JCFAN1 System-Lüfter Header: JSFAN1 JSFAN1 DDR-DIMM-Modules: DDRA1/ DDRA2 DRAM-Zugriffszeit: 2.5V unbuffered/ nicht registrierter (ohne ECC) DDR SDRAM PC2100/ PC2700/ PC3200 Typ erforderlich. DRAM-Typ: 128MB/ 256MB/ 512MB/ 1GB DIMM-Module (184-Pin) DIMM-Sockel Standort 64MB/128MB/256MB/512MB/1GB DDRA1...
  • Page 20: Installation Von Ddr-Modul

    Communication Network Riser Slot: CNR1 Die CNR-Angaben entsprechen einer offenen Industry Standard Architecture, und sie definieren eine Hardware-skalierbare Riser-Card-Schnittstelle, welche nur Audio, Netzwerk und Modem unterstützt. Serial ATA Connector: JSATA1/JSATA2 Auf diesen Motherboard gibt es ein PCI-to-SATA Controller mit 2-Kanal Interface, älteren ISA-Busstandard meisten...
  • Page 21 die der Spezifikation von SATA 1.0 entspricht ( Dtenübertragung mit 1.5Gb/S) Anschlüsse für die Vorderseite: JPANEL1 JPANEL1 Belegung Funktion Lautsprecher- Kein Anschluss Kein Lautsprecher HDD LED (+) Festplatte HDD LED (-) Masse Rückstell- knopf Reset-Kontroll Kein Kein IrDA- Anschluss IRTX Power Connectors: JATXPWR1/ JATXPWR2 +5V reservierte Spannung JATXPWR1...
  • Page 22 JATXPWR2 Auswahl von Stromsmodi für Tastatur/ Maus: JKBV1 JKBV1 Pin-Belegung Pin 1-2 geschlossen +5V reservierte Spannung Pin 2-3 geschlossen Anmerkung: Um die Funktion ─ “Erwecken durch Tastatur/Maus“ ─ zu aktivieren, müssen Pins 2-3 von JKBV1 durch die Jumperkappe verdeckt werden. Auswahl von Stromsmodi für USB: JUSBV1/ JUSBV2/ JUSBV3_4 JUSBV1/JUSBV2/...
  • Page 23 +5V reservierte Spannung Pin 2-3 geschlossen Anmerkung: Um die Funktion ─ “Erwecken durch USB-Geräte“ ─ zu aktivieren, müssen Pins 2-3 von “JUSBV1/JUSBV2/ JUSBV3_4”durch die Jumperkappe verdeckt werden. Jumper zum Löschen des CMOS: JCMOS1 JCMOS1 Pin 1-2 geschlossen Pin 2-3 geschlossen ※...
  • Page 24 Warnmeldung für Chassis-Öffnen Anschluss: JCL1 JCL1 AUDIO DJ Anschluss: JDJ1 JDJ1 ATX_PWROK Game Header: JGAME1 Belegung Joystick B Knopf 1 Joystick B Koordierung X MIDI Ausgabe Joystick B Koordierung Y Joystick B Knopf 2 MIDI Eingabe Kein CD-ROM Audio-In Header: JCDIN1/ JCDIN2 JCDIN1/ JCDIN2 Belegung Warnmeldung für Chassis-Öffnen...
  • Page 25 Digital Audio Anschluss: JSPDIF_OUT1 JSPDIF_OUT1 Front Panel Audio Header: JAUDIO1 Belegung Mikrofon-Eingang/ Zentrum Mikrofon-Betriebsspannung /Bass Audio-Signal des rechten Kanals zur Vorderseite / Lautsprecher-Signal des rechten Kanals zur Vorderseite Reservieret für spät. Verwendung durch Kopfhörer-Verstärker Audio-Signal des linken Kanals zur Vorderseite / Lautsprecher-Signal des linken Kanals zur Vorderseite Audio-Signal des rechten...
  • Page 26 WOL1 Front USB Header: JUSB2, JUSB3 Belegung +5V(geschmelzt) JUSB2/3 Schlüsse Anschlüsse für die Rückwand Masse Wake-up Belegung +5V(geschmelzt) USB- USB- USB+ USB+ Masse Masse Kein...
  • Page 27: Warpspeeder

    6 K anal Lautsprecher Line-In/ R cklautsprecher ü Lautsprecher Ausgang/ (L/R) Fornt-Lautsprecher Mikrofon Eingang/ (L/R) Zentrallautsprecher & Bass WarpSpeeder Introduction [ WarpSpeeder™ ], a new powerful control utility, features three user-friendly functions including Overclock Manager, Overvoltage Manager, and Hardware Monitor.
  • Page 28: System Requirement

    With the Overclock Manager, users can easily adjust the frequency they prefer or they can get the best CPU performance with just one click. The Overvoltage Manager, on the other hand, helps to power up CPU core voltage and Memory voltage. The cool Hardware Monitor smartly indicates the temperatures, voltage and CPU fan speed as well as the chipset information.
  • Page 29: Usage

    Tray Icon utility and [WarpSpeeder™] utility will be automatically and immediately launched after you click “Finish” button. Usage The following figures are just only for reference, the screen printed in this user manual will change according to your motherboard on hand.
  • Page 30 [WarpSpeeder™] includes 1 tray icon and 5 panels: 1. Tray Icon: Whenever the Tray Icon utility is launched, it will display a little tray icon on the right side of Windows Taskbar. This utility is responsible for conveniently invoking [WarpSpeeder™] Utility. You can use the mouse by clicking the left button in order to invoke [WarpSpeeder™] directly from the little tray icon or you can right-click the little tray icon to pop up a popup menu as following figure.
  • Page 31 Duck walking => overclock percentage from 100% ~ 110 % Duck running => overclock percentage from 110% ~ 120% Duck Burning => overclock percentage from 120% ~ above 3. Voltage Panel Click the Voltage button in Main Panel, the button will be highlighted and the Voltage Panel will slide out to up as the following figure.
  • Page 33 4. Overclock Panel Click the Overclock button in Main Panel, the button will be highlighted and the Overclock Panel will slide out to left as the following figure. Overclock Panel contains the these features: “–3MHz button”, “-1MHz button”, “+1MHz button”, and “+3MHz button”: provide user the ability to do real-time overclock adjustment.
  • Page 34 “Auto-overclock button”: User can click this button and [ WarpSpeeder™ ] will set the best and stable performance and frequency automatically. [ WarpSpeeder™ ] utility will execute a series of testing until system fail. Then system will do fail-safe reboot by using Watchdog function. After reboot, the [ WarpSpeeder™ ] utility will restore to the hardware default setting or load the verified best and stable frequency according to the Recovery Dialog’s setting.
  • Page 35 5. Hardware Monitor Panel Click the Hardware Monitor button in Main Panel, the button will be highlighted and the Hardware Monitor panel will slide out to left as the following figure. In this panel, you can get the real-time status information of your system. The information will be refreshed every 1 second.
  • Page 36 Note: Because the overclock, overvoltage, and hardware monitor features are controlled by several separate chipset, [ WarpSpeeder™ ] divide these...
  • Page 37: Studiofun!

    features to separate panels. If one chipset is not on board, the correlative button in Main panel will be disabled, but will not interfere other panels’ functions. This property can make [ WarpSpeeder™ ] utility more robust. StudioFun! Introduction StudioFun! is a media-player based on optimized GNU/Linux distribution to bring a “Room Theater”...
  • Page 38: Error Messages

    StudioFun! Install This option will do the basic installation of the distribution. The installation works on pre-installed windows or GNU/Linux distribution. On selecting the “StudioFun Install” option the installer boots and displays a dialog box indicating the space required and waits for a confirmation. Selecting “Ok” will continue the installation while selecting “Cancel”...
  • Page 39: Booting To Studiofun

    unsupported and undocumented hardware the above error message is popped. 4. No device found! This error message is given if there is no hard disk in the system. StudioFun! Recover Where there is a MBR (Master Boot record) corruption, the “StudioFun Recover” will automatically probe the hard disk master boot record and find out the installed operating system(s).
  • Page 40: Media Control

    a complete description of the Desktop application. Desktop This is the main shell of the StudioFun! software. It illustrates two main categories, one is the main "Media Control" part and the other is the "Control Panel". Media control The Media Control consists of the following functionalities: This control icon will glow whenever a VCD is detected in a DVD/CD-ROM drive.
  • Page 41: Control Panel

    This control will glow whenever a DVD is detected in a DVD drive. The DVD will be auto-played only when it is put in to the drive when the Desktop (StudioFun! shell) is up and running, otherwise, the control will simply glow to inform the user about a DVD present in the DVD/CD-ROM.
  • Page 42: Display Settings

    2. Screensaver Clicking this icon will invoke the screensaver application. Refer to section 5.3 Screensaver for more details. 3. Display Settings Clicking this icon will invoke the application for changing the screen resolutions. Refer to section 5.4, Display Settings for more details. 4.
  • Page 43: Software Details

    Software Details XINE XINE is a multimedia player. It plays back Audio CD, DVD, and VCD. It also decodes multimedia files like AVI, MOV, WMV, and MP3 from local disk drives. It interprets most of the common multimedia formats. • Features of Xine Skinnable GUI Navigation controls (seeking, pause, fast, slow, next chapter, etc)
  • Page 44 MPEG-Audio (.mp2, .mp3) WAV (.wav) Video CODEC MPEG 1/2 MPEG 4 (aka OpenDivX) MS MPEG 4 Chapter 5: Software Details 10 Windows Media Video 7 m. Motion JPEG • Remote Control Support. Infrared interface User-friendly • Usage of StudioFun! with CelomaChrome skin Select VCD button to play a VCD disc Select DVD button to play a DVD disc Select CDDA button to play a Audio CD...
  • Page 45: Select Region

    m. Select “menu” button to use menu while playing DVD n. Select “control” button to adjust brightness / color o. Select “setup” button to modify the settings of the player p. Select ”f.scr” button to show the video output of the player in full screen mode q.
  • Page 46: Screensaver

    Screensaver Screensaver The xscreensaver daemon waits until the keyboard and mouse have been idle for a period, and then runs a graphics demo chosen at random. The demo is terminated as soon as there is any mouse or keyboard activity. The xscreensaver-demo program is the graphical user interface to xscreensaver.
  • Page 47: Display Settings

    various graphics demos randomly 2. Only one Screen Saver: When user chooses this option, screensaver displays only one graphics demo. 3. Blank Screen Only: When user chooses this option, screensaver only blanks the screen instead of displaying the graphics demo. 4.
  • Page 48: File Manager

    By default user of StudioFun! will be given a choice to select between any of the following three resolutions. • 640x480 • 800x600 • 1024x768 The current resolution of the Display will be selected by default. It requires restart of the StudioFun! to reflect the changes made.
  • Page 50: Trouble Shooting

    Trouble Shooting PROBABLE No power to the system at all Power light don’t illuminate, fan inside power supply does not turn on. Indicator light on keyboard does not turn on PROBABLE System inoperative. Keyboard lights are on, power indicator lights are lit, hard drive is spinning.
  • Page 51: Problemlösung

    Problemlösung MÖGLICHE URSACHE Das System hat keine Spannungsversorgung. Die Stromanzeige leuchtet nicht, der Lüfter im Inneren Stromversorgung wird eingeschaltet. Tastaturleuchten sind nicht an. MÖGLICHE URSACHE System funktioniert nicht. Tastaturleuchten sind an, die Stromanzeige leuchtet, die Festplatte dreht sich. MÖGLICHE URSACHE Das System wird von der Festplatte nicht hochgefahren, vom CD-ROM-Treiber aber ja.
  • Page 52 08/4/2003...
