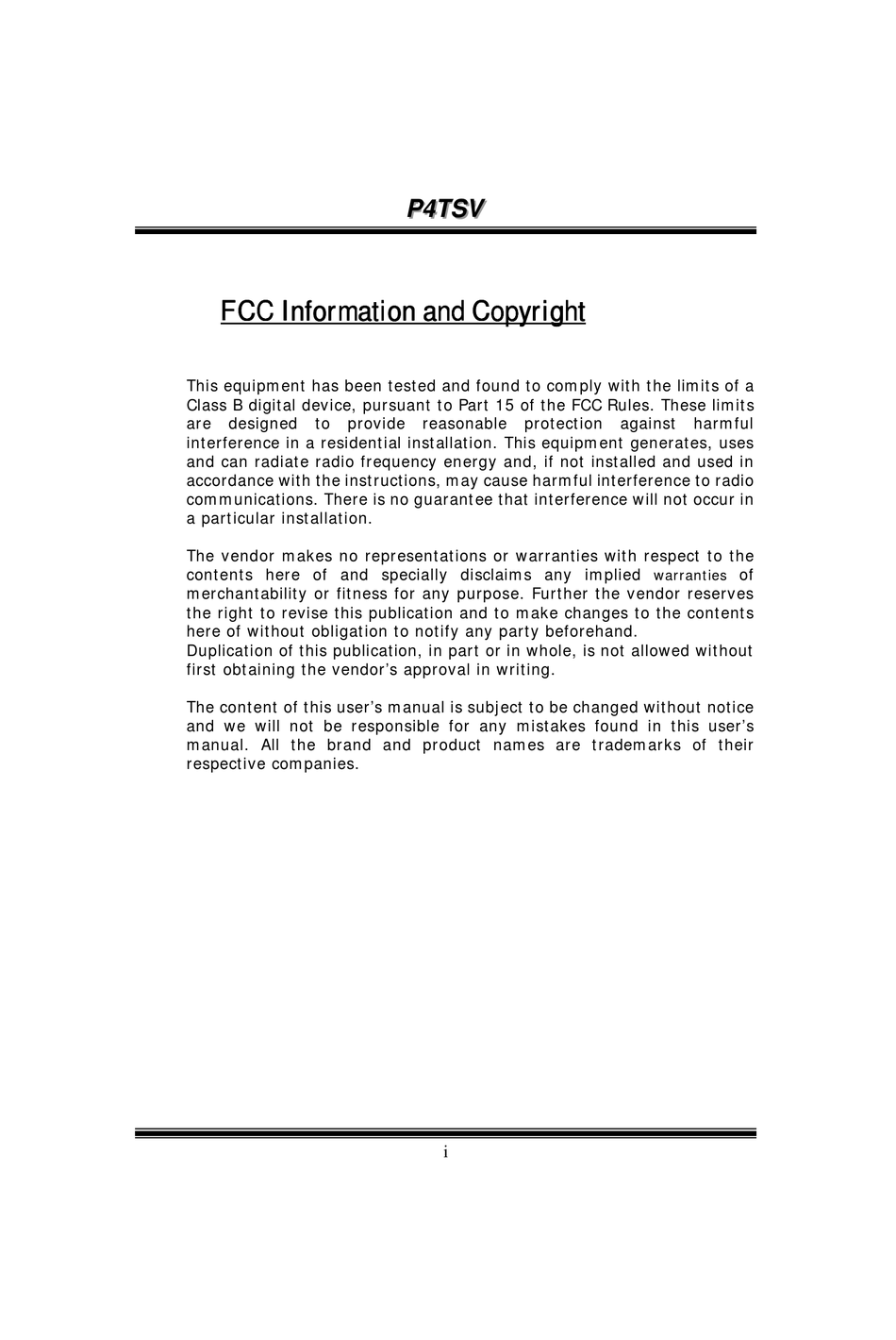

FCC I
FCC In n n n formation
FCC I
FCC I
formation
formation
formation and Copyright
This equipment has been tested and found to comply with the limits of a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are
designed
to
provide
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. There is no guarantee that interference will not occur in
a particular installation.
The vendor makes no representations or warranties with respect to the
contents here of and specially disclaims any implied
merchantability or fitness for any purpose. Further the vendor reserves
the right to revise this publication and to make changes to the contents
here of without obligation to notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without
first obtaining the vendor's approval in writing.
The content of this user's manual is subject to be changed without notice
and we will not be responsible for any mistakes found in this user's
manual. All the brand and product names are trademarks of their
respective companies.
P
4
T
S
V
P
4
T
S
V
P
4
T
S
V
and Copyright
and Copyright
and Copyright
reasonable
protection
i
against
harmful
of
warranties

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P4TSV and is the answer not in the manual?

Questions and answers

Summary of Contents for Biostar P4TSV

  • Page 1 FCC In n n n formation FCC I FCC I FCC I formation and Copyright formation formation This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits designed provide interference in a residential installation.
  • Page 2: Table Of Contents

    DDR DIMM Modules: DDRA1-2, DDRB1-2... 6 Installing DDR Module... 7 Jumpers, Headers, Connectors & Slots... 7 ESPAÑOL...14 Características del P4TSV ... 14 Contenido del Paquete... 16 Cómo instalar un Puente... 16 Instalación del CPU ... 16 Módulos DDR DIMM: DDRA1-2, DDRB1-2 ... 17 Instalación del Módulo DDR ...
  • Page 3: Layout Of P4Tsv

    Layout of P4TSV NOTE: ●represents the first pin.
  • Page 4: Component Index

    Component Index A. Back Panel Connectors B. JAUDIO1: Front Audio Header C. JCDIN1: CD-Rom Audio-In Header D. JGAME1: Game Header E. JCDIN2: CD-ROM Audio-In Header F. CNR1: Communication Network Riser Slot PCI1-3: Peripheral Component Interconnect Slots JSPDIF_OUT1: Digital Connector I. JWOL1: Wake On LAN Header J.
  • Page 5: English

    English P4TSV Features A. Hardware Provides Socket-478. Supports the Intel Pentium 4 processor up to 3.06GHz. Front Side Bus at 400/533/800MHz. Supports Hyper-Threading. Supports Northwood and Prescott CPU. (Willamette not supported) Chipset North Bridge: Intel 865G. South Bridge: Intel ICH5.
  • Page 6 - Compliant with SATA 1.0 specification Data transfer rates up to 1.5 GB/ Chip: RTL8100B. Supports 10 Mb/s and 100 Mb/s auto-negotiation. Half/Full duplex capability. Supports ACPI power management. On Board AC’97 Sound Codec Chip: CMI9739A. Compliant with AC’97 specification. AC97 2.2 interface.
  • Page 7: Package Contents

    Package contents HDD Cable X 2 FDD Cable X1 User’s Manual X1 Fully Setup Driver CD X1 StudioFun! Application CD X 1 (optional) USB 2.0 Cable X1 (optional) S/PDIF Cable X 1 (optional) Rear I/O Panel for Micro ATX Case X1 (optional) Serial ATA Cable X1 Serial ATA Power Switch Cable X1 How to set up Jumper...
  • Page 8: Ddr Dimm Modules: Ddra1-2, Ddrb1-2

    DDRA1+DDRB1 (Blue DIMMs) or DDRA2+DDRB2 (white DIMMs). For more dual channel operation information please log on: www.biostar.com.tw) DRAM Access Time: 2.5V Unbuffered/ no registered (without ECC) DDR SDRAM PC2100/ PC2700/ PC3200 Type required. DRAM Type: 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184 pin)
  • Page 9: Installing Ddr Module

    The first hard drive should always be connected to IDE1. Peripheral Component Interconnect Slots: PCI1-3 This motherboard is equipped with 3 standard PCI slots. PCI stands for Peripheral Component Interconnect, and it is a bus standard for expansion cards. This PCI slot is designated as 32 bits.
  • Page 10: Front Panel Connector: Jpanel1

    Serial ATA Connector: JSATA1/JSATA2 The motherboard has a PCI to SATA Controller with 2 channels SATA interface, it satisfies the SATA 1.0 spec and can transfer data with 1.5GHz speed. Front Panel Connector: JPANEL1...
  • Page 11 Power Connectors: JATXPWER1/ JATXPWR2 Assignment JATXPWR1 JATXPWR2 5V / 5VSB Selection for KB: JKBV1 JKBV1 Assignment Pin 1-2 close +5V_SB Pin 2-3 close Assignment +3.3V +3.3V +3.3V -12V Ground Ground PS_ON Ground Ground Ground Ground Ground PW_OK +5V_SB +12V Assignment Assignment +12V Ground...
  • Page 12 5V/ 5VSB Selection for USB: JUSBV1/ JUSBV2/JUSBV3_4 JUSBV1/JUSBV2/ Assignment JUSBV3_4 Pin 1-2 close +5V_SB Pin 2-3 close Clear CMOS Jumper: JCMOS1 JCMOS1 Pin 1-2 Close Pin 2-3 Close ※ Clear CMOS Procedures: 1. Remove AC power line. 2. Set the jumper to “Pin 1-2 Close”. 3.
  • Page 13 Serial ATA Connector: JSATA1/ JSATA2 Assignment JSATA1/ JSATA2 AUDIO DJ Connector: JDJ1 JDJ1 ATX_PWROK Game Header: JGAME1 Assignment MIDI-OUTR MIDI-INR CD-ROM Audio-In Header: JCDIN1/JCDIN2 JCDIN1/2 Assignment Ground Ground Ground Assignment Assignment SMBDATA SMBCLK INT_B JGAME1 Assignment Ground Ground Assignment Left Channel Input Ground Ground Right Channel Input...
  • Page 14 Front Panel Audio Header: JAUDIO1 JAUDIO1 Assignment Mic In Mic Power RT Line Out Reserved LFT Line Out RT Line In LET Line In Digital Audio Connector: JSPDIF_OUT1 JSPDIF_OUT1 Wake On LAN Header: JWOL1 JWOL1 Front USB Header: JUSB2/3 Assignment +5V(fused) JUSB2/3 Assignment...
  • Page 15: Back Panel Connectors

    Back Panel Connectors Mouse Parallel Keyboard COM1 JKBMS1 JUSB1 JCOM1 Line In/ Surround Speaker Out Mic In/ Bass&Center JVGA1 JRJ45USB1 JAUDIO...
  • Page 16: Español

    Español Características del P4TSV A. Hardware Proporciona Socket-478. Soporta procesador Intel Pentium 4 de hasta 3.06GHz. Front Side Bus a 400/533/800MHz. Soporta Hyper-Threading. Soporta Northwood y Prescott CPU. (No soporta CPU Willamette) Chipset North Bridge: Intel 865G South Bridge: Intel ICH5.
  • Page 17 Transferencia de datos de hasta 1.5 GB/ Chip: RTL8100B. Soporta 10 Mb/s y 100 Mb/ auto-negociación Capacidad Half/ Full duplex. Soporta administración ACPI AC’97 Sound Codec Onboard Chip: CMI9739A. Conforma con la especificación AC’97. Interface AC97 2.2. Soports 6 canales. Periféricos Onboard a.
  • Page 18: Contenido Del Paquete

    Contenido del Paquete Cable HDD X 2 Cable FDD X1 Manual del Usuario X1 Configuración Completa del Driver CD X1 Aplicación StudioFun! CD X 1 (opcional) Cable USB 2.0 X1 (opcional) Cable S/PDIF X 1 (opcional) Panel Trasero I/O para carcasa Micro ATX X1 (opcional) Cable Serial ATA X1 Cable de Interruptor de Corriente para Serial ATA X1 Cómo instalar un Puente...
  • Page 19: Módulos Ddr Dimm: Ddra1-2, Ddrb1-2

    Debe ser la combinaci n del DDRA1+DDRB1 (DIMMs azules) o DDRA2+DDRB2 (DIMMs blancos). Para más información sobre la operación del Dual Channel por favor entre a la página web: www.biostar.com.tw) DRAM Tiempo de Acceso: 2.5V Unbuffered/ no registered (sin ECC) DDR SDRAM PC2100/ PC2700/ PC3200 Tipo requerido.
  • Page 20: Instalación Del Módulo Ddr

    Total del Tamaño de la Memoria con Unbuffered/ Registered DIMMs Localización del Socket DIMM DDRA1 64MB/128MB/256MB/512MB/1GB DDRA2 64MB/128MB/256MB/512MB/1GB DDRB1 64MB/128MB/256MB/512MB/1GB DDRB2 64MB/128MB/256MB/512MB/1GB ***Solamente para referencia*** Instalación del Módulo DDR Abra una ranura de DIMM presionando el clip de retención hacia afuera. Aliñe el DIMM en la ranura tales que la muesca en el DIMM encaje en la cumbrera de la ranura.
  • Page 21: Puentes, Cabezales, Conectores Y Ranuras

    Puentes, Cabezales, Conectores y Ranuras Conector de Disquetera: FDD1 La placa madre proporciona un conector estándar para disquete que soporta disquetera de 360K, 720K, 1.2M, 1.44M y 2.88M. Éste conector utiliza cables proporcionados por el disquete. Conector del Disco Duro: IDE1/ IDE2 La placa madre tiene un controlador de 32-bit PCI IDE que proporciona Modo PIO 0~5, Bus Master, y funcionalidad Ultra DMA 33/ 66/ 100.
  • Page 22 Conector del Panel Frontal: JPANEL1 PWR_LED JPANEL1 Con- Asignación Función tactos Conector del Altavoz Altavoz HDD LED (+) del Disco Duro HDD LED (-) Tierra Botón de Reinicio Control de Reinicio Conector IrDA IRTX Conectores de Corriente: JATXPWER1/ JATXPWR2 Con- tactos ON/OFF HLED...
  • Page 23 JATXPWR1 Con- tactos JATXPWR2 5V / 5VSB Selección para KB: JKBV1 JKBV1 Asignación Contacto 1-2 close +5V_SB Contacto 2-3 close 5V/ 5VSB Selección para USB: JUSBV1/ JUSBV2/JUSBV3_4 JUSBV1/JUSBV2/ Asignación JUSBV3_4 Contacto 1-2 close +5V_SB Contacto 2-3 close PW_OK +5V_SB +12V Asignación Con- Asignación...
  • Page 24 Borrar Puente CMOS: JCMOS1 JCMOS1 Pin 1-2 Close Pin 2-3 Close ※ Procedimientos para Borrar CMOS: 1. Quite el cable de corriente del AC. 2. Fijar el puente en el “contacto 2-3 close”. 3. Espere 5 segundos. 4. Fijar el Puente en el “contacto 1-2 close”. 5.
  • Page 25 Conector Audio DJ: JDJ1 Con- tactos JDJ1 Cabezal de Juego: JGAME1 Contactos Asignación MIDI-OUTR MIDI-INR Cabezal de Entrada de Audio CD-ROM: JCDIN1/ JCDIN2 Contac- JCDIN1/ 2 Con- Asignación Asignación tactos SMBDATA SMBCLK INT_B ATX_PWROK JGAME1 Contactos Asignación Tierra Tierra Asignación Entrada del Canal Izquierdo Tierra Tierra...
  • Page 26 Cabezal del Panel Frontal de Audio: JAUDIO1 JAUDIO1 Contacto Asignación Entrada del Mic Corriente del Mic Salida de Línea RT Reservado Salida de Línea LFT Entrada de Línea RT Entrada de Línea LET Conector de Audio Digital: JSPDIF_OUT1 Contac JSPDIF_OUT1 Cabezal Wake On LAN: JWOL1 Contacto JWOL1...
  • Page 27 Conectores del Panel Trasero Raton Puerto Paralelo Teclado COM1 JKBMS1 JUSB1 JCOM1 Entrada de Linea/ Surround Salida del Altvoz Entrada del Mic/ Bass&Center JVGA1 JRJ45USB1 JAUDIO...
  • Page 28: Deutsch

    Deutsch Spezifikationen von P4TSV A. Hardware Unterstützung für Sockel 478. Unterstützung für den Intel Pentium 4 Prozessor bis zu 3.06GHz. FSB mit 400/533/800MHz. Unterstützung für Hyper-Threading- Unterstützung für Northwood und Prescott CPU. (Willamette wird nicht untergestützt) Chipsatz Northbridge: Intel 865G.
  • Page 29 Master Modus. Unterstützung für zwei Serial-ATA-Ports (SATA). - Entspricht der Spezifikation von SATA 1.0 Datenübertragung bis auf maximal 1.5 GB/ Chip: RTL8100B. Unterstützung für 10 Mb/s und 100 Mb/s Auto-Negotiation. Halb/Voll-Duplex Fähigkeit. Unterstützung für ACPI Power Management Onboard AC’97 Sound Codec Chip: CMI9739A.
  • Page 30: Verpackungsinhalt

    Verpackungsinhalt HDD Kable X 2 FDD Kable X1 Benutzer Handbuch X1 Treiber CD für Installation X1 StudioFun! Anwendung CD X 1 (optional) USB 2.0 Kable X1 (optional) S/PDIF Kable X 1 (optional) I/O-Rückwand für Micro ATX Gehäuse X1 (optional) Serial ATA Kable X1 Serial ATA Netzschalter Kable X1 Einstellung der Jumper Die Abbildung verdeutlicht, wie Jumper eingestellt werden.
  • Page 31: Ddr Dimm Modules: Ddra1-2, Ddrb1-2

    Es is unbedingt, DDRA1mit DDRB1(blaue DIMMs) oder DDRA2 mit DDRB2 (weiße DIMMs) als ein Paar zu verwenden. Mehr Informationen über Dual-Kanal Operation finden Sie auf der Website von Biostar unter http://www.biostar.com.tw DRAM-Zugriffszeit: 2.5V unbuffered/ nicht registrierter (ohne ECC) DDR SDRAM PC2100/ PC2700/ PC3200 Typ erforderlich.
  • Page 32: Installation Von Ddr-Modul

    Clips zuschnappen und das Modul fest sitzt. Jumpers, Headers, Anschlüsse & Slots Diskettenanschluss: FDD1 Das Motherboard enthält einen standardmäßigen Diskettenanschluss, der 360K-, 720K-, 1.2M-, 1.44M- und 2.88M-Disketten unterstützt. Dieser Anschluss unterstützt die mitgelieferte Bandkabel des Diskettenlaufwerks. Festplattenanschlüsse: IDE1 und IDE2 Das Mainboard hat einen 32-Bit Enhanced PCI IDE-Controller, der die Modi PIO0~4, Bus Master sowie die Ultra DMA/33/66/100/133- Funktion zur Verfügung...
  • Page 33 Hardware-skalierbare Riser-Card-Schnittstelle, welche nur Audio, Netzwerk und Modem unterstützt. Serial ATA Connector: JSATA1/JSATA2 Auf diesen Motherboard gibt es ein PCI-to-SATA Controller mit 2-Kanal Interface, die der Spezifikation von SATA 1.0 entspricht ( Dtenübertragung mit 1.5GB/S) Stromversorgungsanschluss: JATXPWER1/JATXPWR2 Beschreibung...
  • Page 34 Anschlüsse für die Vorderseite: JPANEL1 *Schlüsse: Kein Pin PWR_LED JPANEL1 Beschreibung Funktion Lautsprecher Kein Anschluss Kein Lautsprecher HDD LED (+) Festplatte HDD LED (-) Masse Zurücksetzn -Knopf Reset Kontrollieren Kein Kein IrDA- Anschluss IRTX Auswahl von 5V/5V_SB für Tastatur/Maus: JKBV1 JKBV1 Beschreibung Pin 1-2...
  • Page 35 Auswahl von 5V/ 5V_SB für USB: JUSBV1/ JUSBV2/JUSBV3_4 JUSBV1/JUSBV2/ Beschreibung JUSBV3_4 Pin 1-2 geschlossen +5V_SB Pin 2-3 geschlossen Jumper zum Löschen CMOS: JCMOS1 JCMOS1 Pin 1-2 geschlossen Pin 2-3 geschlossen ※ Prozeduren zum Löschen des CMOS: 1. Ausschalten Sie den AC-Netzstecker. 2.
  • Page 36 Serial ATA Anschlüsse: JSATA1/ JSATA2 Beschreibung JSATA1/ JSATA2 AUDIO DJ Anschluss: JDJ1 Beschreibung JDJ1 ATX_PWROK Game Header: JGAME1 Beschreibung MIDI-OUTR MIDI-INR Kein CD-ROM Audio-In Header: JCDIN1/ JCDIN2 JCDIN1/2 Beschreibung Masse Masse Masse Beschreibung SMBDATA SMBCLK INT_B Schlüsse JGAME1 Beschreibung Masse Masse Beschreibung Link-Kanal Eingabe...
  • Page 37 Front Panel Audio Header: JAUDIO1 JAUDIO1 Beschreibung Mikrofon-Eingang Mikrofon-Betriebsspannung Recht Line-Out Reserviert Link Line-Out Recht Line-In Link Line-In Digital Audio Anschluss: JSPDIF_OUT1 JSPDIF_OUT1 Wake On LAN Header: JWOL1 JWOL1 Front USB Header: JUSB2/3 Beschreibung +5V(geschmelzt) JUSB2/3 Schlüsse Beschreibung Masse Audio-Spannung Recht Line-Out Schlüsse Link Line-Out...
  • Page 38 Anschlüsse für die Rückwand Maus Parallel Tastatur COM1 JKBMS1 JUSB1 JCOM1 Line-In/ Surround Lautsprecher-Ausgang Mikrofon-Eingang / Bass&Center JVGA1 JRJ45USB1 JAUDIO...
  • Page 39: Warpspeeder

    WarpSpeeder Introduction [ WarpSpeeder™ ], a new powerful control utility, features three user-friendly functions including Overclock Manager, Overvoltage Manager, and Hardware Monitor. With the Overclock Manager, users can easily adjust the frequency they prefer or they can get the best CPU performance with just one click. The Overvoltage Manager, on the other hand, helps to power up CPU core voltage and Memory voltage.
  • Page 40: Installation

    Installation Execute the setup execution file, and then the following dialog will pop up. Please click “Next” button and follow the default procedure to install. When you see the following dialog in setup procedure, it means setup is completed. If the “Launch the WarpSpeeder Tray Utility” checkbox is checked, the Tray Icon utility and [WarpSpeeder™] utility will be automatically and immediately launched after you click “Finish”...
  • Page 41: Usage

    Usage The following figures are just only for reference, the screen printed in this user manual will change according to your motherboard on hand. [WarpSpeeder™] includes 1 tray icon and 5 panels: 1. Tray Icon: Whenever the Tray Icon utility is launched, it will display a little tray icon on the right side of...
  • Page 42 This utility is responsible for conveniently invoking [WarpSpeeder™] Utility. You can use the mouse by clicking the left button in order to invoke [WarpSpeeder™] directly from the little tray icon or you can right-click the little tray icon to pop up a popup menu as following figure.
  • Page 43 3. Voltage Panel Click the Voltage button in Main Panel, the button will be highlighted and the Voltage Panel will slide out to up as the following figure. In this panel, you can decide to increase CPU core voltage and Memory voltage or not. The default setting is “No”.
  • Page 44 4. Overclock Panel Click the Overclock button in Main Panel, the button will be highlighted and the Overclock Panel will slide out to left as the following figure.
  • Page 45 Overclock Panel contains the these features: a. “–3MHz button”, “-1MHz button”, “+1MHz button”, and “+3MHz button”: provide user the ability to do real-time overclock adjustment. Warning: Manually overclock is potentially dangerous, especially when the overclocking percentage is over 110 %. We strongly recommend you verify every speed you overclock by click the Verify button.
  • Page 46 “Auto-overclock button”: User can click this button and [ WarpSpeeder™ ] will set the best and stable performance and frequency automatically. [ WarpSpeeder™ ] utility will execute a series of testing until system fail. Then system will do fail-safe reboot by using Watchdog function. After reboot, the [ WarpSpeeder™ ] utility will restore to the hardware default setting or load the verified best and stable frequency according to the Recovery Dialog’s setting.
  • Page 47 5. Hardware Monitor Panel Click the Hardware Monitor button in Main Panel, the button will be highlighted and the Hardware Monitor panel will slide out to left as the following figure. In this panel, you can get the real-time status information of your system. The information will be refreshed every 1 second.
  • Page 48 Note: Because the overclock, overvoltage, and hardware monitor features are controlled by several separate chipset, [ WarpSpeeder™ ] divide these features to separate panels. If one chipset is not on board, the correlative button in Main panel will be disabled, but will not interfere other panels’ functions.
  • Page 49: Trouble Shooting

    Trouble Shooting PROBABLE No power to the system at all Power light don’t illuminate, fan inside power supply does not turn on. Indicator light on keyboard does not turn on PROBABLE System inoperative. Keyboard lights are on, power indicator lights are lit, hard drive is spinning.
  • Page 50: Solución De Problemas

    Solución de Problemas CAUSA PROBABLE No hay corriente en el sistema. La luz de corriente no ilumina, ventilador dentro de la fuente de alimentación apagada. Indicador de luz del teclado apagado. CAUSA PROBABLE Sistema inoperativo. Luz del teclado encendido, luz de indicador de corriente iluminado, disco rígido está...
  • Page 51: Problemlösung

    Problemlösung MÖGLICHE URSACHE Das System hat keine Spannungsversorgung. Die Stromanzeige leuchtet nicht, der Lüfter im Inneren Stromversorgung wird eingeschaltet. Tastaturleuchten sind nicht an. MÖGLICHE URSACHE System funktioniert nicht. Tastaturleuchten sind an, die Stromanzeige leuchtet, die Festplatte dreht sich. MÖGLICHE URSACHE Das System wird von der Festplatte nicht hochgefahren, vom CD-ROM-Treiber aber ja.
  • Page 52 04/18/2003...
