- Page 1 OWNER’S MANUAL WIRED CONTROLLER & REMOTE CONTROL GIA-XK19 & GIA-YT1F Thanks for choossing our product. Please, read carefully this manual before using the product...
- Page 2 User Notice Never install the wired remote controller in the moist circumstance or expose it directly under the sunlight. Never beat, throw, and frequently disassemble the wired remote controller and the wireless remote controller. Never operate the wired remote controller and the wireless remote controller with wet hands. Please read the manual carefully before using and installing this product.
-
Page 3: Table Of Contents
Contents Wired Remote Controller GIA-XK19 ..............1 1 Symbols on LCD ................... 1 1.1 Outside View of the Wired Remote Controller ............1 1.2 LCD of the Wired Remote Controller ..............1 2 Buttons ......................2 2.1 Buttons on the Wired Remote Controller .............. 2 2.2 Function of the Buttons .................. -
Page 4: Wired Remote Controller Gia-Xk19

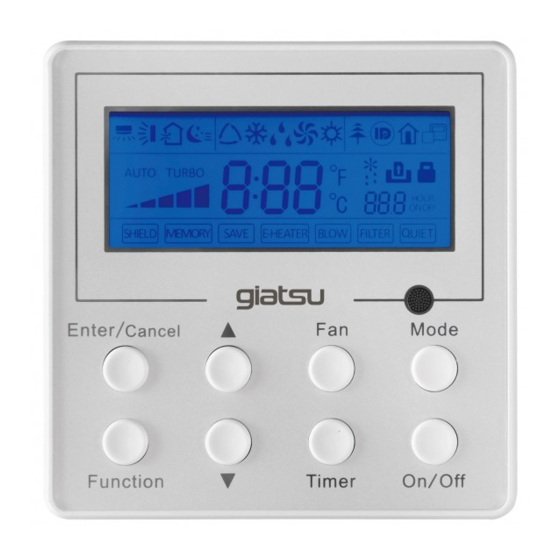

Wired Remote Controller GIA-XK19 Wired Remote Controller GIA-XK19 Symbols on LCD 1.1 Outside View of the Wired Remote Controller AUTO TURBO HOUR SHIELD MEMORY MASTER SAVE E-HEATER BLOW QUIET Mode Enter/Cancel Enter/cancel Function Timer On/Off Fig.1 Outside View of the Wired Remote Controller 1.2 LCD of the Wired Remote Controller... -
Page 5: Buttons
Wired Remote Controller GIA-XK19 Table 1 Symbols Description Swing function. Sleep function (Only sleep 1). Running modes of the indoor unit (Cooling, Dry, Fan and Heating). Defrosting function for the outdoor unit. Gate-control function (this function is yet unavailable for this unit). -
Page 6: Function Of The Buttons
Wired Remote Controller GIA-XK19 2.2 Function of the Buttons Table 2 Name Function Enter/Cancel Function selection and cancellation. Running temperature setting of the indoor unit, range:16 Timer setting, range:0.5-24 hr. Setting of the high/middle/low/auto fan speed. Mode Setting of the Cooling/Heating/Fan/Dry/Auto mode of the indoor unit. -
Page 7: Operation Instructions
Wired Remote Controller GIA-XK19 3 Operation Instructions 3.1 On/Off Press On/Off to turn on the unit and turn it off by another press. Note: The state shown in Fig.4 indicates the “Off” state of the unit after power on. The state shown in Fig.5 indicates the “On”... -
Page 8: Fan Setting
Wired Remote Controller GIA-XK19 Fig.6 3.4 Fan Setting Under the “On”/”Off” state of the unit, press Fan and then fan speed of the indoor unit will change circularly as shown in Fig.7. Middle High AUTO Enter/Cancel Mode Function Timer On/Off Fig.7... - Page 9 Wired Remote Controller GIA-XK19 Fig. 8 Timer off Setting under the “On” State of the Unit 0.5hr. If either of them is pressed continuously, the set time will increase/ decrease by 0.5hr every 0.5s.
-
Page 10: Swing Setting
Wired Remote Controller GIA-XK19 3.6 Swing Setting Swing On: Press Function under on state of the unit to activate the swing function. In this case, Swing Off: When the Swing function is on, press Function to enter the Swing setting interface, with blinking. -
Page 11: Sleep Setting
Wired Remote Controller GIA-XK19 3.7 Sleep Setting Sleep on: Press Function under on state of the unit till the unit enters the Sleep setting Sleep off: When the Sleep function is activated, press Function to enter the Sleep setting interface. After that, press Enter/Cancel to can this function. -
Page 12: Turbo Setting
Wired Remote Controller GIA-XK19 3.8 Turbo Setting Turbo function: The unit at the high fan speed can realize quick cooling or heating so that the room temperature can quickly approach the setting value. In the Cooling or Heating mode, press Function till the unit enters the Turbo setting interface When the Turbo function is activated, press Function to enter the Turbo setting interface and then press Enter/Cancel to cancel this function. -
Page 13: E-Heater Setting
Wired Remote Controller GIA-XK19 3.9 E-heater Setting E-heater (auxiliary electric heating function): In the Heating mode, E-heater is allowed to be Once the wired remote controller or the remote controller enters the Heating mode, this function will be turned on automatically. -
Page 14: Blow Setting
Wired Remote Controller GIA-XK19 3.10 Blow Setting Blow function: After the unit is turned off, the water in evaporator of indoor unit will be automatically evaporated to avoid mildew. In the Cooling or Dry mode, press Function till the unit enters the Blow setting interface and then press Enter/Cancel to active this function. -
Page 15: Other Functions
Wired Remote Controller GIA-XK19 3.11 Other Functions (1). Lock at the same time for 5s till the wired remote controller enters the Lock function. In this case, LCD displays . After that, repress these two buttons at the same time for 5s to quit this function. -
Page 16: Installation And Dismantlement
Wired Remote Controller GIA-XK19 4 Installation and Dismantlement 4.1 Connection of the Signal Line of the Wired Remote Controller Open the cover of the electric control box of the indoor unit. Let the single line of the wired remote controller through the rubber ring. - Page 17 Wired Remote Controller GIA-XK19 Fig.15 Fig.15 shows the installation steps of the wired remote controller, but there are some issues that need your attention. (1). Prior to the installation, please firstly cut off the power supply of the wire buried in the installation hole, that is, no operation is allowed with electricity during the whole installation.
-
Page 18: Dismantlement Of The Wired Remote Controller
Wired Remote Controller GIA-XK19 cord and connection lines between the indoor and outdoor unit, with a minimum interval of 20cm, otherwise the communication of the unit will probably work abnormally. If the air conditioning unit is installed where is vulnerable to electromagnetic interference, then the signal and communication lines of the wired remote controller must be the shielding twisted pair lines. - Page 19 Wired Remote Controller GIA-XK19 Table 4 Meaning of Each Error Error Error Error Error Code Code Return air temperature sensor open/short Drive board communication error circuited evaporator temperature sensor open/short Compressor overheating protection circuited Indoor unit liquid valve temperature sensor...
-
Page 20: Wireless Remote Controller Gia-Yt1F
Wireless Remote Controller GIA-YT1F Wireless Remote Controller GIA-YT1F Notes: Be sure that there are no obstructions between the receiver and the remote controller; Do not drop or throw the remote controller; Do not let any liquid into the remote controller and expose the remote controller to direct sunlight or any place where is very hot. - Page 21 Wireless Remote Controller GIA-YT1F 3) SLEEP Sleep On and Sleep Off can be selected by pressing this button. After powered on, the default is Sleep Off. After the unit is turned off, the Sleep function is canceled. When the sleep function is set already, the symbol will be displayed.
-
Page 22: Guide For General Operation
Wireless Remote Controller GIA-YT1F temperature, or indoor ambient temperature. When the indoor unit is powered on, the indoor set temperature will be displayed, while if the status is changed to , the indoor ambient temperature will be displayed. However, the indoor set temperature will be displayed again when the controller receives other remote controls signals. -
Page 23: Guide For Optional Operation
Wireless Remote Controller GIA-YT1F d. Press FAN to set the fan speed, Auto, Low, Medium, or High. e. Press to select the swing angle. 3 Guide for Optional Operation a. About X-FAN This function indicates that moisture in the evaporator of the indoor unit will be dried after the unit is stopped to avoid mould. - Page 24 C./ Industria, 13 l Polígono Industrial El Pedregar 08160 Montmeló Barcelona (Spain) Phone: (0034) 93 390 42 20 Fax: (0034) 93 390 42 05 info@giatsu.com www.giatsu.com...
