OWNER'S MANUAL

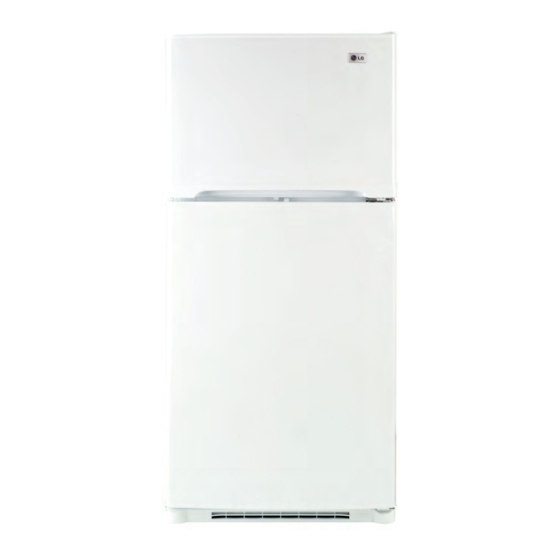

TOP FREEZER
REFRIGERATOR
Please read this manual carefully before operating
your set and retain it for future reference.
MANUEL D'UTILISATEUR
RÉFRIGÉRATEUR
A CONGÉLATEUR INFÉRIEUR
Veuillez lire ce manuel en entier avant de mettre
en marche l'unité et conservez-le à portée de la
main pour le consulter à tout moment.
Model Name/Nombre de Modelo**
LTN19312**
LTN19415**
LTN19315**
P/No. MFL62423826
=color number/numéro de couleur
www.lg.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LG LTN19312 Series
Summary of Contents for LG LTN19312 Series
- Page 1 A CONGÉLATEUR INFÉRIEUR Veuillez lire ce manuel en entier avant de mettre en marche l’unité et conservez-le à portée de la main pour le consulter à tout moment. Model Name/Nombre de Modelo** =color number/numéro de couleur LTN19312** LTN19415** LTN19315** www.lg.com P/No. MFL62423826...
-
Page 2: Warranty
WARRANTY: Should your LG Refrigerator (“Product”) fail due to a defect in material or workmanship under normal home use during the warranty period set forth below, LG Canada will at its option repair or replace the Product upon receipt of proof of original retail purchase. -
Page 3: Table Of Contents
TABLE OF CONTENTS Warranty Refrigerator Shelves 19-20 Frozen Meat Compartment (Chef Fresh/Snack Pan) English Version Crisper and Vegetable Drawer Crisper Humidity Control Fixed Refrigerator Rack 20-21 Spanish Version Door Racks Dairy Compartment Can Dispenser Important Safety Instructions Vitabox Requirements for Ground Connection Ice Tray Parts and Features Refrigerator Care and Cleaning... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAFETY MESSAGES This manual contains several important safety notices. Always read and obey all of the following safety messages. This is the safety alert symbol. This symbol is a warning to potential dangers that could cause death, injury or damage to you, others or the product. -
Page 5: Requirements For Ground Connection
REPLACING ELECTRICAL CABLE If the power cord is damaged, it must be replaced by RECOMMENDED GROUNDING METHOD our service center or qualified LG technician to avoid any risk. Your refrigerator must always be plugged to its own outlet which is adequately grounded. The energy current should only be 115 V, 60 Hz, A.C. -
Page 6: Parts And Features
PARTS AND FEATURES Read this section to familiarize yourself with the parts and features of your new refrigerator. NOTE: This guide covers different models. Your refrigerator could have some or all of the features and parts listed below. The location of some of the parts may not correspond to that of your model. Ice Bin * VitaBox (inside) * Freezer Shelf... - Page 7 PARTS AND FEATURES Read this section to familiarize yourself with the parts and features of your new refrigerator. NOTE: This guide covers different models. Your refrigerator could have some or all of the features and parts listed below. The location of some of the parts may not correspond to that of your model. Ice Maker VitaBox (inside) * Freezer Shelf...
- Page 8 PARTS AND FEATURES Read this section to familiarize yourself with the parts and features of your new refrigerator. NOTE: This guide covers different models. Your refrigerator could have some or all of the features and parts listed below. The location of some of the parts may not correspond to that of your model. Ice Maker * Crisper Keeps fruits and vegetable fresh and crisp...
-
Page 9: Refrigerator Installation
REFRIGERATOR INSTALLATION 3. Install the refrigerator in an area between 55 °F WARNING (13 °C) and 110 °F (43 °C). If the surrounding temperature is lower or higher than previously mentioned, it can EXCESSIVE WEIGHT HAZARD adversely affect the unit. Use the assistance of two or more persons to move or install the refrigerator. -
Page 10: How To Remove And Install The Refrigerator Doors
REFRIGERATOR INSTALLATION HOW TO REMOVE AND INSTALL THE REFRIGERATOR DOORS If entrance is lees than 35 inches wide, the refrigerator’s door will need to be removed. IMPORTANT: Before starting, turn off and unplug the refrigerator. Remove all food and the racks from the doors. TOOLS YOU MIGHT NEED OR USE 10 mm 13/32 in... - Page 11 REFRIGERATOR INSTALLATION Fig. 9 Fig. 6 • To replace doors, begin with refrigerator door and then follow with freezer door. 4. Replacing Freezer Door • Set the freezer door onto the Middle Hinge pin (Figure 10). 3. Replacing Refrigerator Door • Place upper hinge in the top of the freezer door and line up the hinge with the holes in top of refrigerator.
-
Page 12: How To Reverse And Install The Refrigerator Doors
REFRIGERATOR INSTALLATION HOW TO REVERSE AND INSTALL THE REFRIGERATOR DOORS You may find it more convenient to have the doors converted from the left opening type (factory installed) to the right opening type. Directions refer to the right side as the side on your right as you face the unit. TOOLS YOU MIGHT NEED OR USE 10 mm 13/32 in... - Page 13 REFRIGERATOR INSTALLATION • Loosen and remove the two bolts and the screw to Fig. 6 remove the middle hinge bracket from refrigerator housing (See Figure 10). Set parts aside. Fig. 10 Middle Hinge Bracket • Pry off cover on top refrigerator on left side to uncover screw holes (See Figure 7).
- Page 14 REFRIGERATOR INSTALLATION Fig. 13 Fig. 16 Door Closer (Stop) • At this point, remove the Decorative Bolt on bottom on • Take out the Hinge Pin Insert and move the Bracket refrigerator housing from the left side of refrigerator to the other side of the door, keeping the same (See Figure 14).
- Page 15 REFRIGERATOR INSTALLATION • With flat-head screwdriver, carefully pry off and Fig. 23 remove the cover over the screw holes on the left side Decorative of refrigerator housing (Figure 20). Screw Fig. 20 3. Reattaching Freezer Door • Put freezer door down over the Hinge Pin on the • Remove the outer lower Decorative Screw from Middle Hinge Pin Bracket (See Figure 24).
-
Page 16: Closing And Aligning The Doors
REFRIGERATOR INSTALLATION 3. Use a flat head screwdriver to adjust the leveling • Replace cover from left side of refrigerator top onto the right of top to cover the holes. Cover is also force- screws (see Figure A), turning clockwise to raise the fitted (Figure 27). -
Page 17: Using Your Refrigerator
USING YOUR REFRIGERATOR ENSURING PROPER AIR CIRCULATION ADJUSTING THE CONTROLS In order to obtain stable temperature, the air must flow • Your refrigerator has two controls that allow you to between the freezer and refrigerator sections. As shown regulate the temperature the freezer and refrigerator in the illustration below, the cold air enters through compartments. -
Page 18: Adjusting Control Settings
USING YOUR REFRIGERATOR ADJUSTING CONTROL SETTINGS FOOD STORAGE GUIDE Give the refrigerator time to cool down completely before ITEMS HOW TO STORE adding food. It is best to wait 24 hours before adding Storing Fresh Food Wrap or store food in the food to the refrigerator. -
Page 19: Refrigerator Section
USING YOUR REFRIGERATOR Packaging Recommendations: REFRIGERATOR SECTION • Use sealed plastic containers. REFRIGERATOR SHELVES • Use plastic containers with a smooth surface. • Package with aluminum foil of high resistance. The shelving of your refrigerator can be adjusted to • Wrap with paper layered with plastic. comply with your storage necessities;... -
Page 20: Frozen Meat Compartment (Chef Fresh/Snack Pan)
USING YOUR REFRIGERATOR Sliding Shelves (in some models) CRISPER HUMIDITY CONTROL (in some models) You can slide some of the shelves in your refrigerator You can adjust the humidity inside the drawers by towards inside or outside like explained below. adjusting the control in a position between For better preservation of the fruits allow air to leave • To slide the shelf towards the outside: Pull towards you,... -
Page 21: Door Racks
USING YOUR REFRIGERATOR CAN DISPENSER (in some models) • To remove the can dispenser, simply lift it and pull straight out (1). • To replace the can dispenser, slide it in above the desired location and push down until it stops (2). Replacing the Fixed Refrigerator Rack • Hold the rack’s edge against the door’s inner wall. -
Page 22: Refrigerator Care And Cleaning
REFRIGERATOR CARE AND CLEANING BACK COVER WARNING WARNING EXPLOSION HAZARD ELECTRICAL SHOCK HAZARD Before you begin, either unplug the refrigerator or turn off power at the circuit breaker or fuse box. NOTE: Back Cover should only be Do not use flammable cleaners. Not following these removed by a qualified technician. -
Page 23: Power Interruptions
REFRIGERATOR CARE AND CLEANING Type B 5. Pull out all of the removable parts, and wrap them with adhesive tape. 6. Depending on the model of the refrigerator, lift the top part of the refrigerator so it can roll with ease, or screw the levelers so it won´t scratch the floor. -
Page 24: About The Automatic Ice Maker
ABOUT THE AUTOMATIC ICE MAKER NOTE: The automatic Ice maker is only included in some YOU MUST TURN THE SWITCH TO O (OFF) models. Check your specifications of your refrigerator. • When the water supply is interrupted for many hours. • When the ice container is left out of its place for more than one or two minutes. -
Page 25: Connecting The Water Line
CONNECTING THE WATER LINE NOTE: It is necessary to have a water source when both behind the refrigerator and the source of water and add water and/or ice dispensers are available in your product. to that 8 feet (2,4 m). Make sure there is sufficient pipe material to allow the free movement of the refrigerator BEFORE START from the wall... - Page 26 CONNECTING THE WATER LINE 3. DRILL A HOLE FOR THE VALVE Drill a 1/4” (6,35 mm) diameter hole water pipeline. Remove jagged edges produces addle Type after perforation. Make sure water Shutoff Valve Compression Nut does not reach the drill. Not performing the 1/4”...
- Page 27 CONNECTING THE WATER LINE 12. TURN ICE MAKER ON • Remove the ring plug (1) from the valve located at the top of such device. Turn ice maker switch into the ON position. Ice maker will start only after reaching its operating temperature of 15 °F (-9 °C) or less.
-
Page 28: Troubleshooting Guide
TROUBLESHOOTING GUIDE UNDERSTANDING SOUNDS YOU MAY HEAR Your new refrigerator might produce certain noises that • You will hear a bell sound caused by the flow of the your previous refrigerator did not. It is normal if you worry. refrigerant, water pipe or objects located on the superior Most of the new sounds you will be hearing are actually part of the refrigerator. - Page 29 TROUBLESHOOTING GUIDE Problem Possible Causes Solutions • A light bulb has gone bad. • Unplug the refrigerator before changing the light THE LIGHT WON’T bulb. Replace the bulb with a same 40 watts bulb TURN ON for your local store. (Read the section Replacing Refrigerator Lights).
- Page 30 TROUBLESHOOTING GUIDE Problem Possible Causes Solutions THERE IS A WEIRD • Read the section Refrigerator Care and Cleaning. • The inside of the refrigerator need TASTE AND SMELL cleaning. IN THE ICE • The ice bin needs cleaning. • Empty the bin and discard the old ice cubes. • Refer to the Understanding Sounds You May Hear • The sounds may be normal for your REFRIGERATOR...
-
Page 31: Spanish Version
