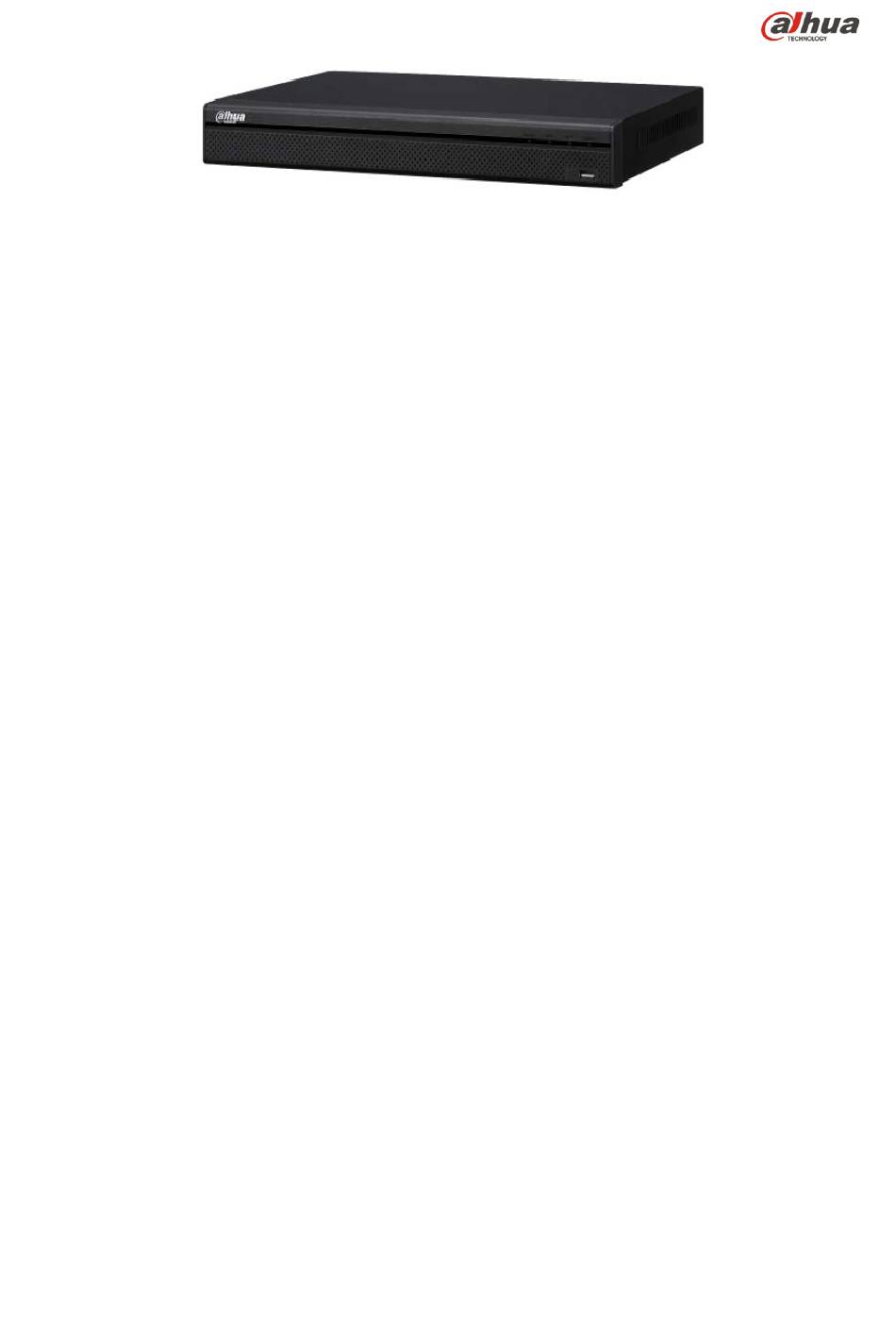

- Page 1 Lite Series 4K Network Video Recorder N42B1P / N42B2P / N42B3P Quick Start Guide Version 1.0.1 Dahua Technology USA Inc.
-
Page 2: Table Of Contents
Table of Contents Welcome........................1 Important Safeguards and Warnings ..............1 Electrical safety ....................1 Environmental Precautions ................2 Operation and Daily Maintenance ..............2 Lithium Battery Disclaimer ................2 Warnings ......................3 FCC Information ....................3 FCC compliance： .................... 3 Legal Notices .................... -
Page 3: Welcome
1 Welcome This manual offers reference material and general information about the basic operation, maintenance, and troubleshooting of the Dahua HCDVI Digital Video Recorder. Read, follow, and retain the following safety instructions. Heed all warnings on the unit and in the operating instructions before operating the unit. -
Page 4: Environmental Precautions
Environmental Precautions • Transport, use, and store the unit within the specified temperature and humidity range. • Do not place the unit in a wet, dusty, extremely hot or an extremely cold environment; and avoid environments with strong electromagnetic radiation or unstable lighting. •... -
Page 5: Warnings
1.3 Legal Notices Copyright This user guide is ©2016, Dahua Technology Company, LTD. This user guide is the intellectual property of Dahua Technology Company, LTD and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly. -
Page 6: Unpacking
2 Unpacking This equipment should be unpacked and handled with care. If an item appears to have sustained damage during shipping, notify the shipper immediately. Verify that all the parts are included. If an item is missing, contact customer support or your local representative. -
Page 7: Nvr Components
3 NVR Components Check the label on the bottom of the NVR and note the model number and the power requirements for this NVR. The label on the rear panel lists the serial number for the NVR. Please provide this serial number when requesting information or service for this device. -
Page 8: N42B2P
N42B2P Figure 3-3 Name Name Name Power Input USB 2.0 Port HDMI Output On/Off Button Audio Input/Output Ground PoE Ports (x 8) VGA Output RJ45 Port (1000 M) Alarm Input/Output N42B3P Figure 3-4 Name Name Name Power Input VGA Output USB 2.0 Port On/Off Button RS232 Port... -
Page 9: Installing The Hard Drive
4 Installing the Hard Drive The NVR provides two (2) SATA III Ports that can each accommodate a 6 TB HDD rated at 7200 RPM or higher. The installation requires a Phillips-head screwdriver. 1. Shut down the device and then unplug the power cable before you open the case to replace the HDD 2. -
Page 10: Nvr Setup
5 NVR Setup 5.1 Making Connections 1. Determine where you will install your system. 2. Ensure the input voltage matches the rated power requirements for the device. Ensure the power supply delivers a stable current. It is recommended to use a UPS to ensure a stable current. 3. -
Page 11: Smart Add
6 Smart Add When the network camera(s) and the NVR are connected to same router or switch, you can use the Smart Add function to add all network cameras to the NVR at the same time. There are two methods to access the Smart Add interface: 1. -
Page 12: Adding A Remote Device
7 Adding a Remote Device 1. Access the Main Menu for the NVR. 2. Select the Settings page, then select the Camera tab and click the Remote link in the left pane. Figure 7-1 3. Click the Device Search button, located in the upper frame, to search for remote devices on the network. -
Page 13: Accessing The Nvr Via The Web
8 Accessing the NVR via the Web The NVR can be accessed directly from the Internet Explorer Web browser. The Web Interface allows you to set parameters, configure inputs and outputs, set recording options, view live camera images, and review recorded video. Note: Different devices may have different Web interfaces, the figures below are for reference only, and may not represent the Web Interface for your device. - Page 14 Dahua Technology USA Inc. 23 Hubble, Irvine, CA 92618 Tel: (949) 679-7777 Fax: (949) 679-5760 Email: sales.usa@global.dahuatech.com Rev 001.001 © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.
