Technical Support Contact
Address :
2F, 628, Donghang-ri, Yangseong-myeon, Anseong-Si, Gyeonggi-Do, Korea.
Tel : +82 70 4100 8847 / Fax : +82 31 674 6608
E-mail : info@c4line.com
Website : www.c4line.com
Copyrightⓒ 2012 C4Line Co.

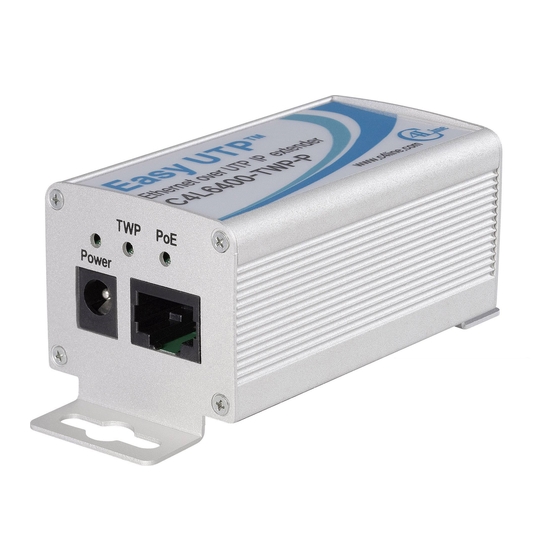

C4L6400-TWP-P Transceiver
Quick Start Guide
C4L6400-TWP-P Transceiver Field Application
C4L6400-TWP-P transceivers are used to extend the Ethernet IP signals via Cat 5E , Cat 6 or 2 wire
cable in the existing UTP network in building.
C4L6400-TWP-P transceiver could reduce the cabling costs to upgrade from the installed analog video
cameras to Mega-pixel grade IP cameras with the inexpensive UTP cabling.
For the other field applications, C4L6400-TWP-P transceivers could be applied to connect, distribute and
convert the IP devices(IPTV, VOIP Phone, Wireless AP, etc.) signals via the UTP cable with 128bit AES
Encryption and guaranteed QoS for loss sensitive application.
Advertisement
Related Manuals for C4Line C4L6400-TWP-P
Summary of Contents for C4Line C4L6400-TWP-P
- Page 1 Address : 2F, 628, Donghang-ri, Yangseong-myeon, Anseong-Si, Gyeonggi-Do, Korea. C4L6400-TWP-P transceivers are used to extend the Ethernet IP signals via Cat 5E , Cat 6 or 2 wire Tel : +82 70 4100 8847 / Fax : +82 31 674 6608 cable in the existing UTP network in building.
- Page 2 Disconnect one of the transceivers and replace it with a new un-joined transceiver. • Use one C4L6400-TWP-P transceiver at each end of the UTP. Up to four remote transceivers • Repeat step two to add additional transceivers to the same Network Group.
