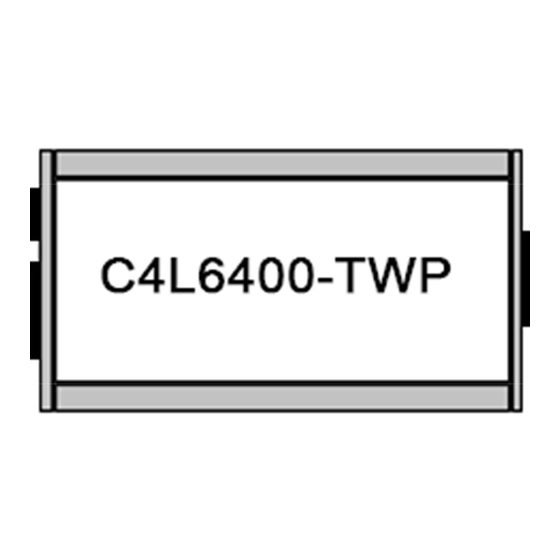

C4L6400-TWP Transceiver

Quick Start Guide

C4L6400-TWP Transceiver Field Application

C4L6400-TWP transceivers are used to extend the Ethernet IP signals via Cat 5E , Cat 6 or 2 wire cable

in the existing UTP network in building.

C4L6400-TWP transceiver could reduce the cabling costs to upgrade from the installed analog video

cameras to Mega-pixel grade IP cameras with the inexpensive UTP cabling.

For the other field applications, C4L6400-TWP transceivers could be applied to connect, distribute and

convert the IP devices(IPTV, VOIP Phone, Wireless AP, etc.) signals via the UTP cable with 128bit AES

Encryption and guaranteed QoS for loss sensitive application.

Need help?

Do you have a question about the C4L6400-TWP and is the answer not in the manual?

Page 1 2F, 628, Donghang-ri, Yangseong-myeon, Anseong-Si, Gyeonggi-Do, Korea. C4L6400-TWP transceivers are used to extend the Ethernet IP signals via Cat 5E , Cat 6 or 2 wire cable Tel : +82 70 4100 8847 / Fax : +82 31 674 6608 in the existing UTP network in building.
Page 2 Step 2 . Installation C4L6400-TWP Installation Warnings • Use one C4L6400-TWP transceiver at each end of the UTP. Up to four remote transceivers and UTP runs may be connected to a fifth transceiver at the control room using Ethernet splitters. •...
