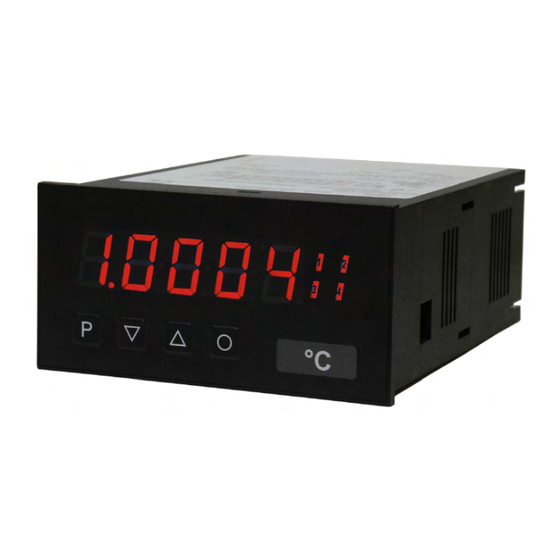

User manual M3
Alternating voltage / Alternating current signal rms-value (TRMS)
0-300 VAC, 0-600 VAC, 0-1 AAC, 0-5 AAC
Technical features:
• red display of -19999...99999 Digits (optional: green, orange, blue)
• installation depth: 120 mm without plug-in terminal
• min-/max-memory
• 30 adjustable setpoints
• display flashing at threshold value exceedance / undercut
• digital input for triggering of Hold, Tara
• permanent min/max value recording
• volume metering (totaliser)
• mathematical functions like reciprocal value, square roots, squaring or rounding
• setpoint generator
• sliding averaging
• brightness control
• programming interlock via access code
• protection class IP65 at the front
• pluggable screw terminal
• optional galvanic insulated digital input
• optional 1 or 2 analog outputs or 8 PhotoMos-outputs
• optional 2 or 4 relay outputs
• optional interface RS232 or RS485
• accessories: PC-based configuration kit PM-TOOL incl. CD and USB-adapter for devices without keypad
and for a simple adjustment of standard devices
M3_14HGB.pdf update: 19.09.2013
96x48

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M3 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Mueller M3 Series

Summary of Contents for Mueller M3 Series

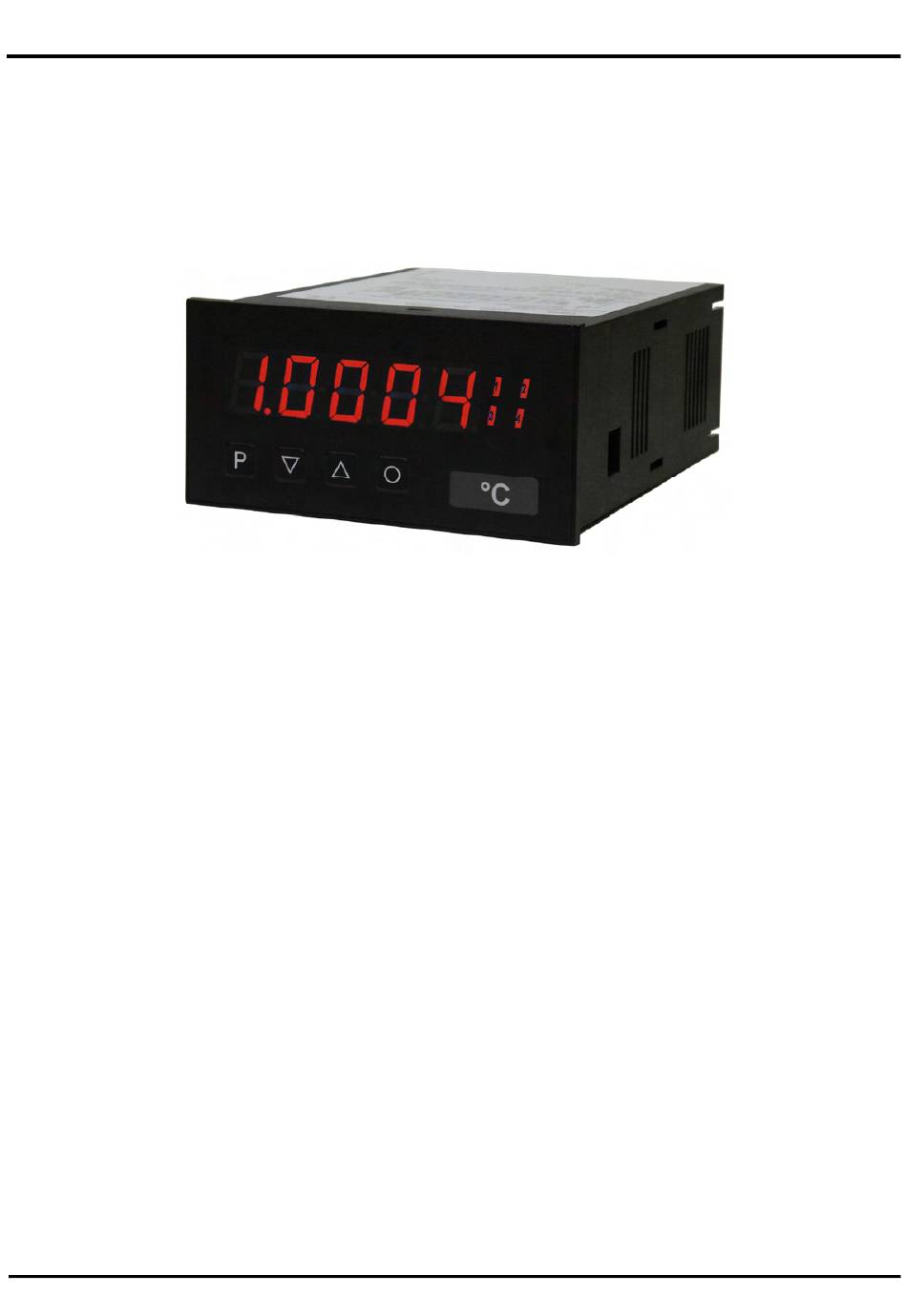

  • Page 1 User manual M3 Alternating voltage / Alternating current signal rms-value (TRMS) 0-300 VAC, 0-600 VAC, 0-1 AAC, 0-5 AAC Technical features: • red display of -19999…99999 Digits (optional: green, orange, blue) • installation depth: 120 mm without plug-in terminal • min-/max-memory •...
