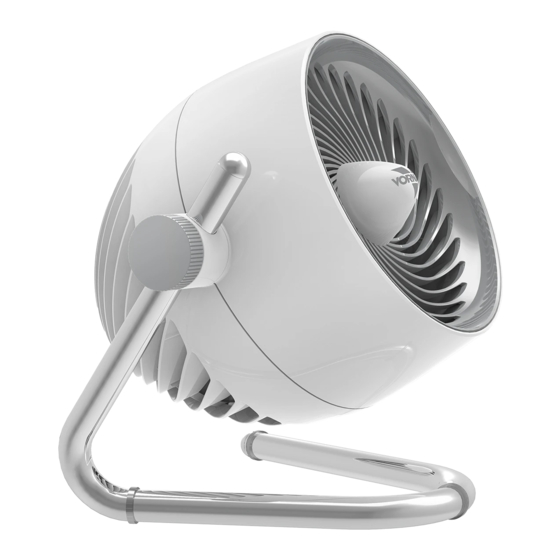

- Page 1 PIVOT5 WHOLE ROOM CIRCULATOR OWNER’S GUIDE READ AND SAVE THESE INSTRUCTIONS vornado.com...
- Page 2 We expect this If it is not, we product to be will make it perfect. right. vornado.com 800-234-0604 help@vornado.com English...
-
Page 3: Table Of Contents
CONTENTS Important Safety Instructions ............. 4 Features ....................7 Controls ....................8 Cleaning ....................9 Troubleshooting ................11 Warranty .................... 12 English... -
Page 4: Important Safety Instructions
See www.vornado.com/circulators-manuals to view, - Do not run cord under carpeting. Do not cover cord with throw download and print the most current version of these instructions. - Page 5 3. Risk of Fire. Replace fuse only with 2.5 Amp, 125 Volt fuse as other.) To reduce the risk of electric shock, this plug is intended to approved by Vornado Consumer Service. For an authorized fit in a polarized outlet only one way. If the plug does not fit fully in replacement fuse, please contact Vornado Consumer Service.
- Page 6 9. If the replacement fuse blows, a short-circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair. Fig. A Fig. B Fig. C Risk of fire. Do not replace attachment plug. Contains a safety device (fuse, AFCI, LCDI) that should not be removed.
-
Page 7: Features
FEATURES Save energy by maximizing the performance of heating and cooling systems. When you use a Vornado Circulator, you will not have to set your summertime thermostat as low or your wintertime thermostat as high. FINGER FRIENDLY DESIGN Resists curious fingers. -
Page 8: Controls
CONTROLS POWER ON/OFF Select High (III), Medium (II), Low (I) fan speed or power off (O) English... -
Page 9: Cleaning
Screw the plastic. 3. To reattach - position the Front Grille so the Vornado logo in the center of the Front Grille is straight. Replace all the screws. Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust off the Front Grille and Air Inlets. - Page 10 CLEANING BLADE REMOVAL Pliers recommended. WARNING: To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing blade. 1. First, remove the nut from the shaft by turning the nut clockwise to loosen. Pull the blade straight out from the shaft.
-
Page 11: Troubleshooting
Under certain conditions, it is possible for a reset GFCI (Ground Fault Circuit Interrupter) outlet to trip when the user is changing speeds on a Vornado circulator. In this event, change to an outlet that is not connected to a GFCI device. It could also indicate a weak or defective GFCI outlet. Contact a qualified electrician to check the GFCI outlet. -
Page 12: Warranty
Vornado, at its discretion, will repair or replace the Product at no cost. parts is not recommended and any consequences will not be covered by support services or product warranties. - Page 13 Vornado Air, LLC 415 East 13th Street, Andover, Kansas 67002 800.234.0604 | vornado.com CL3-0538 R-, V01...
