mtd200-dmanual
10/4/07
4:05 PM
Page 1
Exploded Drawing for Assembly
Parts List
A. Tub (1)
B. Lock (1)
C. Front Frame (1)
D. Rear Axle Assembly (1)
includes left and right rear
struts and rear axle frame
E. Rear Axle Support Bar (1)
F. Front Axle Assembly (1)
G. 10 inch Wheel
H. Handle (1)
H.
Hardware List
A. M8x60 Bolt (1)
B. M8x40 Phillips Flat Head Bolt (2)
C. M8x40 Truss Head Bolt (2)
D. M8x20 Truss Head Bolt (10)
E. M8x20 Hex Head Bolt (2)
F. M8 Lock Nut (17)
G. M8 Washer (17)
H. Bushing (4)
I. 15mm Washers (4)
J. Cotter Pin (4)
A.
B.
C.
D.
F.
G.
Images are
A.
not to scale
F.
B.
G.
C.
D.
I.
E.

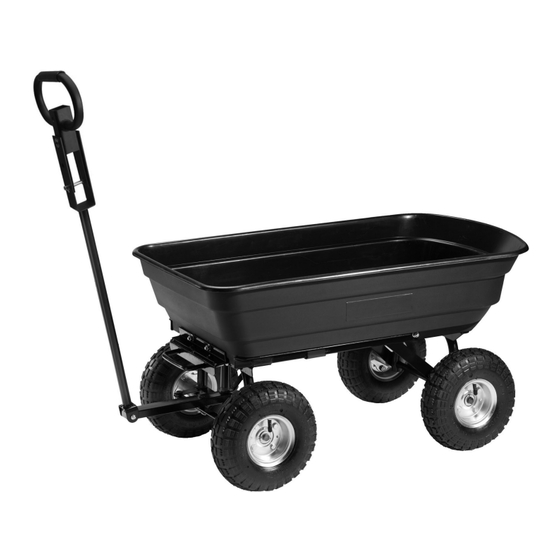

Plastic Dump Cart
Part # 753-05730
I.
E.
Owners Manual
Model MTD200-D
• Important Safety Instructions
• Assembly Instructions
H.
• Parts and Hardware Identification
CAUTION:
Read, understand and follow ALL instructions before using this product.
For product inquiries:
Tricam
7677 Equitable Drive
J.
Eden Prairie, MN 55344
800-867-6763
www.gorillacarts.net
U.S. Patent #'s 6,851,756 and 7,210,697
Other U.S. and Foreign Patents Pending
10/07
Advertisement
Table of Contents
Related Manuals for Tricam Gorilla Carts MTD200-D
Summary of Contents for Tricam Gorilla Carts MTD200-D
- Page 1 F. M8 Lock Nut (17) CAUTION: Read, understand and follow ALL instructions before using this product. G. M8 Washer (17) H. Bushing (4) For product inquiries: Tricam I. 15mm Washers (4) 7677 Equitable Drive Eden Prairie, MN 55344 J. Cotter Pin (4) 800-867-6763 www.gorillacarts.net...
- Page 2 mtd200-dmanual 10/4/07 4:05 PM Page 2 Important Safety Instructions Step 6 Step 7 Assemble the wheels using bushings (4pcs.), washers Assemble the handle to the yoke using M8X60 bolt (1pc.), (4pcs.), and cotter pins (4pcs.). M8 lock nut (1pc.) and washer (1pc.). 1.
