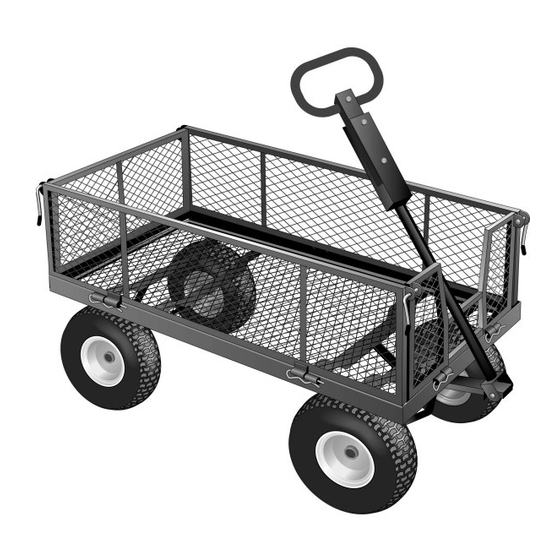

Utility Cart
With Removable Sides
U.S. Patent# 7,210,697 & 7,441,792
Other U.S. and Foreign
Patents Pending
Owners Manual
Model MH1240-D
• Important Safety Instructions
• Assembly Instructions
• Parts and Hardware Identification
CAUTION:
Read, understand and follow ALL instructions before using this product.
WARNING:
Not for recreational use. Perons should never ride in the Utility Cart.
For product inquiries:
Tricam
7677 Equitable Drive
Eden Prairie, MN 55344
800-867-6763
www.tricam.com
11/09
Advertisement
Table of Contents
Related Manuals for Tricam MH1240-D
Summary of Contents for Tricam MH1240-D

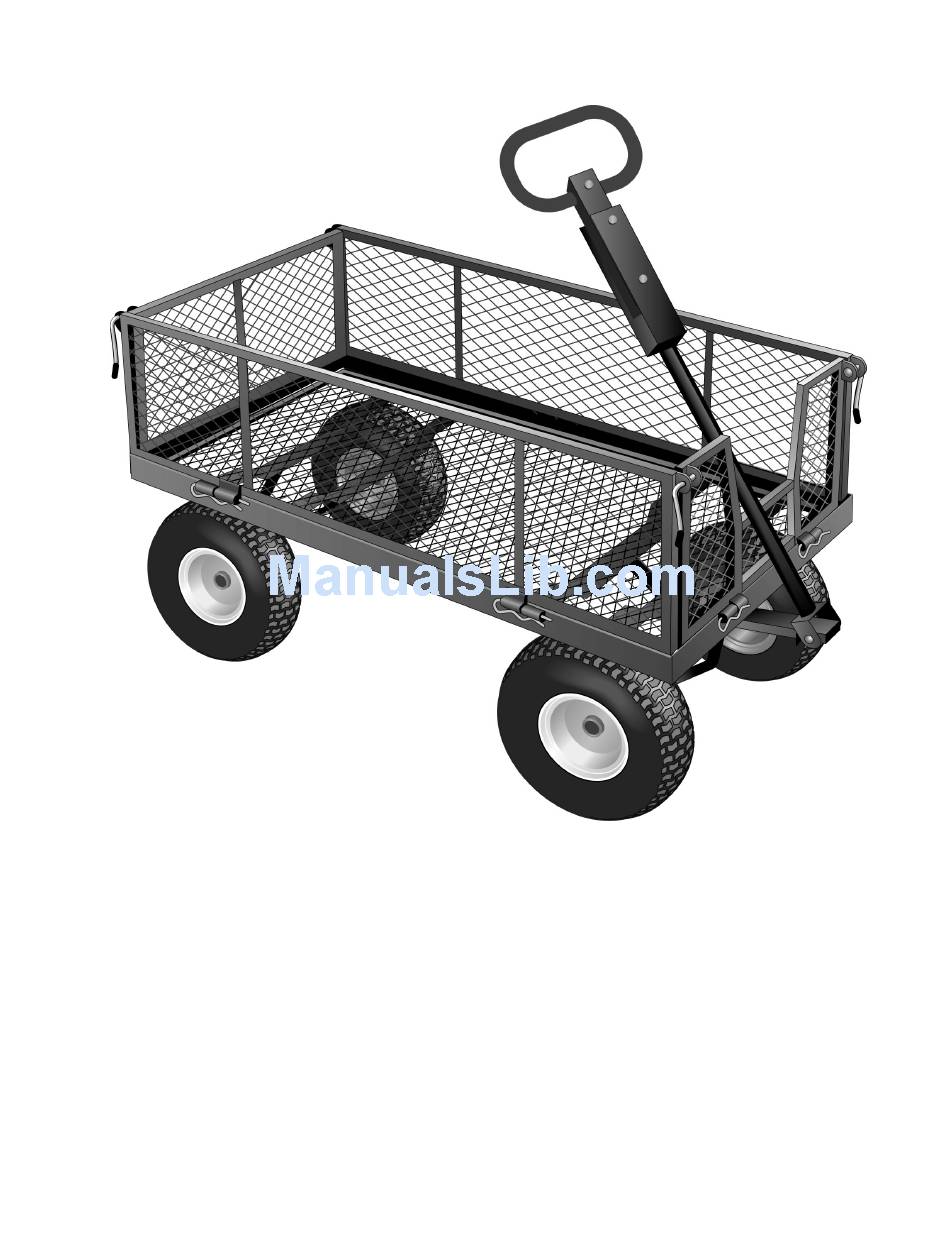

- Page 1 With Removable Sides U.S. Patent# 7,210,697 & 7,441,792 Other U.S. and Foreign Patents Pending Owners Manual Model MH1240-D • Important Safety Instructions • Assembly Instructions • Parts and Hardware Identification CAUTION: Read, understand and follow ALL instructions before using this product.
- Page 2 IMPORTANT SAFETY INSTRUCTIONS 1. READ ALL INSTRUCTIONS CAREFULLY BEFORE USE. If you do not understand these instructions, need clarifi- cation or further explanation, please call our toll free answer line for assistance at 1-800-867-6763 Monday through Friday 8:00 a.m. until 5:00 p.m. CST. 2.
- Page 3 STEP 4 Install the wheels in the following order: 1. Place the wheel spacer busings onto the axles. 2. Place the wheels onto the axles with the valve stem facing out. 3. Use the 16mm washers and the cotter pins to secure the wheels.
- Page 4 PARTS AND HARDWARE IDENTIFICATION MAIN FRAME PARTS Bed - (1) Side Panels - (2) Front Panel - (1) Back Panel - (1) 10in (25.4cm) Wheels - (4) REAR SUPPORT ASSEMBLY Rear Axle Support - (1) Left Rear Axle Brace - (1) Right Rear Axle Brace - (1) FRONT SUPPORT ASSEMBLY Front Axle Support - (1)
- Page 5 EXPLODED DRAWING FOR ASSEMBLY...
Need help?
Do you have a question about the MH1240-D and is the answer not in the manual?
Questions and answers

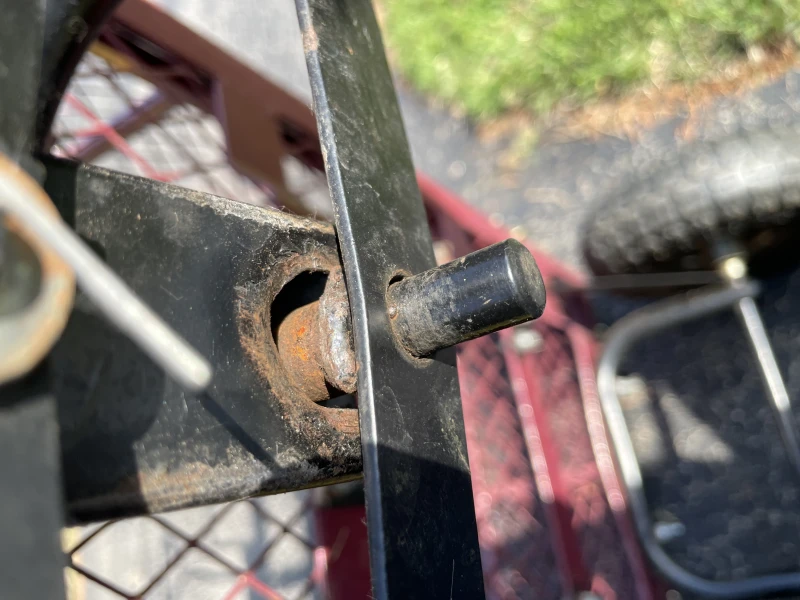

Is the Model MH1240-01 the same as MH1240-D? And how do I order a part?
