- Page 1 PORTABLE PA USER'S GUIDE For: Français, Deutsch, Español, visit www.jblpro.com...
-
Page 2: Table Of Contents
Contents Section 1: Important Safety Instructions ......3 - 4 Section 2: Precautions ............Section 3: Declaration of Conformity ........Section 4: Introduction to the EON208P PA System ..7 - 11 Section 5: System Specifications ........Section 6: Cables and Connectors ........ -
Page 3: Section 1: Important Safety Instructions
Section 1: Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. - Page 4 Care and Cleaning EON208P systems may be cleaned with a dry cloth. Do not get moisture into any of the openings in the system. Ensure that the system is unplugged from the AC outlet before cleaning. THIS APPARATUS CONTAINS POTENTIALLY LETHAL VOLTAGES. TO PREVENT ELECTRIC SHOCK OR HAZARD, DO NOT REMOVE CHASSIS, MIXER MODULE OR AC INPUT COVERS.
-
Page 5: Section 2: Precautions
Section 2: Precautions The EON208P PA system covered by this manual is not intended for use in high moisture environments. Moisture can damage the speaker cone and surround and cause corrosion of electrical contacts and metal parts. Avoid exposing the speakers to direct moisture. -
Page 6: Section 3: Declaration Of Conformity
Section 3: EON208P PA System Declaration of Conformity This equipment complies with the EMC directive 89/336/EEC Modified by 92/31/EEC 93/68/EEC 98/13/EEC and LVD 73/23/EEC modified by 93/68/EEC This product meets safety standards: EN60065:2002 UL6500 7th Edition: 2003 UL 60065 - STANDARD FOR AUDIO, VIDEO AND SIMILAR ELECTRONIC APPARATUS - SAFETY EQUIREMENTS - Edition 7 - Revision Date 2007/12/11 CSA C22.2 NO 60065-03 - AUDIO, VIDEO AND SIMILAR ELECTRONIC APPARATUS –... -
Page 7: Section 4: Introduction To The Eon208P Pa System

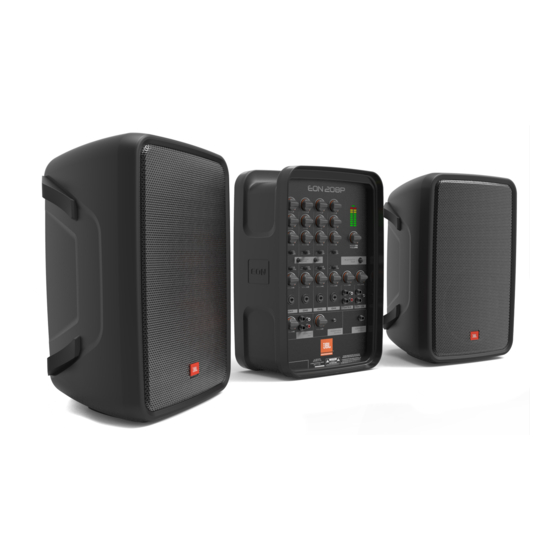

Section 4: Introduction to the EON208P PA System Thank you for choosing the JBL EON208P PA system. The EON208P is a self-contained, portable PA system featuring multiple input channels with individual tone controls, Bluetooth audio streaming, reverb and ® convenient output routing capabilities that allow the user to integrate the system into any number of audio environments. - Page 8 4. Connect the Mixer Module to the Speakers On the back side of the mixer you will notice two ¼" phone jacks – these are your speaker output jacks. Take the speaker cables and connect them from these jacks to the jacks on the back of the speakers. To Left speaker To Right speaker 5.
- Page 9 Getting Acquainted with the EON208P Powered Mixer This part of the EON208P system houses the mixing board and power amplifier. You will connect all of the microphones, musical instruments, Bluetooth audio device, external sound sources (like MP3 or CD players), ®...
- Page 10 Treble control adjusts the amount of high frequencies on the particular channel Bass control adjusts the amount of low fequencies on the particular channel Effect control adjusts the amount of effect on the particular channel Reverb On/Off allows you to turn the effect control on or off for each channel PHANTOM POWER allows you to turn on/off phantom power when needed for...
- Page 11 STEREO OUTPUTS: We've brought signals into the mixer now let's send them somewhere…The EON208P has Left and Right ¼" outputs: 1. LEFT/RIGHT speaker outputs - These outputs should only be connected to the EON208P speakers and under no condition should they be connected to the input of another electronic device.
-
Page 12: Section 5: System Specifications
Section 5: System Specifications EON208P Main Proven JBL sound quality Features Bluetooth streaming audio ® Ergonomic design with internal cable storage System System Type: Portable 2-way full-range loudspeakers with powered mixer Maximum SPL Output: 121 dB peak AC input : 100-120 V, 220-240 V 50/60 Hz Amplifier Design:... -
Page 13: Section 6: Cables And Connectors
Section 6: Cables and Connectors The standard cable for interconnection of microphone and XLR/F to XLR/M Microphone Cable line level signal in professional audio systems. • Microphone to mixer For connecting balanced devices with 1/4 inch phone and TRS (balanced) 1/4 inch phone jack to XLR/M maybe used interchangeably. -
Page 14: Section 7: Contact Information
Section 7: Contact Information Mailing Address: JBL Professional 8500 Balboa Blvd. Northridge, CA 91329 Shipping Address: JBL Professional 8500 Balboa Blvd., Dock 15 Northridge, CA 91329 (Do not return product to this address without first obtaining prior authorization from JBL) Customer Service: Monday through Friday 8:00am - 5:00pm... -
Page 15: Section 8: Warranty Information
Section 8: Warranty Information The JBL Limited Warranty on professional loudspeaker products (except for enclosures) remains in effect for five years from the date of the first consumer purchase. JBL amplifiers are warranted for three years from the date of original purchase. Enclosures and all other JBL products are warranted for two years from the date of original purchase. - Page 16 Part Number: 5001426...
