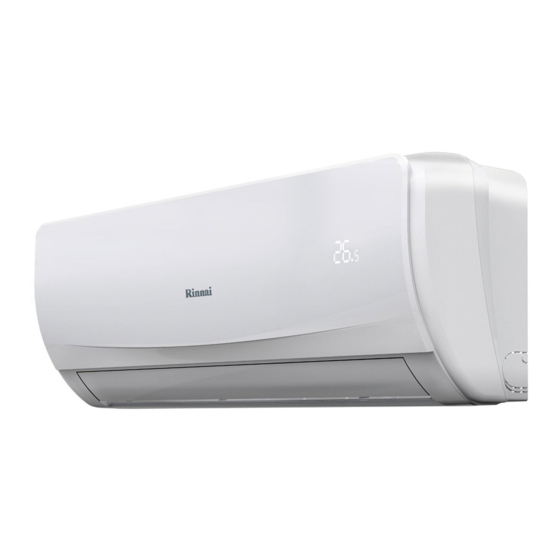

- Page 1 Models System RINV25RC RINV34RC RINV51RC RINV70RC REFRIGERANT R410A Indoor RINV25RHDRC RINV34RHDRC RINV51RHDRC RINV70RHDRC Outdoor RINV25RCMPC RINV34RCMPC RINV51RCMPC RINV70RCMPC G Series Split Type Wall Mounted Air Conditioner Operation Manual...
- Page 2 OH&S requirements This appliance must be installed, maintained and removed only by an Authorised Person� For continued safety of this appliance it must be installed and maintained in accordance with the manufacturer’s instructions� REFRIGERANT R410A Rinnai Split AC OM...
-
Page 3: Table Of Contents
Service Maintenance Schedule - Non Ducted Air Conditioning Systems ��������������������������������������������������������� 16 General Maintenance ��������������������������������������������������������������������������������������������������������������������������������������� 17 Cleaning the Air Filter ��������������������������������������������������������������������������������������������������������������������������������������� 17 Save a Service Call ������������������������������������������������������������������������������������������������������������������������������������������ 18 When to Call for Service ����������������������������������������������������������������������������������������������������������������������������������� 18 Warranty Contacts Rinnai Split AC OM... -
Page 4: Warnings And Important Information
The table below indicates the temperature ranges the air conditioner can be operated within� MODE Cool Mode Heat Mode Dry Mode Room Temperature > 17°C < 27°C > 17°C Outdoor -15°C ~ 52°C -15°C ~ 24°C -15°C ~ 52°C Temperature Rinnai Split AC OM... - Page 5 For safety and warranty purposes, appliances that may be damaged or incorrect MUST NOT be installed or operated under any circumstances. Installation of damaged or incorrect appliances may contravene local government regulations. Rinnai disclaims any liability or responsibility whatsoever in relation to the installation or operation of damaged or incorrect appliances.
-
Page 6: Air Conditioner Basics
The remote control may operate other electronic devices if pointed towards them. Make sure to point the remote control towards the signal receiver of the air conditioner. NOTE For proper operation, use a soft cloth to clean the signal transmitter LED and the receiver window. Rinnai Split AC OM... -
Page 7: Remote Control Layout
18� SPOT SWING button DISPLAY CLEAN FRESH Sets a fixed direction for air flow horizontally. SPOT 19� ECO button SWING Sets appliance to the most efficient operation. 20� Wireless Transmitter LED 21� LCD screen Advanced Displays settings and operation modes� Operation 22� Blank buttons Buttons Not used� Rinnai Split AC OM... -
Page 8: Basic Operation
(displayed below the temperature display), the available fan speeds SPEED SPEED are AUTO / low (2 bars) / medium (4 bars) / high (6 bars)� Medium Select "AUTO" if you wish the fan speed to be adjusted automatically by the High Auto appliance� Rinnai Split AC OM... -
Page 9: Adjusting Vertical Air Flow
When cycling, "SWING ↔ " and the swing icon are shown on the LCD screen� DO NOT attempt to adjust the air deflector vanes manually as this can result in damage to the louvre movement mechanisms. CAUTION Rinnai Split AC OM... -
Page 10: Advanced Operation
(the available fan speeds are low (2 bars) / medium (4 bars) / high (6 bars)� High In this mode, Swing operations for air direction can still be adjusted, however the AUTO setting for the fan speed is not available. NOTE Rinnai Split AC OM... -
Page 11: Turbo
NOTE HEALTH (WI-FI) When pressed 8 times in quick succession, this button activates and or resets the Wi-Fi module of the appliance� The appliance will respond with a double beep to confirm Wi-Fi activation or reset. For further details refer to the Rinnai web site: http://www�rinnai�com�au/cooling/ SLEEP MODE COOL COOL 1� Press the "ON/OFF" button to turn on appliance�... -
Page 12: Delay On Timer
When the room temperature mode is selected any changes to the set temperature will flash NOTE on the display for 5 seconds, after which the display will revert to displaying the current room temperature. Rinnai Split AC OM... -
Page 13: Large Temperature Display
ECO mode operation runs for an 8 hour period, after which normal cooling operations will be resumed, to restart ECO mode after this period repeat step 2 above. NOTE Be aware that ECO mode cooling times may be longer than those for non ECO mode cooling. Rinnai Split AC OM... -
Page 14: Cleaning Operation
When the power is restored the system will restart automatically using the same settings as those that were set before the power outage� After power restoration, the automatic restart cycle will take approximately 5 minutes. DO NOT adjust setting during the restart cycle period. NOTE Rinnai Split AC OM... -
Page 15: Care & Maintenance
Please ensure you register your product warranty on line at rinnai�com�au� The Rinnai Customer Care Program is designed to help you get the most out of your new system� Service and maintenance in accordance with the Service Maintenance Schedules on page 16 is essential in ensuring ... -
Page 16: Service Maintenance Schedule - Non Ducted Air Conditioning Systems
CARE & MAINTENANCE SERVICE MAINTENANCE SCHEDULE - NON DUCTED AIR CONDITIONING SYSTEMS Your Rinnai Air Conditioning System should be maintained annually after the date of installation by a qualified licensed technician in accordance with the Schedule below� Failure to do so during the product warranty period may void your warranty� This periodic service and maintenance will prolong the useful life of the unit, and help keep it running safely and at optimum efficiency. -
Page 17: General Maintenance
6� Ensure to re-insert the filter securely after cleaning, observing the same orientation as when removed. Failure to clean the filters regularly can cause condensation to form and drip from the indoor unit when operated in cooling mode during humid conditions. NOTE If you need more filters, please contact Rinnai. Rinnai Split AC OM... -
Page 18: Save A Service Call
Rinnai� The air conditioner stops running� Check power supply or contact Rinnai� If a power failure has occurred. Turn off the air conditioner when a power failure occurs� When the power is restored, wait 3 minutes, and then turn on the air conditioner�... -
Page 19: Warranty
WARRANTY TERMS OF WARRANTY – AUSTRALIA Rinnai Australia Pty� Ltd� ABN 74 005 138 769, 100 Atlantic Drive, Keysborough VIC 3173� NOTICE TO CONSUMERS UNDER AUSTRALIAN CONSUMER LAW Our goods and services come with guarantees that cannot be excluded under the Australian Consumer Law�... - Page 20 Normal Business Hours by an Authorised Service Representative� Repair by persons other than an Authorised Service Representatives may void the Warranty� 2�4 Alternatively to clause 2�3 above, Rinnai can at its discretion elect to pay you an amount equivalent to the cost of repairing or replacing the Product�...
- Page 21 Rinnai� 3�3 If the date of purchase cannot be established to Rinnai’s satisfaction, the date shall be deemed to be 2 months after the date of manufacture or the date of sale by Rinnai, whichever is the latter�...
- Page 22 Rinnai considers appropriate, it will authorise the Purchaser in writing to pay for the relevant freight charges, in-transit insurance expenses or travelling costs and then, upon provision by the Purchaser to Rinnai of a tax invoice showing those costs have been incurred, reimburse the Purchaser for such costs which are within the terms of the authorisation�...
- Page 23 Warranty summary DEFINITIONS The terms listed below shall have the following meanings: “Authorised Service Agent” means an independent service contractor authorised by Rinnai or Rinnai service personnel� “Rinnai” means Rinnai New Zealand Ltd (Company Registration Number 94694) and any related company�...
-
Page 24: Contacts
Hours by an Authorised Service Agent� Repair by persons other than an Authorised Service Agents may void the Warranty� 2�4 Alternatively, to clause 2�3 above, Rinnai can at its discretion elect to pay you an amount equivalent to the cost of repairing or replacing the Product�... - Page 25 Rinnai� 3�3 If the date of purchase cannot be established to Rinnai’s satisfaction, the date shall be deemed to be 2 months after the date of manufacture or the date of sale by Rinnai, whichever is the latter�...
- Page 26 5�3 Except where inconsistent with the purchaser’s statutory rights and the rights given by this Warranty, all liabilities of Rinnai for any direct, special, indirect or consequential loss or damage, any damage or expense for personal injury or any loss or destruction of property, arising directly or indirectly from the use or inability to use the Product or any of its parts and/or servicing the Product, are expressly excluded�...
- Page 27 As per the Terms and Conditions of Warranty, purchasers are responsible for the costs of any repair and/or call out fee where, on inspection, the alleged defect is found by Rinnai’s Authorised Service Agent not to be covered by this warranty or any statutory consumer guarantee applicable to the Product�...
- Page 28 Rinnai has a Service and Spare Parts network with personnel who are fully trained and equipped to give the best service on your Rinnai appliance. If your appliance requires service, please call our National Help Line.
