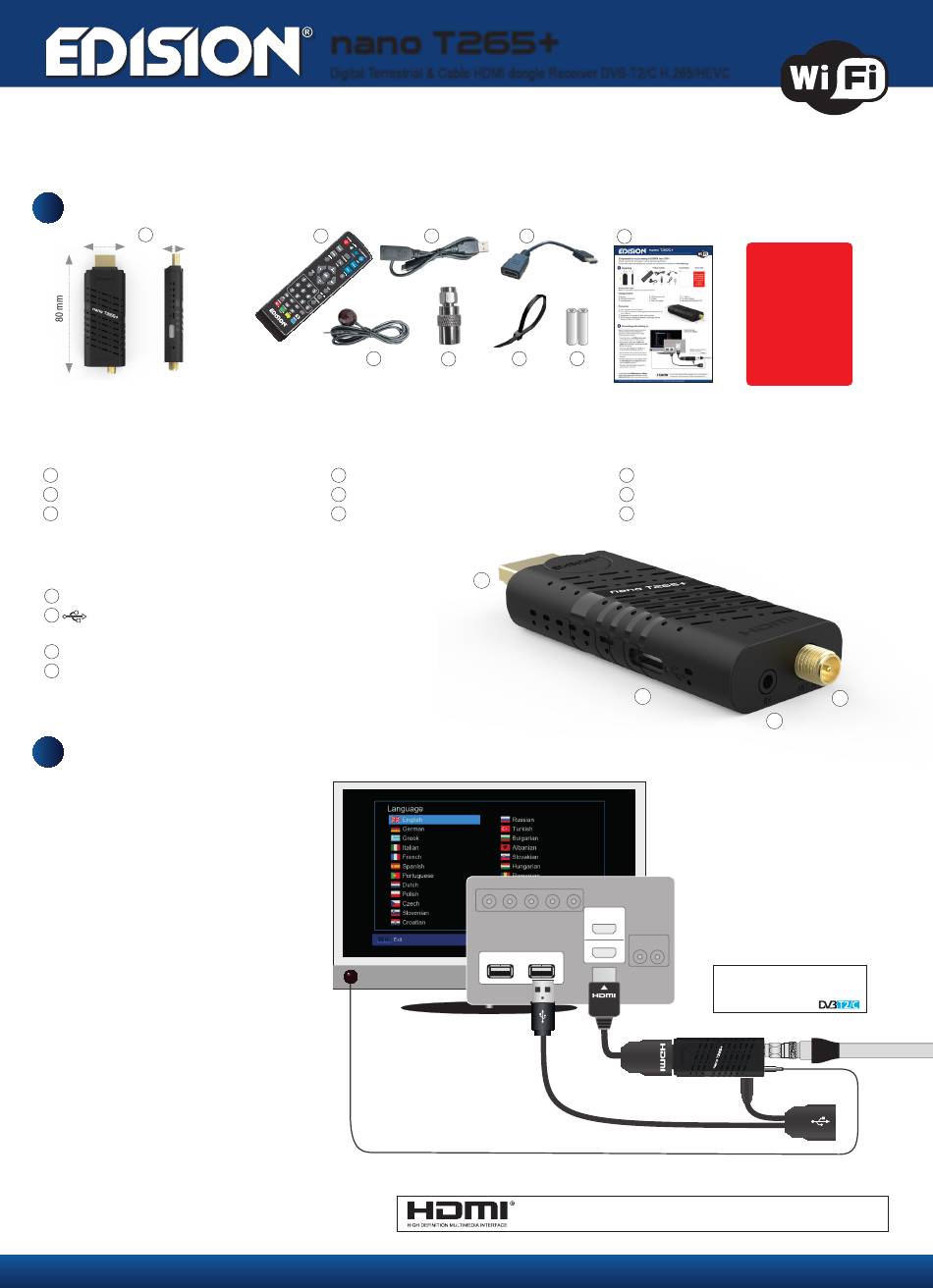

Edison nano T265+ Quick Start Manual

Congratulations on purchasing an EDISΙON nano T265+
Please note that this information is valid at the time of publication.
Current information and detailed user manuals can be found on the Internet at: www.edision.gr
1

Unpacking

1
27 mm 12mm
Receiver nano T265+
Note: The scope of delivery may also include parts not listed here.

Package Contents

1
Receiver
2
IR Remote Control 2in1
3
USB cable type-Y

Connections

1 HDMI: Connection to an HDTV quality TV
2
USB: Connection for USB storage devices & Powering (DC 5V)
/
via TV USB port
3 Infrared sensor for the reception of remote control commands
4
ANT IN: Input for connecting to terrestrial or cable signal from the
antenna via SMA to IEC adaptor
2

Connecting and switching on

Note: For trouble-free signal reception your antenna
and cable installation should be calibrated and
inspected by a qualified professional with a digital
TV-level-measuring instrument.
• Connect the receiver using HDMI extension cable
via the HDMI port to your TV's HDMI input port
• Then connect the coaxial cable via SMA to IEC
adaptor with the terrestrial or cable signal to the ANT
IN input of the receiver.
• Connect the Jack to IR cable to the IR IN port to
control the STB with the Remote Control unit.
• Insert the batteries into the remote control. Notes on
the remote control can be found on the back of these
instructions.
• For STB powering (DC 5V) via TV USB port, connect
the USB cable type-Y to the USB port of the STB
and to the USB port on the TV.
• The receiver starts with the BOOT process and is
operational with in a short time.
For information about EDISION Hardware or Software
matters, please contact support@edision.gr or visit the
DOWNLOAD CENTER: https://www.edision.gr/en/support
The CE certificate of the product is available on our webpage, by visiting this link: https://www.edision.gr/en/support
nano T265
Digital Terrestrial & Cable HDMI dongle Receiver DVB-T2/C H.265/HEVC
Package Contents
2 3
5 6
4
HDMI extension cable
5
IR cable
6
SMA to IEC adaptor
1
USB 2
+
Documentation
4 9
7 8
7
1 x Cable tie
8
2 x «ΑΑΑ» batteries
9
Mini Manual GR/EN/DE/ES/IT/FR
2
After the first start,
choose your language
HDMI in
2
1
USB 1
"The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo
are trademarks or registered trademarks of HDMI Licensing Administrator, Inc."
USB
Support
Service note
Please contact
your EDISION
specialist dealer
for any further
support
and service.
4
3
ANT IN: coaxial-wire input from
terrestrial / cable signal
coaxial-wire Antenna
