Summary of Contents for Panasonic TX-PF42S30

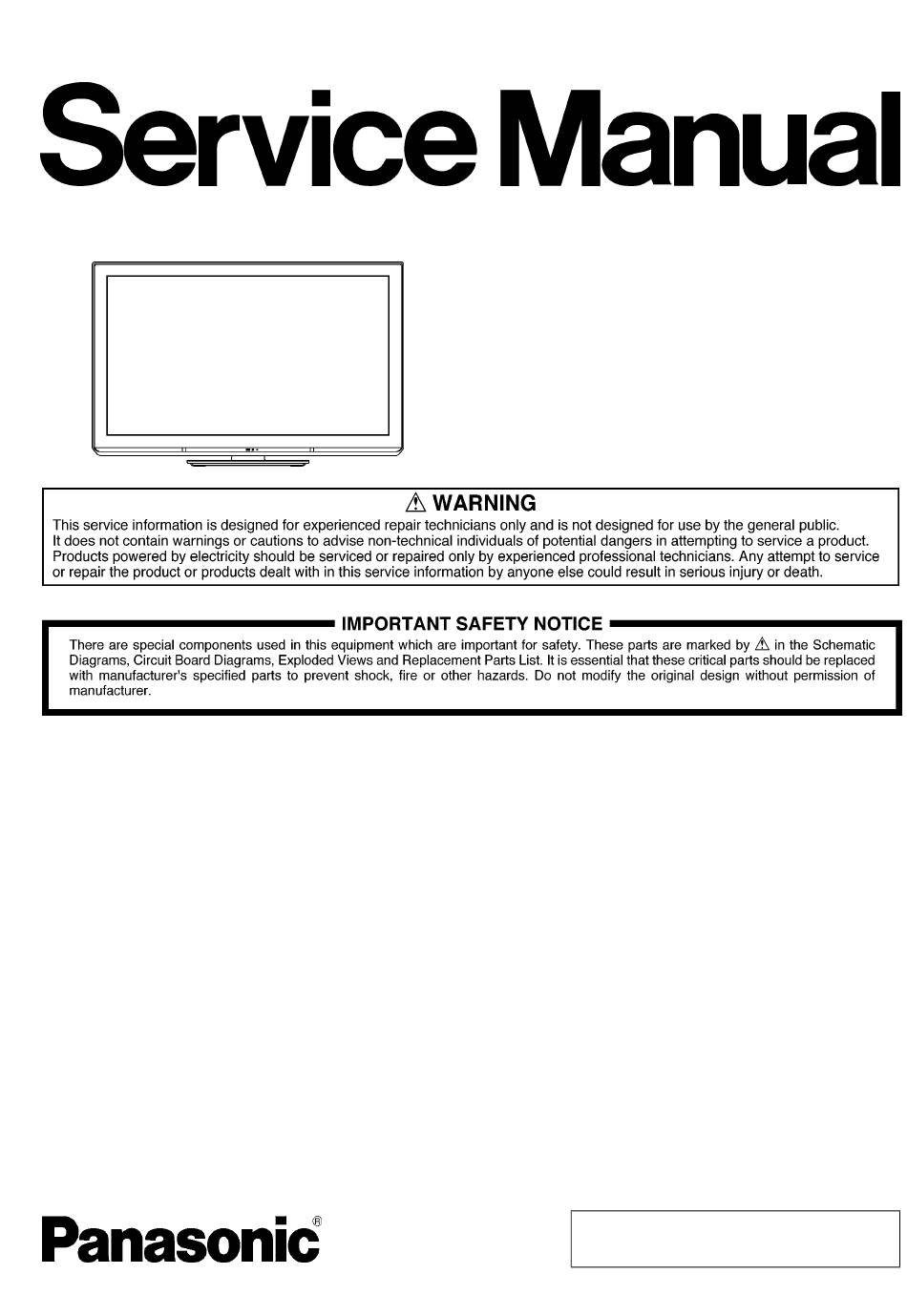

  • Page 1 ORDER NO.PCZ1104084CE Plasma Television TX-P42S30E Model No. TX-P42S30J TX-PF42S30 GPF14D-E Chassis © Panasonic Corporation 2011. Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3 12 Schematic Diagram 1.1. General Guidelines ----------------------------------------3 13 Printed Circuit Board 14 Exploded View 1.2. Touch-Current Check--------------------------------------3 2 Warning --------------------------------------------------------------4 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices ----------4 2.2.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials. 2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the wires have been broken or disconnected, do not attempt to repair or re-wire the units.

  • Page 4: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components.

  • Page 5: About Lead Free Solder (Pbf)

    2.2. About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

  • Page 6: Service Navigation

    3 Service Navigation 3.1. PCB Layout Board Name Function Board Name Function Power Supply Data Driver (Lower Right) Non serviceable Data Driver (Lower Left) P-Board should be exchange for service Scan Drive Main AV input, processing Sustain Drive Remote receiver, Power LED, C.A.T.S. sensor...

  • Page 7: Applicable Signals

    3.2. Applicable signals COMPONENT (Y, P ), HDMI * Mark: Applicable input signal Signal name COMPONENT HDMI 525 (480) / 60i, 60p 625 (576) / 50i, 50p 750 (720) / 60p, 50p 1,125 (1,080) / 60i, 50i 1,125 (1,080) / 60p, 50p, 24p PC (from HDMI terminal) Applicable input signal for PC is basically compatible to HDMI standard timing.

  • Page 8: Specifications

    Digital terrestrial services (MPEG2 and MPEG4-AVC(H.264)) DVB-C Digital cable services (MPEG2 and MPEG4-AVC(H.264)) • Check the latest information on the available services at the following website. (English only) http://panasonic.jp/support/global/cs/tv/ Aerial input VHF / UHF Operating Conditions 0 °C- 35 °C...

  • Page 9: Technical Descriptions

    3 seconds. TV will be forced to the factory shipment setting after this SELF CHECK. 5.1.3. Model and Keys: Model No. Keys One-to-One CI Plus DTCP-IP WIDEVINE (For USB Rec.) TX-P42S30E None None TX-P42S30J None None TX-PF42S30 None None...

  • Page 10: Service Mode

    6 Service Mode 6.1. How to enter into Service Mode 6.1.1. Purpose After exchange parts, check and adjust the contents of adjustment mode. While pressing [VOLUME ( - )] button of the main unit, press [0] button of the remote control three times within 2 seconds. Note: Service Mode can not be entered when 3D signal input.
  • Page 11 6.1.4. Contents of adjustment mode • Value is shown as a hexadecimal number. • Preset value differs depending on models. • After entering the adjustment mode, take note of the value in each item before starting adjustment. Main item Sub item Sample Data Remark ADJUST...

  • Page 12: Option - Mirror

    6.2. Option - Mirror Picture can be reversed left and right or up and down. 00 : Default (Normal picture is displayed) 01 : Picture is reversed left and right. 02 : Picture is reversed up and down. Hint : If the defective symptom (e.g. Vertical bar or Horizontal bar) is moved by selection of this mirror, the possible cause is in A-board.

  • Page 13: Hotel Mode

    6.4. Hotel mode 1. Purpose Restrict a function for hotels. Item Function 2. Access command to the Hotel mode setup menu Hotel Mode Select hotel mode On/Off In order to display the Hotel mode setup menu: Initial INPUT Select input signal modes. While pressing [VOLUME (-)] button of the main unit, Set the input, when each time power is switched press [AV] button of the remote control three times within...

  • Page 14: Data Copy By Sd Card

    6.5. Data Copy by SD Card 6.5.1. Purpose (a) Board replacement (Copy the data when exchanging A-board): When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board. (b) Hotel (Copy the data when installing a number of units in hotel or any facility): When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and then copy to other TVs.
  • Page 15 6.5.3. Data copy from TV set to SD Card 1. Turn on the TV set. 2. Insert SD card with a startup file (pwd file) to SD slot. On-screen Display will be appeared according to the startup file automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2770 (b) For Hotel : 4850 Data will be copied from TV set to SD card.
  • Page 16 6.5.4. Data copy from SD Card to TV set 1. Turn on the TV set. 2. Insert SD card with Data to SD slot. On-screen Display will be appeared according to the Data folder automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2771 (b) For Hotel : 4851 Data will be copied from SD card to TV set.

  • Page 17: Troubleshooting Guide

    7 Troubleshooting Guide Use the self-check function to test the unit. 1. Checking the IIC bus lines 2. Power LED Blinking timing 7.1. Check of the IIC bus lines 7.1.1. How to access 7.1.1.1. Self-check indication only: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds.

  • Page 18: Power Led Blinking Timing Chart

    7.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit. Blinking Times Contents Check point...

  • Page 19: No Picture

    7.4. No Picture...

  • Page 20: Local Screen Failure

    7.5. Local screen failure Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area. Fig-1...

  • Page 21: Disassembly And Assembly Instructions

    8 Disassembly and Assembly Instructions 8.1. Remove the Rear cover 8.4. Remove Side terminal cover 1. See PCB Layout (Section 3) 8.2. Remove the AC inlet 1. Remove the screws (×2 2. Remove the Side terminal cover. Caution: To remove P.C.B. wait 1 minute after power was off for dis- charge from electrolysis capacitors.

  • Page 22: Remove The A-Board

    8.6. Remove the A-Board 8.8. Remove the SN-Board 1. Remove the Tuner unit. (See section 8.5.) 1. Disconnect the flexible cables (SN21, SN22, SN23, SN24, SN25, SN26, SN27 and SN28) connected to the 2. Remove the screws (×2 ) and remove the A-Board. SN-Board.

  • Page 23: Remove The Stand Bracket And The M8 Nut Inlet Metals

    8.10. Remove the Stand bracket and 8.11. Remove the Contact metal bot- the M8 nut inlet metals tom B 1. Remove the Plasma panel section from the servicing 1. Remove the Stand bracket. (See section 8.10.) stand and lay on a flat surface such as a table (covered , ×6 2.

  • Page 24: Remove The Contact Metals

    8.13. Remove the Contact metals 8.15. Remove the C2-Board 1. Remove the Cabinet assy. (See section 8.12.) 1. Remove the Contact metal bottom A. (See section 8.13.) 2. Remove the Tape from the Contact metals. 2. Disconnect the flexible cables (CB8, CB9, CB10, CB11, CB12, CB13, CB14 and CB15).

  • Page 25: Measurements And Adjustments

    9 Measurements and Adjustments 9.1. Adjustment 9.1.1. Vsus selection Caution: When Plasma panel or A-board is replaced, Vsus should be set to LOW or HIGH. Procedure 1. Go into main item [VSUS] in Service Mode. LOW or HIGH will be displayed. 2.
  • Page 26 9.1.2. Sub-Contrast adjustment Name of measuring instrument Connection Remarks RF generator Base Band signal generator HD signal generator Steps Remarks Connect IIC cable (bus controller-cable) after banner OSD appear. Note: And after SRQ-L, begin an adjustment 2 seconds later. Sub-contrast adjustment is unadjusted for AV/ HD input.
  • Page 27 Steps Remarks Another procedure Connect IIC cable (bus controller-cable) after banner OSD appear. And after SRQ-L, begin an adjustment 2 seconds later. Adjustment of HD system 1. At 1080i 100% Full White or Split colour bar receive component signal, as shown below. 2.
  • Page 28 9.1.3. White balance adjustment The adjusting method is different according to the PEAKS EEPROM version. [copy adjustment] : Peaks EEPROM ver.1.00- [Differential and copy adjustment] : Peaks EEPROM ver.1.**- Name of measuring instrument Connection Remarks W/ B pattern Panel surface Color analyzer (Minolta CA-100 or equivalent) Steps...
  • Page 29 Steps Remarks [Differential and copy adjustment] Execute adjustment for color temp. [NORMAL], and set data for color temp. [COOL], [WARM] by data shift WB of HD (or PAL) copies the adjustment data from an adjusted format side. Note: The adjustment does only color temp. [NORMAL]. A adjustment value difference from [NORMAL] is written to EEPROM as for [COOL] and [WARM] by operat- ing a [OK] key.

  • Page 33: Block Diagram

    10 Block Diagram 10.1. Main Block Diagram MAIN AV INPUT,PROCESSING HDMI1-3 CI SLOT ETHERNET DATA (HDMI2) TMDS DATA HDMI I/F LAN CON I/F ETHERPHY ETHERNET RECEIVER SD CARD I/F USB I/F SD CARD DATA SD CARD SIF I/F DDR3 DDR3 I/F TUNER I/F USB_1-2 PEAKS-LDA3...

  • Page 34: Block (1/4) Diagram

    10.2. Block (1/4) Diagram SPEAKER_L SPEAKER_R JK8601 CN8600 JK8600 JK4703 JK4702 JK4700 TU4801 USB1,2 SD CARD MAIN AV INPUT,PROCESSING ANT IN HDMI IN 3 HDMI IN 2 HDMI IN 1 ETHERNET TUNER SD3.3V DMD_ IIC0 IC8601 IC8604 ETHERPHY SD3.3V IC4900 X8600 AUDIO AMP 25MHz...

  • Page 35: Block (2/4) Diagram

    10.3. Block (2/4) Diagram MAIN AV INPUT,PROCESSING IC9300 PLASMA AI LVDS DATA VIDEO DATA VIDEO DATA H/V Sync Control Sub Filed Processor IC9304 IIC0 P+3.3V P+3.3V SI/SO FLASH I/F FLASH P+3.3V P_S0 SOS8_SS P_S0 SOS8_SS P_S1 IC8707 DATA DRIVER CONTROL P+3.3V P_S1 F15V...

  • Page 36: Block (3/4) Diagram

    10.4. Block (3/4) Diagram POWER SUPPLY COLD COLD AC CORD Fuse AC Vin PHOTO (Live) Detection COUPLER (Neutral) FILTER STANDBY SS11 VOLTAGE CONVERTER T101 FET SW Vsus P+15V FET SW Relay F15V for prevention of inrush current F15V STB5V Drop IC SOUND15V OCP/OVP P+15V...

  • Page 37: Block (4/4) Diagram

    10.5. Block (4/4) Diagram SUSTAIN DRIVE SCAN DRIVE TPVSUS TPVSUS Vsus Vsus P+15V D16618 MAIN H Q16607 IC16131 Q16001 CERS Q16002 IC16684 BUFFER CPH1 CPH1 BUFFER Q16600 TPSS1 IC16784,85 Q16041 IC16151 IC16501 PC16897 Q16601 IPD CIRCUIT Q16401 TPVAD BUFFER BUFFER T16471 Q16402 VAD GEN.

  • Page 39: Wiring Connection Diagram

    11 Wiring Connection Diagram 11.1. Caution statement. Caution: Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull. 11.2. Wiring (1)

  • Page 40: Wiring (2)

    11.3. Wiring (2)
  • Page 41 Model No. : TX-P42S30E/J, PF42S30 Schematic Diagram Note...
  • Page 42 Model No. : TX-P42S30E/J, PF42S30 Replacement Parts List Note...
  • Page 43 Model No. : TX-P42S30E/J, PF42S30 A-Board (1/16)
  • Page 44 Model No. : TX-P42S30E/J, PF42S30 A-Board (2/16)
  • Page 45 Model No. : TX-P42S30E/J, PF42S30 A-Board (3/16)
  • Page 46 Model No. : TX-P42S30E/J, PF42S30 A-Board (4/16)
  • Page 47 Model No. : TX-P42S30E/J, PF42S30 A-Board (5/16)
  • Page 48 Model No. : TX-P42S30E/J, PF42S30 A-Board (6/16)
  • Page 49 Model No. : TX-P42S30E/J, PF42S30 A-Board (7/16)
  • Page 50 Model No. : TX-P42S30E/J, PF42S30 A-Board (8/16) S-10...
  • Page 51 Model No. : TX-P42S30E/J, PF42S30 A-Board (9/16) S-11...
  • Page 52 Model No. : TX-P42S30E/J, PF42S30 A-Board (10/16) S-12...
  • Page 53 Model No. : TX-P42S30E/J, PF42S30 A-Board (11/16) S-13...
  • Page 54 Model No. : TX-P42S30E/J, PF42S30 A-Board (12/16) and K-Board S-14...
  • Page 55 Model No. : TX-P42S30E/J, PF42S30 A-Board (13/16) S-15...
  • Page 56 Model No. : TX-P42S30E/J, PF42S30 A-Board (14/16) S-16...
  • Page 57 Model No. : TX-P42S30E/J, PF42S30 A-Board (15/16) S-17...
  • Page 58 Model No. : TX-P42S30E/J, PF42S30 A-Board (16/16) S-18...
  • Page 59 Model No. : TX-P42S30E/J, PF42S30 C1-Board (1/2) S-19...
  • Page 60 Model No. : TX-P42S30E/J, PF42S30 C1-Board (2/2) S-20...
  • Page 61 Model No. : TX-P42S30E/J, PF42S30 C2-Board (1/2) S-21...
  • Page 62 Model No. : TX-P42S30E/J, PF42S30 C2-Board (2/2) S-22...
  • Page 63 Model No. : TX-P42S30E/J, PF42S30 SN-Board (1/6) S-23...
  • Page 64 Model No. : TX-P42S30E/J, PF42S30 SN-Board (2/6) S-24...
  • Page 65 Model No. : TX-P42S30E/J, PF42S30 SN-Board (3/6) S-25...
  • Page 66 Model No. : TX-P42S30E/J, PF42S30 SN-Board (4/6) S-26...
  • Page 67 Model No. : TX-P42S30E/J, PF42S30 SN-Board (5/6) S-27...
  • Page 68 Model No. : TX-P42S30E/J, PF42S30 SN-Board (6/6) S-28...
  • Page 69 Model No. : TX-P42S30E/J, PF42S30 SS-Board (1/2) S-29...
  • Page 70 Model No. : TX-P42S30E/J, PF42S30 SS-Board (2/2) S-30...
  • Page 71 Model No. : TX-P42S30E/J, PF42S30 A-Board (Foil side) S-31...
  • Page 72 Model No. : TX-P42S30E/J, PF42S30 A-Board (Component side) S-32...
  • Page 73 Model No. : TX-P42S30E/J, PF42S30 K-Board S-33...
  • Page 74 Model No. : TX-P42S30E/J, PF42S30 C1-Board S-34...
  • Page 75 Model No. : TX-P42S30E/J, PF42S30 C2-Board S-35...
  • Page 76 Model No. : TX-P42S30E/J, PF42S30 SN-Board (Foil side) S-36...
  • Page 77 Model No. : TX-P42S30E/J, PF42S30 SN-Board (Component side) S-37...
  • Page 78 Model No. : TX-P42S30E/J, PF42S30 SS-Board S-38...
  • Page 79 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks N0AE5JK00008 CIRCUIT BOARD P 1 PAVCCZ A-P42S30E CIRCUIT BOARD A 1 (RTL)PAVCCZ P42S30E A-P42S30J CIRCUIT BOARD A 1 (RTL)PAVCCZ P42S30J A-PF42S30 CIRCUIT BOARD A 1 (RTL)PAVCCZ PF42S30 TXN/K1RLUE CIRCUIT BOARD K...
  • Page 80 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C3136 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ C3139 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ C3140 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ C3145 F1J1A106A087...
  • Page 81 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C4922 F1J1E4740001 C 0.47UF, 25V 1 PAVCCZ C4924 F1J1E4740001 C 0.47UF, 25V 1 PAVCCZ C4925 F1J1E4740001 C 0.47UF, 25V 1 PAVCCZ C4934 F1G1H1020008 C 1000PF 50V C4935 F1G1H1020008...
  • Page 82 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C8030 F1G1C104A077 C 0.1UF 16V C8032 F1G1C104A077 C 0.1UF 16V C8036 F1G1C104A077 C 0.1UF 16V C8039 F1G1C104A077 C 0.1UF 16V C8041 F1G1H1020008 C 1000PF 50V C8042 F1G1C104A077 C 0.1UF 16V...
  • Page 83 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C8307 F1G1A105A047 C 1UF 10V C8308 F1G1A105A047 C 1UF 10V C8309 F1G1A105A047 C 1UF 10V C8310 F1G1A105A047 C 1UF 10V C8311 F1G1A105A047 C 1UF 10V C8401 F1G1C104A077 C 0.1UF 16V...
  • Page 84 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C8776 F1K1E106A136 C 10UF, 25V C8777 F1G1C104A077 C 0.1UF 16V C8780 ECJ1VB1A105K C 1UF, 10V C8781 ECJ1VB1A105K C 1UF, 10V C8786 F1G1C104A077 C 0.1UF 16V C8787 F1G1C104A077 C 0.1UF 16V...
  • Page 85 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks D2820 B3AGB0000065 1 PAVCCZ D3015 K7AAAY000006 PHOTO LINK D3130 B0ACCJ000048 DIODE D4703 DZ2J056M0L ZENER DIODE D4704 B0JCCD000020 DIODE 1 PAVCCZ D4720 DZ2J056M0L ZENER DIODE D4721 B0JCCD000020 DIODE...
  • Page 86 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks JK4702 K1FY119D0015 CONNECTOR 1 PAVCCZ JK4703 K1FY119E0028 CONNECTOR 1 PAVCCZ JK8600 K2LC108A0012 JACK 1 PAVCCZ JK8601 K1FY208B0008 CONNECTOR K1KA08B00270 8P CONNECTOR L2751 J0JHC0000045 CHIP INDUCTOR L3100 J0JYC0000331...
  • Page 87 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks Q2812 B1ABCE000015 TRANSISTOR Q3008 DSA2001S0L TRANSISTOR Q3102 B1AAFB000004 TRANSISTOR 1 PAVCCZ Q3103 B1AAFB000004 TRANSISTOR 1 PAVCCZ Q3104 B1AAFB000004 TRANSISTOR 1 PAVCCZ Q3105 B1AAFB000004 TRANSISTOR 1 PAVCCZ Q4513...
  • Page 88 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R3002 D0GA122JA023 M 1.2KOHM, J,1/16W R3003 D0GA103JA015 M 10KOHM,J,1/16W R3004 D0GA103JA015 M 10KOHM,J,1/16W R3030 D0GA101JA015 M 100 OHM, J,1/16W R3104 D0GBR00J0004 M 0 OHM J 1/10W R3106 D0GA333JA023 M 33KOHM,J,1/16W...
  • Page 89 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R4710 EXB28V473JX M 47KOHM 1/32 W R4711 D0GA102JA023 M1KOHM, J.1/16 W R4715 D0GA103JA015 M 10KOHM,J,1/16W R4721 D0GA103JA015 M 10KOHM,J,1/16W R4722 D0GA103JA015 M 10KOHM,J,1/16W R4723 EXB28V473JX M 47KOHM 1/32 W...
  • Page 90 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R8200 D1BA2400A014 M 240 OHM,J.1/16 W R8201 D1BA1001A014 M 1KOHM,J. 1/16 W R8202 D1BA1001A014 M 1KOHM,J. 1/16 W R8203 D1BA1001A014 M 1KOHM,J. 1/16 W R8204 D1BA1001A014 M 1KOHM,J.
  • Page 91 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R8437 EXB2HV473JV M 47 kOHM 1/16 W R8438 EXB2HV103JV M 10 kOHM 1/16 W R8440 D0GA103JA015 M 10KOHM,J,1/16W R8441 D0GA103JA015 M 10KOHM,J,1/16W R8442 D0GA103JA015 M 10KOHM,J,1/16W R8601...
  • Page 92 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R8756 D0GA104JA023 M100KOHM, J.1/16 W R8757 D0GD102JA052 M 1.0KOHM,J,1/8W 1 PAVCCZ R8758 D0GA472JA023 M 4.7KOHM, J,1/16W R8759 D0GA472JA023 M 4.7KOHM, J,1/16W R8760 D0GA103JA015 M 10KOHM,J,1/16W R8765 D0GA103JA015...
  • Page 93 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R9907 D0GA101JA015 M 100 OHM, J,1/16W RM2810 B3RAD0000168 REMOTE SENSOR SN2810 B3JB00000078 SW2000 K0F122A00031 SWITCH SW2001 K0H1BA000445 SWITCH SW2002 K0H1BA000445 SWITCH SW2003 K0H1BA000445 SWITCH SW2004 K0H1BA000445 SWITCH...
  • Page 94 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C14911 F1K1E475A134 C 4.7UF 25V C16001 F1L2J562A022 C 5600PF, 630V C16012 F2A2E141A217 E 140UF, 250V C16013 F0C2E155A286 C 1.5UF, 250V 1 PAVCCZ C16023 F1L2J1020001 C 1000PF, 630V C16024 F1L2J332A022 C 3300PF, 630V...
  • Page 95 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C16565 ECJ1VB1H103K C 0.01UF, 50V C16566 ECJ1VB1H103K C 0.01UF, 50V C16567 F1H1C105A145 C 1 uF 16 V C16584 ECJ1VB1H392K C 3900UF, 50V C16593 ECJ1XC1H102J C 1000PF, J, 50V C16602 F1H1H2200008 C 22PF, 50V...
  • Page 96 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C17138 ECJ1VB1A105K C 1UF, 10V C17139 F1K2A224A033 C 0.22UF, 100V 1 PAVCCZ C17142 F1K2A224A033 C 0.22UF, 100V 1 PAVCCZ C17143 ECJ1XB1C104K C 0.1UF, Z, 16V C17150 ECJ1XC1H102J C 1000PF, J, 50V C17151 ECJ1XC1H102J...
  • Page 97 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks D14904 B0ADCJ000100 DIODE D16001 B0ECLP000010 DIODE 1 PAVCCZ D16002 B0ECLP000010 DIODE 1 PAVCCZ D16021 B0ECLP000010 DIODE 1 PAVCCZ D16022 DA3CF30ACL ZENER DIODE 1 PAVCCZ D16041 B0FCCN000003 DIODE D16051 B0FCCN000003...
  • Page 98 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks D16648 DZ2J043M0L ZENER DIODE D16651 DZ2J051M0L ZENER DIODE D16652 B0ECKP000055 DIODE D16662 DZ2J150M0L ZENER DIODE D16663 DZ2J150M0L ZENER DIODE D16664 DZ2J150M0L ZENER DIODE D16669 B0ACCJ000048 DIODE D16673 B0ECHR000004...
  • Page 99 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks IC16521 C0ZBZ0001822 1 PAVCCZ IC16522 C0ZBZ0001822 1 PAVCCZ IC16561 C0JBAU000088 IC16562 C0JBAU000088 IC16563 C0JBAB000996 1 PAVCCZ IC16564 C0JBAE000321 IC16565 C0JBAE000321 IC16684 C0ZBZ0001822 1 PAVCCZ IC16691 C0JBAC000509 1 PAVCCZ IC16724 C0CBADE00049...
  • Page 100 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks Q16451 DG3C3020CL TRANSISTOR 1 PAVCCZ Q16471 B1ABCE000015 TRANSISTOR Q16501 B1HFPFA00001 TRANSISTOR Q16521 B1HFPFA00001 TRANSISTOR Q16531 B1HFPFA00001 TRANSISTOR Q16538 B1CBGD000001 Q16551 B1HFPFA00001 TRANSISTOR Q16581 B1ABCF000231 TRANSISTOR Q16600 B1CFRM000020 1 PAVCCZ...
  • Page 101 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16105 D0GF474JA048 M 470KOHM,J,1/3W 1 PAVCCZ R16116 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCCZ R16130 D0GB103JA065 M 10K OHM J 1/10W R16131 D0GB220JA065 M 22 OHM J 1/10W 1 PAVCCZ R16132 D0GB101JA065...
  • Page 102 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16402 D0GF7R5JA047 M 7.5 OHM,J, 1/3W R16411 D1BD2700A044 M 270 OHM,J.1/8 W R16412 D1BD2700A044 M 270 OHM,J.1/8 W R16414 D0GB103JA065 M 10K OHM J 1/10W R16416 D0GB103JA065 M 10K OHM J 1/10W R16421 D0GF7R5JA047...
  • Page 103 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16585 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCCZ R16587 D0GB222JA065 M 2.2KOHM,J,1/10W R16588 D0GB223JA065 M 22KOHM,J,1/10W 1 PAVCCZ R16590 D0GB221JA065 M 220 OHM J 1/10W R16591 EXB38V472JV M 4.7 kOHM 1/16 W R16594 D0GB472JA065...
  • Page 104 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16826 D0GB103JA065 M 10K OHM J 1/10W R16829 D0GB102JA065 M 1KOHM,J,1/10W R16831 D1BD6812A077 M68.1KOHM,D.1/10W 1 PAVCCZ R16832 D1BD7152A077 M71.5K0OHM,D.1/10W 1 PAVCCZ R16833 ERG1SJ683 M 68KOHM, J, 1W R16834 ERG1SJ683 M 68KOHM, J, 1W...
  • Page 105 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R17127 D0GB101JA065 M 100 OHM,J,1/10W R17128 D0GB101JA065 M 100 OHM,J,1/10W R17129 D0GB101JA065 M 100 OHM,J,1/10W R17130 D0GZ1R0JA020 M 1 OHM, J,1/2W R17132 D0GZ1R0JA020 M 1 OHM, J,1/2W R17134 D0GD224JA052 M 220KOHM,J,1/8W...
  • Page 106 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R17248 D0GB102JA065 M 1KOHM,J,1/10W R17249 D1BB49R90002 M 49 OHM,J.1/10W R17250 D1BB49R90002 M 49 OHM,J.1/10W R17251 D1BB49R90002 M 49 OHM,J.1/10W R17252 D1BB49R90002 M 49 OHM,J.1/10W R17253 D1BB49R90002 M 49 OHM,J.1/10W R17254 D1BB49R90002...
  • Page 107 Model No. : TX-P42S30E/J, PF42S30 Exploded View 1 S-67...
  • Page 108 Model No. : TX-P42S30E/J, PF42S30 Exploded View 2 S-68...
  • Page 109 Model No. : TX-P42S30E/J, PF42S30 Packing 1 S-69...
  • Page 110 Model No. : TX-P42S30E/J, PF42S30 Packing 2 S-70...
  • Page 111 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks BAT-C-0672 Battery Cover of RC 1 PAVCCZ J0KG00000146 FERRITE CORE PACK K2AHYH000042 AC INLET WITH CABLE 1 PAVCCZ K2CN3YY00006 AC CORD 1 P42ST30E, PF42ST30 K2CS3YY00010 AC CORD 1 PAVCCZ P42S30J...
  • Page 112 Model No. : TX-P42S30E/J, PF42S30 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks TQB0E2146C INSTRUCTION BOOK(ITALIAN) 1 PAVCCZ P42S30J TQB0E2146D INSTRUCTION BOOK(FRENCH) 1 PAVCCZ P42S30J TQB0E2143X INSTRUCTION BOOK(CD-ROM) 1 PAVCCZ P42S30E TQZJ346 SCREW USE HANDBILE 1 PAVCCZ TSXM231 CABLE(C23-SS33) TSXM237-1...

This manual is also suitable for:

Tx-p42s30eTx-p42s30j
