LG 42PQ2000.AEU Owner's Manual page 27

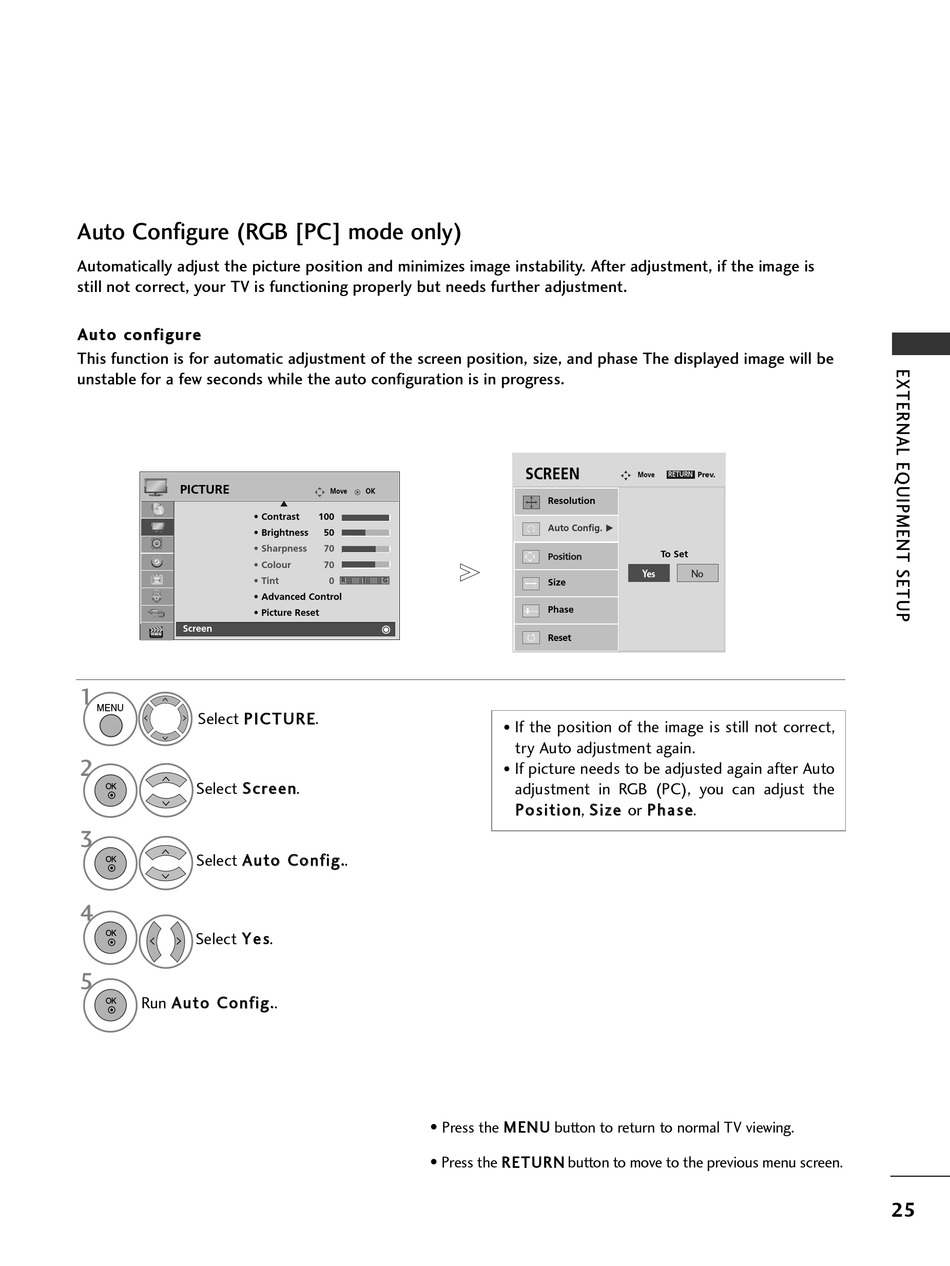

Auto Configure (RGB [PC] mode only)
Automatically adjust the picture position and minimizes image instability. After adjustment, if the image is
still not correct, your TV is functioning properly but needs further adjustment.
A A u u t t o o c c o o n n f f i i g g u u r r e e
This function is for automatic adjustment of the screen position, size, and phase The displayed image will be
unstable for a few seconds while the auto configuration is in progress.
• Contrast
• Brightness
• Sharpness
• Colour
• Tint
• Advanced Control
• Picture Reset
Screen Screen
1
MENU
Select P P I I C C T T U U R R E E .
2
Select S S c c r r e e e e n n .
OK
3
Select A A u u t t o o C C o o n n f f i i g g . . .
OK
4
OK
Select Y Y e e s s .
5
Run A A u u t t o o C C o o n n f f i i g g . . .
OK
Move OK
100
50
70
70
0
R G
• Press the M M E E N N U U button to return to normal TV viewing.
• Press the R R E E T T U U R R N N button to move to the previous menu screen.
SCREEN
Move RETURN
Resolution
Auto Config.
G
To Set
Position
Yes
Size
Phase
Reset
If the position of the image is still not correct,
•
try Auto adjustment again.
If picture needs to be adjusted again after Auto
•
adjustment in RGB (PC), you can adjust the
P P o o s s i i t t i i o o n n , S S i i z z e e or P P h h a a s s e e .
Prev.
No
