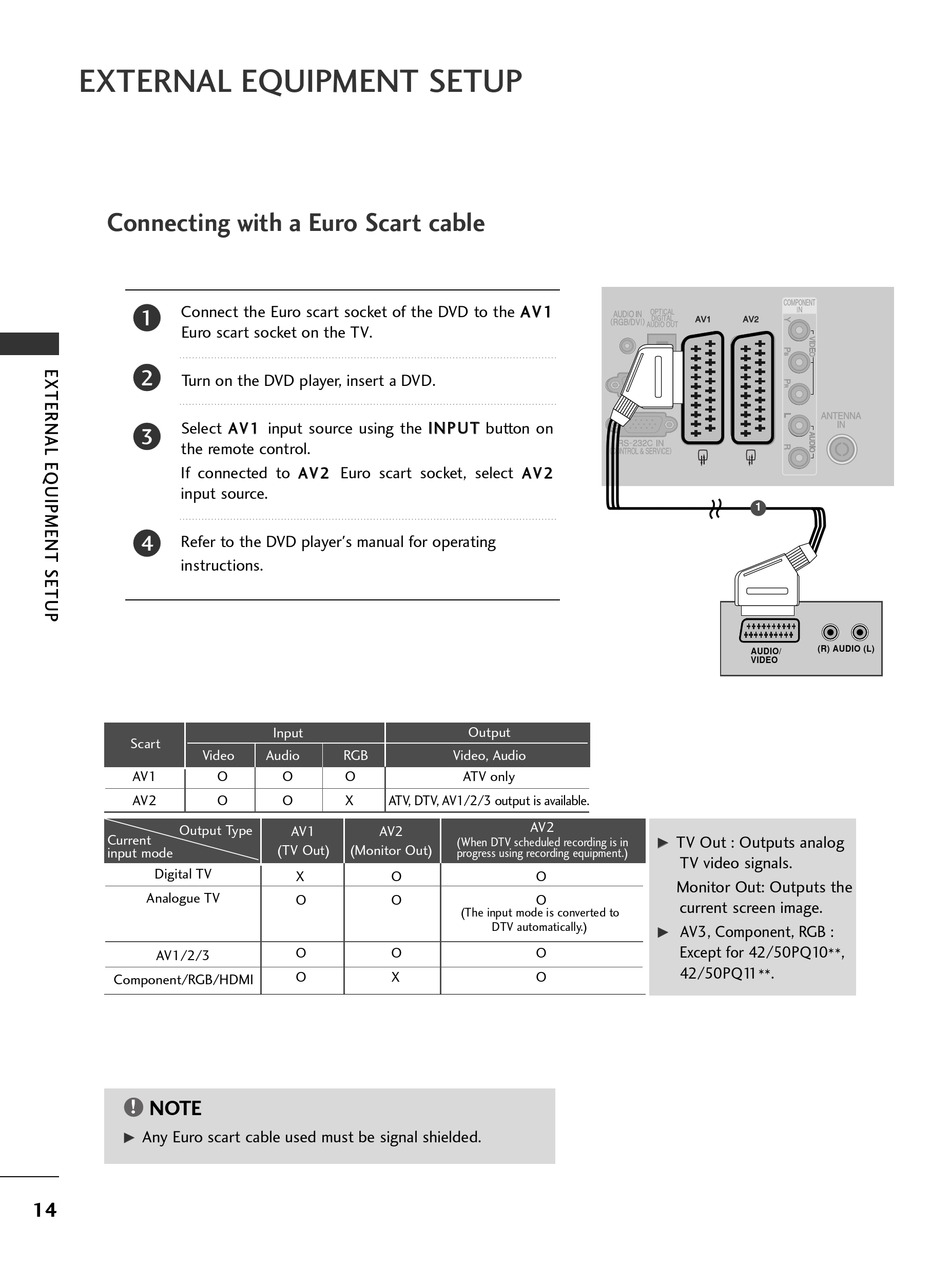

EXTERNAL EQUIPMENT SETUP
Connecting with a Euro Scart cable
Connect the Euro scart socket of the DVD to the A A V V 1 1
1
Euro scart socket on the TV.
2
Turn on the DVD player, insert a DVD.
Select A A V V 1 1 input source using the I I N N P P U U T T button on
3
the remote control.
If connected to A A V V 2 2 Euro scart socket, select A A V V 2 2
input source.
4
Refer to the DVD player's manual for operating
instructions.
Scart
Video
AV1
AV2
Output Type
Current
input mode
Digital TV
Analogue TV
AV1/2/3
Component/RGB/HDMI
!
NOTE
Any Euro scart cable used must be signal shielded.
G G
14
Input
Audio
RGB
O
O
O
O
O
X
ATV, DTV, AV1/2/3 output is available.
AV1
AV2
(TV Out)
(Monitor Out)
X
O
O
O
O
O
O
X
AV IN 3
Output
Video, Audio
ATV only
AV2
(When DTV scheduled recording is in
progress using recording equipment.)
O
O
(The input mode is converted to
DTV automatically.)
O
O
1
(R) AUDIO (L)
AUDIO/
VIDEO
TV Out : Outputs analog
G G
TV video signals.
Monitor Out: Outputs the
current screen image.
AV3, Component, RGB :
G G
Except for 42/50PQ10 ** ,
42/50PQ1 1 ** .
