- Page 1 K824W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 1A...

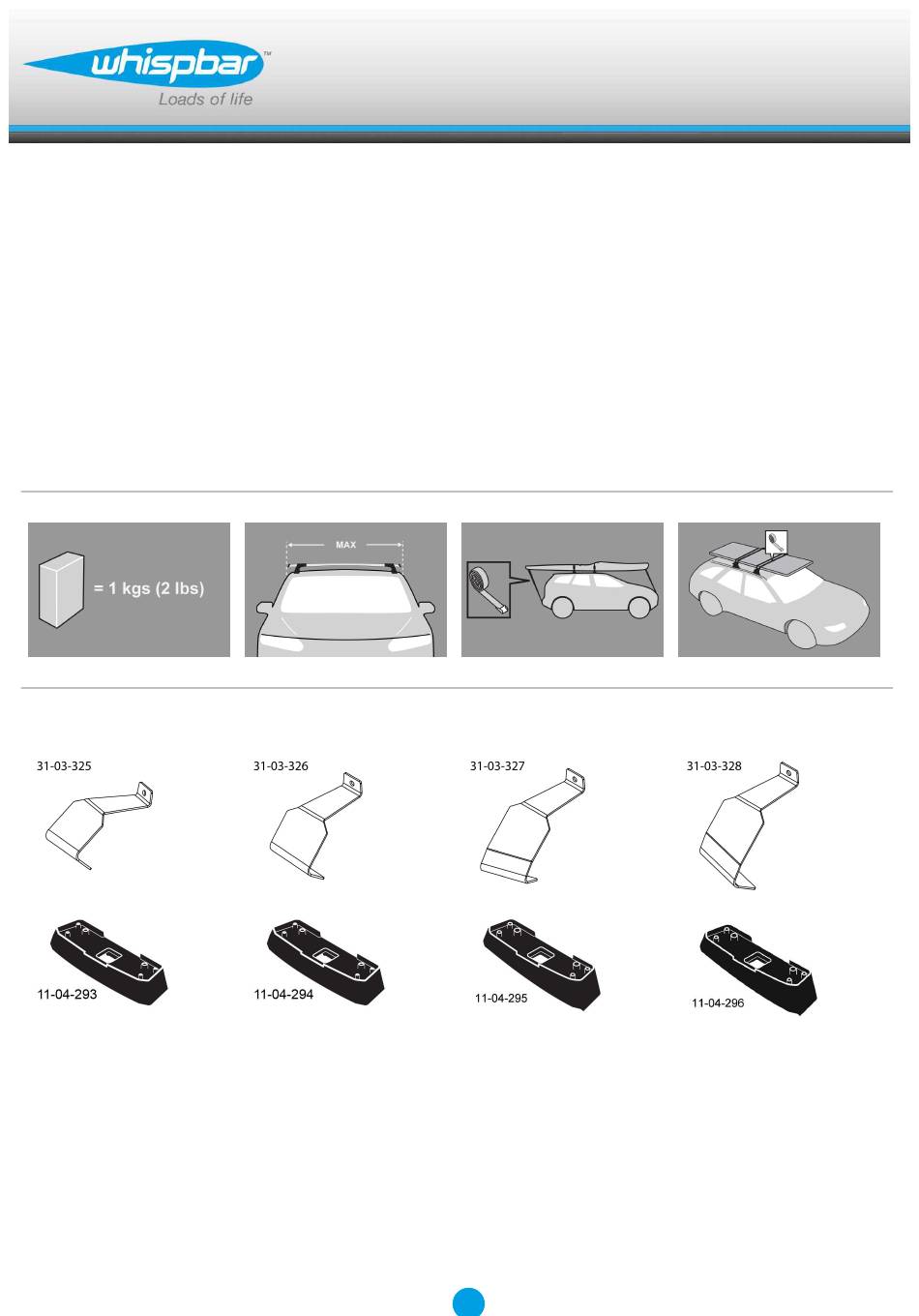

- Page 2 Fitting Kit K824W...
- Page 3 Fitting Kit K824W MAX kgs (lbs) Chevrolet Cruze , 4dr Sedan 09-+ 45 kgs (99 lbs) 45 kgs (99 lbs) Cruze , 4dr Sedan 11-+ 45 kgs (99 lbs) 45 kgs (99 lbs) Cruze , 4dr Sedan Feb 09-+ 45 kgs (99 lbs)
-
Page 4: First Time Installation
Fitting Kit K824W Whispbar and Prorack Crossbars ATTENTION: Find latest revision instructions on the Whispbar or Prorack website, or see your local dealer. For Whispbar visit: www.whispbar.com.au/.co.nz/.co.uk/.com For Prorack visit: www.prorack.com.au/.co.nz First Time Installation Remove parts from inside the package and check. - Page 5 Fitting Kit K824W NOTE: Clamp images in these instructions may not be representative of the clamps in this kit Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns.
- Page 6 Fitting Kit K824W Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Remove locking screw. Apply protective strip as shown. Trim if required.
- Page 7 Fitting Kit K824W It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps. Clamp Part Number: A = A325 B = A326 C = A327 D = A328 Attach clamp to each leg.
- Page 8 Fitting Kit K824W Refer to the underside of the pad for the part number. It is important to put the pads in the correct position on the vehicle. Letters refer to the pad part numbers and position. Pad Part Number:...
- Page 9 Fitting Kit K824W Make sure the pad fits into the holes underneath the foot. Fitment Clamps directly to edge of roof under the doors Please check the rear of this manual for information relating specifically to your vehicle. Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated).
- Page 10 Fitting Kit K824W Tighten adjusting screw to 3 Nm (2.2 ft lb) hand tight. Tighten locking screw on both legs evenly, 3 Nm (2.2 ft lb). Check crossbar is securely attached to the vehicle.
- Page 11 Fitting Kit K824W Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 12: Maintenance
Fitting Kit K824W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 13 Fitting Kit K824W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 14 Fitting Kit K824W Cruze, 4dr Sedan 09-+ (ZA) -340mm 360mm 880mm 820mm -13 -3/8ths" 14 3/16ths" 34 5/8ths" 32 5/16ths" Cruze, 4dr Sedan 11-+ (US) -340mm 360mm 880mm 820mm -13 -3/8ths" 14 3/16ths" 34 5/8ths" 32 5/16ths" Cruze, 4dr Sedan Feb 09-+ (EU)
- Page 15 Fitting Kit K824W WARRANTY & DISCLAIMER Yakima Australia Pty Ltd ABN 58 154 440 221 17 Hinkler Court, Brendale QLD 4500 Tel: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au Where the product is supplied to the customer for other than business purposes within the meaning of section 43 of the New Zealand Consumer Guarantees Act 1993, the provisions of that Act shall apply.
- Page 16 Fitting Kit K824W Alternately, you can write to Yakima at 17 Hinkler Court, Brendale QLD Australia 4500 in order to make a claim under your warranty. Upon contacting Yakima directly, you should explain as fully as possible the defect. A Yakima representative will provide you with appropriate instructions for returning the product together with a copy of the original purchase invoice or receipt to Yakima.
