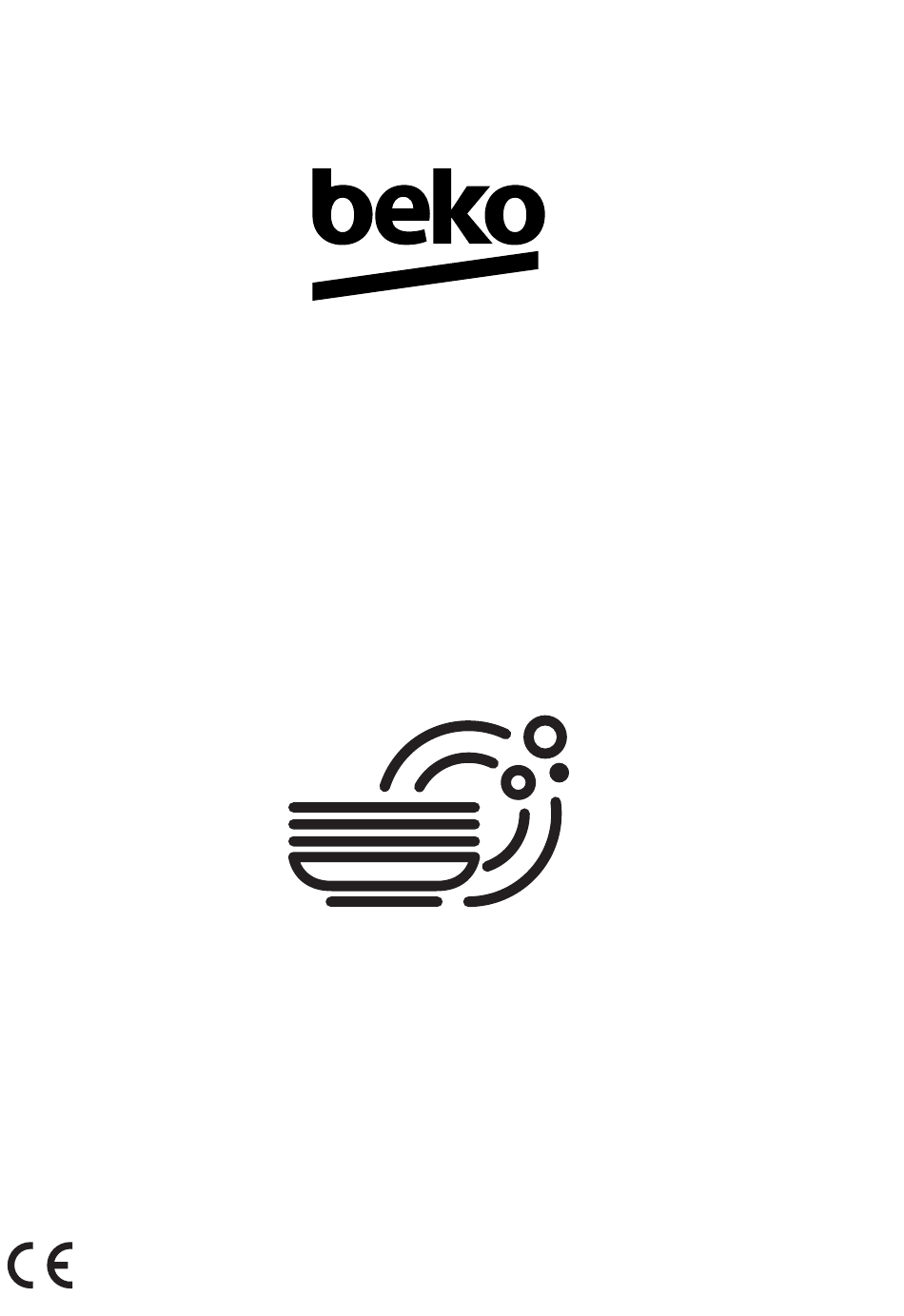

- Page 1 Dishwasher User’s Manual BDEN38520HW 17 8276 0100_AA_E9L_EN/ 11-03-21.(9:16)
- Page 2 Dear Customer, Please read this user manual before using the product. Thank you for choosing this Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents before using the product.
-
Page 3: Table Of Contents
CONTENTS 1 SAFETY INSTRUCTIONS 6 OPERATING THE PRODUCT 27 Intended Use ............. 4 Programme Selection / Programme Cancel key 27 Safety for children, vulnerable persons and pets 4 Function Keys ..........27 Electrical safety ..........5 Preparing the machine ........27 Transportation Safety ........ -
Page 4: Safety Instructions
This product must be used to Safety Instructions do the domestic type dishes • This section contains safety only. instructions that will help get This product is not suitable for protected against risks of commercial or collective use. personal injury or property damage. -
Page 5: Electrical Safety
Cleaning and user Do not use extension cords, maintenance works should multi-sockets or adapters to not be performed by children operate the product. unless they are supervised by Plug must be easily someone. accessible. If this is not Keep packaging materials possible, the electrical away from children. -
Page 6: Installation Safety
squeezed or crushed while serious burns and injuries, placing the product into its and harm your furniture. location after installation or Do not install the product cleaning procedures. close to heat sources (heater, stove and etc.) or under the Installation Safety cooking area of a hob. -
Page 7: Operational Safety
hose set. Do not make extension baskets. Do not sit or put at the hoses. other loads on the door; otherwise, the product may NOTICE Connect the water inlet tilt. hose directly to the water tap. Maximum washing capacity Pressure coming from the tap of the product is stated in the should be 0.03 MPa (0.3 bars) section called “Technical... -
Page 8: Maintenance And Cleaning Safety
Environmental Maintenance and cleaning safety Instructions Do not wash the product by Compliance with WEEE spreading or pouring water Directive and Disposing of onto it. the Waste Product Do not use sharp or abrasive This product complies with tools when cleaning the EU WEEE Directive (2012/19/ product. -
Page 9: Package Information
Compliance with RoHS Directive The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive. Package information Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. -
Page 10: Technical Specifications
Technical specifications Note for test institutions: Data required for performance tests shall be provided upon request. Requests can Maximum washing capacity (check the be e-mailed to the following address: energy label and Programme data and dishwasher@standardloading.com average consumption values table given Do not forget to provide the code, stock on Quick Guide. -
Page 11: Your Dishwasher
Your dishwasher Overview 1. Upper basket 2. Upper impeller 3. Lower impeller 4. Cutlery basket (depends on model) 5. Door 6. Rating Label 7. Control panel 8. Detergent dispenser 9. Lower basket 10. Filters 11. Salt reservoir lid 12. Upper basket rail 13. -
Page 12: Installation
Installation Appropriate installation location In the area where this product is Read “Safety Instructions” section first! installed, there must not be a lockable, Installation procedures must always be sliding or hinged door that will restrict performed by the manufacturer, authorised full opening of the product’s door. -
Page 13: Aquasafe
Aquasafe+ Permitted water temperature: up to 25°C ( 60°C for products equipped (depends on the model) with Aquasafe+; please refer to The Aquasafe+ system protects against Aquasafe+ section ) water leaks that may occur at the hose The dishwasher may not be connected to inlet.Water contact with the valve box of open warm water devices or flow-through the system must be avoided to prevent... -
Page 14: Connection To The Drain
Connection to the drain Electrical connection Water discharge hose can directly be Connect the product to a grounded connected to the drain hole or sink’s outlet protected by a fuse complying drainage. See the installation manual with the values in the "Technical supplied with your machine for detailed specifications"... -
Page 15: Fitting A Different Plug
pin face of the plug. Fuse covers are available from any good electrical store. Fitting a different plug As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals on your plug, proceed as follows: Connect the green - yellow or green (earth) wire to the terminal in the plug... -
Page 16: Preparation
Preparation Read “Quick Guide - Adjusting Water Softening System” before this section! The regeneration of the water softening Read “Safety Instructions” section first! system can be done in all programmes Tips for energy saving during drying step. When regeneration occurs, duration, energy and water Following information will help you use the consumption of the programme increase. -
Page 17: Adding Salt
Adding salt Water softening system needs to be regenerated in order for the product to operate with the same performance continuously. Dishwasher salt is used for this purpose. Use only special softening salts produced particularly for the dishwashers in your machine. You can put about 2 kg of softening It is recommended to use granule- or salt into the salt reservoir. - Page 18 the manufacturer of the detergent for further questions. Do not put solvents into the detergent dispenser. There is the risk of explosion! Put the detergent into the detergent dispenser just before operating the machine as illustrated below. 1. Push the latch to right to open the 3.
-
Page 19: Tablet Detergents
Tablet detergents 3. After the empty washing cycle, review the user manual and readjust the water In addition to the conventional tablet hardness level so as to suit the water detergents, there are also commercially supply. available detergent tablets that show water 4. -
Page 20: Items Not Suitable For Washing In The Dishwasher
3. Slightly press the point (B) of the Decorative prints of chinaware as well reservoir lid to close it. as aluminium and silver items may get discoloured or tarnished after washing in the dishwasher just as it happens in handwashing as well. Some delicate glass types and crystals may become dull in time. - Page 21 Suggestions for loading the dishwasher Improper Loading Of Dishware Lower basket Upper basket Improper Loading Of Dishware 21/EN...
-
Page 22: Collapsible Lower Basket Tines
Collapsible lower basket tines Cutlery basket (depends on model) (depends on model) There are foldable tines (A) located at Cutlery basket is designed to wash your the lower basket of the machine are dishes such as knife, fork, spoon, etc. in an designed for an easier placement of large efficient manner. -
Page 23: Tray Wash Supports
Tray Wash Supports SoftTouch Accessory (depends on model) (depends on model) Use the supports to wash trays in the The SoftTouch Accessory found in the bottom basket. lower basket of your machine enables a See the Auxiliary functions section for safe washing for your fragile glasses. -
Page 24: Upper Basket Height Adjustable Rack
Upper basket height adjustable Tray Washing Support (depends on model) rack You may use the tray washing supports (depends on model) if you want to wash a tray on your lower Use the lower and upper parts of the height basket. -
Page 25: Adjusting The Height Of The Upper Basket
Adjusting the height of the upper 1. To raise the basket, hold the wires of the basket and pull the basket upwards basket with both hands while the basket is at (depends on model) the lowermost position (B) Upper basket height adjustment 2. -
Page 26: Collapsible Upper Basket Wires
Collapsible upper basket wires Ceiling cutlery basket (depends on model) (depends on model) You can use collapsible wires when you Ceiling cutlery basket is designed to wash need a larger space for your dishes in the your cutlery items such as forks, spoons upper basket of your machine. -
Page 27: Operating The Product
Operating the product 4. Put adequate amount of detergent into Read “Safety Instructions” section first! the detergent dispenser. Read “Quick Quide” before this section. Programme selection On/Off Key 1. Press the On/Off button to turn on your When you press the On/Off key, the indicator machine. - Page 28 Half Load function TrayWash Function (Depends on model) (depends on the model) It is used to operate the machine without Select Intensive 70°C programme and loading it completely. press function key to run this function. 1. Load your dishes in the machine as Tablet detergent function you like.
- Page 29 Use the selection key to change the Automatic Liquid/Gel Detergent Function desired function or setting and switch off Off/On your machine to save the Settings. Submenu Functions: (depends on the model) SelfDry Function Off/On Detergent use setting: Level 1: 10 ml lower than the default value Level 2: 5 ml lower than the default value Level 3: Use the default liquid detergent Tablet Detergent Function Off/On...
- Page 30 Changing Warning Sound Volume Floor illumination is activated 1. After switching on your machine, press automatically when the washing the Menu key for 3 seconds. programme starts and remains lit until the end of the programme. In some models pressing the Menu key only for once will allow you to enter Floor illumination cannot be cancelled the Settings menu.
-
Page 31: Scheduling The Washing Time
Scheduling the washing time You can select and start a new programme following the cancellation Time Delay of Time Delay function. If an economical electricity tariff is applied in your region, you can use the Time Time Delay function cannot be set after Delay function to wash your dishes during the programme starts. -
Page 32: Adjusting The Amount Of Rinse Aid
End of programme the pieces being washed depending on the step the programme you have When the programme you have cancelled was in. selected comes to an end, an audible warning signal will warn you to turn off Salt indicator ( your machine. -
Page 33: Innerclean
As long as the overflowing continues safety algorithm will be active and try to discharge the water. If overflowing stops and safety is assured, E:01 icon will disappear. If E:01 does not disappear, there is a permanent fault. In this case the authorised service should be contacted. -
Page 34: Maintenance And Cleaning
Maintenance and Cleaning the filters cleaning Clean the filters at least once a week in order for the machine operates efficiently. Read “Safety Instructions” section first! Check if food residues are left on the filters. Unplug the product and turn off the If there are food residues on filters, take tap before attempting any cleaning them out and clean well under running... -
Page 35: Cleaning The Hose Filter
Cleaning the hose filter Damages on the machine that may be caused by impurities coming from the urban supply water or your own water installation (such as sand, dirt, rust, etc.) can be prevented by means of the filter attached to the water inlet hose. Check the filter and the hose regularly and clean them if necessary. -
Page 36: Cleaning The Impellers
Cleaning the impellers Do not try to rotate the impeller by Clean the impellers at least once a week in holding its ends. Trying to rotate the order for the machine operates efficiently. end sections may cause the gear system within the impeller to break. Lower impeller Upper impeller Check if the holes on the lower impeller (1) -
Page 37: Troubleshooting
Troubleshooting Machine does not start. • Power cable is unplugged. >>> Check if the power cable is plugged in. • Fuse is blown. >>> Check the fuses in your house. • Water is cut. >>> Make sure that the water inlet tap is open. •... - Page 38 • Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine. • Machine is unloaded right after the programme is over. >>> Do not unload your machine right after washing process is completed.
- Page 39 There is a different odour in the machine A new machine has a peculiar odour. It will fade out after a couple of washes. • Filters are clogged. >>> Check if the filter system is clean. Clean the filter system regularly as illustrated in section “Cleaning and Care”.
- Page 40 • Opening of the detergent dispenser lid is prevented during washing. >>> Place the dishes in a way that will not prevent the detergent dispenser lid from opening and the water going into the machine from impellers. • Detergent is stored under unsuitable conditions. >>> If you are using powder detergent, do not store the detergent package in humid places.
- Page 41 Foam forms in the machine. • Dishes are washed with hand-wash detergent by hand but not rinsed before placing them into the machine. >>> Hand-wash detergents do not contain antifoam. There is no need to hand-wash the dishes before placing them into the machine. Removing the coarse soil on the dishes under tap water, with a tissue paper or fork will be sufficient.
-
Page 42: Guarantee
Repairs necessary as a direct or indirect result of: Accidental damage, misuse or abuse of a product. An attempted repair of a product by anyone other than a Beko Approved Engineer (the “Engineer”). Installation or use of a product where such installation or use fails to meet the requirements contained in this guarantee or the User Instructions Booklet. - Page 43 This guarantee is limited to the cost of repairing the product. To the extent permitted by law, the Manufacturer does not accept and will not be held liable for any financial loss incurred in connection with the failure of any product to operate in accordance with the expected standards.
- Page 44 If you are resident in the Republic of Ireland, this guarantee will be governed by Irish law and the Irish courts will have jurisdiction. This guarantee is provided by Beko plc. Beko House, 1 Greenhill Crescent, Watford, Hertfordshire. WD18 8QU.
- Page 45 90 days of the original purchase date. You can register by first visiting Beko.co.uk/register and by following the online instructions. Beko Free standing appliances come with a 12 month parts and labour guarantee as standard, Beko Built-in appliances come with a 12 month parts and labour guarantee as standard.
- Page 46 General Data Protection Regulations (GDPR). You can opt into this service during the registration process. Further details are available at http://www.beko.co.uk/cookie-and- privacy. 13. These Terms and Conditions are governed by the laws of England and Wales; manufacturer: Beko plc, Beko House, 1 Greenhill Crescent, Watford WD18 8QU. Company Registration Number: 02415578. 46/EN...
- Page 47 When you call us you may be required to input your serial number into your telephone keypad. For help please visit beko.co.uk/support/model-finder • The product model number is printed on the Operating Instruction Booklet / User guide •...
- Page 48 Send us a secure message through our online contact us form. Please visit our website, click Contact Us and choose a product support topic from the list of options. Complete the required details and click send message. Product registrations For UK registrations please visit beko.co.uk/register and for the Republic of Ireland visit beko.ie/register. 48/EN...
