DataRemote POTS in a BOX CDS-9090 User Manual

Lte voip dual band wi-fi router
Hide thumbs Also See for POTS in a BOX CDS-9090:
Table of Contents

Advertisement

Quick Links

Download this manual
®

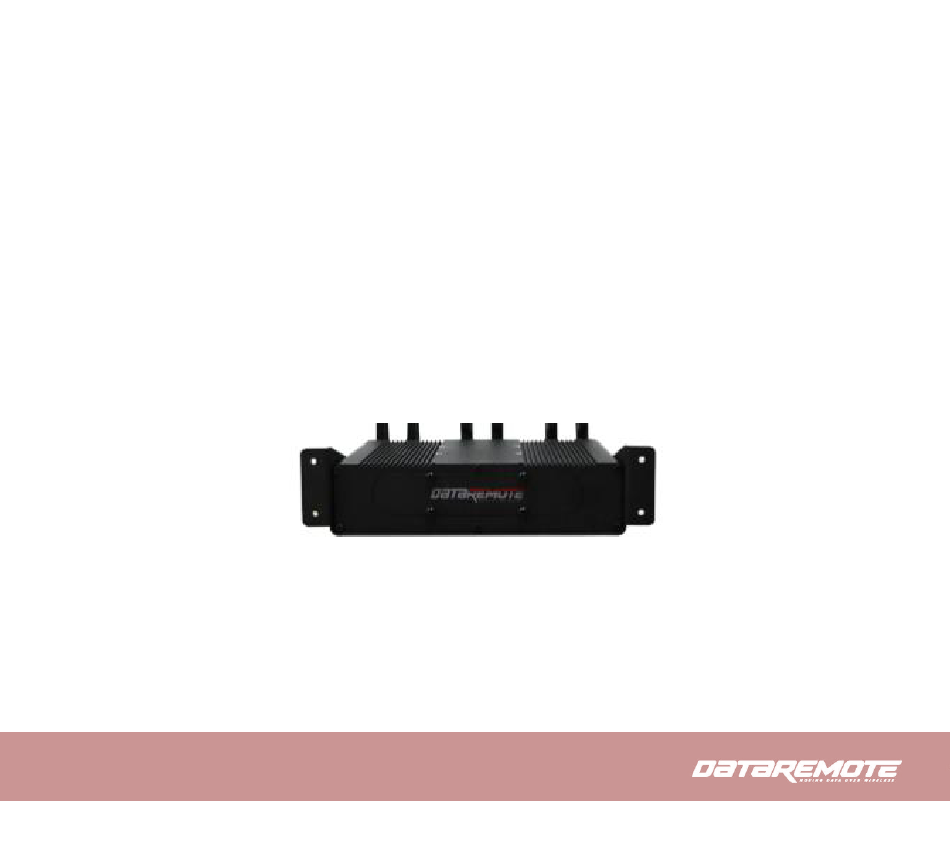

POTS in a BOX
CDS-9090
LTE VoIP Dual Band Wi-Fi Router
User Manual V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POTS in a BOX CDS-9090 and is the answer not in the manual?

Questions and answers

Related Manuals for DataRemote POTS in a BOX CDS-9090

Summary of Contents for DataRemote POTS in a BOX CDS-9090

  • Page 1 ® POTS in a BOX CDS-9090 LTE VoIP Dual Band Wi-Fi Router User Manual V1.1...

  • Page 2: Table Of Contents

    Table of Contents Preface ............................................................5 LED Indicators and Connectors ....................................................6 LED Indicators ......................................................6 DC ..............................................................7 Connector for a power adapter....................................................7 WAN ............................................................. 7 Connector for accessing the Internet..................................................7 LAN1/2/3/4 ..........................................................7 Connectors for local networked devices..................................................7 Hardware Installation ....................................................
  • Page 3 Register ........................................................31 4.9.1 Get the Accounts ....................................................31 4.9.2 Connections ......................................................31 4.9.3 Configuration SIP from Webpage ..............................................31 4.9.4 View the Register Status ..................................................32 4.10 Make Call ........................................................33 4.10.1 Calling phone or extension numbers ..............................................33 4.10.2 Direct IP calls .....................................................
  • Page 4 5.7.2 UPnP ........................................................59 5.7.3 IGMP ........................................................60 Administration ......................................................60 5.8.1 Management ....................................................... 60 5.8.2 Firmware Upgrade ..................................................... 63 5.8.3 Scheduled Tasks ....................................................63 5.8.4 Provision ......................................................65 5.8.5 TR069 ........................................................ 66 System Log ........................................................ 67 5.9.1 Logout ........................................................ 69 5.9.2 Reboot ........................................................

  • Page 5: Preface

    1 Preface Thank you for choosing CDS-9090 wireless router with VoIP. This product will allow you to make ATA calls using your broadband connection, and provides Wi-Fi router function. This manual provides basic information on how to install and connect CDS-9090 wireless router with VoIP to the Internet. It also includes features and functions of LTE connection, wireless router with VoIP components, and how to use it correctly.

  • Page 6: Led Indicators And Connectors

    2 LED Indicators and Connectors Before you use the high-speed router, please get acquainted with the LED indicators and connectors first. 2.1 LED Indicators Rear Panel Status Explanation On (GREEN) The router is powered on (External Power) and running normally. The router is powered on (Internal Power - BAT) and running On Blinking (GREEN) normally.

  • Page 7: Connector For A Power Adapter

    Disconnected RSSI On (GREEN) Strong On Blinking (GREEN) Medium On (RED) Weak CELL DCD On (GREEN) On Blinking (GREEN) No Service On (GREEN) SIM Accepted Rear Panel Interface Description Connector for a power adapter. Connector for accessing the Internet. LAN1/2/3/4 Connectors for local networked devices.

  • Page 8: Hardware Installation

    2.2 Hardware Installation Before starting to configure the router, you have to connect your devices correctly. Step 1.Connect Line port to land line jack with a RJ-11 cable. Step 2.Connect the WAN port to a modem or switch or router or Internet with an Ethernet cable. Step 3.Connect one port of 4 LAN ports to your computer with a RJ-45 cable.

  • Page 9: Interactive Voice Response

    3 Interactive Voice Response In any circumstance, pressing the following command to enter relevant function. The following table lists command, and description. Voice Menu Setting Options Operation code Contents Step 1. Pick up phone and press “****” to start IVR Step 2.
  • Page 10 Step 1 . Pick up phone and press “****” to start IVR Step 2. Choose “4”, and CDS-9090 report current gateway Step 3. Input the new gateway and with the end char #  using “*” to replace “.”, user can input 192*168*20*1 to set the new gateway 192.168.20.1 ...
  • Page 11 Step 1 . Pick up phone and press “****” to start IVR Step 2. Choose “9”, and CDS-9090 report “ WEB Access Port” Step 3 . Prompt “Please enter password”, the method of inputting password is same as operation 1. Step 4.
  • Page 12 ⚫ To input: M, N, O, m, n, o -- press ‘6’ ⚫ To input: P, Q, R, S, p, q, r, s -- press ‘7’ ⚫ To input: T, U, V, t, u, v -- press ‘8’ ⚫ To input: W, X, Y, Z, w, x, y, z -- press ‘9’ ⚫...

  • Page 13: Configuring Basic Settings

    4 Configuring Basic Settings 4.1 Administrator Management This chapter explains how to setup a password for an administrator user and how to adjust settings for accessing Internet successfully. CDS-9090 supports two-level management: administrator and user. For administrator mode operation, please type “admin/Password1”...

  • Page 14: Accessing Web Page

    4.2 Accessing Web Page 4.2.1 From LAN port 1. Make sure your PC have connected to the router’s LAN port correctly. Notice: You may either simply set up your computer to get IP dynamically from the router or set up the IP address of the computer to be the same subnet as the default IP address of router is 192.168.1.1.

  • Page 15: From Wan Port

    4.2.2 From WAN port 1. Make sure your PC can connect to the router’s WAN port correctly. 2. Getting the IP addresses of WAN port using Voice prompt. 3. Open a web browser on your PC and type http://the IP address of WAN port. The following window will be open to ask for username and password.

  • Page 16: Webpage

    4.3 Webpage Name Description Click navigation bar, many sub-navigation bar will Navigation bar appear in the place 2 Click sub-navigation bar to choose one configuration Title page Parameter To configuration the parameters • Every time making some changes, user should press this button to confirm the changes.

  • Page 17: Setting Up The Time Zone

    Reset the changes that have been made 4.4 Setting up the Time Zone Open System/System webpage as shown below, please select the Time Zone for the router installed and specify the NTP server and set the update interval in NTP synchronization.

  • Page 18: Setting Up The Internet/Wan Connection

    4.5 Setting up the Internet/WAN Connection Open the Network/Interfaces/WAN webpage as shown below; please select the appropriate IP Mode according to the information from your ISP. On this page you can configure the network interfaces. You can bridge several interfaces by ticking the "bridge interfaces" field and enter the names of several network interfaces separated by spaces.
  • Page 19 • Use the dropdown menu select the desired protocol Protocol • Select “Switch Protocol” Select the desired Netmask or select custom IPV4 Netmask to insert your own custom netmask IPV4 Address Type the IP address IPv4 broadcast Type the broadcast IP IPV4 Type the gateway address for IPV4 Gateway...

  • Page 20: Dhcp

    4.5.2 DHCP It is not necessary for you to type any IP address manually. Simply choose this type and the system will obtain the IP address automatically from DHCP server. WAN IP Mode The mode for obtain IP address...

  • Page 21: Pppoe

    4.5.3 PPPoE PPPoE stands for Point-to-Point Protocol over Ethernet. It relies on two widely accepted standards: PPP and Ethernet. It connects users through an Ethernet to the Internet with a common broadband medium, such as a single DSL line, wireless device or cable modem. All the users over the Ethernet can share a common connection.

  • Page 22: Setting Up The Internet/Lte Connection

    4.6 Setting up the Internet/LTE Connection 4.6.1 LTE LTE Modem Select to Disable, Auto Connect and Enable Always Connect. Enable or Disable Dual SIM Dual SIM Primary SIM Set to Primary SIM to SIM1 or SIM2 Switch to Enable or Disable to switch Main SIM Secondary SIM if Primary SIM Fails After Timeout...
  • Page 23 SIM1 APN Enter SIM1 APN SIM1 Dial Insert SIM1 Dial number Number SIM1 Insert SIM1 Username Username SIM1 Insert SIM1 Password Password SIM2 APN Enter SIM2 APN SIM2 Dial Insert SIM2 Dial number Number SIM2 Insert SIM2 Username Username SIM2 Insert SIM2 Password Password...
  • Page 24 When LTE connected successfully, return the Status page, you can check the link status and the IP address obtained from the cellular carrier.

  • Page 25: Setting Up The Wireless Connection

    4.7 Setting up the Wireless Connection 4.7.1 Enable Wireless and Setting SSID Open 2.4G (5G) /Basic webpage as shown below Select to enable...
  • Page 26 Operating Select Mode & Channel Frequency Transmit Power Select Transmit power Select to AP , Client. WiFi , AD-HOC, Mode Access point(WDS), Client(WDS) , Static(WDS) Select the check box for desired Network network. Select the Select Desired Security(WEP Open Wireless System , WEP Shared Key, WPA- Security Tab to PSK, WPA2-PSK, WPA-...
  • Page 27 Select to AP , Client. WiFi , AD-HOC, Mode Access point(WDS), Client(WDS) , Static(WDS) Select the check box for desired Network network. Select the Select Desired Security(WEP Open Wireless System , WEP Shared Key, WPA- Security Tab to PSK, WPA2-PSK, WPA- select desired PSK/WPA2-MSK Mixed Mode) Wireless...

  • Page 28: Encryption

    4.7.2 Encryption Open 2.4G (5G)/Security webpage to set the encryption of routers. WEP Open System , WEP Shared Key, WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-MSK Mixed Mode Cipher Select Cipher and choose desired option Open WPA-PSK Enter desired Password OPEN WEP Set the WEP key. Select 64-bit key to enter Hex is 10 characters, or ASCII WEP Keys code is 5characters;...

  • Page 29: Setting Up Wan Failover

    4.8 Setting up WAN Failover 4.8.1 WAN Failover List WAN Failover works in multiple outbound links to assure that you maintain Internet connectivity if a loss of connectivity occurs on one of your WAN connections. If one of your ISP links goes down, WAN Failover will automatically route all traffic over the other WAN(s) until service is restored.

  • Page 30: Connection Manager

    4.8.2 Connection Manager Enable this function, WAN Failover is based on ping result. Disable this Enable function, WAN Failover is based on each interface physical status. Detect Interval time for detecting WAN Interval connection. Ping this IP The IP address for ping detection Max Try Times for Setup the re-try times for ping...

  • Page 31: Register

    4.9 Register 4.9.1 Get the Accounts CDS-9090 has eight RJ-11 phone ports, you can use it to make SIP call, and before registering, you should get the SIP account from you administrator or provider. 4.9.2 Connections Connect CDS-9090 to the Internet properly 4.9.3 Configuration SIP from Webpage Step 1.Open SIP Account/Line 1 webpage, as the picture in the right side.

  • Page 32: View The Register Status

    4.9.4 View the Register Status To view the status, please open Status webpage and view the value of register status. The value is registered like the following picture which means CDS-9090 have registered normally and you can make calls.

  • Page 33: Make Call

    4.10 Make Call 4.10.1 Calling phone or extension numbers To make a phone or extension number call: a) Both ATA and the other VoIP device (i.e., another ATA or other SIP products) have public IP addresses, or b) Both ATA and the other VoIP device (i.e., another ATA or other SIP products) are on the same LAN using private or public IP addresses, or c) Both ATA and the other VoIP device (i.e., another ATA or other SIP products) can be connected through a router using public or private IP addresses.

  • Page 34: Web Configuration

    5 Web Configuration This chapter will guide users to execute full configuration through admin mode operation. 5.1 Login Step 1.Connect the LAN port of the router to your PC Step 2.Open a web browser on your PC and type in http://192.168.1.1. The window will ask for typing username and password. And you can choose language, too.

  • Page 35: Status

    5.2 Status This webpage shows the status information about product information, Network and system. It shows the basic information of the product, such as product name, serial number, MAC address, hardware version and software version. It also shows the information of Link Status, WAN Port Status, memory and LAN Port Status.

  • Page 36: Network

    5.3 Network You can configuration the LAN port, DDNS, Multi WAN,DMZ, MAC Clone, Port Forward and so on in these two bars. 5.3.1 LAN LAN Port: The most generic function of router is NAT. What NAT does is to translate the packets from public IP address to local IP address to forward the right packets to the right host and vice versa.

  • Page 37: Vpn/L2Tp

    5.3.2 VPN/L2TP VPDN VPN Enable Enable PPTP or L2TP VPN Client Initial Service IP VPN server IP address User Name The account for authentication Password The password for authentication The remote virtual IP as default VPN As Default Route gateway . Stateless encryption provides a lower MPPE Stateful(PPTP level of performance, but will be more...
  • Page 38 L2TP Server L2TP Server Enable Select to enable L2TP server. Local IP Address Set the IP address of L2TP server. Set the IP pool start IP address which Pool Start Address will assign to the L2TP clients. Set the IP pool end IP address which Pool End Address will assign to the L2TP clients.
  • Page 39 IPsec Connection IPSec Connection List The connection status of IPSec VPN IPSec Connection Select the specify VPN Connection Name The name of this IPSec VPN IPSec Enable Select to enable or disable IPSec VPN Interface Select the interface for encryption IPSec Networking Type The connection type of networking The authentication method of IPSec...
  • Page 40 Remote WANs IP the address of remote side IPSec VPN Address/FQDN server Local LAN IP Address/ IPSec local protected subnet’s address. Subnet Mask Length Remote LAN IP IPSec remote protected subnet’s Address/ Subnet Mask address. Length Policy Protocol The policy protocol for encryption Encapsulated Mode Select the security protocols Enable NAT Traversal for IPSec.

  • Page 41: Dmz/Port Forward

    Select Encryption Algorithm to be Encryption Algorithm used in IPSec SA negotiation. Select Integrity Algorithm to be used Integrity Algorithm in IPSec SA negotiation. Set the lifetime in IPSec SA SA Lifetime of Phase 2 negotiation Enable or disable PFS. (Perfect Forward Secrecy)PFS will ensure the same key will not be generated again 5.3.3 DMZ/Port Forward...
  • Page 42 Port Forward Port Forwarding Assign a meaningful name for port Comment forwarding. IP Address The IP address in LAN side The port range for LAN host, from 1 to Port Range 65535 Select from “TCP”, “UDP” or Protocol “TCP&UDP” Virtual Servers Assign a meaningful name to the Comment virtual server.

  • Page 43: Ddns

    5.3.4 DDNS Select the DDNS service which you Dynamic DNS Provider have established an account with. Enter account that DDNS server Account provided. Enter password that DDNS server Password provided. Enter the DDNS Domain name or IP DDNS URL address. Status Show current status of DDNS 5.3.5 QoS...
  • Page 44 it with QoS Control. Protocol Select from TCP /UDP /ICMP Source port range of the service that Src.Port Range you want to set it with QoS Control. Destination port number of the service Dst.Port Range that you want to set it with QoS Control.

  • Page 45: Mac Clone

    Rate Limit Limit the speed of this rule 5.3.6 MAC Clone Some ISPs will require you to register your MAC address. If you do not wish to re-register your MAC address, you can have the router clone the MAC address that is registered with your ISP. To use the Clone Address button, the computer viewing the Web-based utility screen will have the MAC address automatically entered in the Clone WAN MAC field.

  • Page 46: Routing

    5.3.7 Routing The IP address of packets that will take Destination this route. Host/Net Select the Host or Networking Specifies the next hop to be taken if Gateway this route is used. Specifies the interface LAN/ Interface INTERNET/ VOICE/ TR069/ VPN Comment Set comment of this routing.

  • Page 47: Wps

    5.3.8 WPS WPS (Wi-Fi Protected Setup) provides easy procedure to make network connection between wireless station and wireless access point (vigor router) with the encryption of WPA and WPA2. It is the simplest way to build connection between wireless network clients and vigor router. Users do not need to select any encryption mode and type any long encryption passphrase to setup a wireless client every time.

  • Page 48: Station List

    5.3.9 Station list You could monitor stations which associated to this AP here. 5.3.10 Client Enable WiFi Client would be one option for WAN Failover, select as the default route. Connection Status Current WiFi Client connect status Select one SSID and press the button, Connect enter the password for the SSID.

  • Page 50: Phone

    5.4 Phone 5.4.1 VoIP QoS QoS services can improve the quality of voice applications. The default value is SIP QoS(0-63) 46, and the range of values can be set from 0 to 63. Once Multi-WAN port is enabled, select the corresponding voice PPPoE server RTP QoS(0-63) VID, the devices under the same VLAN can transmit voice data.

  • Page 51: Blacklist

    5.4.3 Blacklist You can upload or download the phone book, blacklist. 5.4.4 Call Log On this page, users can view replay lists (outgoing calls), received calls, and missed calls.

  • Page 52: Sip Account

    5.5 SIP Account 5.5.1 FXS1/2/3/4/5/6/7/8 SIP Account Line Enable Select to enable or disable Line Outgoing Call without Select to enable or disable this function Registration Display Name The display name of this SIP number The phone number provided by SIP Phone Number server The account provided by SIP server for...
  • Page 53 Echo Cancel Echo Cancellation is enabled by default Auto Gain Control Used to automatically adjust the speech level of an audio signal to a predetermined value. Use First Matching Select to enable or disable Vocoder in 200OK SDP Codec Priority Select from local or remote Packet Cycle Follows Select to enable or disable...

  • Page 54: Fxs1/2 Supplementary Service Subscription

    5.5.3 FXS1/2/3/4/5/6/7/8 Supplementary Service Subscription Call Waiting Select to enable or disable Hot Line Fill in the hotline number. After the subscriber is set up successfully, the hotline number will be automatically dialed immediately after off-hook MWI Enable Enable WMI (Message Waiting Indication), enable this function if you want to use voicemail Voice Mailbox Numbers...

  • Page 55: Security

    5.6 Security 5.6.1 Filtering Setting Filtering Select to enable or disable Default Policy Select from Drop or Accpet Interface Select from LAN or WAN Mac address Fill MAC address for Filtering control Dest IP Address Fill Destination IP address for Filtering control Source IP Address Fill source IP address for Filtering control...

  • Page 56: Content Filtering

    5.6.2 Content Filtering Filtering Select to enable or disable Default Policy Select from Drop or Accpet Local File Select the local file for upload Current Webs Existing URL filtering rules (blacklist) Filters Add a URL Filter Add a URL filtering rule Fill the URL for webs filtering Current Website Host Existing keywords (blacklist)

  • Page 58: Application

    5.7 Application 5.7.1 Advance Nat In this page, you can choose to enable / disable FTP, SIP, H323, PPTP, L2TP, IPSec services.

  • Page 59: Upnp

    5.7.2 UPnP UPnP (Universal Plug and Play) supports null-setting for networking, can automatically find a variety of networked devices. When UPnP is enabled, UPnP- enabled devices are allowed to dynamically access the network, obtain IP addresses, and transmit performance information. If you have DHCP and DNS servers on your network, you can automatically obtain DHCP and DNS services.

  • Page 60: Igmp

    5.7.3 IGMP Multicast has the function of sending the same data to multiple devices. An IP host uses the IGMP (Internet Group Management Protocol ) to report multicast group memberships to send data to neighboring routers, and the multicast router uses IGMP to discover which hosts belong to the same multicast group.
  • Page 61 firmware upgrade. Administrator Settings New User Name New user name for management New Password Type the password for user Confirm Password Type the same password again Language Setup the language for operation, select from English or Spanish Refresh Interval The auto refresh interval for LTE status Management using VPN Select to enable or disable...
  • Page 62 Time/Date Settings NTP Enable Select this option if you want to synchronize the router's clock to a Network Time Server over the Internet. Option 42 Obtain NTP Server via DHCP Server Current Time Displays the time currently maintained by the router. Sync with host Synchronize with your current host's system time...

  • Page 63: Firmware Upgrade

    5.8.2 Firmware Upgrade Once you have a firmware update on your computer, use this option to browse for the file and then upload the information into the router. 5.8.3 Scheduled Tasks Scheduled WiFi Enable Select to enable or disable SSID Choose the specified SSID for scheduled WiFi Scheduled Mode...
  • Page 64 Scheduled Mode Select the Schedule mode for cycle time Time Setup the PPPoE connection timing...

  • Page 65: Provision

    5.8.4 Provision Please refer to the provision user manual to test provision. Provision Enable Select to enable or disable Resync On Reset Enable or disable DIV378 Resync after rebooting Resync Random Setup the maximum delay for request Delay(sec) synchronization Resync Periodic(sec) If the last resynchronization is unsuccessful, after the "Rsync Retry Delay Error"...

  • Page 66: Tr069

    Option 67 Specifies the startup file name Config File Name Configure the file name User Agent The name of user agent Profile Rule The URL of the configuration file Note that the specified file path is relative to the root directory of the TFTP server Upgrade Enable Select to enable or disable...

  • Page 67: System Log

    User Name User name for TR069 server connected to DUT Password Password for TR069 server connected to 5.9 System Log If you enable the system log in Status/syslog webpage, you can view the system log in this webpage.

  • Page 69: Logout

    5.9.1 Logout Press the logout button to logout, and then the login window will appear. 5.9.2 Reboot Press the Reboot button to reboot CDS-9090.

  • Page 70: Trouble Shooting Of The Guide

    6 Trouble shooting of the guide 6.1 Setting your PC gets IP automatically Following are the process of setting your PC gets IP automatically Step 1.Click the “begin” Step 2. Select “control panel”, then double click “network connections” in the “control panel” Step 3.

  • Page 71: Cannot Connect To The Configuration Website

    6.2 Cannot connect to the configuration Website Solution: Check if the Ethernet cable is properly connected, then Check if the URL is right wrote, the format of URL is: http:// the IP address: 8080, 8080 must be added, then Check if the version of IE is IE8, or use other browser such as Firefox or Mozilla, then Contact your administrator, supplier, or ITSP for more information or assistance. 6.3 Password reset(Forgot Password) If user changed the password and then forgot, you can not access to the configuration website.

  • Page 72: Statement

    FCC Radiation Exposure Statement DataRemote Incorporated. Declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 73 antenna or transmitter. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
