Universal Tool
™
General Safety Information & Replacement Parts
TABLE OF CONTENTS
General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Air Compressor and Air Tool Safety . . . . . . . . . . . . . . . . . . . 2-3
Tool Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Maintenance / Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
WARNING: Risk of injury to persons. Read and
understand operation instructions. Always become familiar
with all the instructions and warnings before operating any
pneumatic tool.

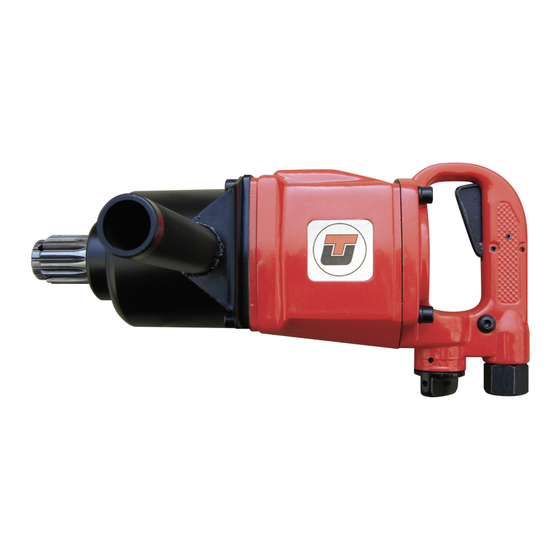

UT8480C 1" Straight Impact Wrench
UT8480S #5 Spline Straight Impact Wrench
: This product contains lead, a chemical known to
WARNING
the State of California to cause cancer and birth defects or
other reproductive harm. Wash hands after handling.
: This product contains chemicals known to
WARNING
the State of California to cause cancer and birth defects or
other reproductive harm. Wash hands after handling.
Please contact 1-800-356-3392 for further assistance.
IMPACTS
FLORIDA-PNEUMATIC.COM
Advertisement
Table of Contents
Related Manuals for Universal Tool UT8480C
Summary of Contents for Universal Tool UT8480C
- Page 1 UT8480C 1" Straight Impact Wrench Universal Tool UT8480S #5 Spline Straight Impact Wrench IMPACTS ™ General Safety Information & Replacement Parts TABLE OF CONTENTS General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 2...
- Page 2 • Whipping hoses can cause severe injury. Always check for dam- power. aged or loose hoses and fittings. • Make sure there are no electrical cables, gas pipes etc. that could • Whenever universal twist couplings (claw couplings) are used, lock cause a hazard if damaged by use of the tool. pins must be installed. • Do not exceed the maximum air pressure stated on the tool. 7.2.2.10 DUST AND FUME HAZARDS • Use whip check safety cables to safeguard against possible hose to • Dust from some work processes can cause cancer, birth defects or tool and hose to hose connection failure. other respiratory diseases. Risk assessment of these hazards and • Never carry an air tool by the hose. implementation of appropriate controls is essential. Universal Tool a Division of Florida-Pneumatic Manufacturing Corporation 851 Jupiter Park Lane, Jupiter FL 33458...
- Page 3 Torque (ft. lb.) Torque Nm (ft. lb.) (Nm) (RPM) Anvil Retainer Exhaust (lb.) (kg) (in.) (mm) Pressure (NPT) (I.D. in.) (cfm) (cfm) UT8480C 500-1800 678-2435 2,730 3696 6600 1" Square Through Hole 28.0 12.7 17.80 90 psi-6.2 bar 3/8" 3/4" 17.5 UT8480S 500-1800...
- Page 4 □ Recommended lubricants: Air tool oil or any other high grade turbine oil containing moisture absorbent, rust inhibitors, metal wetting agents, and an EP (extreme pressure) additive. Universal Tool a Division of Florida-Pneumatic Manufacturing Corporation 851 Jupiter Park Lane, Jupiter FL 33458...
- Page 5 Operation Operating the impact wrench Changing the output torque direction □ This Impact Wrench is designed to operate on 90 PSIG. □ This tool features a reverse switch to change the Lower pressure (below 90 PSIG) will reduce performance output torque direction to tighten (assemble) or loosen of the tool.
- Page 6 Warranty Limited Warranty: Universal Tool warrants its tools to be free from defects in material and workmanship for one year from the date of purchase. This warranty does not apply to tools which have been abused, misused, modified or repaired by someone other than Universal Tool or its authorized service centers.
- Page 7 Service Parts / Exploded View Drawing FLORIDA-PNEUMATIC.COM Please contact 1-800-356-3392 for further assistance.
- Page 8 Universal Tool ™ Questions, problems, missing parts? Call Customer Service 8 a.m.-5 p.m., EST, Monday-Friday 1-800-356-3392 FLORIDA-PNEUMATIC .COM Retain this manual for future use. Universal Tool a Division of Florida-Pneumatic Manufacturing Corporation 851 Jupiter Park Lane, Jupiter FL 33458...
