Universal Tool UT8425R Instructions

Operator Instructions

Includes - Foreseen Use, Work Stations, Putting Into Service, Operating,
Dismantling, Assembly and Safety Rules
Manufacturer/Supplier
Universal Air Tool Company Limited
Unit 8
Lane End Industrial Park
High Wycombe
Bucks
HP14 3BY
Tel No (01494) 883300
Product Nett Weight
lbs
24.8 (Std) 27.3 (Ext)
Kg
11.3 (Std) 12.4 (Ext)
Air Pressure
Recommended Working
Recommended Minimum
Maximum
Personal Safety Equipment
Use - Safety Glasses
Use - Safety Gloves
Use - Safety Boots
Use - Breathing Masks
Use - Ear Protectors

Foreseen Use Of Tool

The impact wrench is designed for the tightening and loosening of
threaded fasteners within the range as specified by the manufacturer.
It should only be used in conjunction with suitable impact type 1"
square female drive nut running sockets. Only use sockets which are
of the impact type.
It is allowed to use suitable extension bars, universal joints and socket
adaptors between the square output drive of the impact wrench and
the square female drive of the socket.
Do not use the tool for any other purpose than that specified without
consulting the manufacturer or the manufacturer's authorised
supplier. To do so may be dangerous.
Never use an impact wrench as a hammer to dislodge or straighten
cross threaded fasteners. Never attempt to modify the tool for other
uses and never modify the tool for even its recommended use as a
nutrunner.

Work Stations

The tool should only be used as a handheld
hand operated tool. It is always recom-
mended that the tool is used when standing
on the solid floor. It can be in other positions
but before any such use, the operator must
be in a secure position having a firm grip and
footing and be aware that when loosening
fasteners the tool can move quite quickly
away from the fastener being undone. An
allowance must always be made for this
rearward movement so as to avoid the
possibility of hand/arm/body entrapment.
Fax No (01494) 883237
Recommended Use Of
Balancer Or Support
Yes
6.3 bar 90 PSI
n/a bar n/a PSI
7.0 bar 100 PSI
Yes
Yes
Page No 1
Important
Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible place.
Product Type

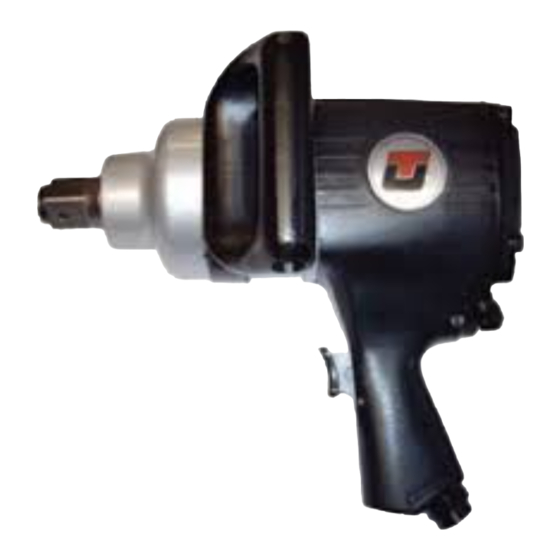

1" Square Pistol Grip
Impact Wrench
Model No/Nos
UT8425R Std Anvil
UT8426 6" Ext. Anvil
Recommended Hose Bore
Size - Minimum
1/2 Ins 13 M/M
Noise Level
Sound Pressure Level dB(A)
Sound Power Level dB(A)
Test Method Tested in accordance with Pneurop
test code PN8NTC1 and ISO Standard 3744
Vibration Level (UT8425R) 4.9 Metres / Sec²
(UT8426) 5.4 Metres / Sec²
Test Method Tested in accordance with ISO
standard 8662 Parts 1 & 7

Putting Into Service

Air Supply
Use a clean lubricated air supply that will give a measured air pressure
at the tool of 90 p.s.i./6.3 bar when the tool is running with the trigger
fully depressed and the air regulator in its maximum opening flow
position. Use recommended hose size and length. It is recommended
that the tool is connected to the air supply as shown in figure 1. Do
not connect a quick connect coupling directly to the tool but use a
whip or leader hose of say approximately 12 inches length. Do not
connect the tool to the air line system without incorporating an easy
to reach and operate air shut off valve. The air supply should be
lubricated. It is strongly recommended that an air filter, regulator,
lubricator (FRL) is used as shown in Figure 1 as this will supply clean,
lubricated air at the correct pressure to the tool. Details of such
equipment can be obtained from your supplier. If such equipment is
not used then the tool should be lubricated by shutting off the air
supply to the tool, depressurising the line by pressing the trigger on
the tool. Disconnect the air line and pour into the intake bushing a
teaspoonful (5ml) of a suitable pneumatic motor lubricating oil
RPM
4,000
Cycles Per Min
Serial No
Recommended Max.
Hose Length
30 Ft 10 M
UT8425R UT8426
93.7 93.9
105.5 105.5
