HYDRAULIC
BOTTLE JACKS
K12150
K12150 - 1850kg Hydraulic Bottle Jack

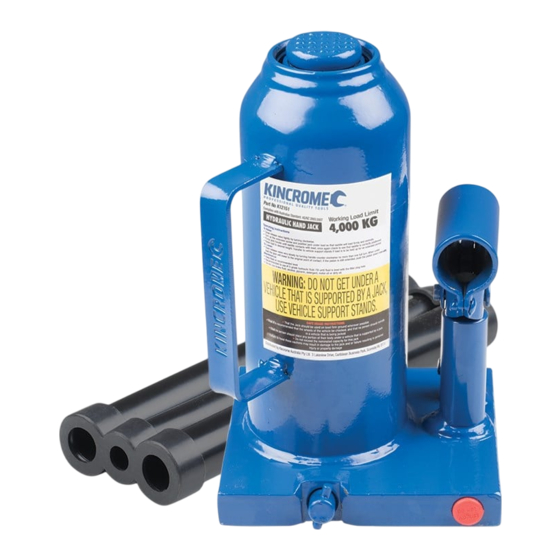

K12151 - 4000kg Hydraulic Bottle Jack
K12152 - 6000kg Hydraulic Bottle Jack
K12153 - 10000kg Hydraulic Bottle Jack
K12157 - 20000kg Hydraulic Bottle Jack
K12158 - 10000kg Hydraulic Bottle Jack
K12159 - 20000kg Hydraulic Bottle Jack
ED1 / JUNE 19
HYDRAULIC BOTTLE JACKS
K12151
K12152
Distributed by Kincrome Tools and Equipment www.kincrome.com.au
K12153
K12157
K12158
K12159
1
Advertisement
Table of Contents
Related Manuals for kincrome K12150
Summary of Contents for kincrome K12150

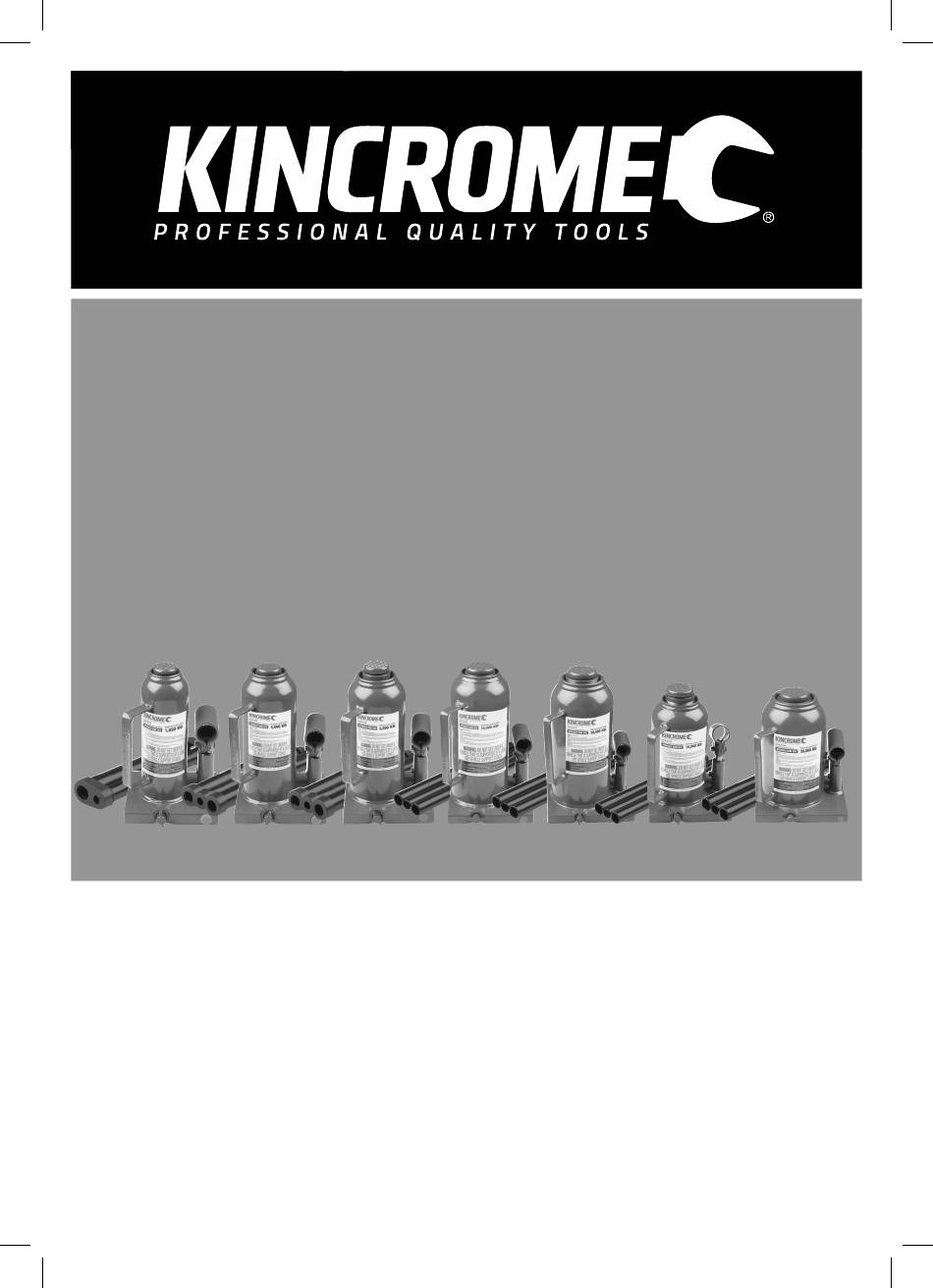

- Page 1 K12152 K12153 K12157 K12158 K12159 K12150 - 1850kg Hydraulic Bottle Jack K12151 - 4000kg Hydraulic Bottle Jack K12152 - 6000kg Hydraulic Bottle Jack K12153 - 10000kg Hydraulic Bottle Jack K12157 - 20000kg Hydraulic Bottle Jack K12158 - 10000kg Hydraulic Bottle Jack...
- Page 2 Cleaning ..................................6 Storage ..................................6 Repairing Jack ................................. 6 SPECIFICATIONS K12150 K12151 Part No.: ..................K12150 Part No.: ..................K12151 Working Load Limit: .............. 1850 kg Working Load Limit: .............. 4000 kg Height Lowered: ...............179mm Height Lowered: ...............195mm Height Raised: ................346mm Height Raised: ................392mm...
- Page 3 HYDRAULIC BOTTLE JACKS K12152 K12153 Part No.: ..................K12152 Part No.: ..................K12153 Working Load Limit: .............. 6000 kg Working Load Limit: ............10000 kg Height Lowered: ...............200mm Height Lowered: ...............220mm Height Raised: ................405mm Height Raised: ................459mm Lift Height: .................125mm Lift Height: .................159mm Screw Height: ................80mm Screw Height: ................80mm Base Dimension: ............110 x 120mm...
- Page 4 HYDRAULIC BOTTLE JACKS IMPORTANT SAFETY INFORMATION The use of a vehicle jack has inherent dangers, to avoid risk of personal injury or property damage, make sure you are fully aware of the operating instructions for this product. Follow the recommendations in the vehicle owners manual for jacking of your vehicle prior to lifting the vehicle.
- Page 5 The working load limit of the hydraulic jacks is K12150 - 1850kg, K12151 - 4000kg, K12152 - 6000kg, K12153 - 10000kg, K12157 - 20000kg, K12158 - 10000kg, K12159 - 20000kg.
- Page 6 BE VERY CAREFUL not to permit dirt or foreign matter to get into the system. Invert jack over suitable container and allow oil to drain. Close release valve by turning handle clockwise, fill with Kincrome K12400 Hydraulic Jack Oil close air vent plug wipe away any spilt fluid.
- Page 7 HYDRAULIC BOTTLE JACKS NOTES...
- Page 8 (other than defects caused by abnormal or non warranted use) you can , at your cost, send the product to place of purchase, an authorized Kincrome service agent or one of Kincrome’s addresses for repair or replacement. Your rights under this warranty are in addition to any other rights you have under the Australian Consumer Law or other applicable laws.
