Assembling The Holder-wire Stand - Samsung UN40D6500VF User Manual

6500 series.
Hide thumbs

Advertisement

Table of Contents
1
C
x4
(M4 X L12)
B
Front
A
Rear
3
Side View
4
NOTE
x
Make sure to distinguish between the front and back of each component when assembling them.
x
Make sure that at least two persons lift and move the TV.
x
Stand the product up and fasten the screws. If you fasten the screws with the TV placed down, it may lean to one
side.

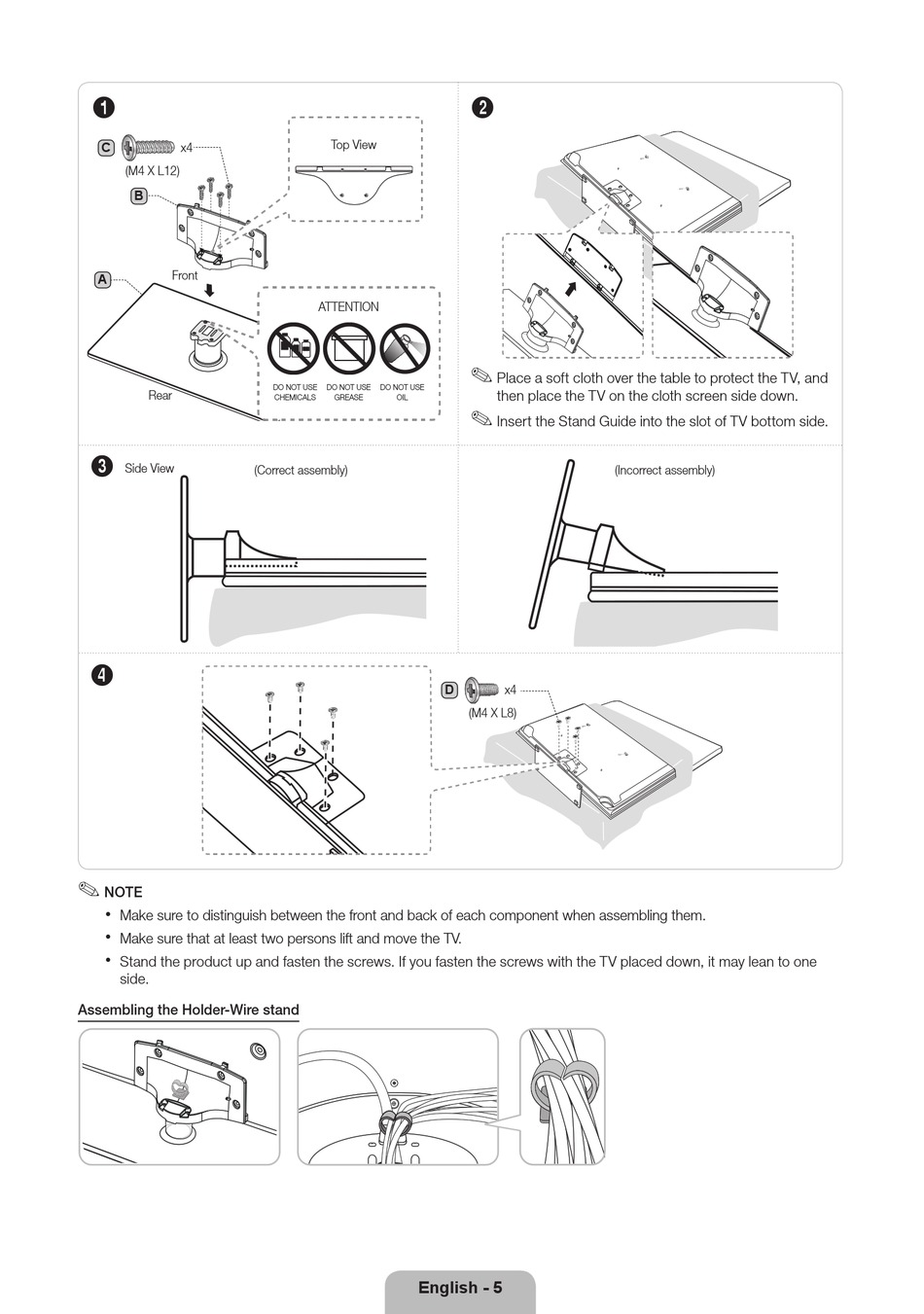

Assembling the Holder-Wire stand

Top View
ATTENTION
DO NOT USE
DO NOT USE
DO NOT USE
CHEMICALS
GREASE
OIL
(Correct assembly)
English - 5
2
Place a soft cloth over the table to protect the TV, and
then place the TV on the cloth screen side down.
Insert the Stand Guide into the slot of TV bottom side.
(Incorrect assembly)
D
x4
(M4 X L8)
