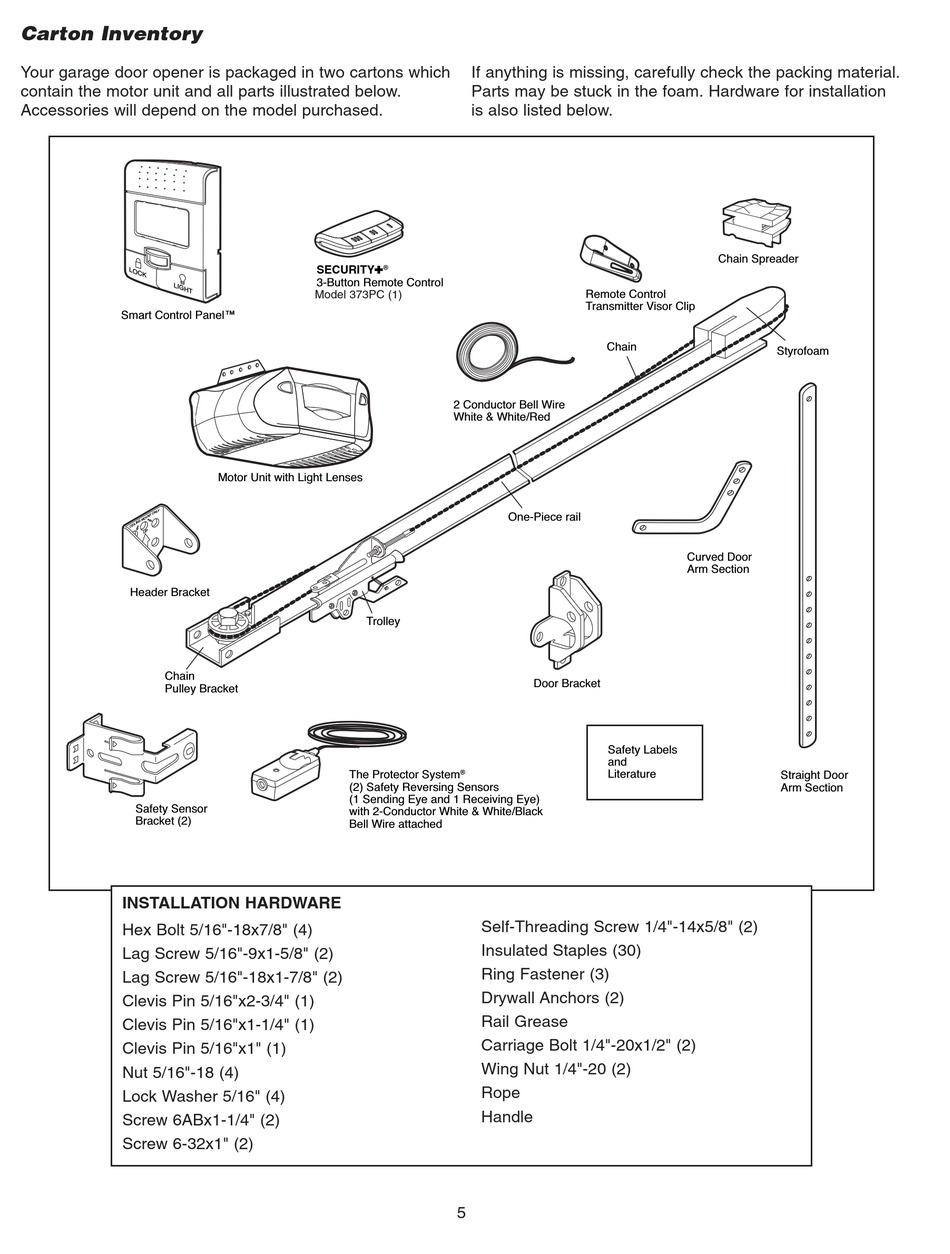

Carton Inventory

Your garage door opener is packaged in two cartons which
contain the motor unit and all parts illustrated below.
Accessories will depend on the model purchased.
L O C
K
L G
I H
T
Smart Control Panel™
Header Bracket
Chain
Pulley Bracket
Safety Sensor
Bracket (2)

INSTALLATION HARDWARE

Hex Bolt 5/16"-18x7/8" (4)
Lag Screw 5/16"-9x1-5/8" (2)
Lag Screw 5/16"-18x1-7/8" (2)
Clevis Pin 5/16"x2-3/4" (1)
Clevis Pin 5/16"x1-1/4" (1)
Clevis Pin 5/16"x1" (1)
Nut 5/16"-18 (4)
Lock Washer 5/16" (4)
Screw 6ABx1-1/4" (2)
Screw 6-32x1" (2)
SECURITY
®
3-Button Remote Control
Model 373PC (1)
Model 373P (1)
Motor Unit with Light Lenses
Trolley
The Protector System
(2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving Eye)
with 2-Conductor White & White/Black
Bell Wire attached
If anything is missing, carefully check the packing material.
Parts may be stuck in the foam. Hardware for installation
is also listed below.
Remote Control
Transmitter Visor Clip
Chain
2 Conductor Bell Wire
White & White/Red
One-Piece rail
Door Bracket
Safety Labels
and
®
Literature
Self-Threading Screw 1/4"-14x5/8" (2)
Insulated Staples (30)
Ring Fastener (3)
Drywall Anchors (2)
Rail Grease
Carriage Bolt 1/4"-20x1/2" (2)
Wing Nut 1/4"-20 (2)
Rope
Handle
5
Chain Spreader
Styrofoam
Curved Door
Arm Section
Straight Door
Arm Section
