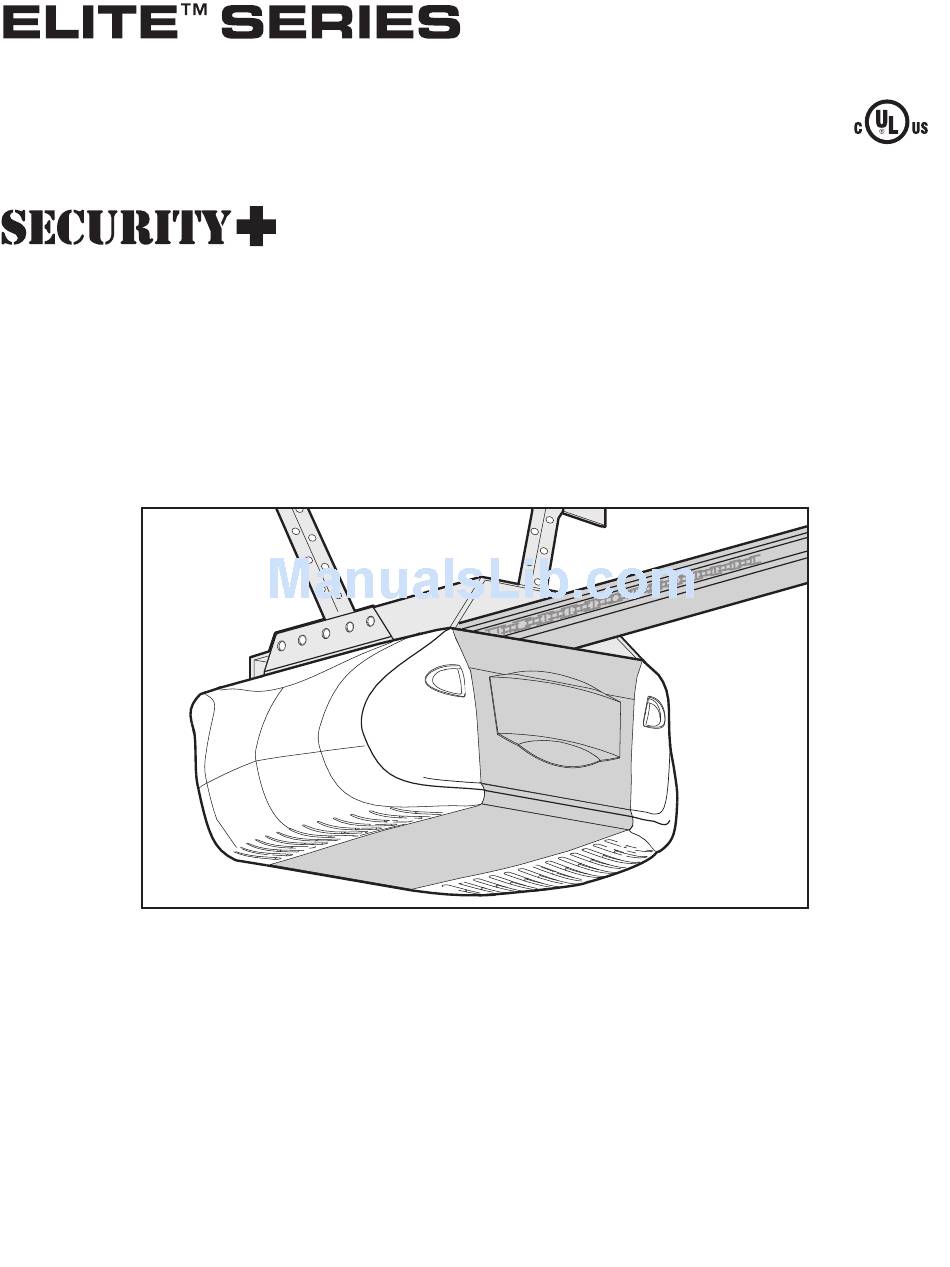

GARAGE DOOR OPENER
Model 3595 3/4 HP
For Residential Use
Install on Sectional Doors ONLY
THIS OPERATOR IS INTENDED FOR USE ONLY WITH I-BEAM RAILS.
Owner's Manual
■
Please read this manual and the enclosed safety materials carefully!
■
Fasten the manual near the garage door after installation.
The door WILL NOT CLOSE unless the Protector System
■
aligned.
■
Periodic checks of the opener are required to ensure safe operation.
■
The model number label is located under the light lens on the left side panel of your
opener.
®
The Chamberlain Group, Inc.
845 Larch Avenue
Elmhurst, Illinois 60126-1196
www.liftmaster.com
®
is connected and properly
Advertisement
Table of Contents
Related Manuals for Security + 3595
Summary of Contents for Security + 3595
- Page 1 GARAGE DOOR OPENER Model 3595 3/4 HP For Residential Use Install on Sectional Doors ONLY THIS OPERATOR IS INTENDED FOR USE ONLY WITH I-BEAM RAILS. Owner’s Manual ■ Please read this manual and the enclosed safety materials carefully! ■ Fasten the manual near the garage door after installation.
-
Page 2: Table Of Contents
INTRODUCTION Safety Symbol and Signal Word Review This garage door opener has been designed and tested to offer safe service provided it is installed, operated, maintained and tested in strict accordance with the instructions and warnings contained in this manual. -
Page 3: Preparing Your Garage Door
To prevent damage to garage door and opener: • ALWAYS disable locks BEFORE installing and operating the opener. • ONLY operate garage door opener at 120V, 60 Hz to avoid malfunction and damage. Tools needed During assembly, installation and adjustment of the opener, instructions will call for hand tools as illustrated below. -
Page 4: Planning
Planning Identify the type and height of your garage door. Survey your garage area to see if any of the conditions below apply to your installation. Additional materials may be required. You may find it helpful to refer back to this page and the accompanying illustrations as you proceed with the installation of your opener. -
Page 5: Carton Inventory
Carton Inventory Your garage door opener is packaged in two cartons which contain the motor unit and all parts illustrated below. Accessories will depend on the model purchased. SECURITY L O C 3-Button Remote Control Model 373P (1) Smart Control Panel™... -
Page 6: Assembly
Chain Spreader Sprocket Motor Unit Mounting Plate To avoid possible SERIOUS INJURY to fingers from moving garage door opener: • ALWAYS keep hand clear of sprocket while operating opener. • Securely attach chain spreader BEFORE operating. Figure 4 Hex Bolts 1/4"-20x5/8"... -
Page 7: Tighten The Chain
4. Disable ALL locks and remove ALL ropes connected to garage door BEFORE installing opener to avoid entanglement. 5. Install garage door opener 7 feet (2.13 m) or more above floor. 6. Mount emergency release handle 6 feet (1.83 m) above floor. -
Page 8: Determine The Header Bracket Location
INSTALLATION STEP 1 Determine the Header Bracket Location To prevent possible SERIOUS INJURY or DEATH: • Header bracket MUST be RIGIDLY fastened to structural support on header wall or ceiling, otherwise garage door might not reverse when required. DO NOT install header bracket over drywall. -
Page 9: Install The Header Bracket
INSTALLATION STEP 2 Install the Header Bracket You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow the instructions which will work best for your particular requirements. Do not install the header bracket over drywall. If installing into masonry, use concrete anchors (not provided). -
Page 10: Attach The Rail To The Header Bracket
The trolley can remain disconnected until Installation Step 12 is completed. Trolley Release Arm ENGAGED Ring Fastener To prevent damage to garage door, rest garage door opener rail on 2x4 placed on top section of door. RELEASED Header Wall Header Bracket... -
Page 11: Hang The Opener
INSTALLATION STEP 5 Hang the Opener Three representative installations are shown. Yours may be different. Hanging brackets should be angled (Figure 1) to provide rigid support. On finished ceilings (Figure 2 and Figure 3), attach a sturdy metal bracket to structural supports before installing the opener. -
Page 12: Install The Door Control
SPECIAL NOTE: Only one 398LM can be connected to each garage door opener. If additional wall controls are desired to operate the same garage door opener, it is recommended to use model 378LM wireless wall control as the secondary door control. -
Page 13: Install The Light
4-1/2 minutes when power is connected. Then the lights will turn OFF. • Reverse the procedure to close the lens. • Use A19, standard neck garage door opener bulbs for replacement. NOTE: Use only standard light bulbs. The use of short neck or speciality light bulbs may overheat the endpanel or light socket. -
Page 14: Electrical Requirements
INSTALLATION STEP 9 Electrical Requirements To avoid installation difficulties, do not run the opener at this time. To reduce the risk of electric shock, your garage door opener has a grounding type plug with a third grounding pin. This plug will only fit into a grounding type outlet. If the plug doesn’t fit into the outlet you have, contact a qualified electrician to install the proper outlet. -
Page 15: Install The Protector System
Safety Reversing Sensor 6" (15 cm) max. above floor ® Be sure power is not connected to the garage door opener BEFORE installing the safety reversing sensor. To prevent SERIOUS INJURY or DEATH from a closing garage door: •... - Page 16 INSTALLING THE BRACKETS Be sure power to the opener is disconnected. Install and align the brackets so the sensors will face each other across the garage door, with the beam no higher than 6" (15 cm) above the floor. They may be installed in one of three ways, as follows: Garage door track installation (preferred): •...
- Page 17 MOUNTING AND WIRING THE SAFETY REVERSING SENSORS • Slide a 1/4"-20x1/2" carriage bolt head into the slot on each sensor. Use wing nuts to fasten sensors to brackets, with lenses pointing toward each other across the door. Be sure the lens is not obstructed by a bracket extension (Figure 4).
-
Page 18: Fasten The Door Bracket
INSTALLATION STEP 11 Fasten the Door Bracket Follow instructions which apply to your door type as illustrated below or on the following page. A horizontal reinforcement brace should be long enough to be secured to two or three vertical supports. A vertical reinforcement brace should cover the height of the top panel. -
Page 19: Connect The Door Arm To The Trolley
INSTALLATION STEP 12 Connect Door Arm to Trolley SECTIONAL DOORS ONLY • Make sure garage door is fully closed. Pull the emergency release handle to disconnect the outer trolley from the inner trolley. Slide the outer trolley back (away from the door) about 2" (5 cm) as shown in Figures 1, 2 and 3. -
Page 20: Adjustment
ADJUSTMENT STEP 1 Adjust the UP and DOWN Travel Limits Limit adjustment settings regulate the points at which the door will stop when moving up or down. To operate the opener, press the Door Control push bar. Run the opener through a complete travel cycle. •... -
Page 21: Adjust The Force
ADJUSTMENT STEP 2 Adjust the Force Force adjustment controls are located on the right side panel of the motor unit. Force adjustment settings regulate the amount of power required to open and close the door. If the forces are set too light, door travel may be interrupted by nuisance reversals in the down direction and stops in the up direction. -
Page 22: Test The Safety Reversal System
The door will not move more than an inch (2.5 cm), and the opener lights will flash. The garage door opener will not close from a remote if the indicator light in either sensor is off (alerting you to the fact that the sensor is misaligned or obstructed). -
Page 23: Operation
• The wall-mounted Door Control: Hold the push button or bar down until the door starts to move. • The Keyless Entry (see Accessories): If provided with your garage door opener, it must be programmed before use. See Programming. When the opener is activated (with the safety reversing sensor correctly installed and aligned): 1. -
Page 24: Using The Wall-Mounted Door Control
Using the Wall-Mounted Door Control THE SMART CONTROL PANEL™ Press the push bar to Motion Sensing open or close the On/Off door. Press again to reverse the door Prog <Learn> during the closing cycle or to stop the Hour door while it's Minute opening. -
Page 25: Using The Remote Control
Using the Remote Control NOTE: To activate the remote control functions, pull out the plastic pull tab protruding from the remote control housing. This remote control is equipped with a proximity lighting feature. When moving a hand within close proximity to the remote control, the LED lights turn on for 3 seconds. -
Page 26: To Open The Door Manually
To Open the Door Manually To prevent possible SERIOUS INJURY or DEATH from a falling garage door: • If possible, use emergency release handle to disengage trolley ONLY when garage door is CLOSED. Weak or broken springs or unbalanced door could result in an open door falling rapidly and/or unexpectedly. -
Page 27: Having A Problem
Step 10. 12. The opener lights don't turn on: • Replace the light bulbs (100 watts maximum). Use a standard neck garage door opener bulb if regular bulb burns out. 13. The opener lights don't turn off: • Is the Light feature on? Turn it off. -
Page 28: Smart Control Panel™ Messages
Smart Control Panel™ Messages The following messages are contained within the Smart Control Panel™ and may appear during the operations of the unit: Message Meaning: This message will appear if the Safety Reversing Sensors are out of alignment, if they are blocked or if the wiring is disconnected. To clear message SAFETY SENSORS from Door Control do the following: CHECK ALIGNMENT,... -
Page 29: Programming
The owner of the copyright in the garage door opener does not authorize the purchaser or supplier of the non-rolling code transmitter to circumvent that technical measure. -
Page 30: To Add, Reprogram Or Change A Keyless Entry Pin
To Add, Reprogram or Change a Keyless Entry PIN NOTE: Your new Keyless Entry must be programmed to operate your garage door opener. USING THE “LEARN” BUTTON 1. Press and release the “learn” button on motor unit. The learn indicator light will glow steadily for 30 seconds. -
Page 31: Repair Parts
REPAIR PARTS Rail Assembly Parts Installation Parts L O C L I G KEY PART 398LM 373P 10A19 10A33 29C151 41A2828 41B4494-1 41A5047 41A4353 41A5034 178B34 178B35 41A5266-1 41A5281 41A2770-8 114A3404 114A3404SP Owner’s manual - Spanish PART DESCRIPTION 4A1008 Master link kit 41A2780 Chain pulley bracket 41A3489... -
Page 32: Motor Unit Assembly Parts
Motor Unit Assembly Parts PART DESCRIPTION 41C5069 Chassis support bracket assy. kit 41A4208-2 Chain spreader 41A5658 Gear and sprocket assembly Complete with: Spring washer, thrust washer, retaining ring, bearing plate, roll pins (2), drive gear and worm gear, helical gear w/retainer and grease 41A2817 Drive/worm gear kit w/grease,... -
Page 33: Accessories
395LM Remote Light Control: Enables homeowner to turn on a lamp, television or other appliance from their car with their garage door opener remote or from anywhere in their home with an additional LiftMaster Security✚ 975LM Laser Park Assist: Laser enables homeowners to precisely park vehicles in the garage. -
Page 34: Notes
NOTES... -
Page 35: Notes
NOTES... -
Page 36: Repair Parts And Service
The Chamberlain Group, Inc. (“Seller”) warrants to the first retail purchaser of this product, for the residence in which this product is originally installed, that it is free from defect in materials and/or workmanship for a period of five years from the date of purchase,the motor is free from defect in materials and/or workmanship for the lifetime of the product.
