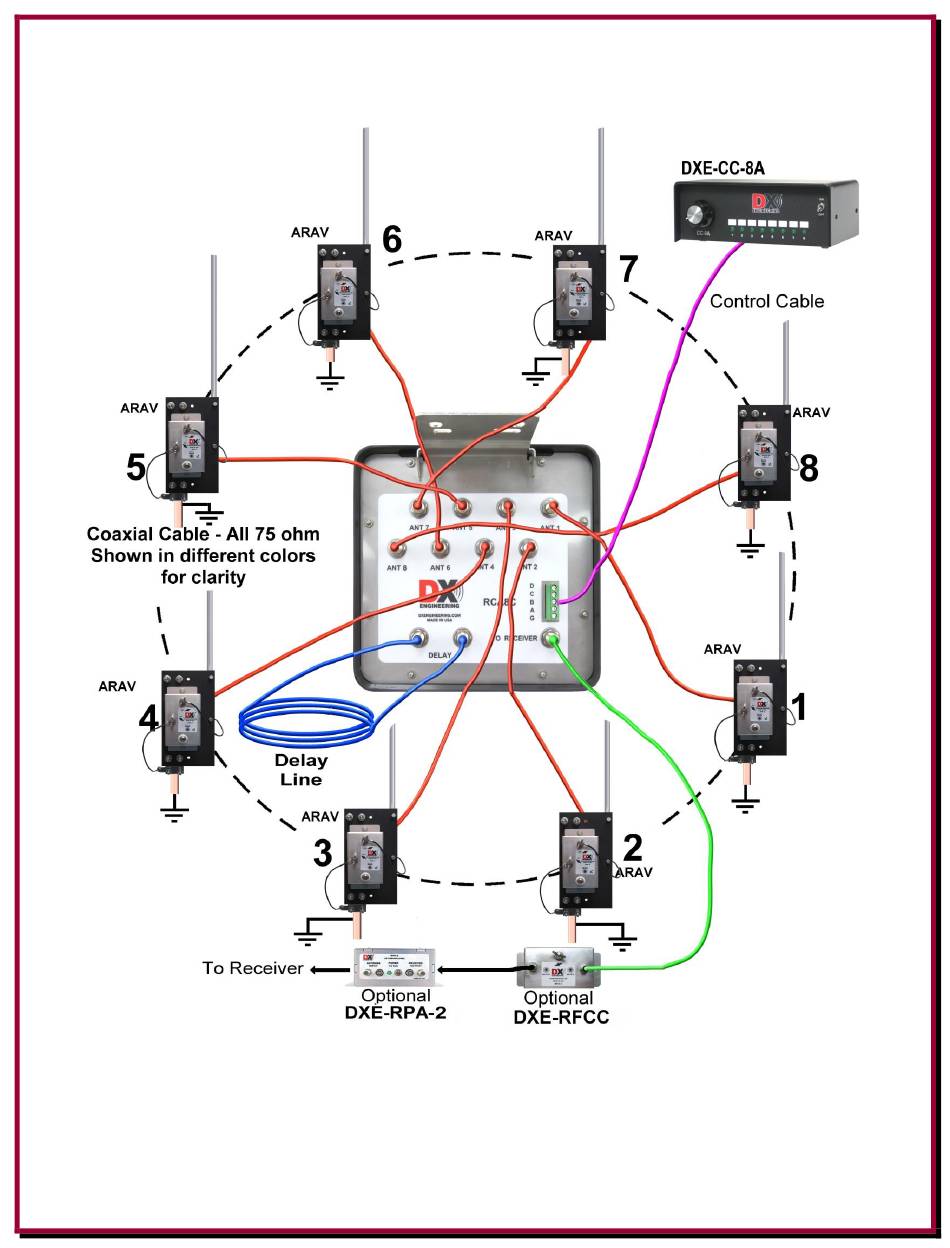

Typical DXE-RCA8C-SYS-4S Receive Eight Circle Configuration
Figure 8
Coaxial Cables are shown in various colors for clarity. Shown with optional DXE-RPA-2 Receive Pre-
Amplifier, DXE-RFCC Receive Feedline Current Choke and optional DXE-CW9S Control Cable.
Power connection to the modified DXE-CC-8A Control Console is not shown.
- 13 -
