Capricorn LabC803 Instruction Manual page 20

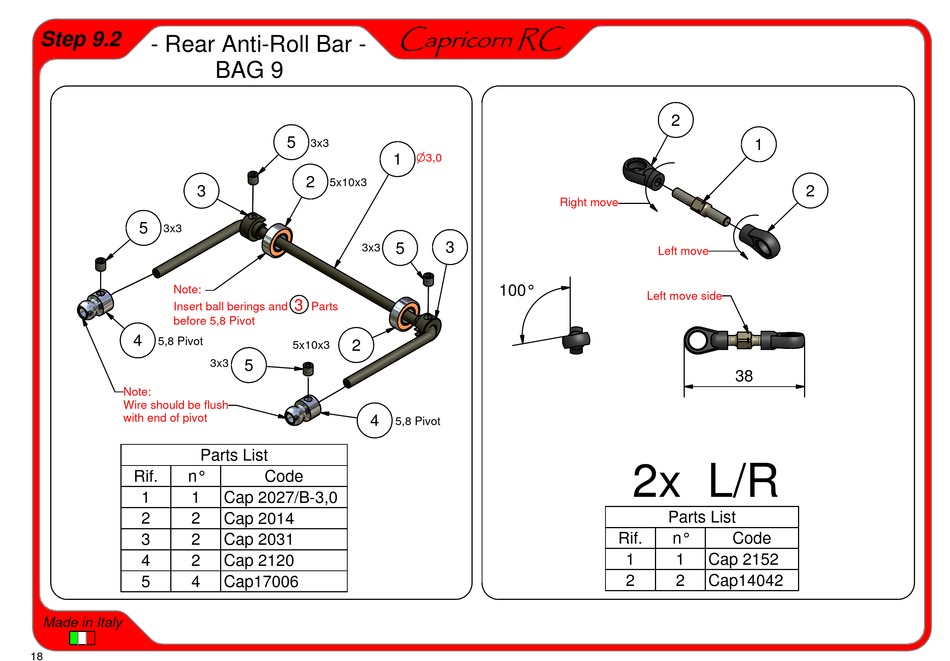

Step 9.2
- Rear Anti-Roll Bar -
3
5
3x3
Note:
Insert ball berings and
before 5,8 Pivot
4
5,8 Pivot
Note:
Wire should be flush
with end of pivot
Parts List
Rif. n°
1 1
2 2
3 2
4 2
5 4
Made in Italy
18
BAG 9
5
3x3
2
5x10x3
3x3
3
Parts
2
5x10x3
3x3
5
4
Code
Cap 2027/B-3,0
Cap 2014
Cap 2031
Cap 2120
Cap17006
C C C C a a a a p p p p r r r r i i i i c c c c o o o o r r r r n n n n R R R R C C C C
n
1 3,0
Right move
5 3
100°
5,8 Pivot
2
1
Left move
Left move side
38
2x L/R
Parts List
Rif. n° Code
1 1 Cap 2152
2 2 Cap14042
2
