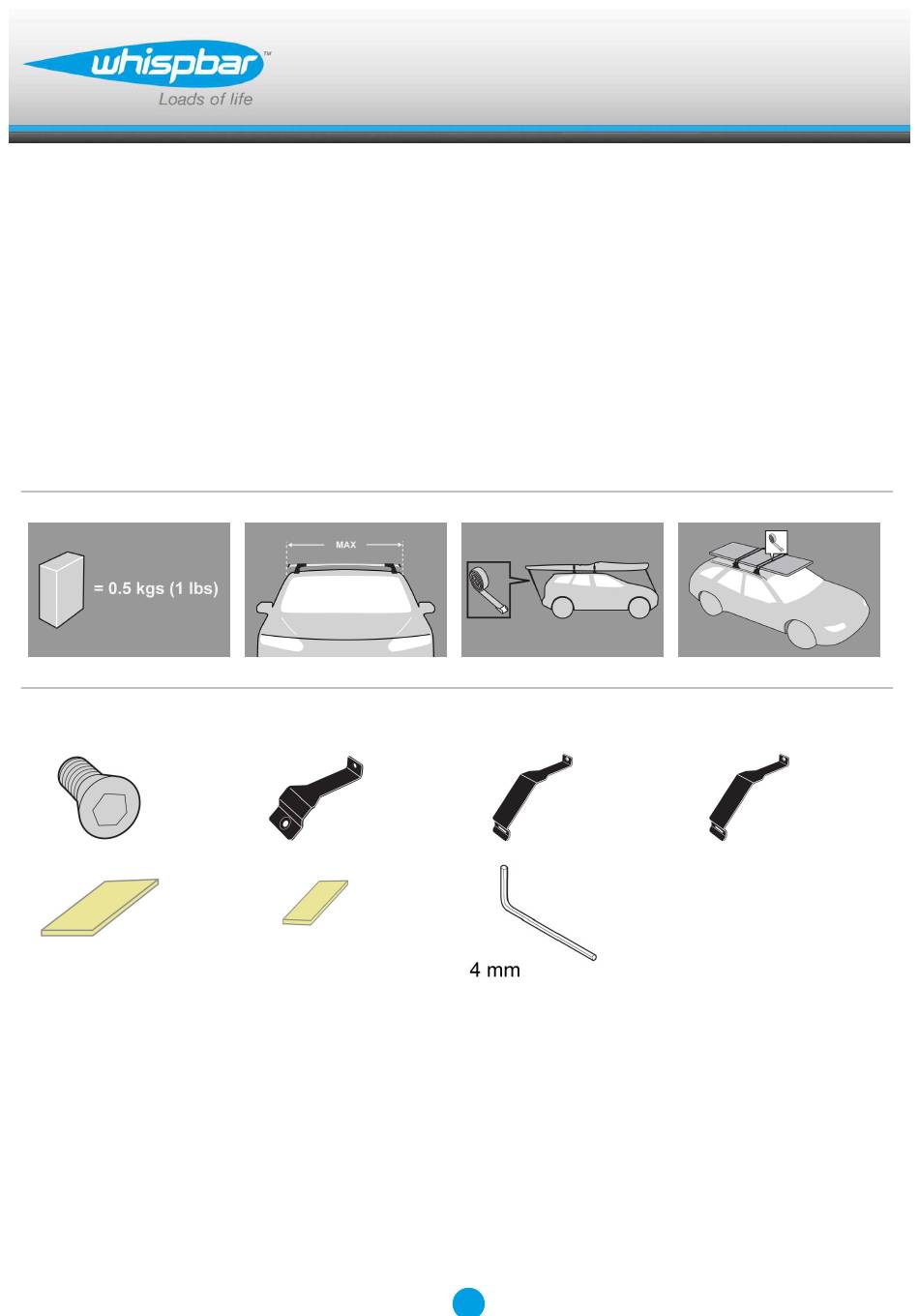

- Page 1 K309W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 7C...
- Page 2 Fitting Kit K309W MAX kgs (lbs) Toyota Emina Lucida, 4dr MPV 92-99 75 kgs (165 lbs) 75 kgs (165 lbs) Estima Wide Body, 4dr MPV 90-00 75 kgs (165 lbs) 75 kgs (165 lbs) Estima Wide Body, 4dr MPV 90-00...
-
Page 3: First Time Installation
Fitting Kit K309W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K309W Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 5 Fitting Kit K309W Remove locking screw. Apply protective strip as shown. Trim if required. It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps. Clamp Part Number:...
- Page 6 Fitting Kit K309W Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right"). Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw.
- Page 7 Fitting Kit K309W Make sure the pad fits into the holes underneath the foot. Fitment The righthand clamps hook onto the body clip under the righthand window first. Left hand clamps screw into the cavity nuts in the roof line.
- Page 8 Fitting Kit K309W Adjust the legs on the crossbar so that they are positioned equally from the ends of the crossbar, and the clamps engage firmly on the body work of the vehicle. Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight.
- Page 9 Fitting Kit K309W Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 10: Maintenance
Fitting Kit K309W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 11 Fitting Kit K309W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 12 Fitting Kit K309W Emina, 4dr MPV 92-99 (EU) 470mm 1050mm 760mm 740mm 18 1/2ths" 41 5/16ths" 29 15/16ths" 29 1/8ths" Estima, 4dr MPV 90-00 (NZ) 470mm 1040mm 18 1/2ths" 40 15/16ths" Estima, 4dr MPV 90-00 (NZ) 470mm 1040mm 863mm 852mm 18 1/2ths"...
-
Page 13: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 14 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
