SIBELL NVR-SB16ME Quick Start Manual

Network Video Recorder
Quick Start Guide
1. Notes
● Please read this instruction carefully for correct use of the product and
preserve it for reference purposes.
● All the examples and pictures used here are for reference only.
● There may be several technically incorrect places or printing errors in
this manual. The updates will be added into the new version of this manual.
The contents of this manual are subject to change without notice.
● This device should be operated only from the type of power source indicated
on the marking label. The voltage of the power must be verified before using
the same.
2. Packing Check
Please check the device and the accessories after getting the device. If there are
any damages, shortages or defects, please contact your dealer immediately.

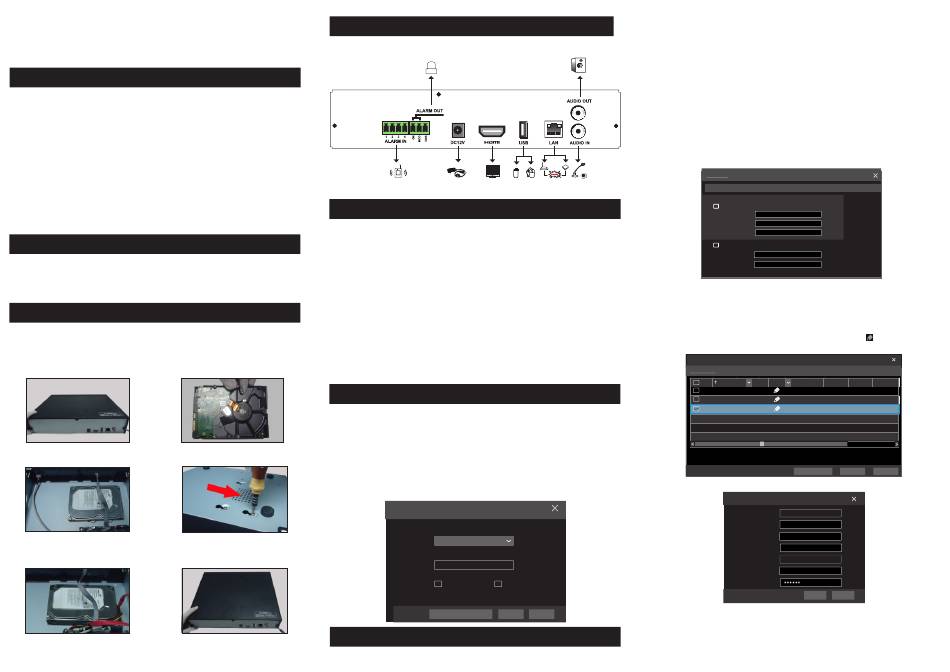

3. HDD Installation
This series of the product supports 1 SATA hard drive. Please make sure that
the device is powered off before the installation. The pictures of the installation
are only for reference, please take the real object as the standard.
② Put the screws into the HDD.
① Loosen the screws to open the cover.
③ Place the HDD onto the bottom ④ Turn over the machine and secure
of the case. the HDD with the screws.
⑥ Install the cover back and fix it.
⑤ Connect the power and data cables.
4. Rear Panel Instruction
The interfaces of the rear panel are for reference only.
5. Startup & Shutdown
►Startup
① Connect the monitor and the power.
② The device will boot and the power indicator will display blue.
③ A wizard window will pop up.
►Shutdown
Go to "Main Menu" and then select "Shutdown" icon. This will bring up a
shutdown window. The device will shut down by clicking "OK" button.
Then disconnect the power.
6. Login
You must configure the wizard if you start the NVR for the first time. You can
skip the settings of wizard next time. The default username is admin and the
password is set by yourself when you configure the wizard for the first time.
Click "Start" and select "Login". This will take you to see a login box. Input
default username and password you set and you can see the live image.
Important: Please Take Note of this password, Email and Secret Question
Login
Username admin
Password Enter Password
Display Password Log In Automatically
Edit Security Question Login
7. Network Configuration
After you finish adding IP cameras, you can see the live images through the
monitor of the NVR. The following will mainly introduce how to add the IP
cameras via LAN/WAN.
►LAN
① Set the network of the NVR. Go to Start → Settings → Network →TCP/IPv4.
Input IP address, subnet mask, gateway, etc. If using DHCP, please enable DHCP
in both the NVR and the router.
② Go to Start → Settings → Network → Port. Input HTTP port (the default
value is 80), server port (the default port is 6036).
③ Click "Apply" to save the settings.
TCP/IPv4
④ Go to Start → Settings → Camera → Add Camera. The NVR will
automatically refresh the cameras searched. The IPC which supports the Onvif
protocol be added manually. If the IPC searched is not in the same local
network as the NVR, you should select the device and click to modify the IP
address.
Quickly Add
No.
1
2
3
Selected: 1/3
Remain Bandwidth: 108 / 120 Mb
Cancel
⑤ Checkmark the device you want to add and then click "Add" button.The
NVR will automatically refresh the cameras and return to "Edit Camera"
interface.
UPnP Network Status
Port DDNS E-mail NAT
IP Address Settings
Ethernet Port 1 ( Online )
Obtain an IP address automatically
IP Address
192 . 168 . 1 . 2
Subnet Mask 0 . 0 . 0 . 0
Gateway 192 . 168 . 1 . 1
Obatin DNS server address automatically
Preferred DNS 192 . 168 . 1 . 1
Alternate DNS 0 . 0 . 0 . 0
Add Camera
Manually Add
Port Edit Subnet Mask Protocol Model Version
IP Address
192.168.1.20 80 255.255.255.0 XXX XXX 3.4.2
3.4.2
192.168.1.38 80 255.255.255.0 XXX XXX
192.168.2.45 80 255.255.255.0 XXX XXX 4.0.0.1.beta1
Default Password Add Cancel
Edit IP Camera
Mac Address CE :98 :23 :75 :35 :22
IP Address 192 .168 . 1 . 45
Subnet Mask
255 . 255 . 255 . 0
Gateway 192 .168 . 1 . 1
Port 9008
Username admin
Password
OK Cancel
