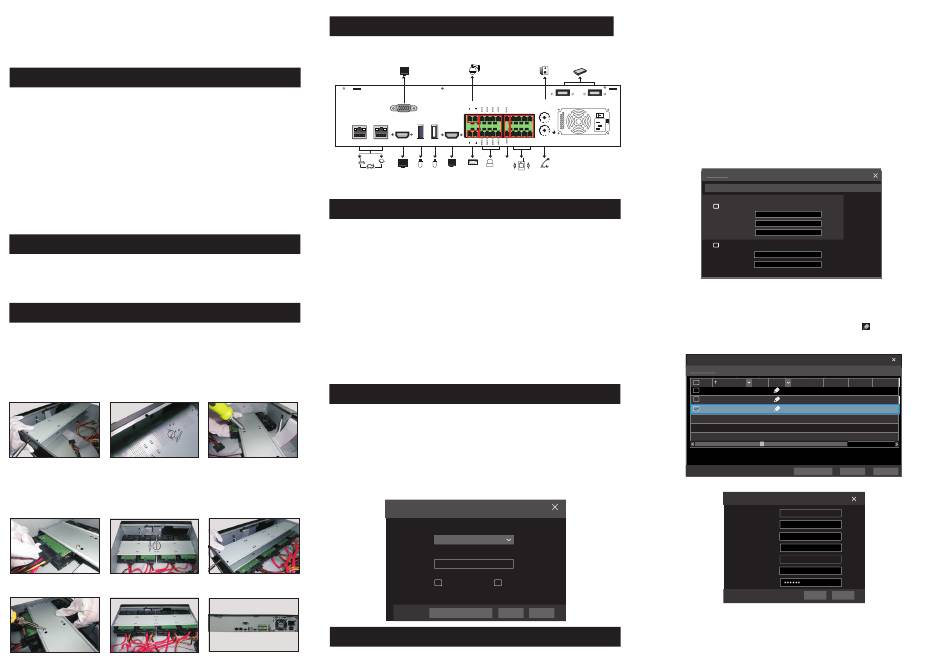

SIBELL NVR-SB32 Quick Start Manual

Network Video Recorder
Quick Start Guide

1. Notes

● Please read this instruction carefully for correct use of the product and
preserve it for reference purposes.
● All the examples and pictures used here are for reference only.
● There may be several technically incorrect places or printing errors in
this manual. The updates will be added into the new version of this manual.
The contents of this manual are subject to change without notice.
● This device should be operated only from the type of power source indicated
on the marking label. The voltage of the power must be verified before using
the same.

2. Packing Check

Please check the device and the accessories after getting the device. If there are
any damages, shortages or defects, please contact your dealer immediately.

3. HDD Installation

This series of the product supports 8 SATA hard drives. Please make sure that
the device is powered off before the installation.
① Remove the cover and loosen the screws to take out two mounting bars.
② Screw the shorter pillar attached with the DVR into the bottom of the device.
③
Install back the lower mounting bar and tighten the screws of the lower HDD.
④ Connect the power and data cables and install the other three HDDs according to
above-mentioned method.
⑤ Screw the longer pillar into the lower mounting bar.
⑥ Install back the upper mounting bar and tighten the screw of the pillar.
⑦ Install the upper four HDDs and install back the cover.

4. Rear Panel Instruction

The interfaces of the rear panel are for reference only.
RS 485 ALARM OUT
P/Z
Z Y
VGA
4K2K
B A
LAN 1 LAN 2 HDMI 1 USB3.0 USB HDMI 2
K/B
Internet
12
5. Startup & Shutdown
►Startup
① Connect the monitor and the power.
② The device will boot and the power indicator will display blue.
③ A wizard window will pop up.
►Shutdown
Go to "Main Menu" and then select "Shutdown" icon. This will bring up a
shutdown window. The device will shut down by clicking "OK" button.
Then disconnect the power.

6. Login

You must configure the wizard if you start the NVR for the first time. You can
skip the settings of wizard next time. The default username is admin and the
password is set by yourself when you configure the wizard for the first time.
Click "Start" and select "Login". This will take you to see a login box. Input
default username and password you set and you can see the live image.
Important: Please Take Note of this Password, Email and Secret question!
Login
Username admin
Password Enter Password
Display Password Log In Automatically
Edit Security Question Login

7. Network Configuration

After you finish adding IP cameras, you can see the live images through the
monitor of the NVR. The following will mainly introduce how to add the IP
cameras via LAN/WAN.
►LAN
① Set the network of the NVR. Go to Start → Settings → Network →TCP/IPv4.
Input IP address, subnet mask, gateway, etc. If using DHCP, please enable DHCP
e-SATA 1 e-SATA 2
ALARM IN AUDIO
OUT
7 5 3 1 in both the NVR and the router.
② Go to Start → Settings → Network → Port. Input HTTP port (the default
AUDIO
value is 80), server port (the default port is 6036).
8 6 4 2
IN
③ Click "Apply" to save the settings.
④ Go to Start → Settings → Camera → Add Camera. The NVR will
automatically refresh the cameras searched. The IPC which supports the Onvif
protocol has be added manually. If the IPC searched is not in the same local
network as the NVR, you should select the device and click to modify the IP
address.
Quickly Add
Cancel
⑤
Checkmark the device you want to add and then click "Add" button.The
NVR will automatically refresh the cameras and return to "
interface.
TCP/IPv4 UPnP Network Status
Port DDNS E-mail NAT
IP Address Settings
Ethernet Port 1 ( Online )
Obtain an IP address automatically
IP Address
192 . 168 . 1 . 2
Subnet Mask 0 . 0 . 0 . 0
Gateway 192 . 168 . 1 . 1
Obatin DNS server address automatically
Preferred DNS 192 . 168 . 1 . 1
Alternate DNS 0 . 0 . 0 . 0
Add Camera
Manually Add
No. Port Edit Subnet Mask Protocol Model Version
IP Address
1 192.168.1.20 80 255.255.255.0 XXX XXX
2
192.168.1.38 80 255.255.255.0 XXX XXX
3 192.168.2.45 80 255.255.255.0 XXX XXX 4.0.0.1.beta1
Selected: 1/3
Remain Bandwidth: 108 / 120 Mb
Default Password Add
Edit IP Camera
Mac Address CE :98 :23 :75 :35 :22
IP Address 192 .168 . 1 . 45
Subnet Mask
255 . 255 . 255 . 0
Gateway 192 .168 . 1 . 1
Port 9008
Username admin
Password
OK Cancel
3.4.2
3.4.2
Cancel
Edit Camera"
